Home
>>
Eagle
>>
1995
>>
Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Testing and Inspection
>>
Flow of Diagnosis
Flow of Diagnosis

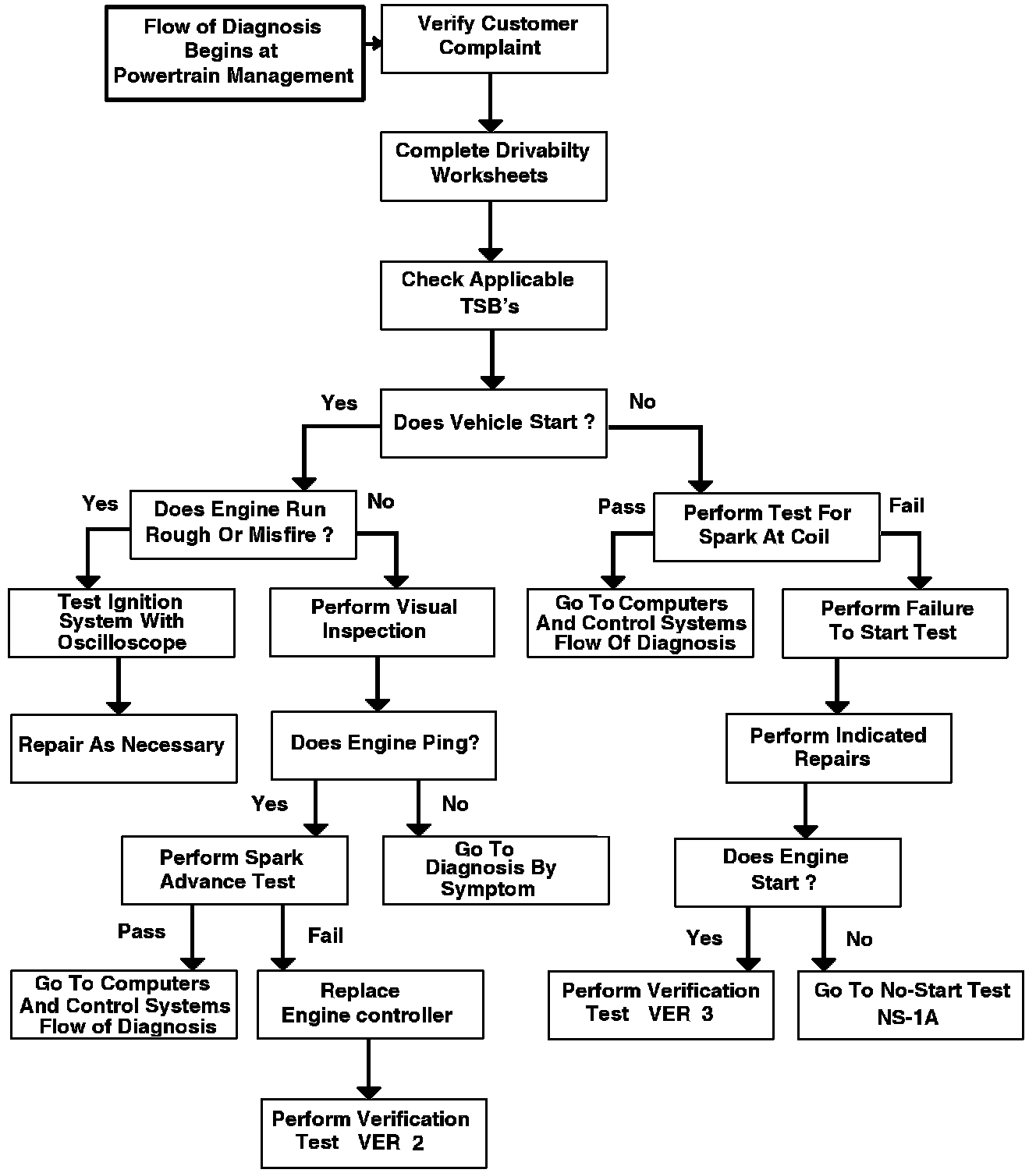

Flow Of Diagnosis - Ignition System:
