Fuel Tank: Locations

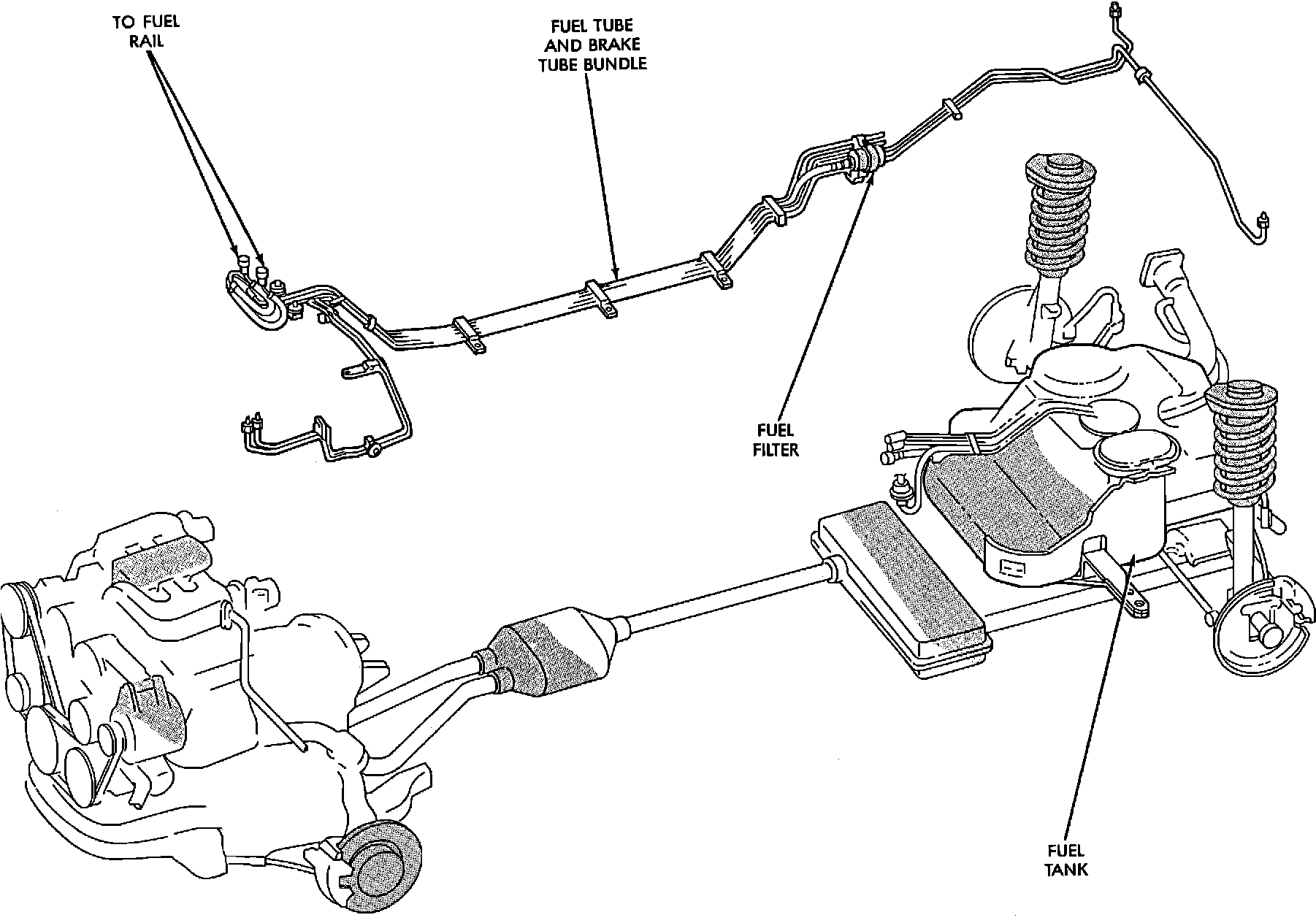

Chassis Fuel Tubes:
The fuel tank is located between frame rails at the rear of the vehicle.
