Disassembly

Quick Connect Fuel Fittings:

Notes:

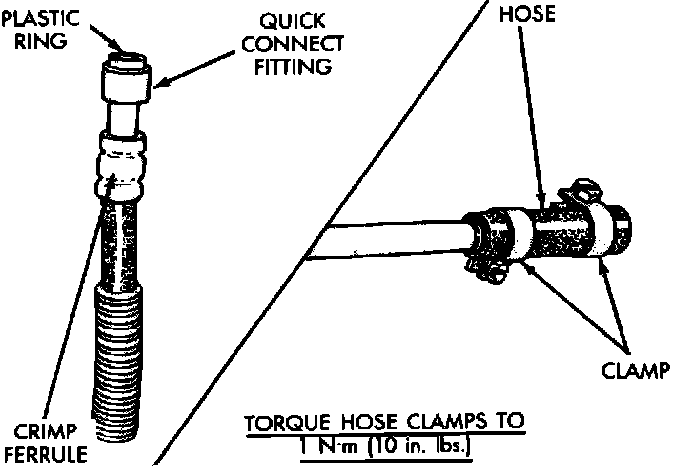

Some fuel lines have quick connect fittings, which are designed to speed up the installation and removal of fuel lines (Fig. 3).

Quick connect fittings consist of a metal casing, a black plastic release ring, a metal locking retainer, and internal O-rings.

Warning: Fuel system pressure must be released before disconnecting any fuel system component.

1. Disconnect the negative battery cable.

2. Remove the fuel tank gas cap to release fuel tank pressure.

3. Perform the Fuel System Pressure Release Procedure.

4. Remove any loose dirt from quick connect fittings.


CAUTION: Wrap shop towels around hoses to catch any gasoline spillage.


5. To remove the fuel tube nipple from a quick connect fitting, pull back on the fitting while pushing in on the plastic ring. To aid in disassembly, an open end wrench may be used to push the plastic ring in.

6. Cover the quick connector to prevent contamination.
