Component Testing

Fuel Injector Diagnosis:

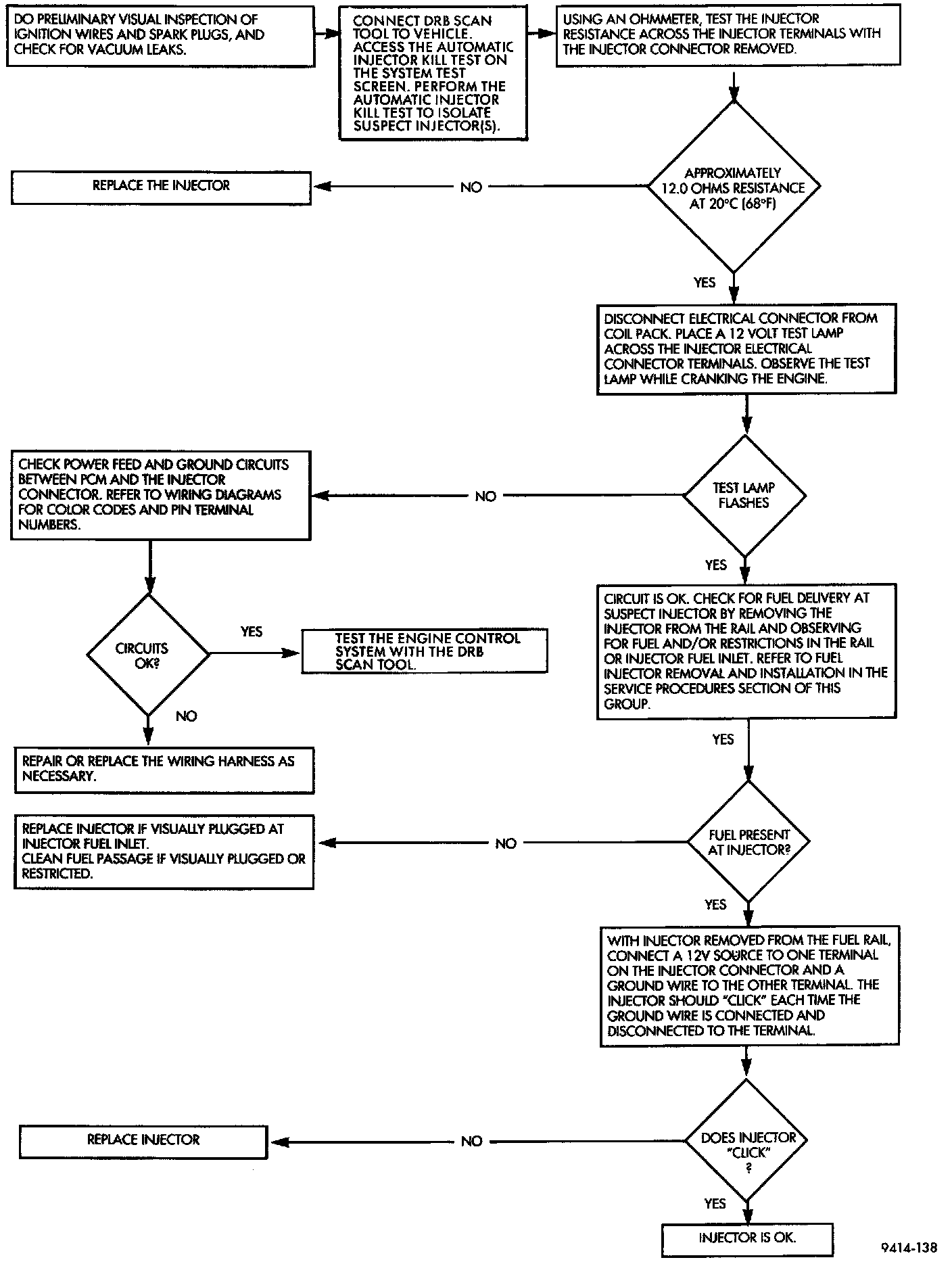

For fuel injector diagnosis, refer to the Fuel Injector Diagnosis chart.
