Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Trouble Code (NTC) Tests >> NTC-7B Checking For Oxygen Sensor Switching

NTC-7B Checking For Oxygen Sensor Switching

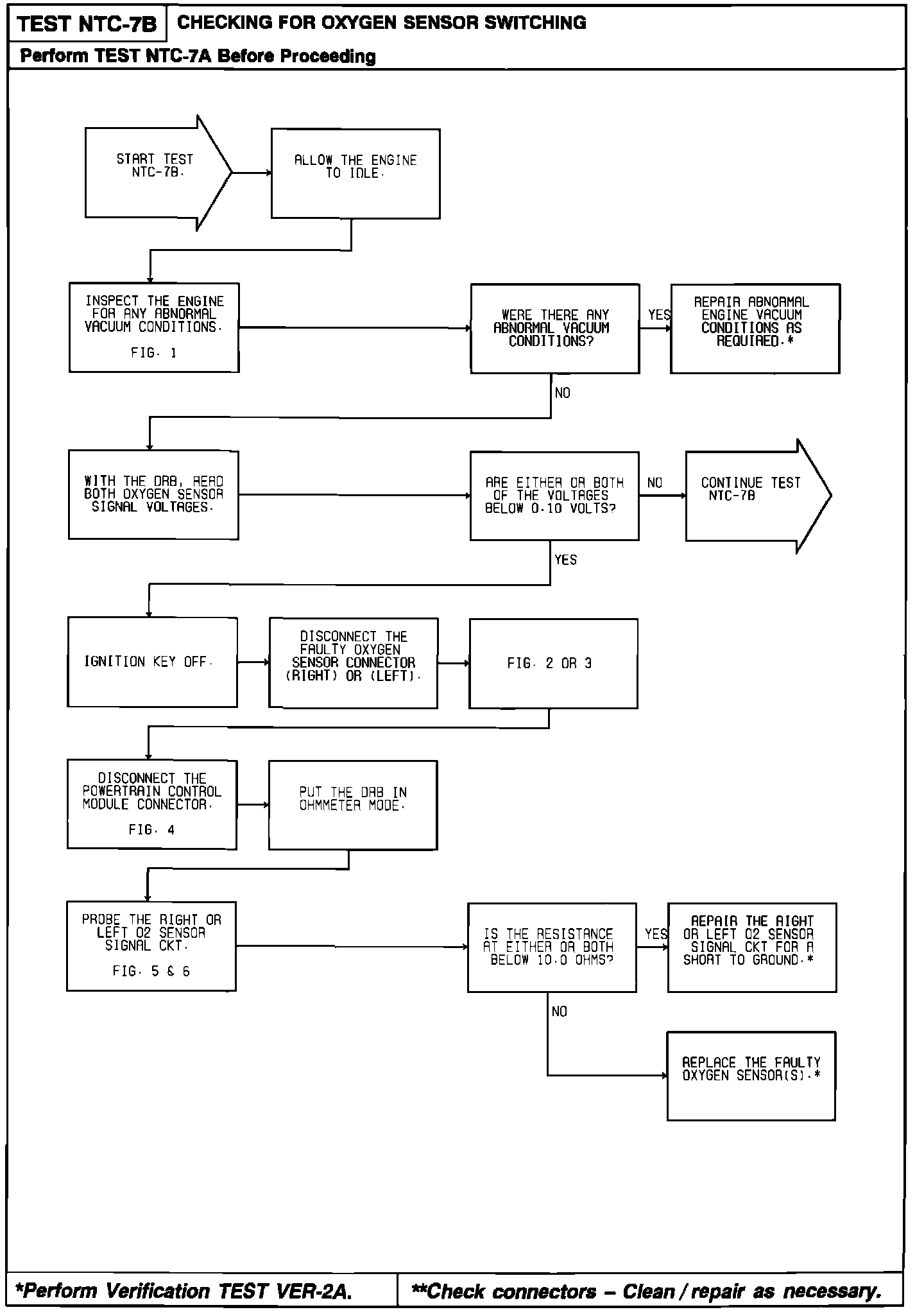

Part 1 Of 2:



Part 1 Of 2:

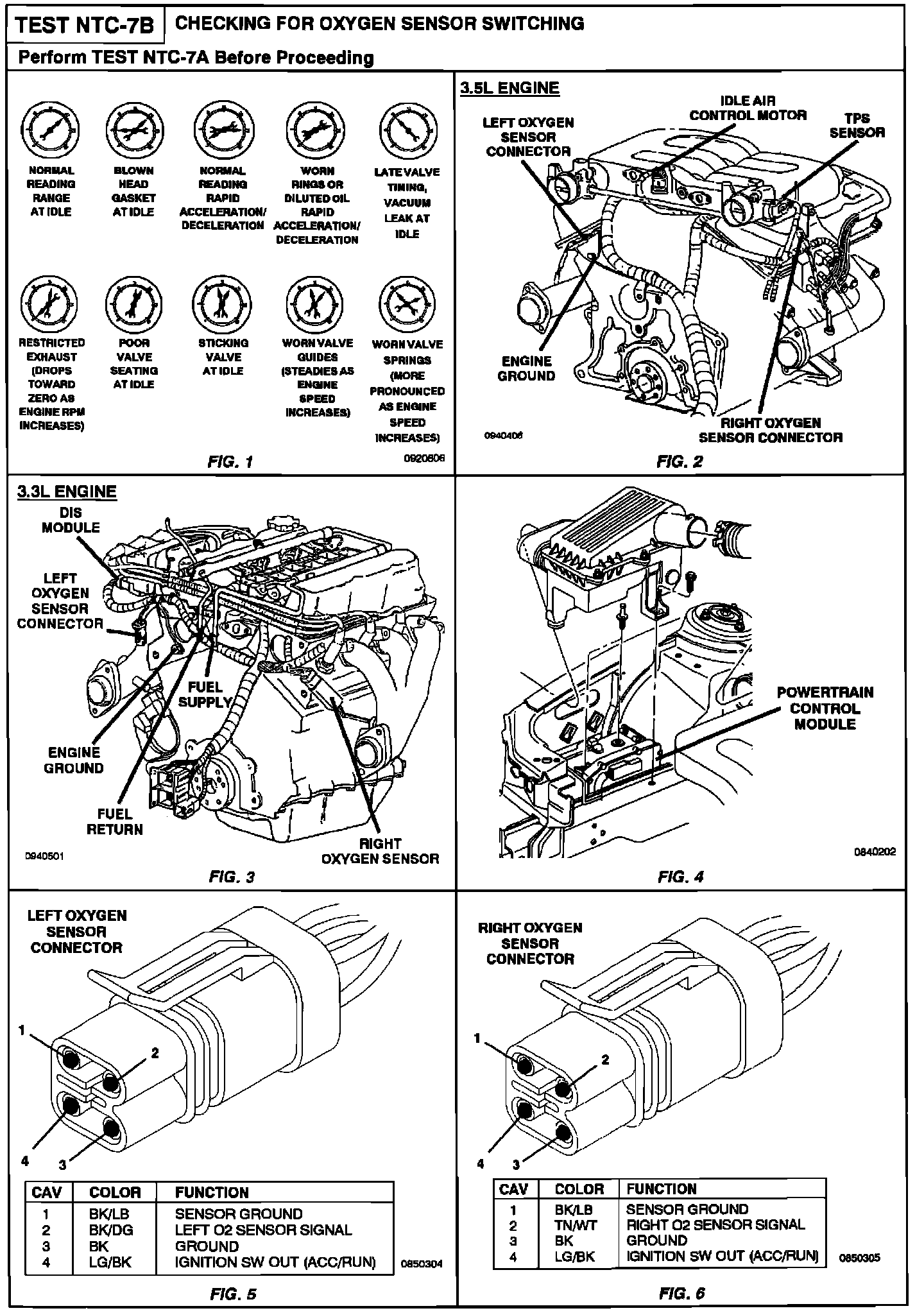

Part 2 Of 2:
