Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Trouble Code (NTC) Tests >> NTC-5A Checking Throttle Position Sensor Calibration

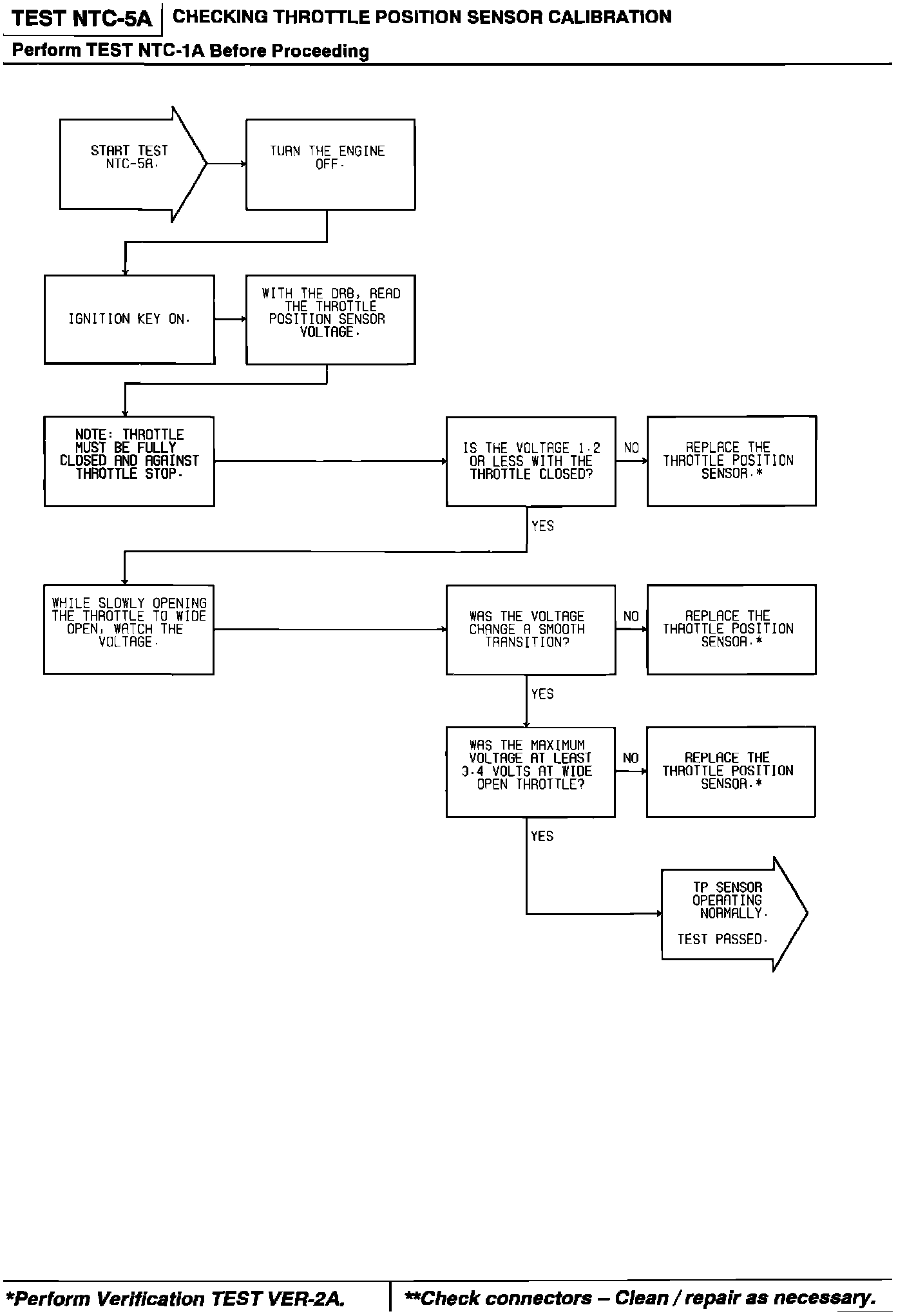

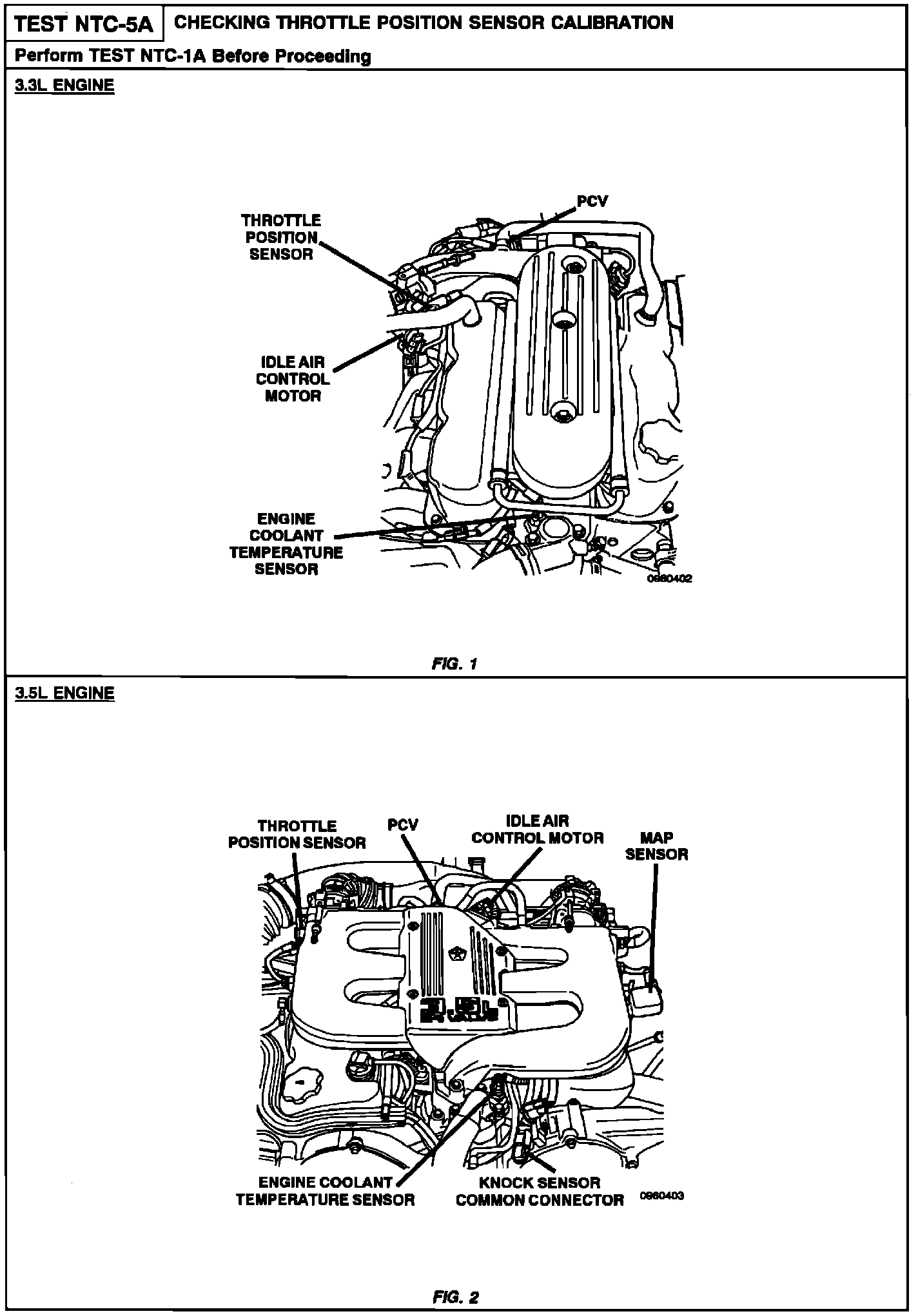

NTC-5A Checking Throttle Position Sensor Calibration

Part 1 Of 1:



Part 1 Of 1:
