Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Trouble Code (NTC) Tests >> NTC-4A Checking ECT Calibration and RAD Fan Operation

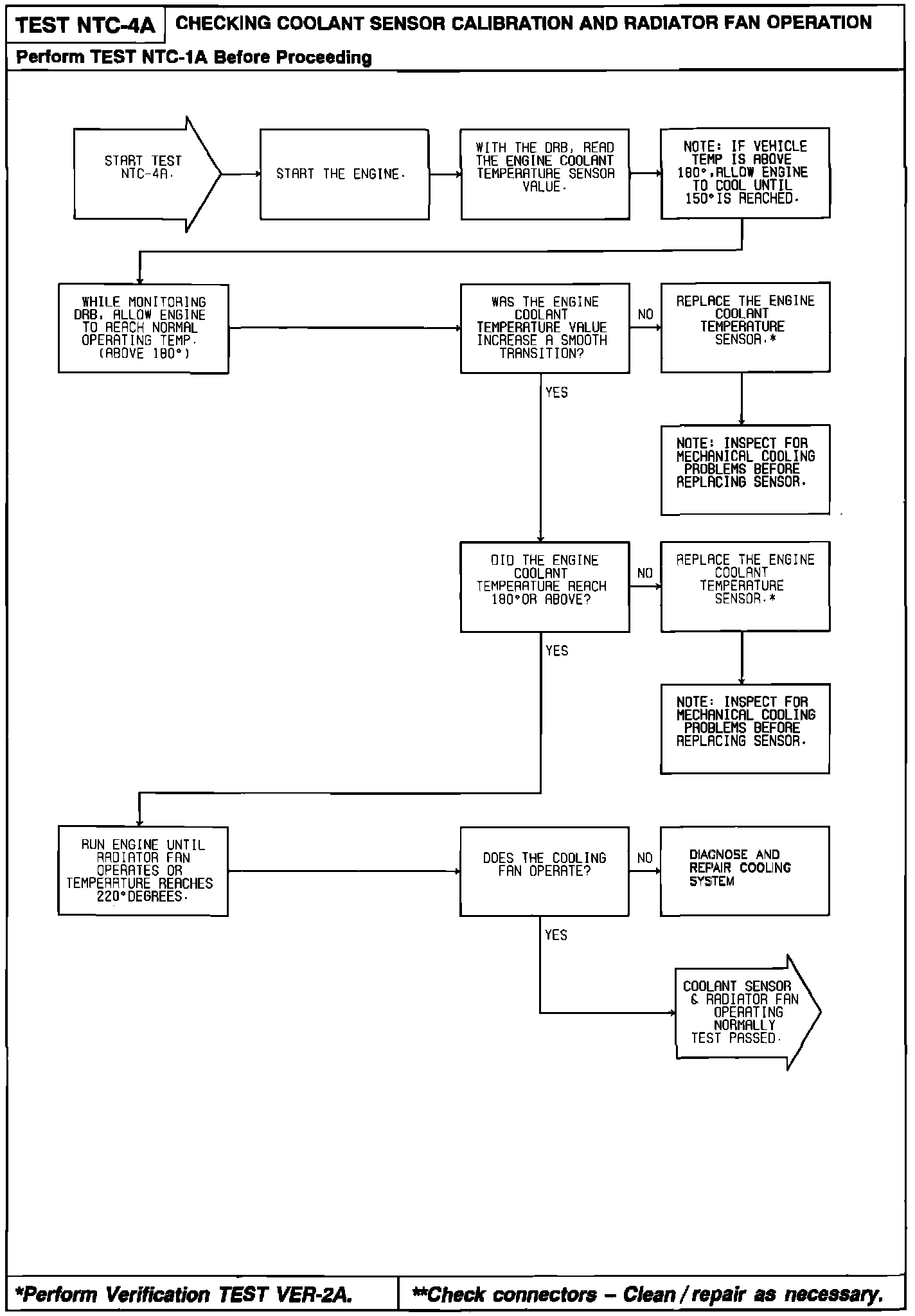

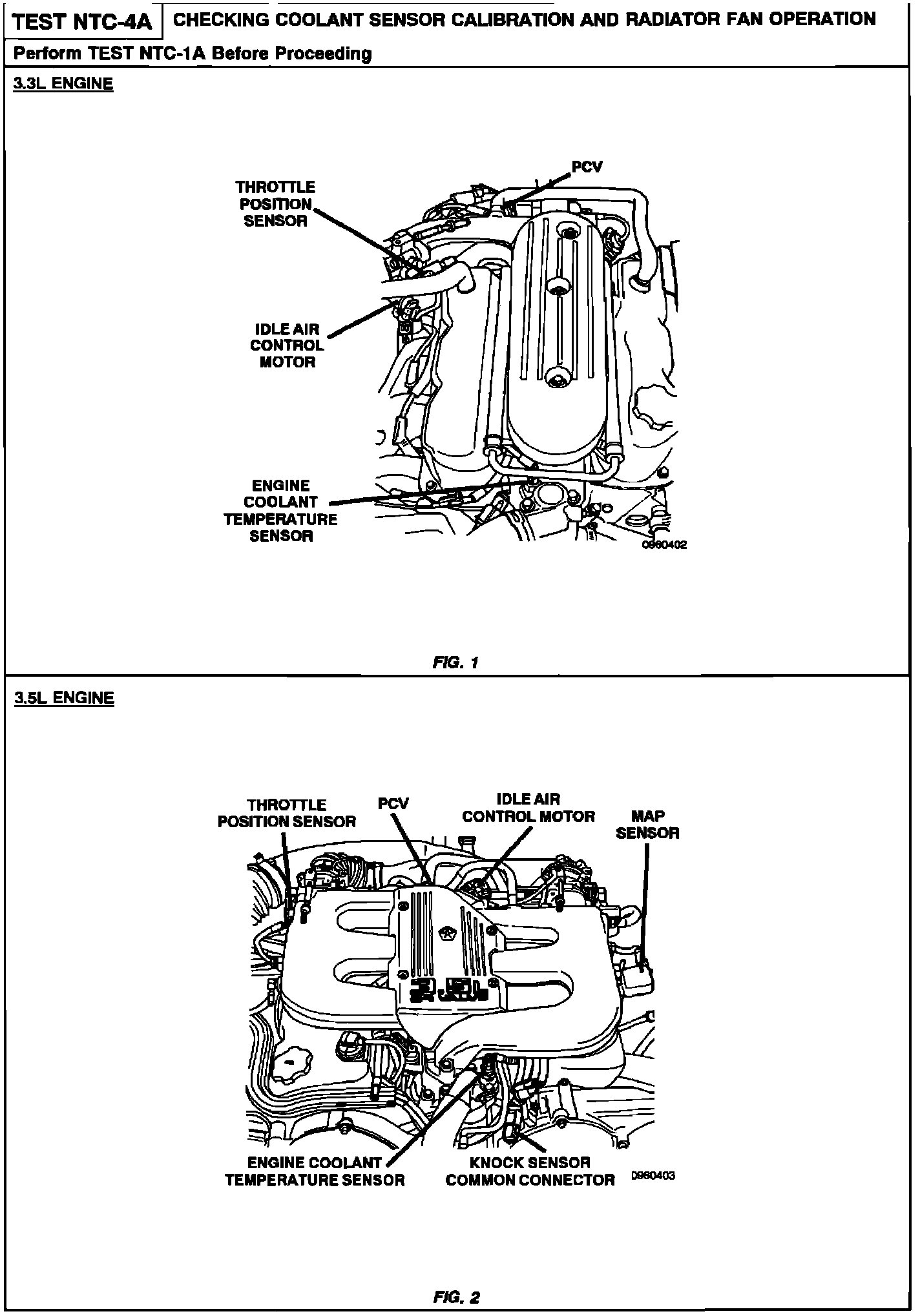

NTC-4A Checking ECT Calibration and RAD Fan Operation

Part 1 Of 1:

Part 1 Of 1:
