Power Distribution

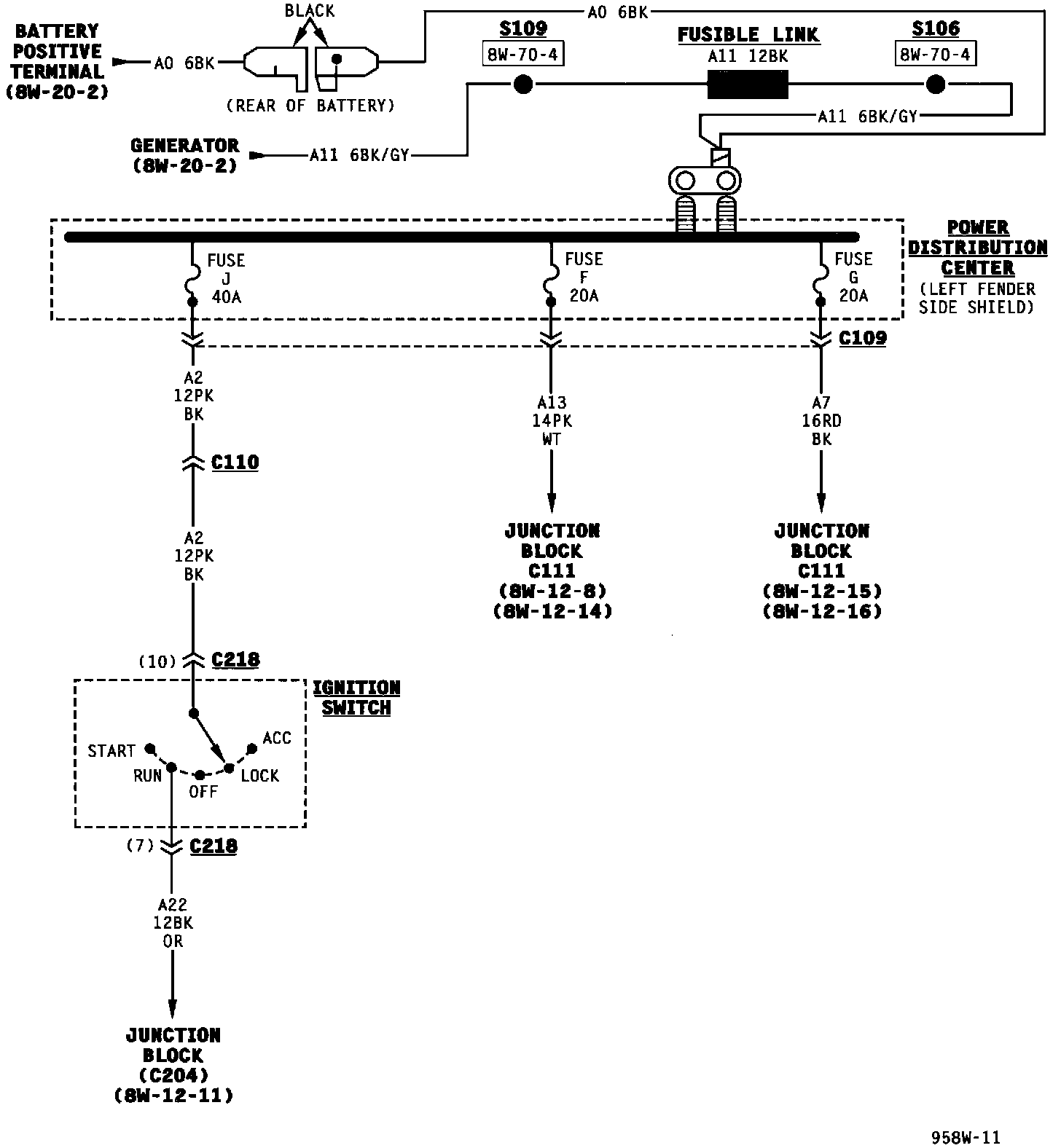

Power Distribution (Part 1 Of 9):

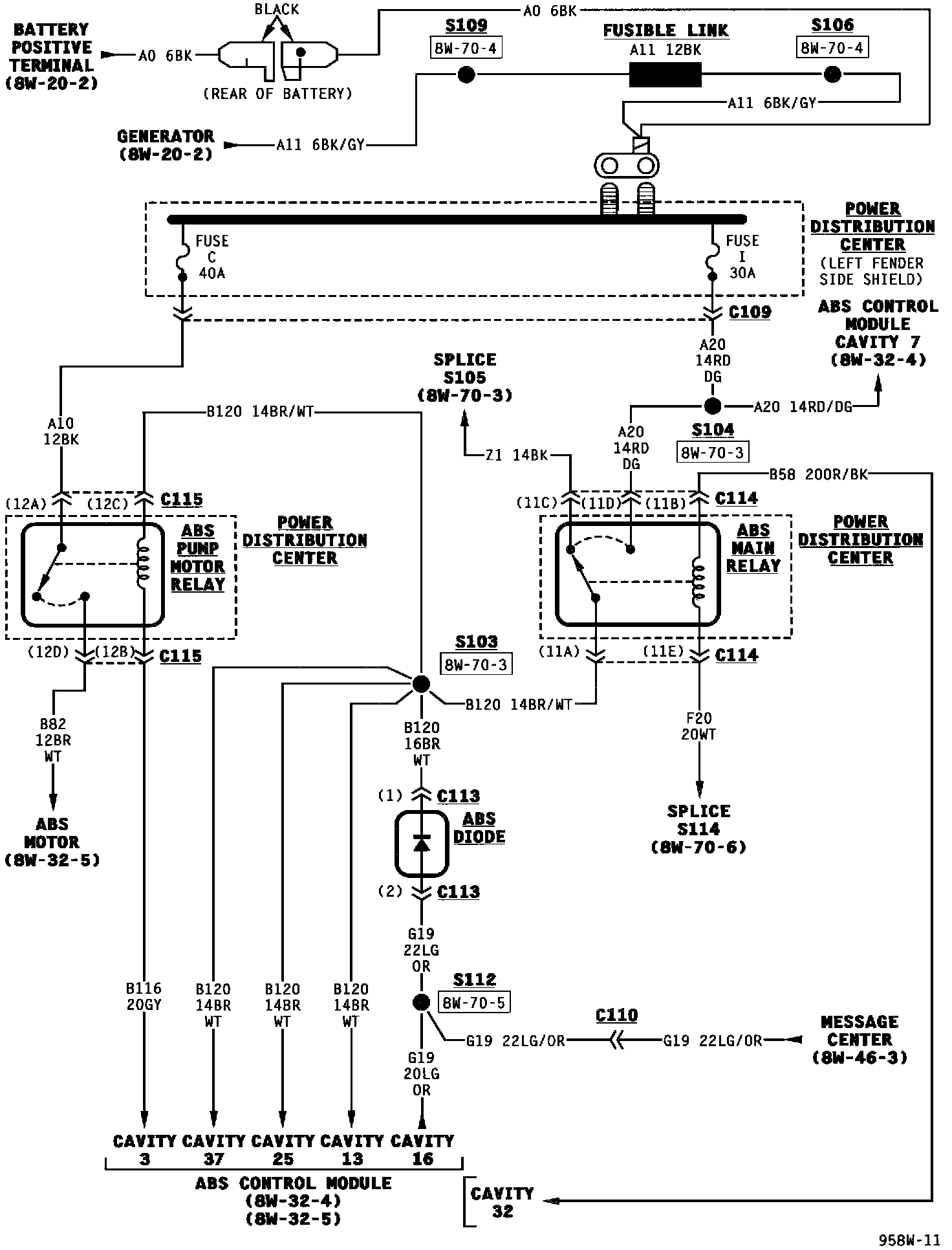

Power Distribution (Part 2 Of 9):

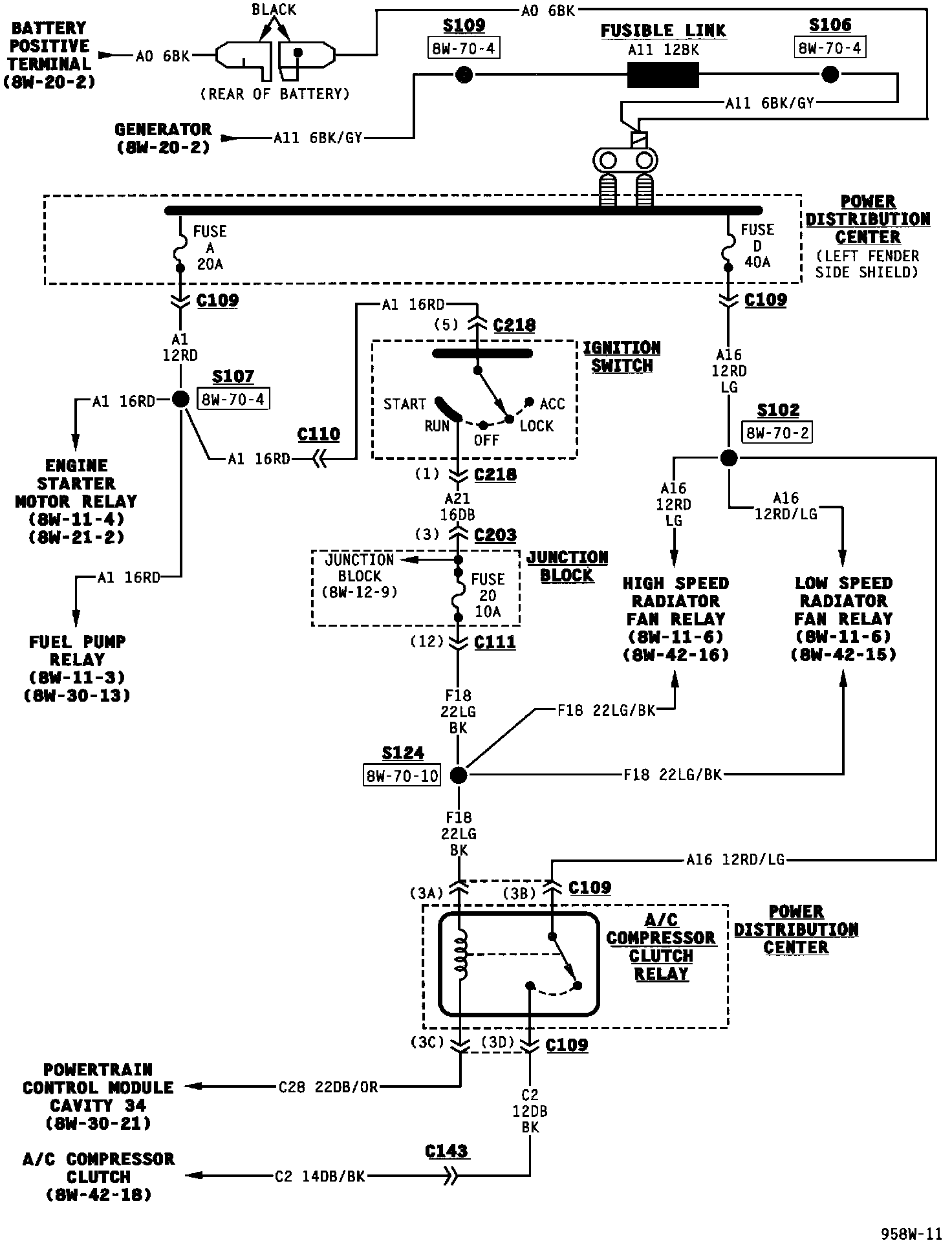

Power Distribution (Part 3 Of 9):

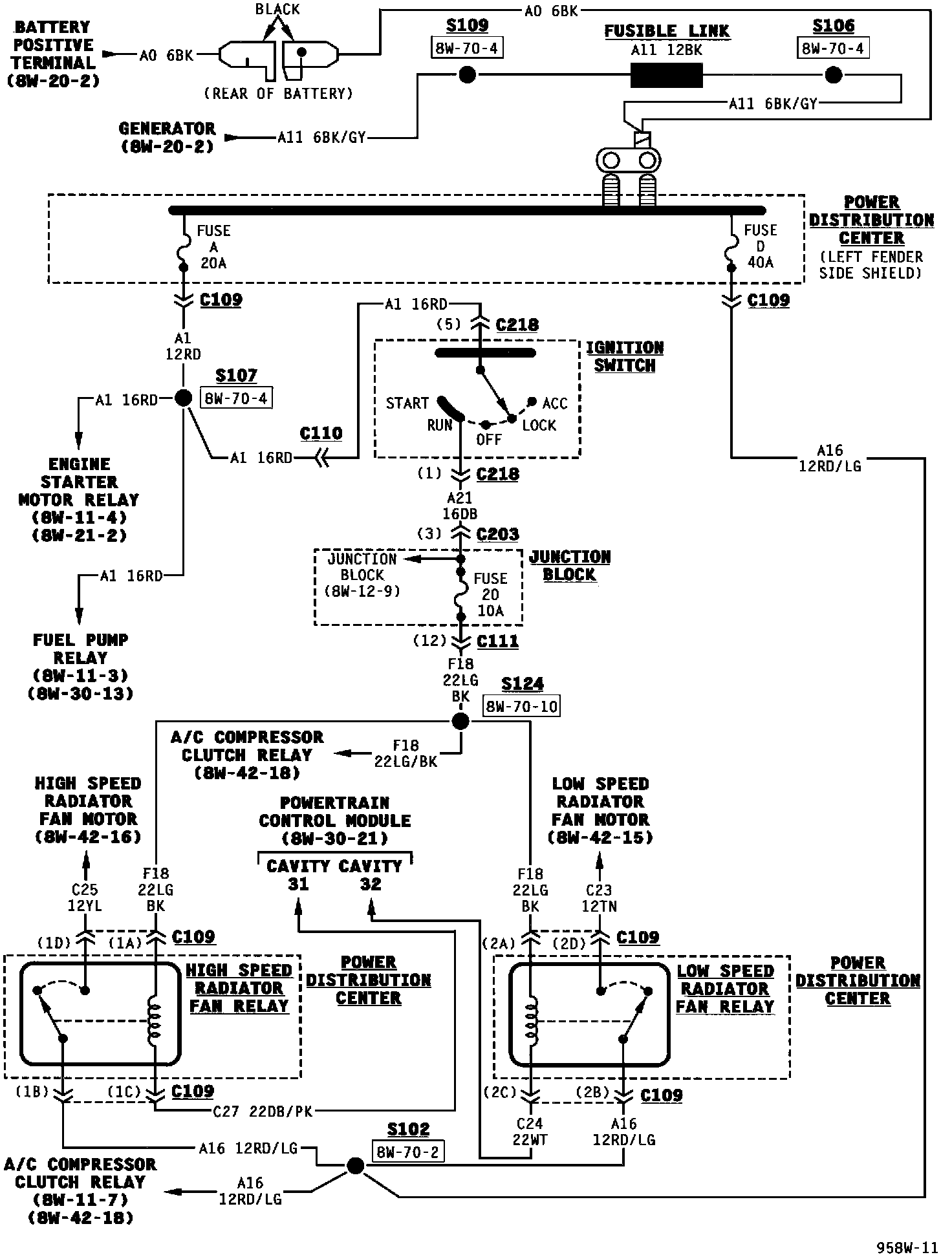

Power Distribution (Part 4 Of 9):

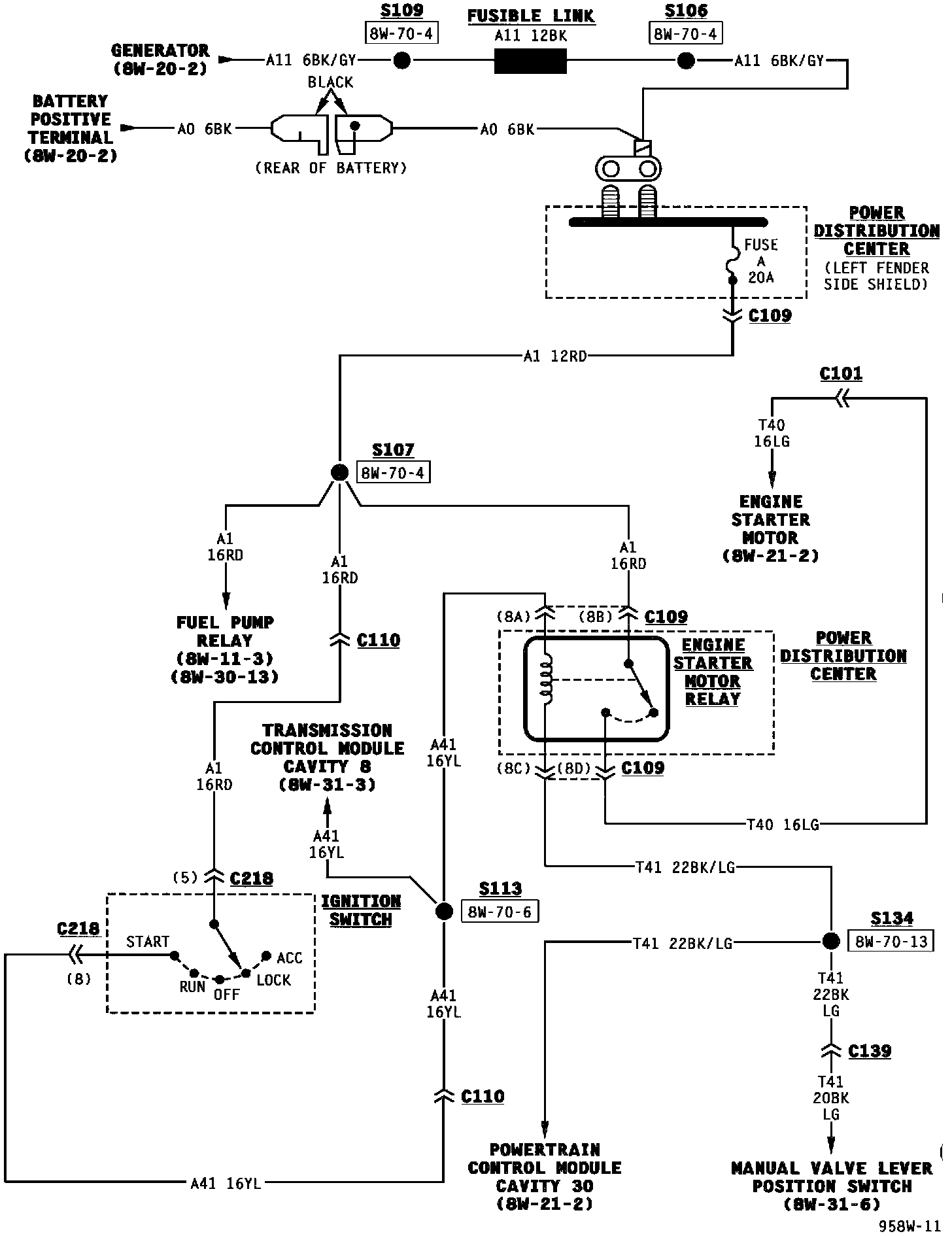

Power Distribution (Part 5 Of 9):

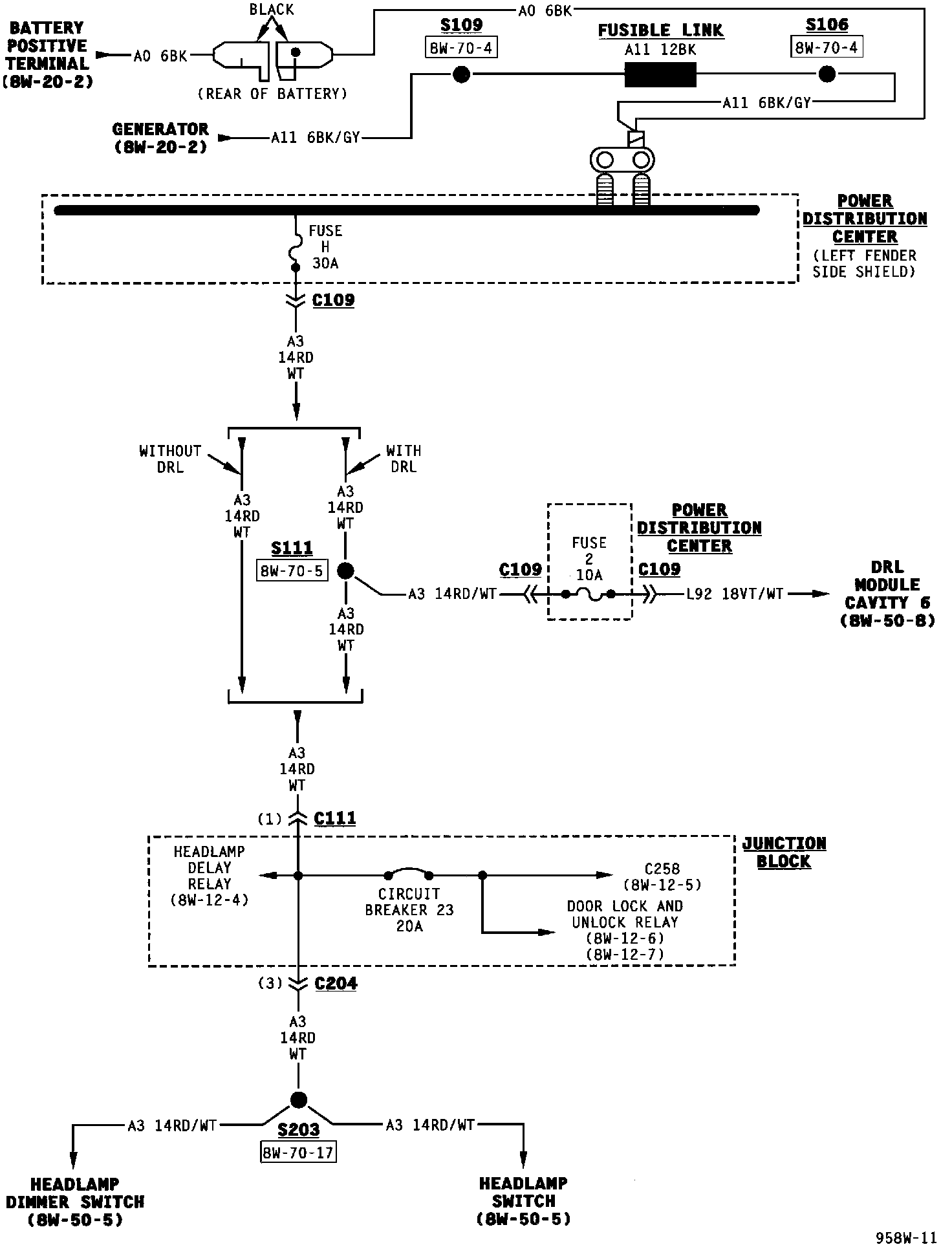

Power Distribution (Part 6 Of 9):

Power Distribution (Part 7 Of 9):

Power Distribution (Part 8 Of 9):

Power Distribution (Part 9 Of 9):

NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
