Ground Distribution

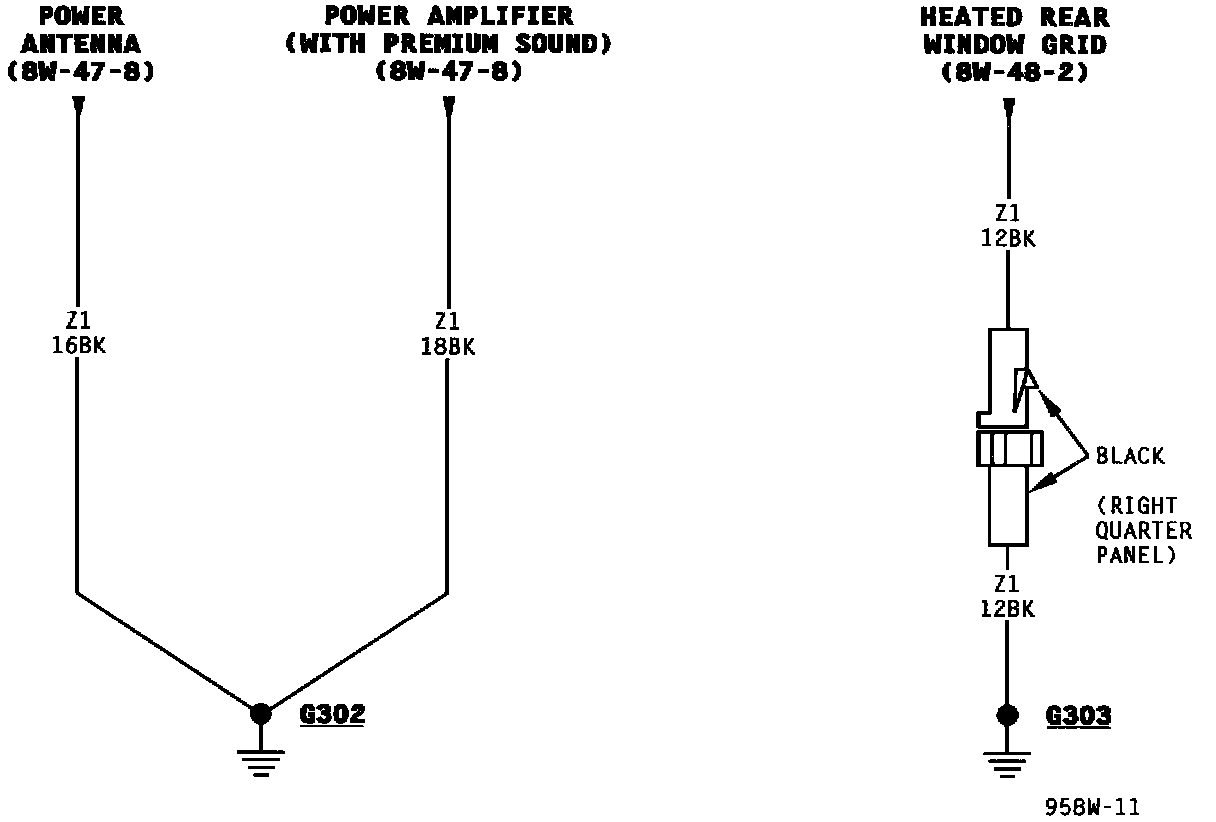

Ground Distribution:

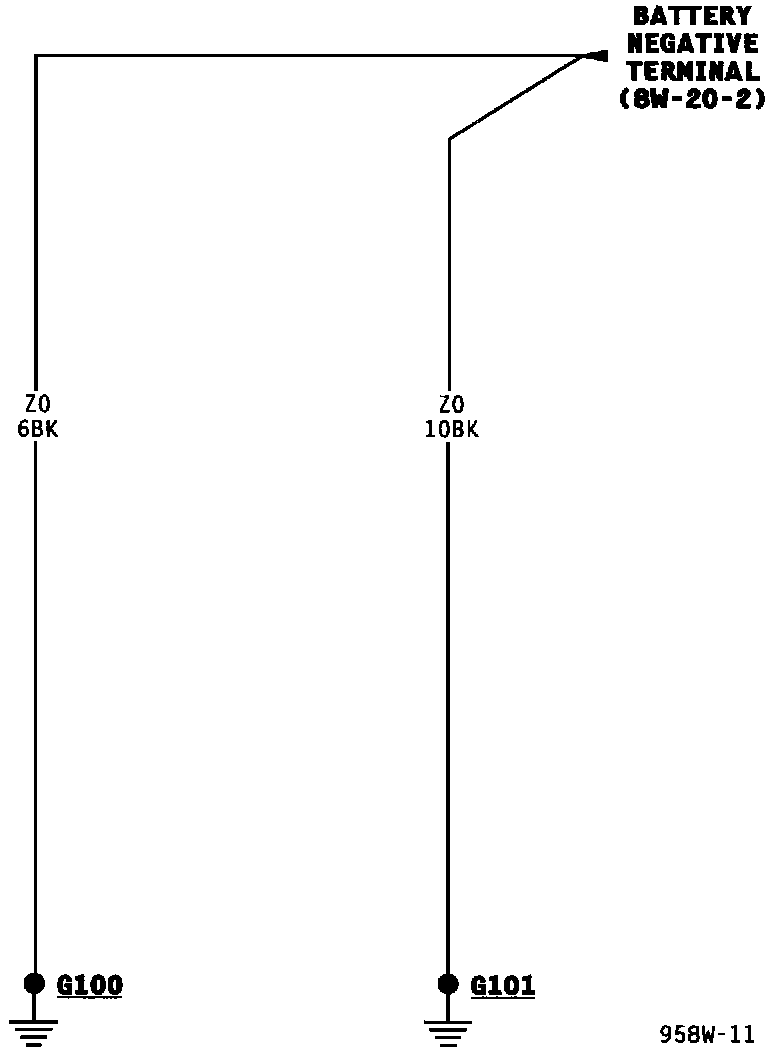

Ground Distribution:

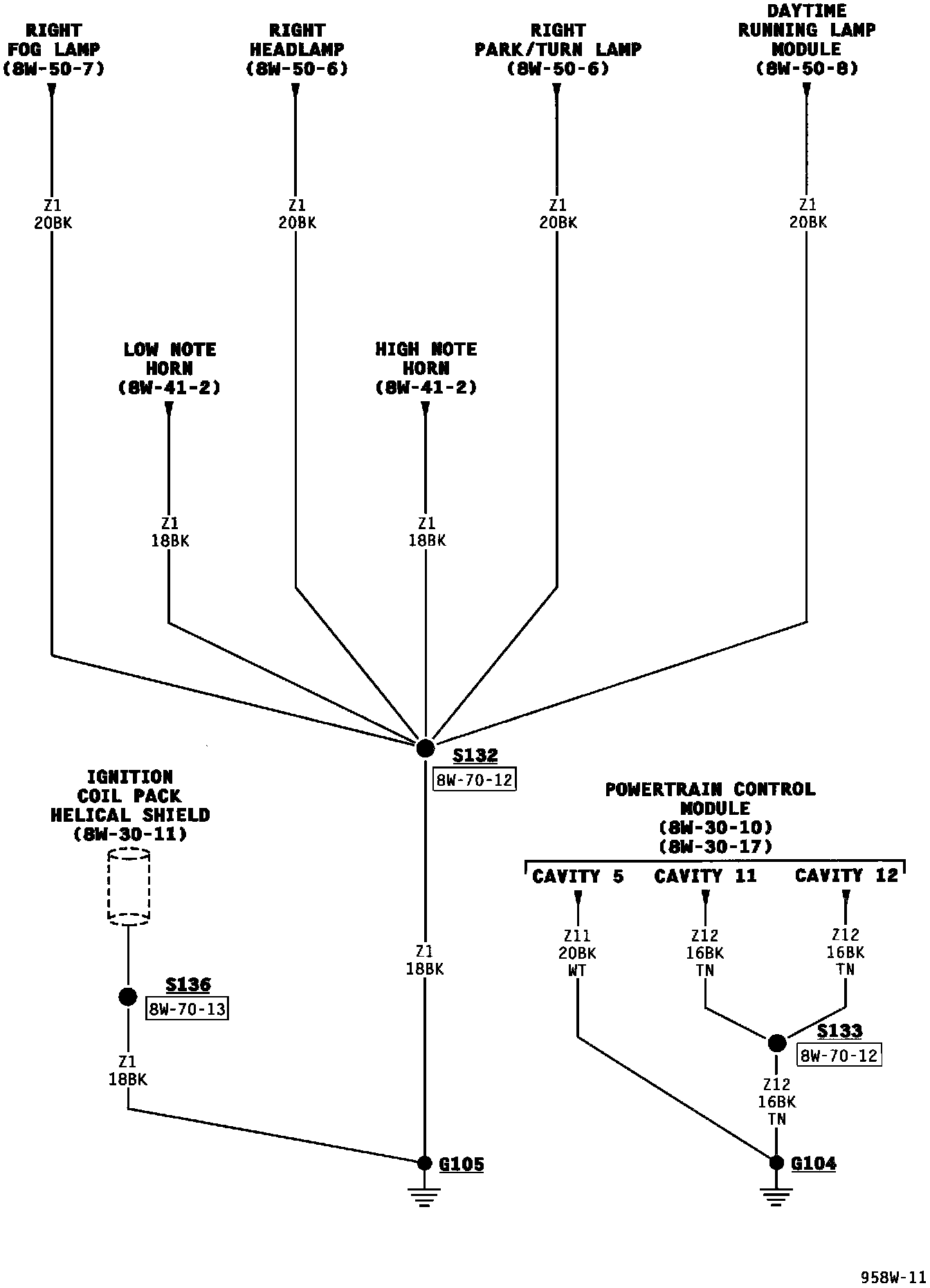

Ground Distribution:

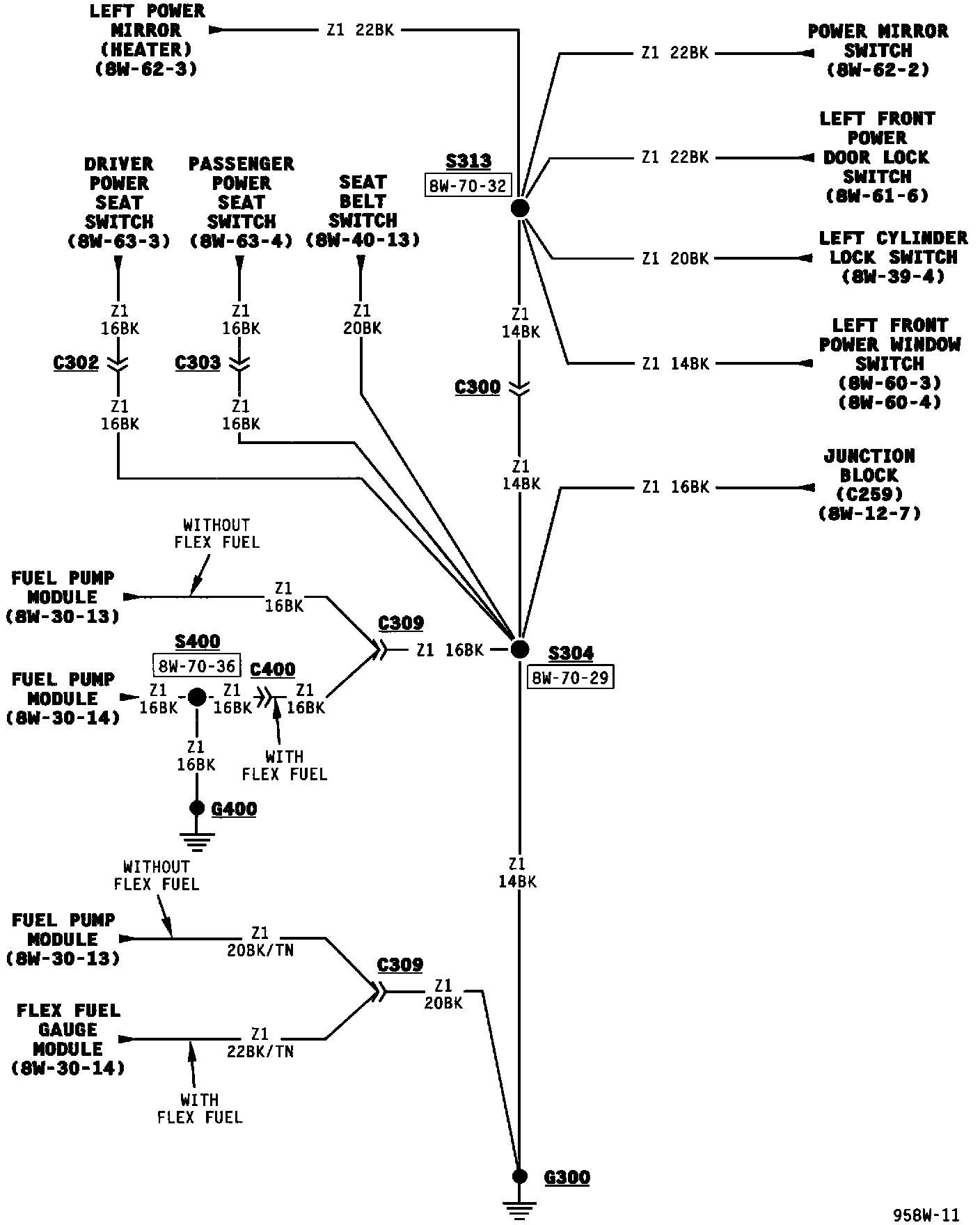

Ground Distribution:

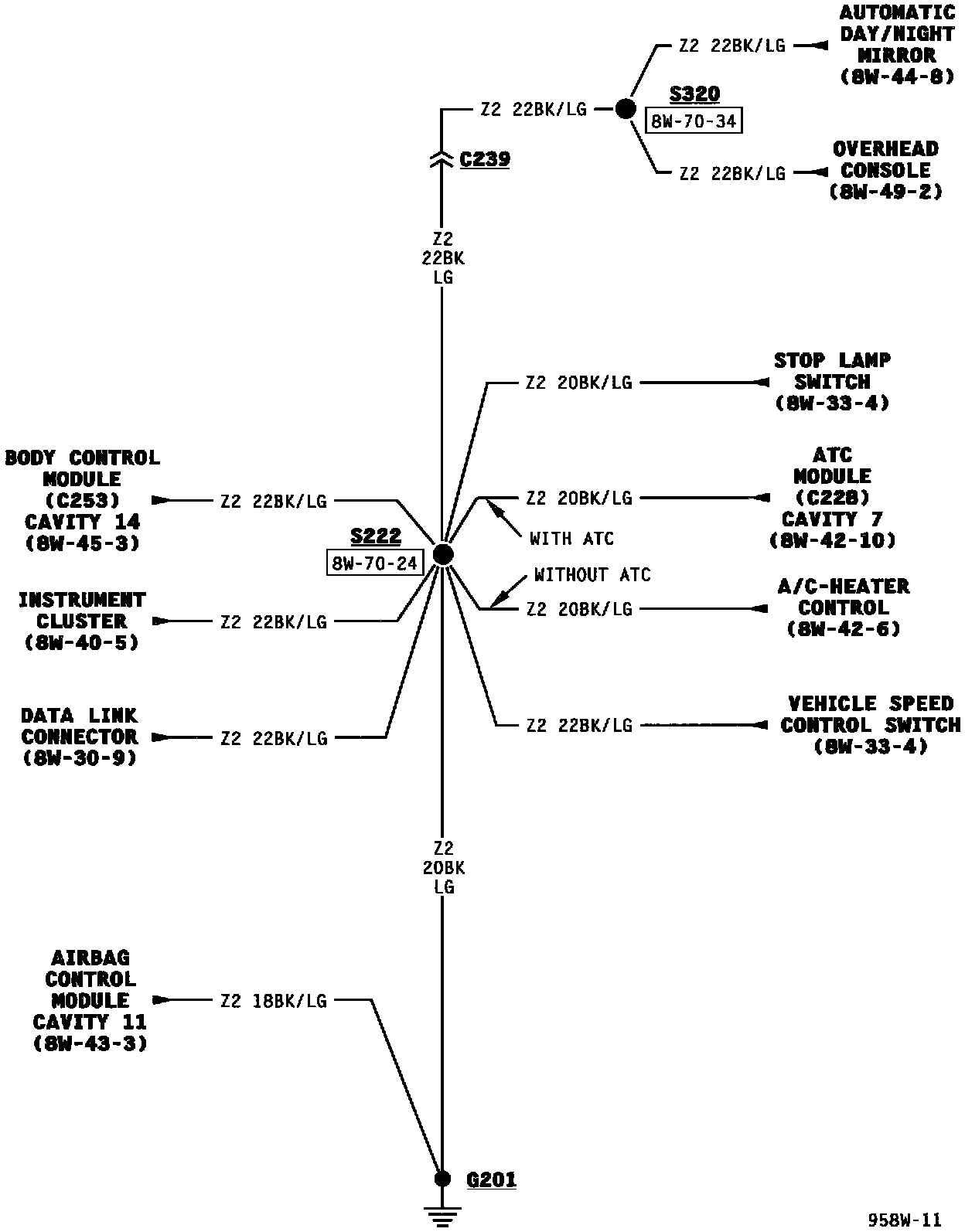

Ground Distribution:

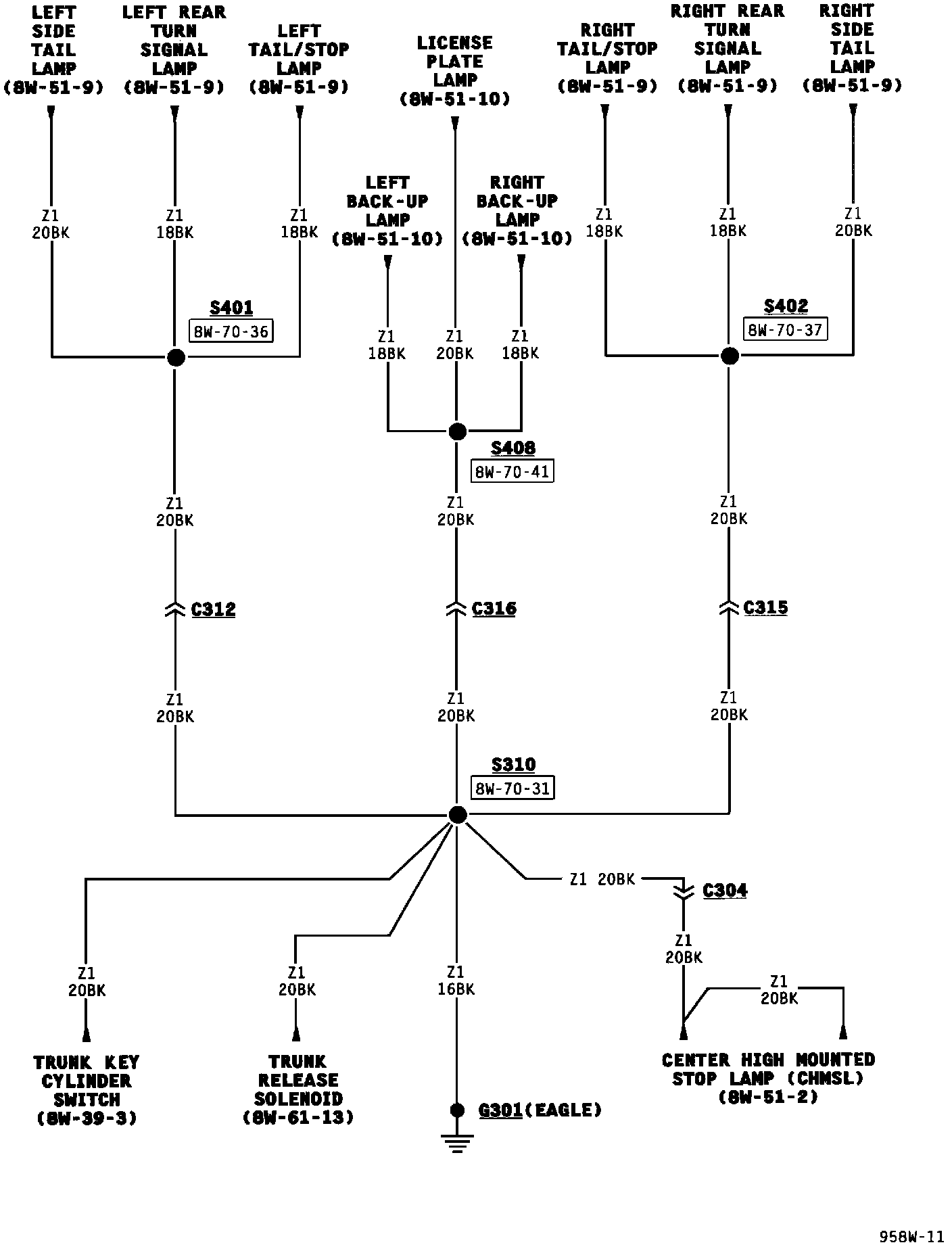

Ground Distribution:




Ground Distribution:




Ground Distribution:




Ground Distribution:




Ground Distribution (Part 2 Of 2):





NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams
