Instrument Cluster and Bezel

To service any instrument cluster component, the instrument cluster must be removed from the instrument panel. Use the following procedure:

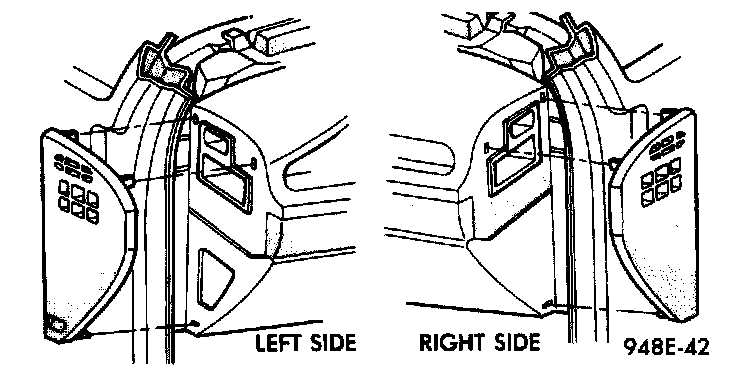

1. Remove instrument panel left end cap.

2. Remove instrument panel headlamp bezel.

3. Remove headlamp switch screws and move switch to allow clearance for the instrument cluster removal.






4. Remove instrument panel upper center bezel.

Tilt steering column down into the lowest position.






5. Remove instrument panel cluster bezel. New Yorker only, disconnect the message center wire connector. The message center lamps may be serviced at this time.

6. Remove instrument cluster screws and disengage upper latch.

CAUTION: Pull steering wheel down to gain access for instrument cluster removal.

7. Remove instrument cluster from panel. The instrument panel wiring harness connectors are mounted directly to the rear panel. A force of approximately 9 kg (20 lbs.) will be required to disengage the cluster from the connectors.

8. For installation, reverse above procedures.
