Instrument Cluster Printed Circuit Board Replacement

1. Remove trip odometer reset knob by gently pulling rearward.

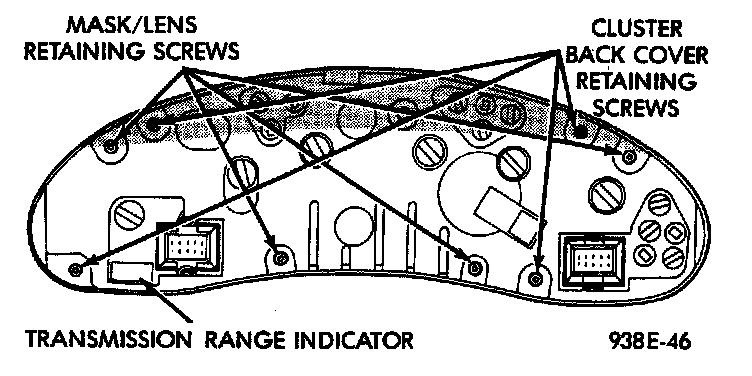

2. Remove cluster back cover retaining screws the remove cover.

3. Disconnect transmission range indicator and odometer connectors from the printed circuit board.

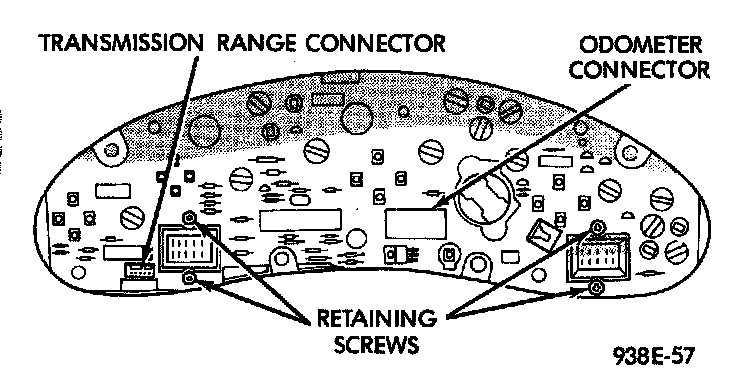

4. Remove four printed circuit board retaining screws. There are two screws located at the base of each connector.

5. For installation, reverse above procedures.
