Without Automatic Temperature Control (ATC)

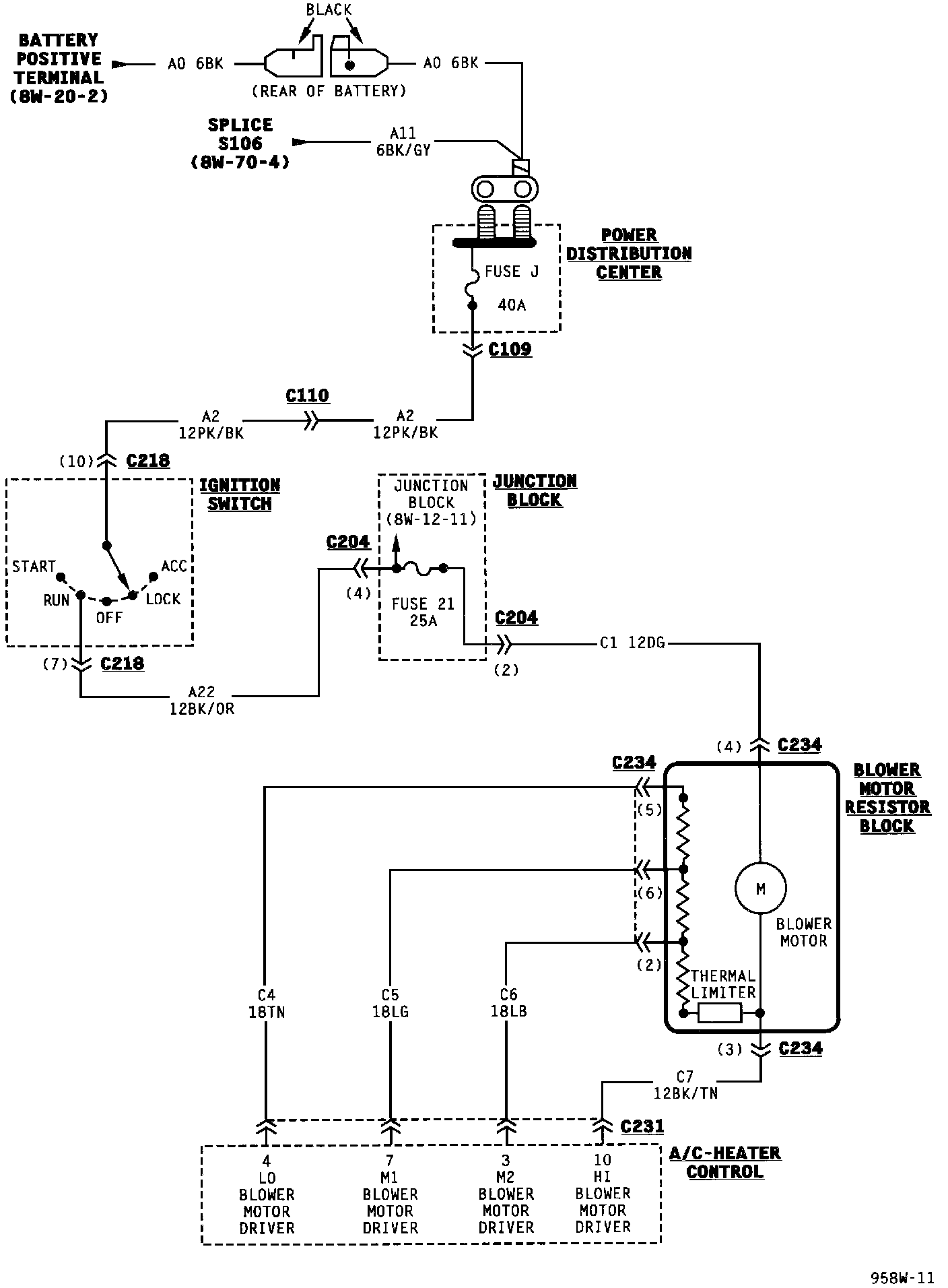

Air Conditioning/Heater Without Automatic Temperature Control:

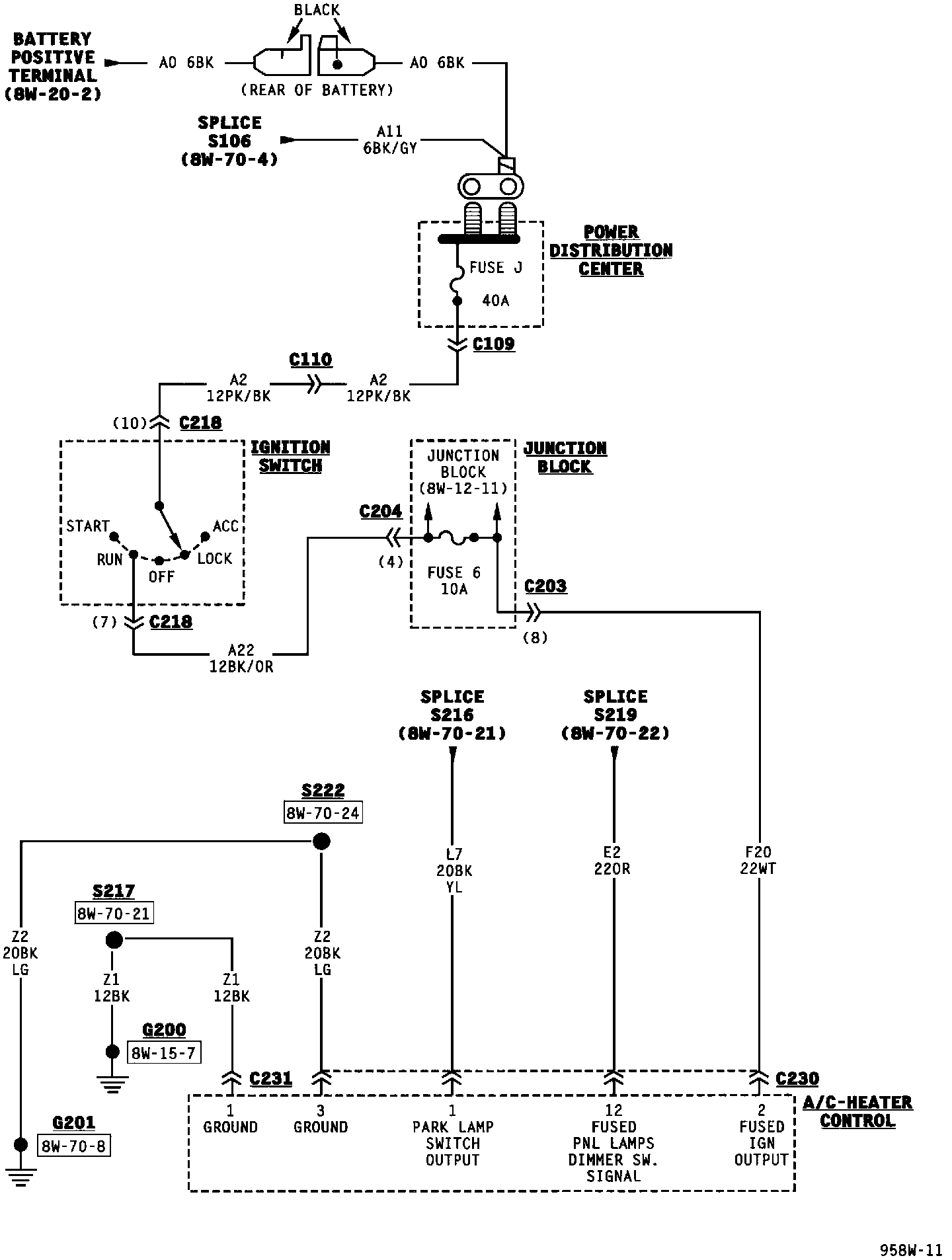

Air Conditioning/Heater Without Climate Control:

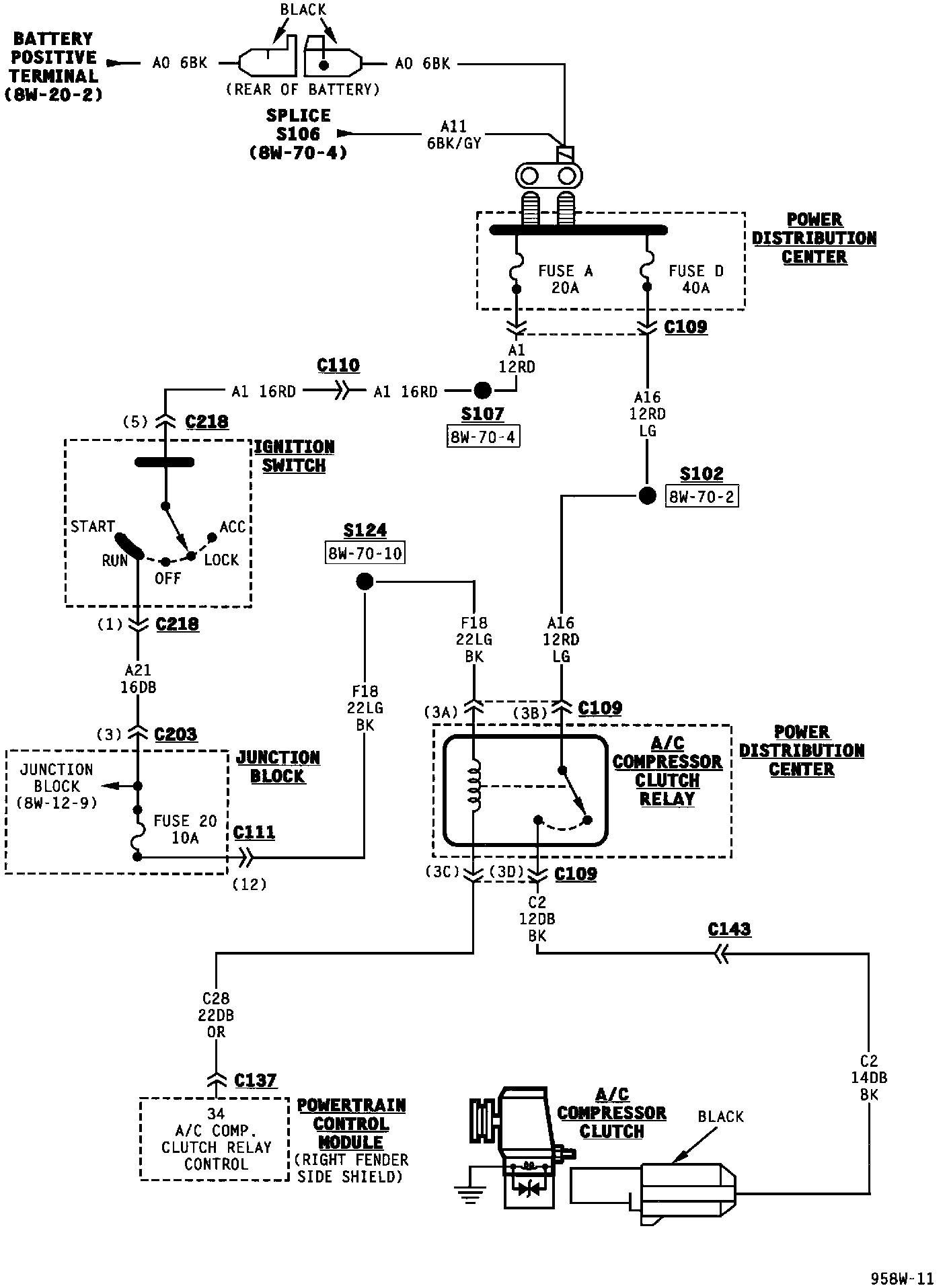

Air Conditioning/Heater Without Climate Control:

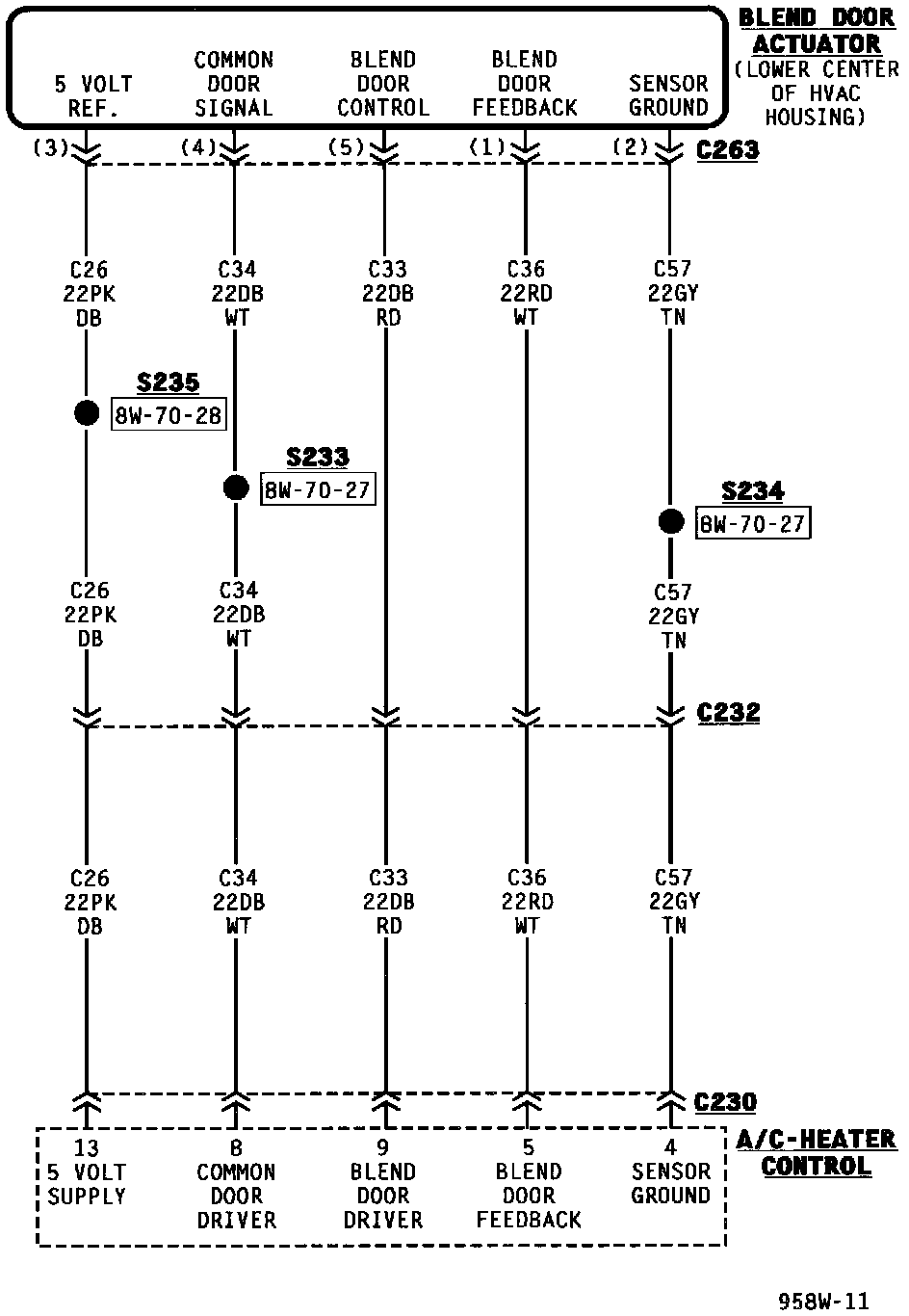

Air Conditioning/Heater Without Climate Control:




Air Conditioning/Heater Without Automatic Temperature Control:




8w-42-15a - Radiator Fan Motor/RFI Module:




Air Conditioning/Heater:




Air Conditioning/Heater:




Air Conditioning/Heater:






NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams
