Premium Radio

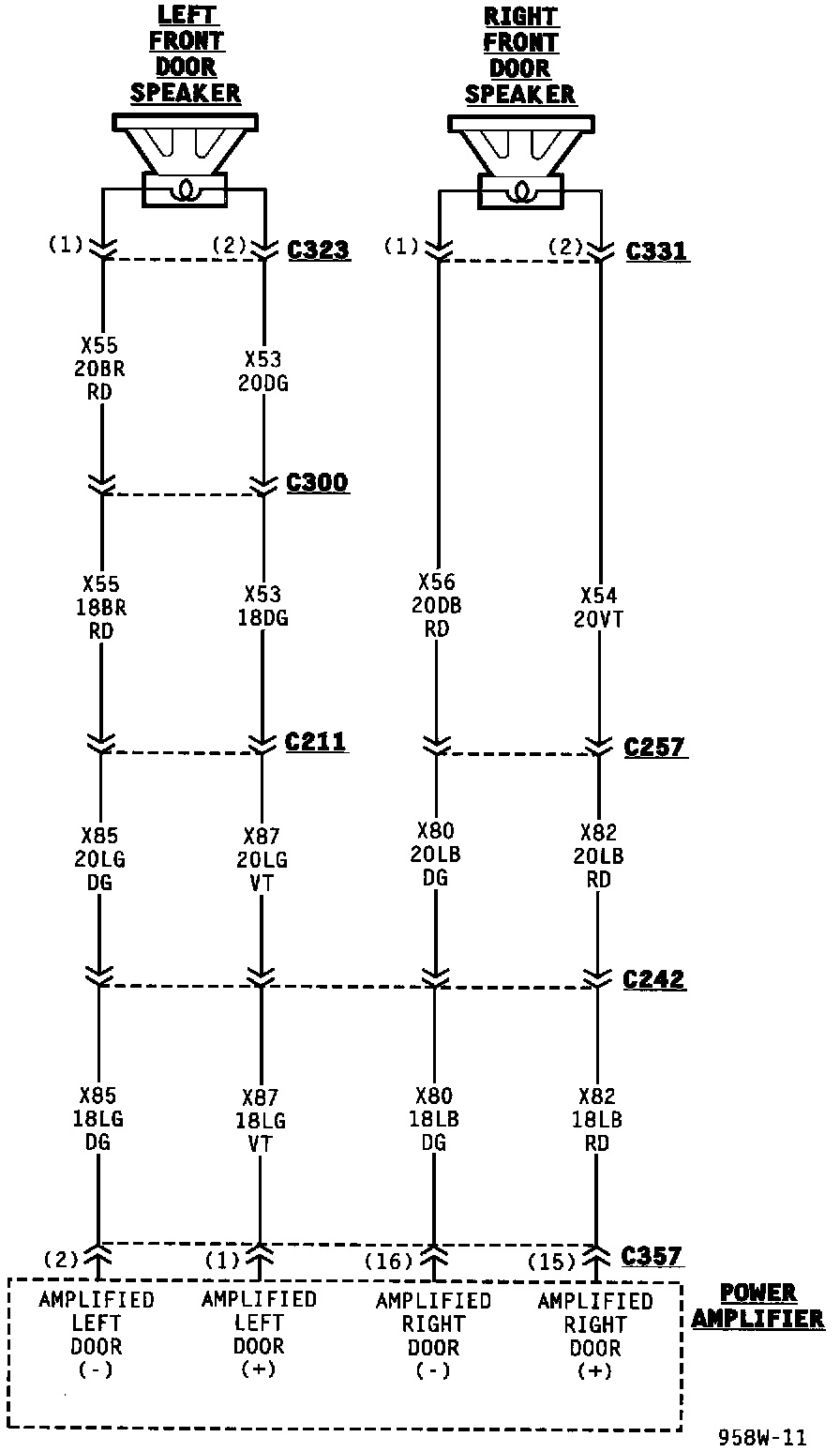

Audio System - Premium Radio (Part 1 Of 6):

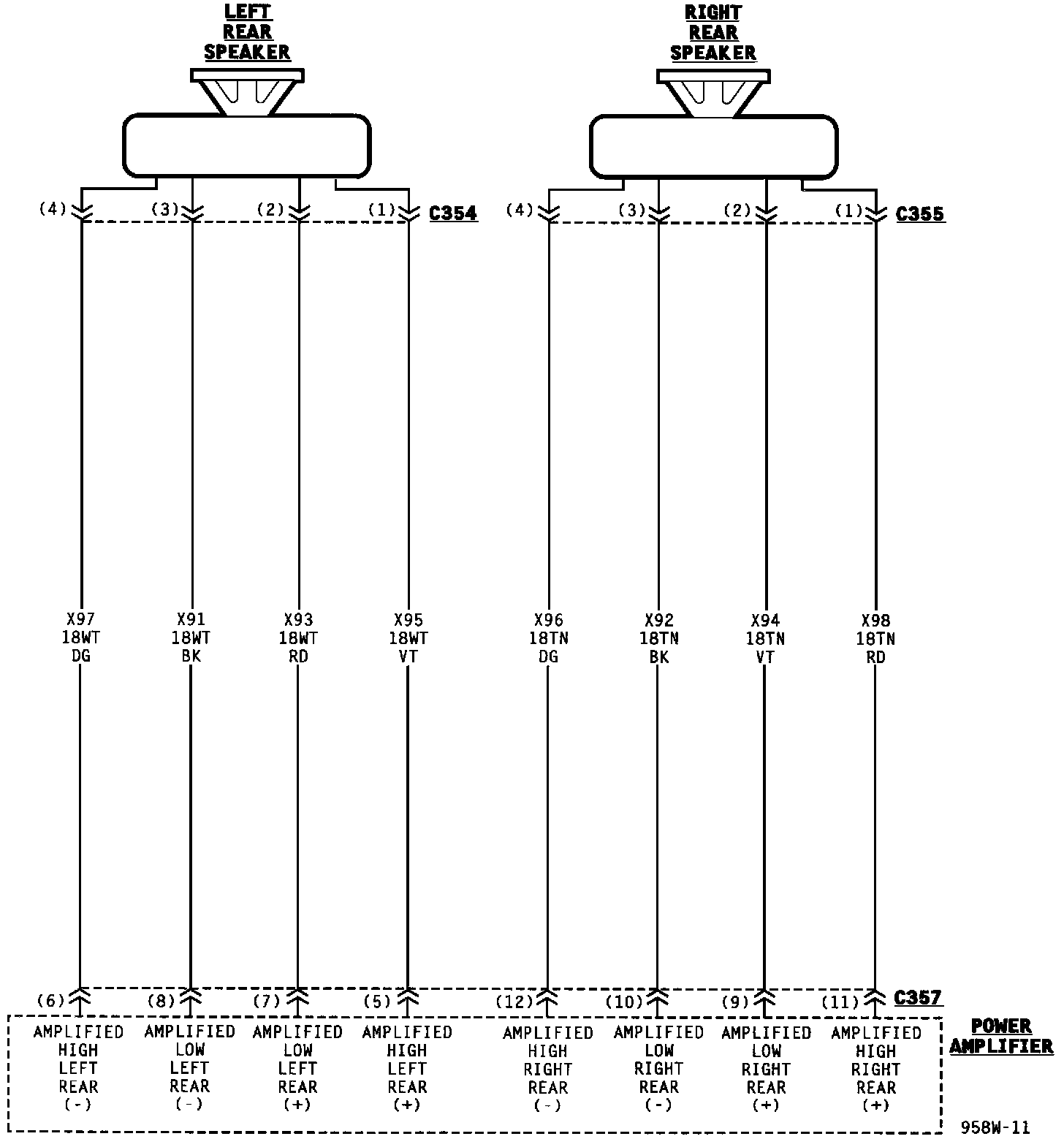

Audio System - Premium Radio (Part 2 Of 6):

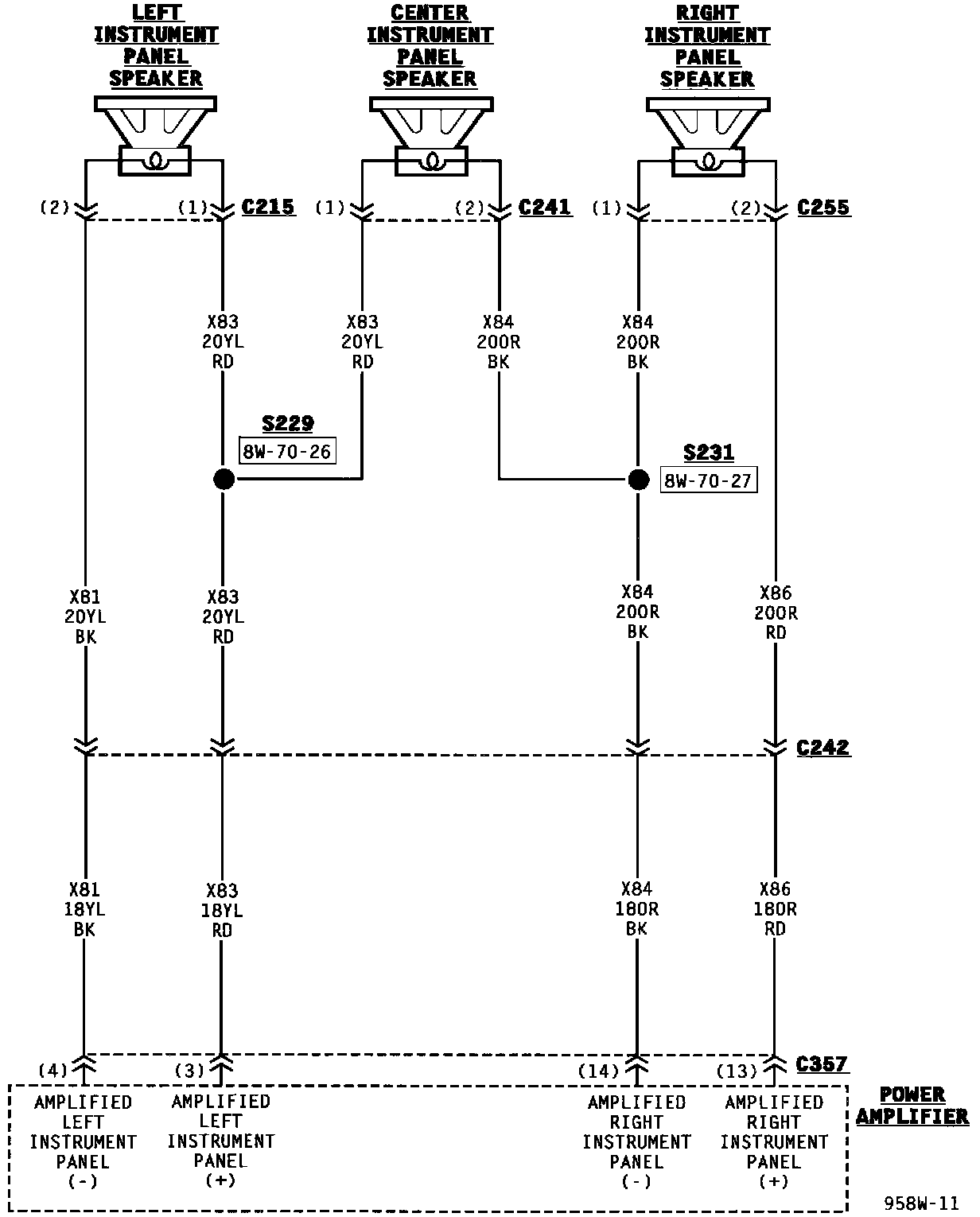

Audio System - Premium Radio (Part 3 Of 6):

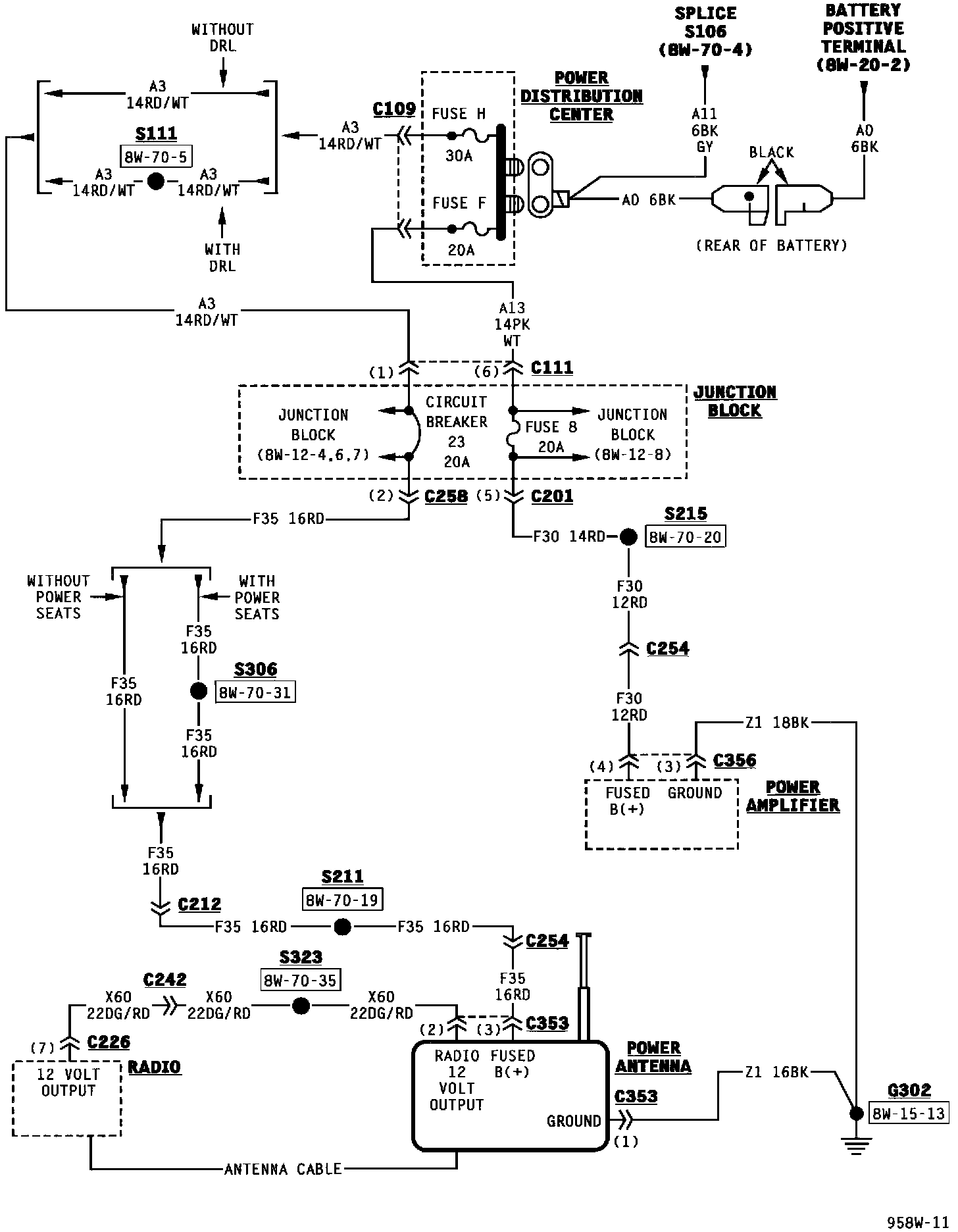

Audio System - Premium Radio (Part 4 Of 6):

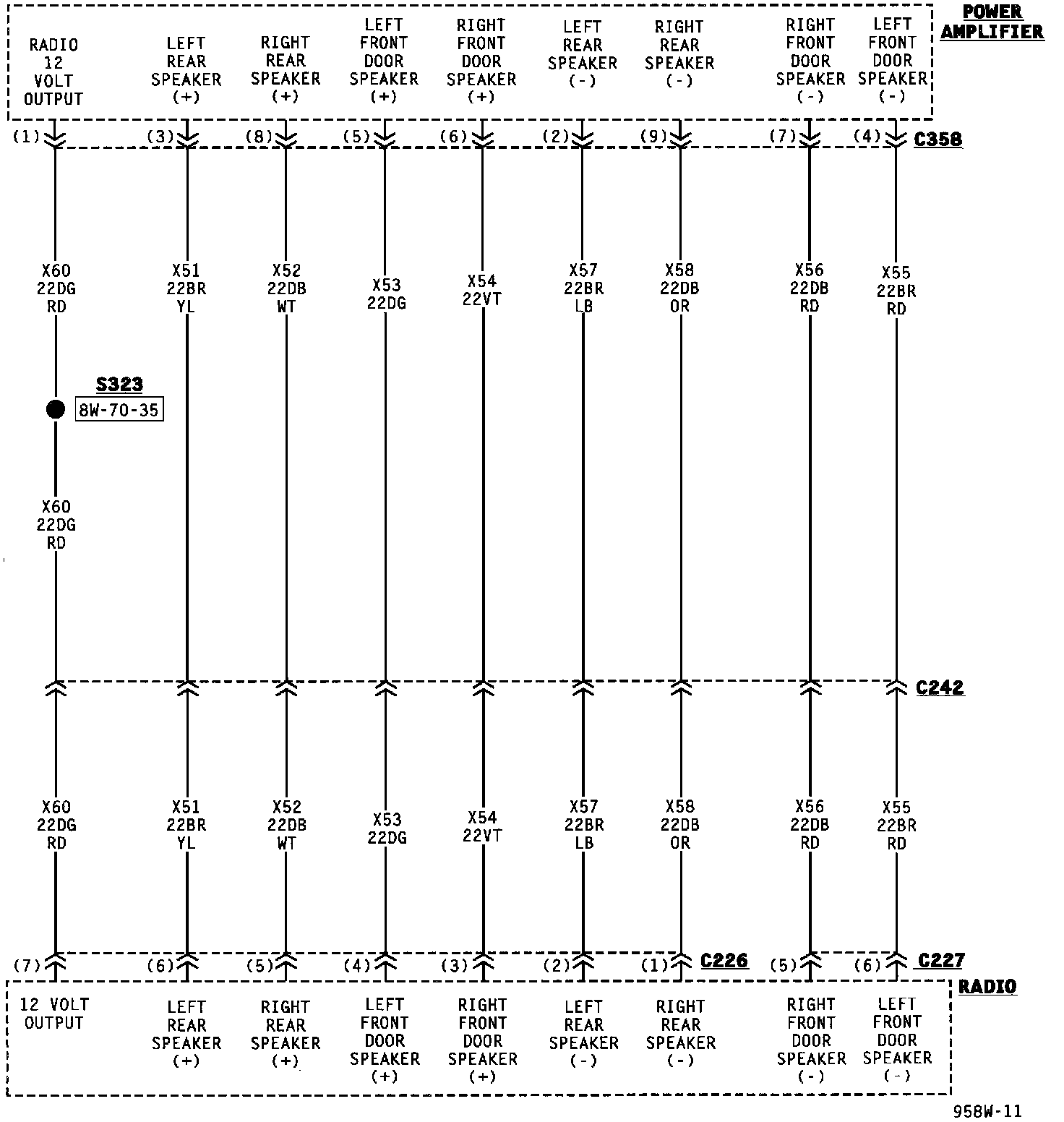

Audio System - Premium Radio (Part 5 Of 6):
Audio System - Premium Radio (Part 6 Of 6):
NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
