Wiring Diagrams

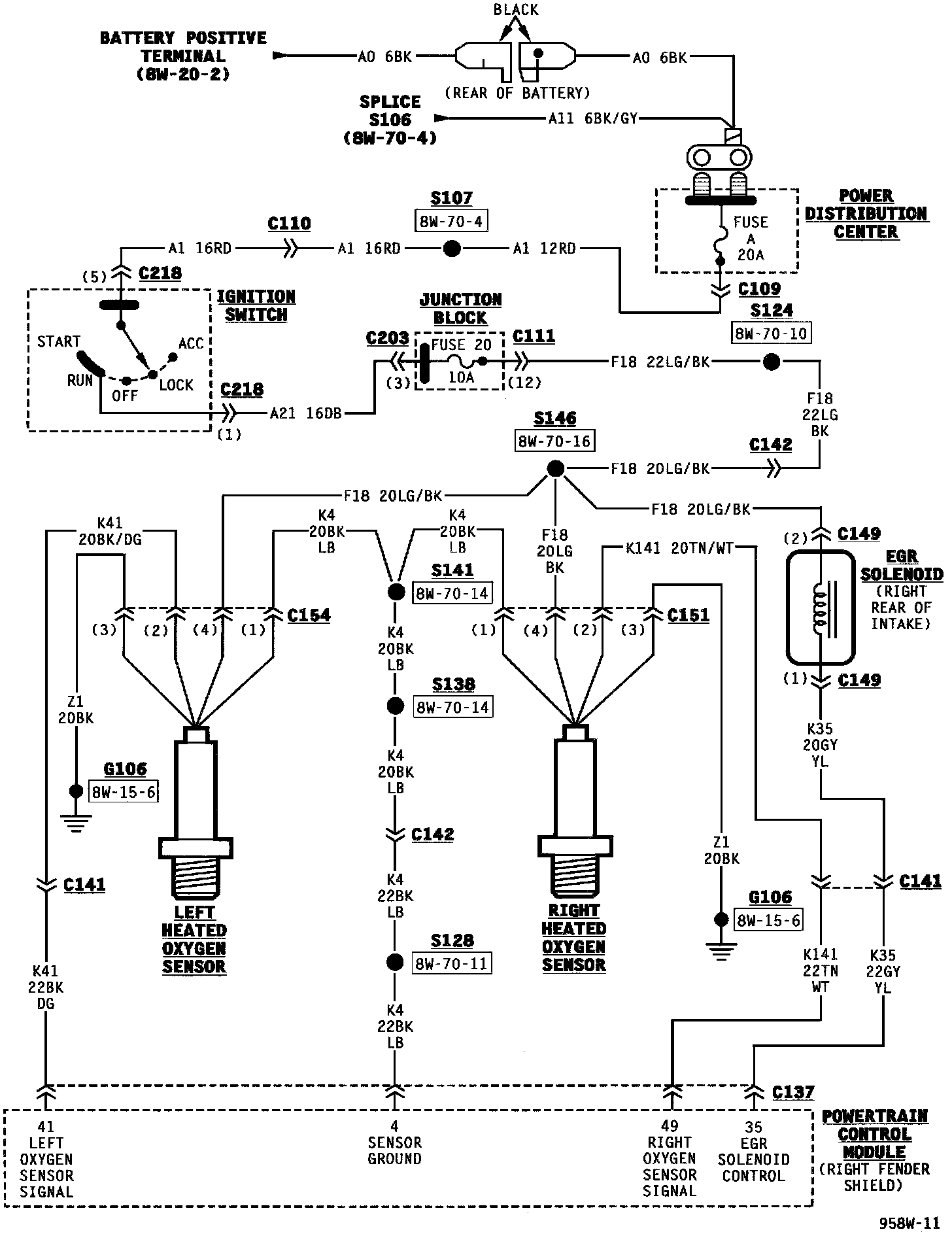

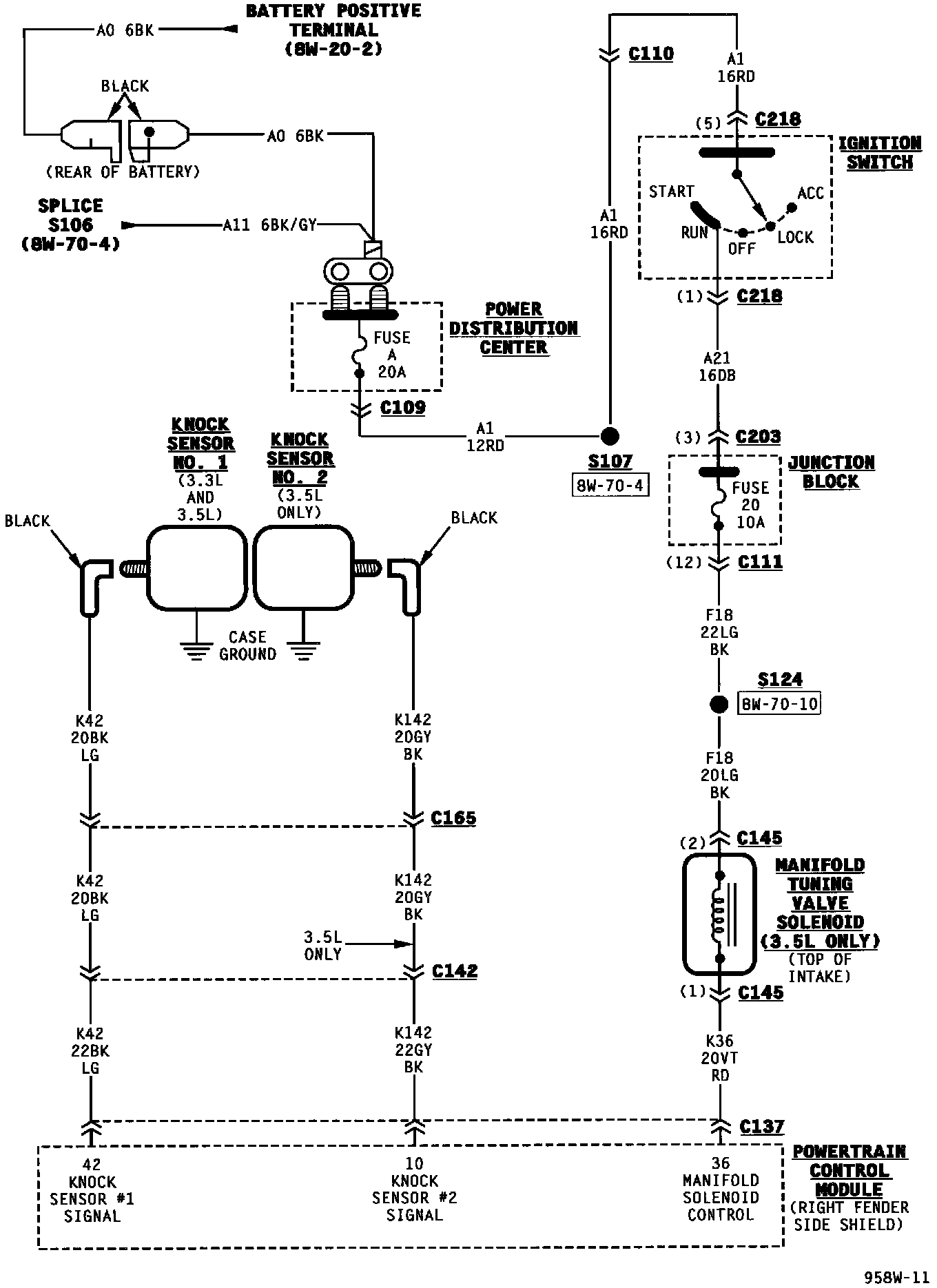

Fuel/Ignition System:

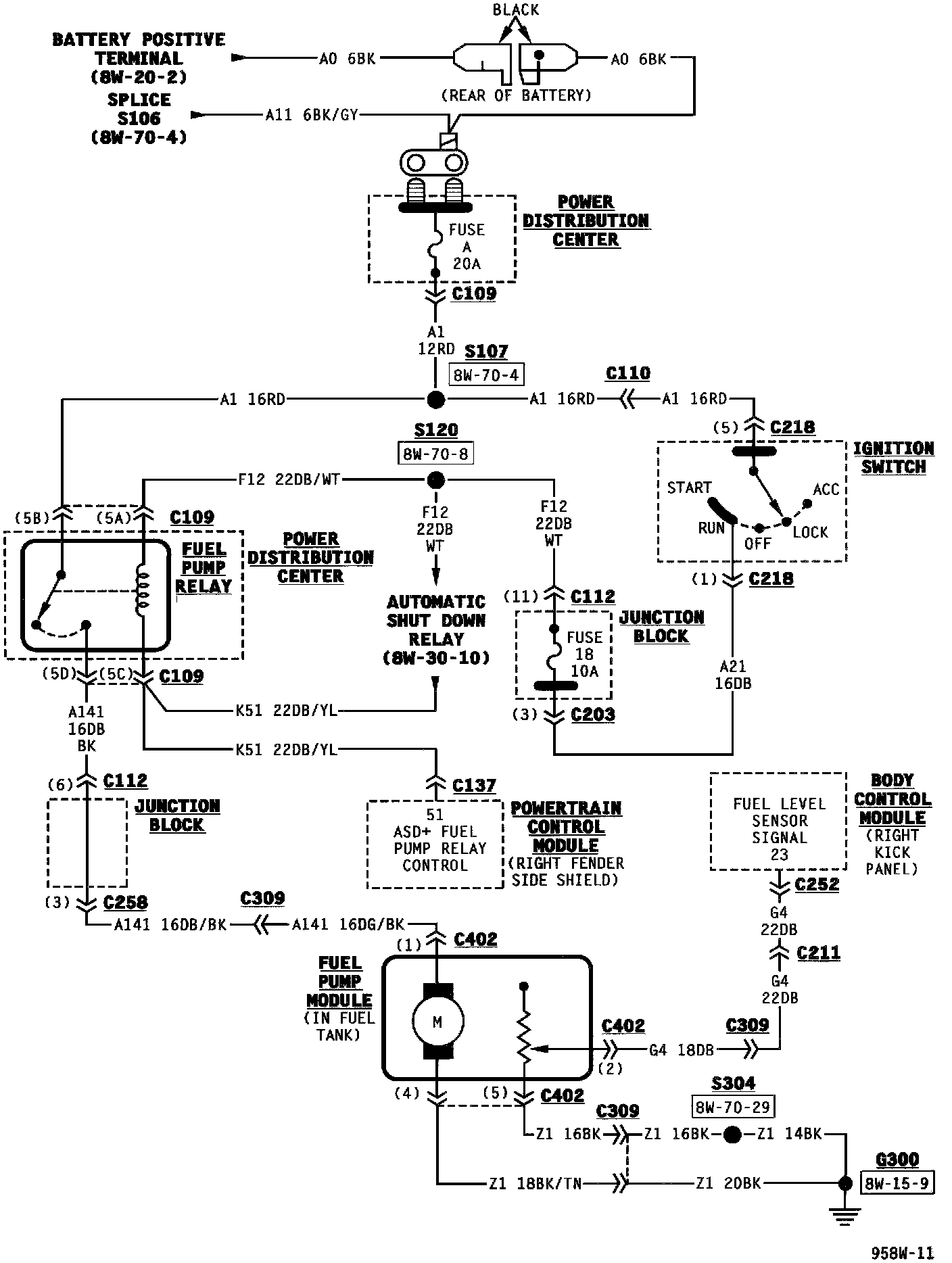

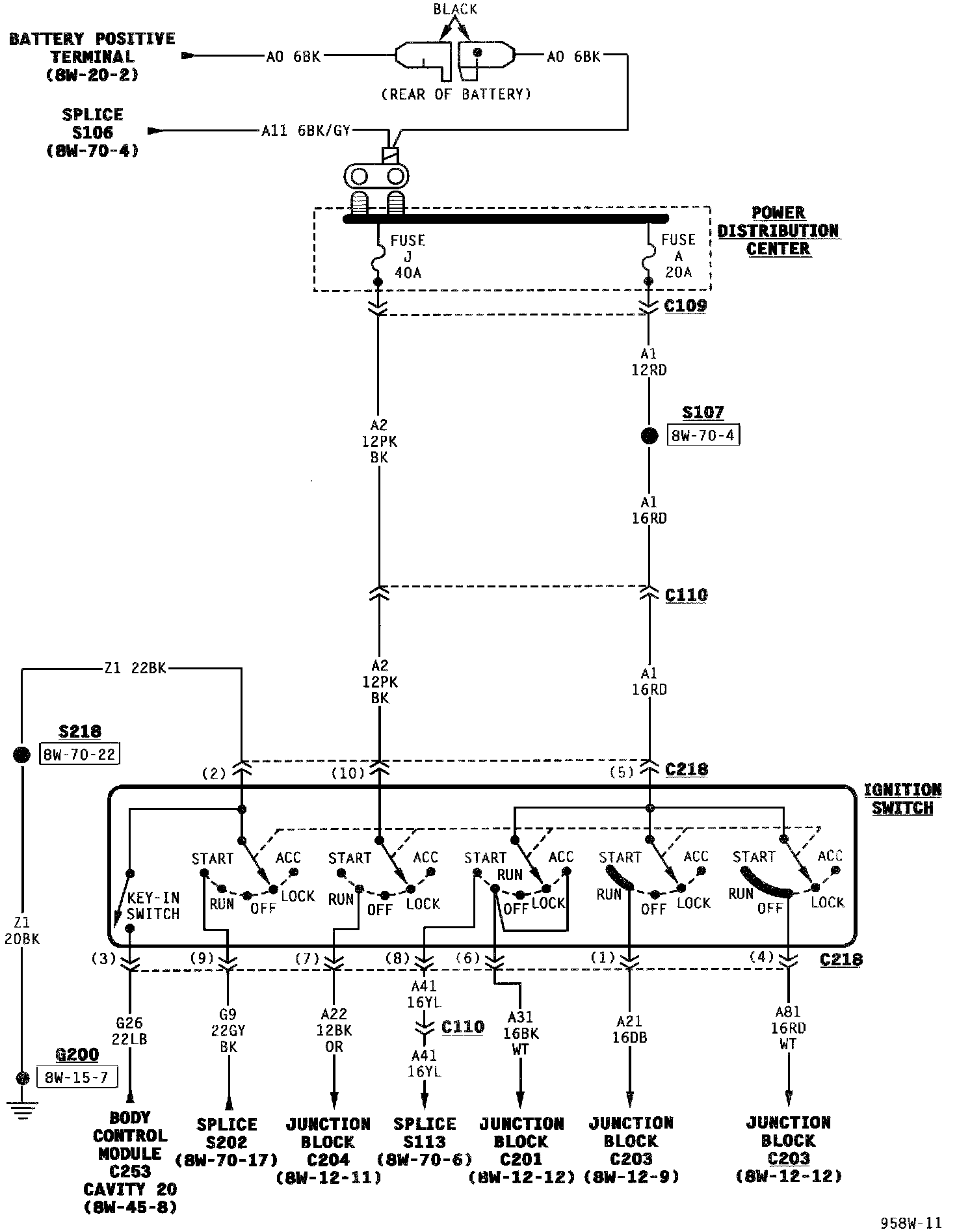

Fuel/Ignition System:

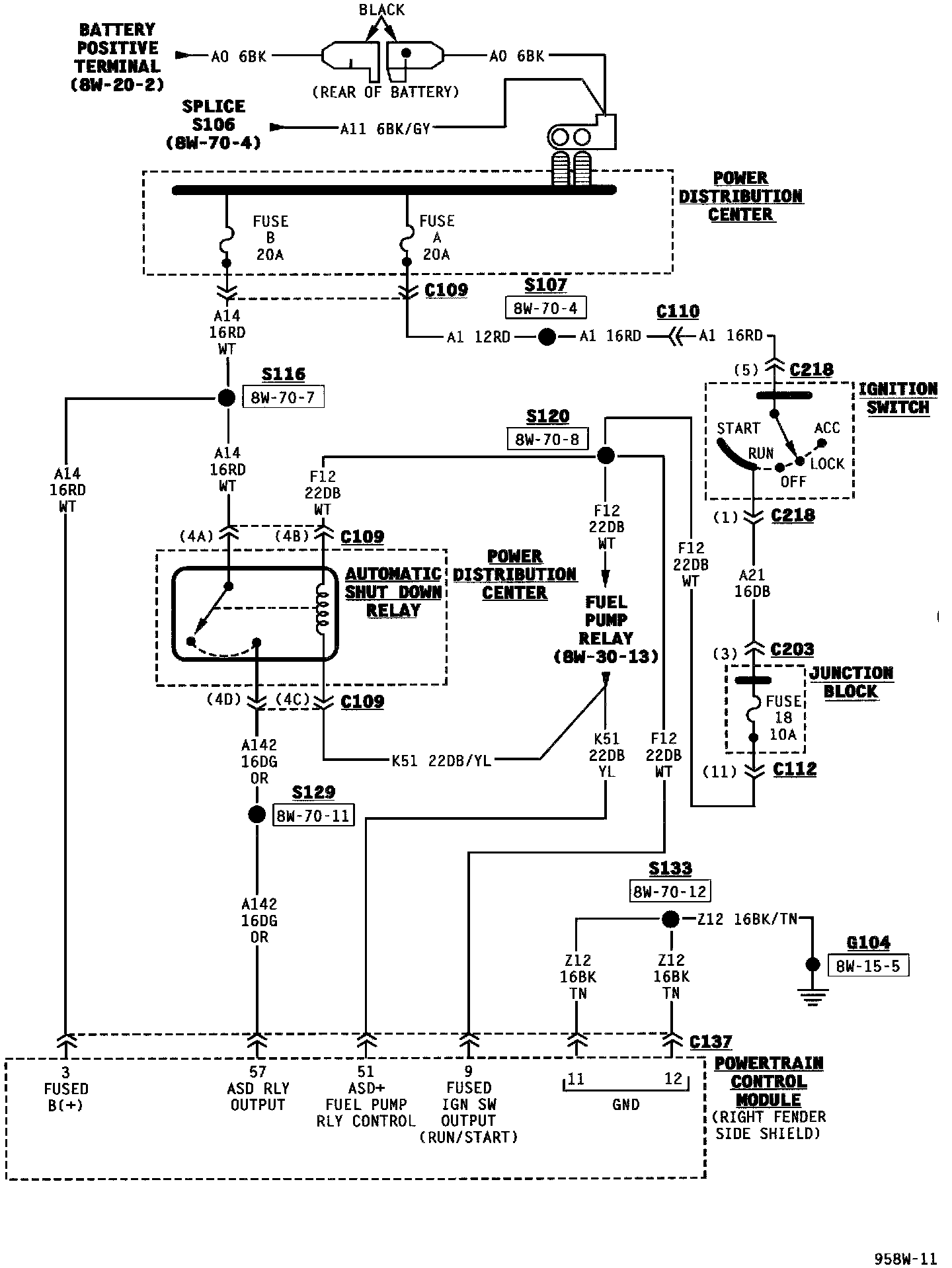

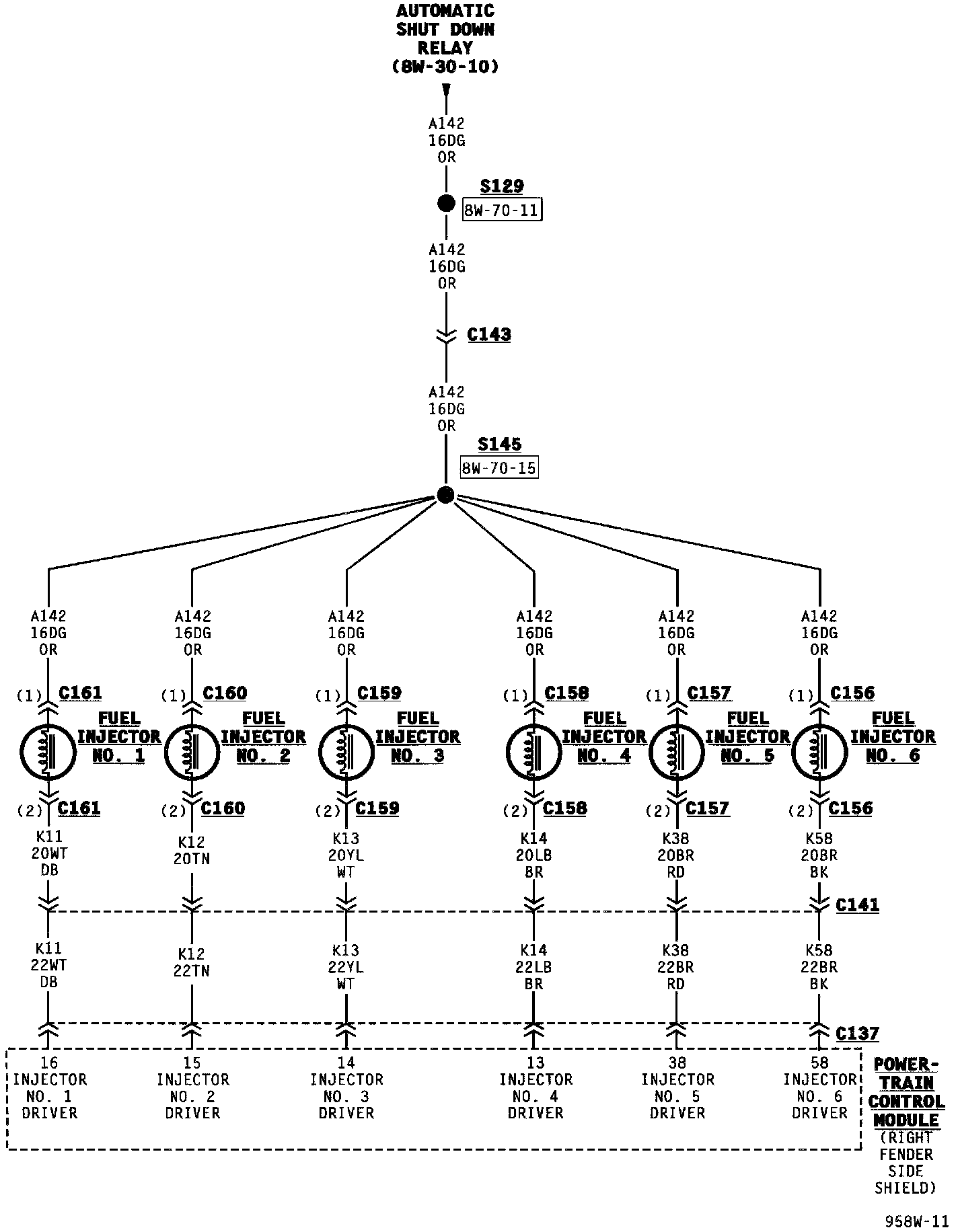

Fuel/Ignition System:

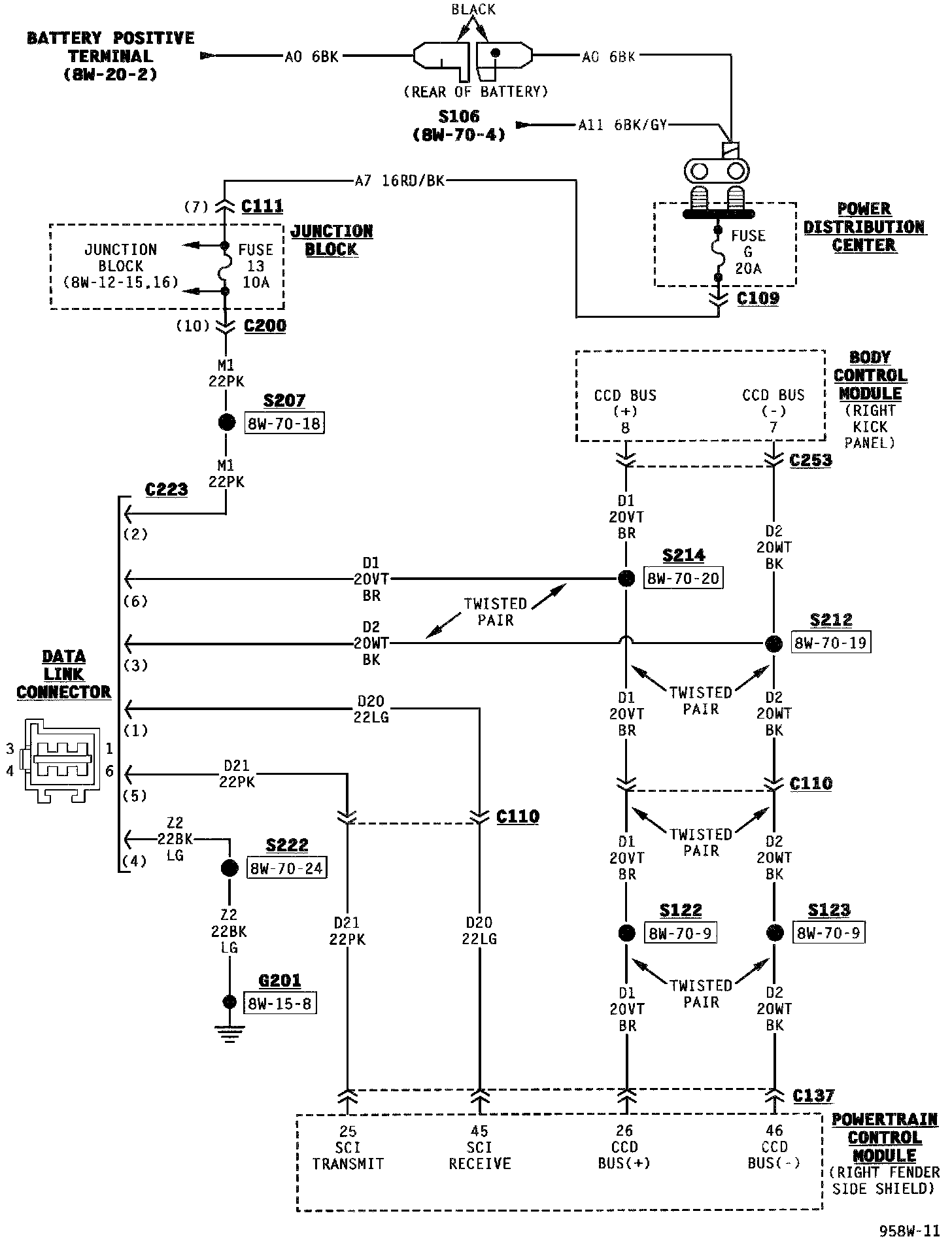

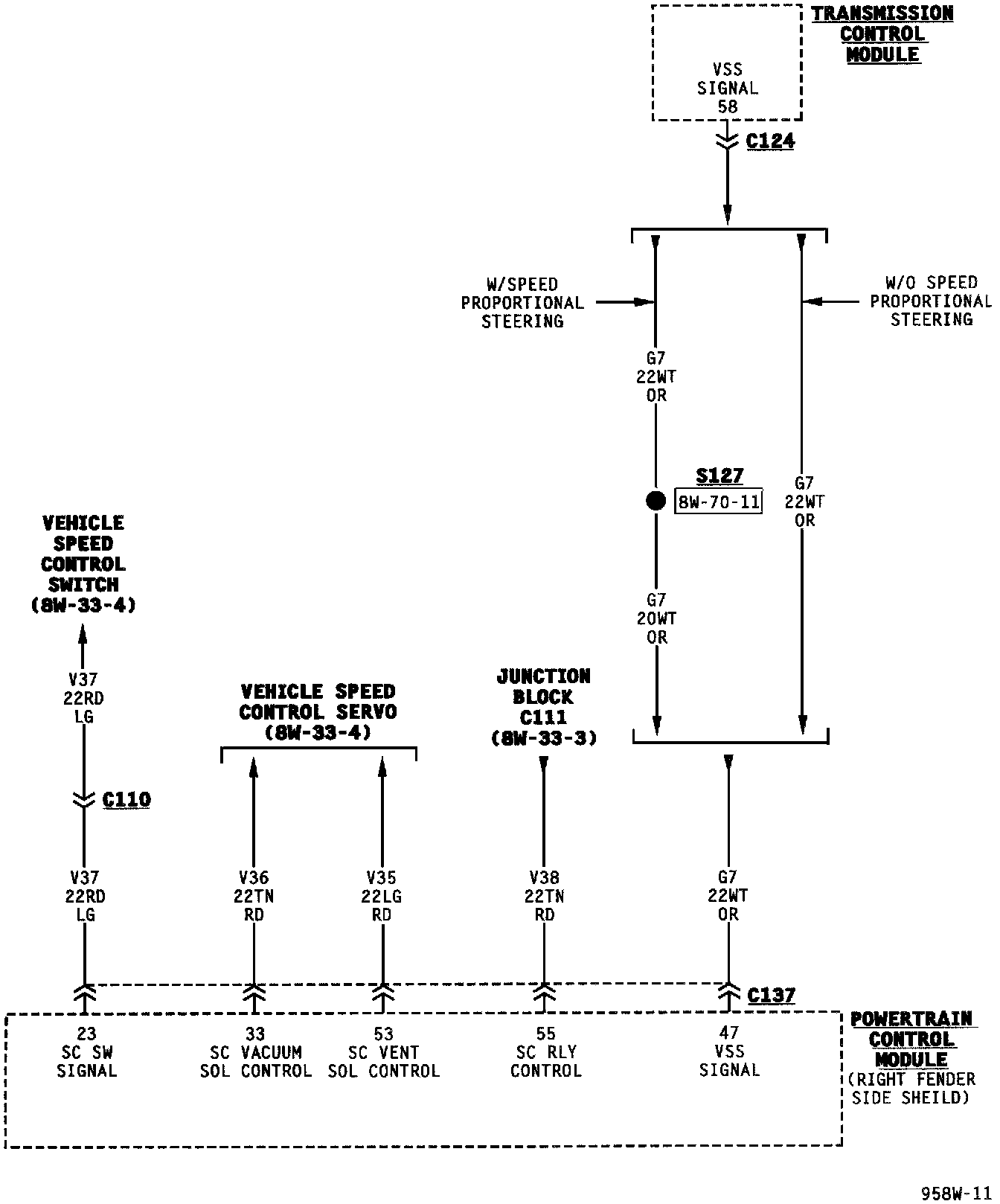

Fuel/Ignition System:

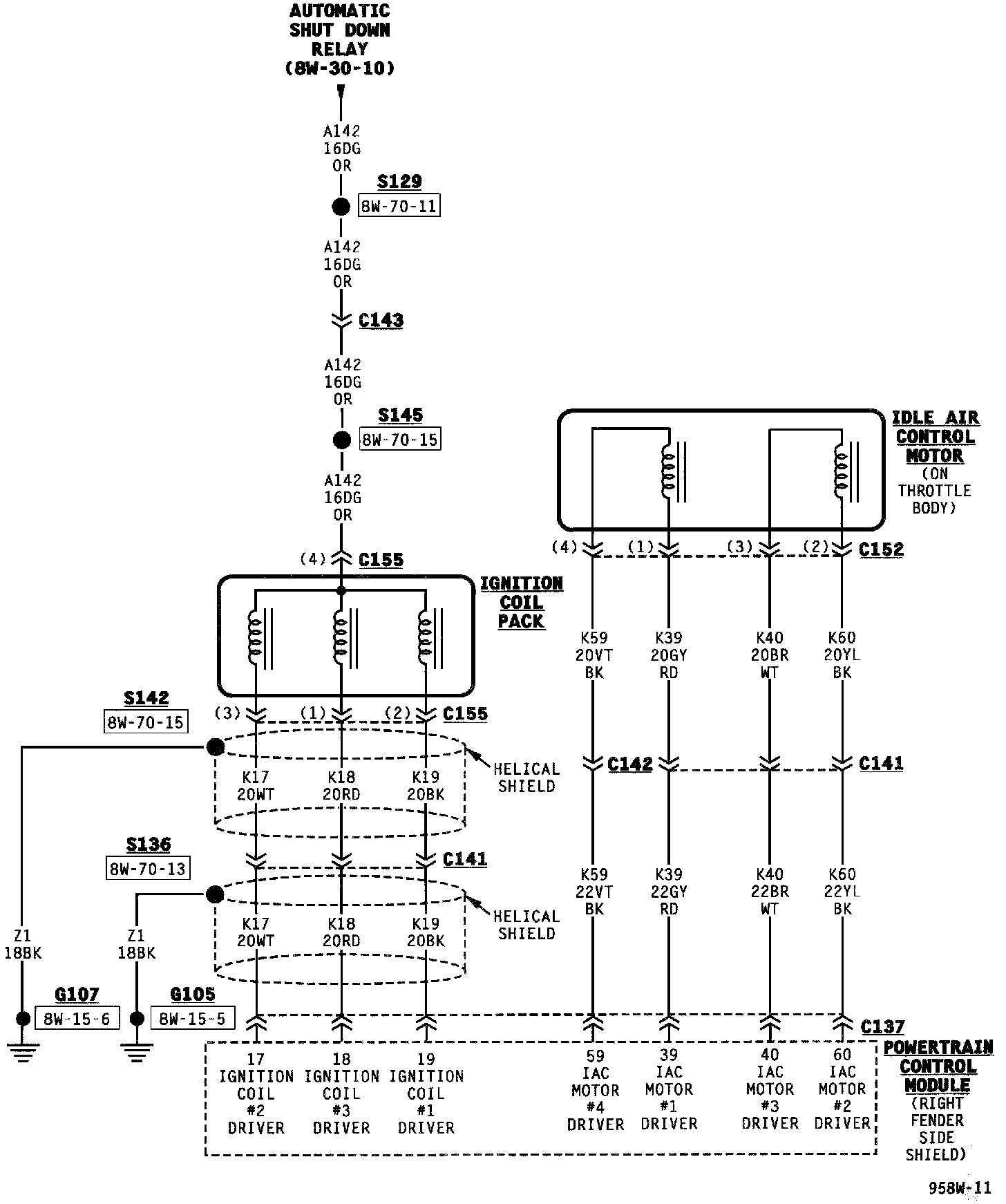

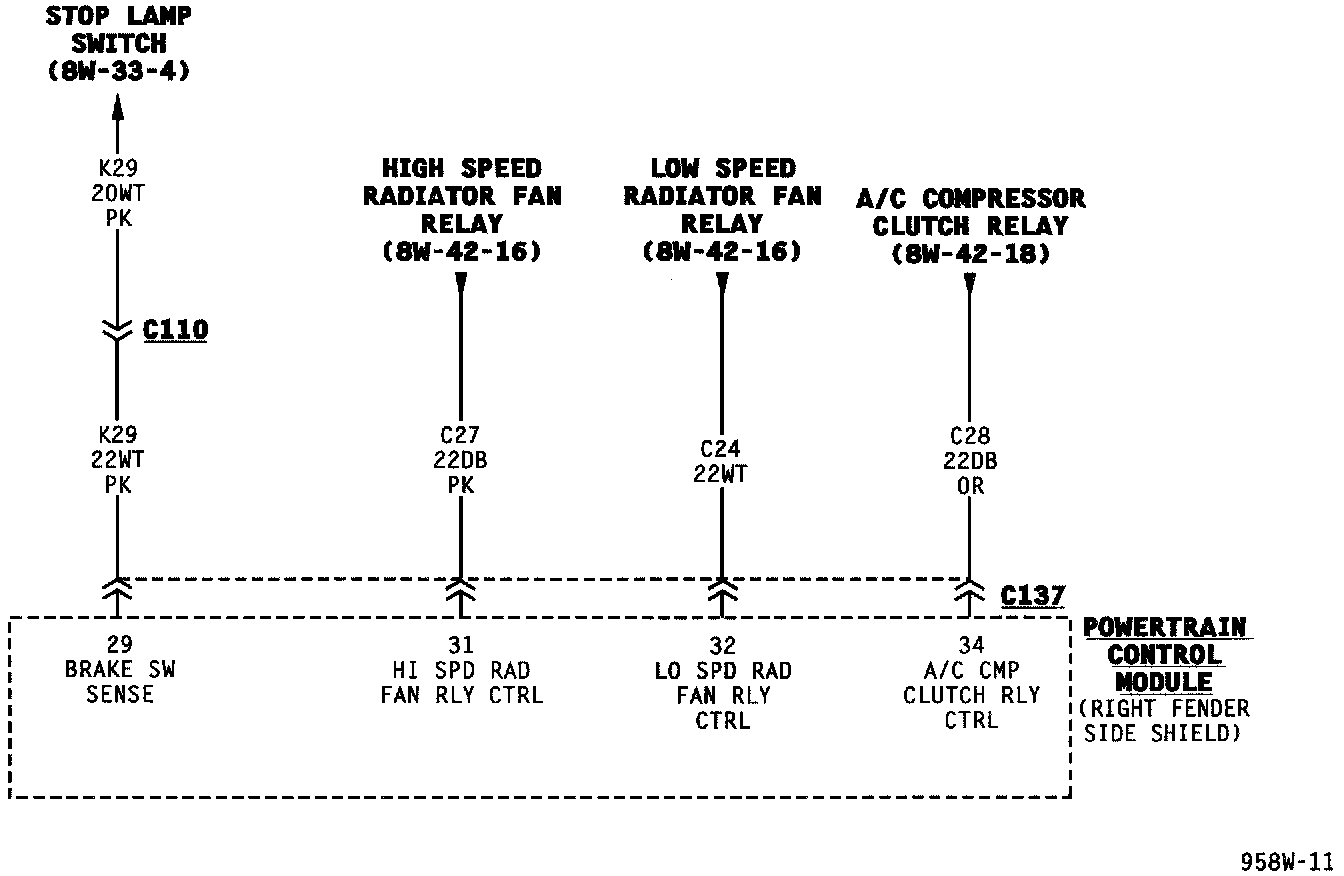

Fuel/Ignition System:

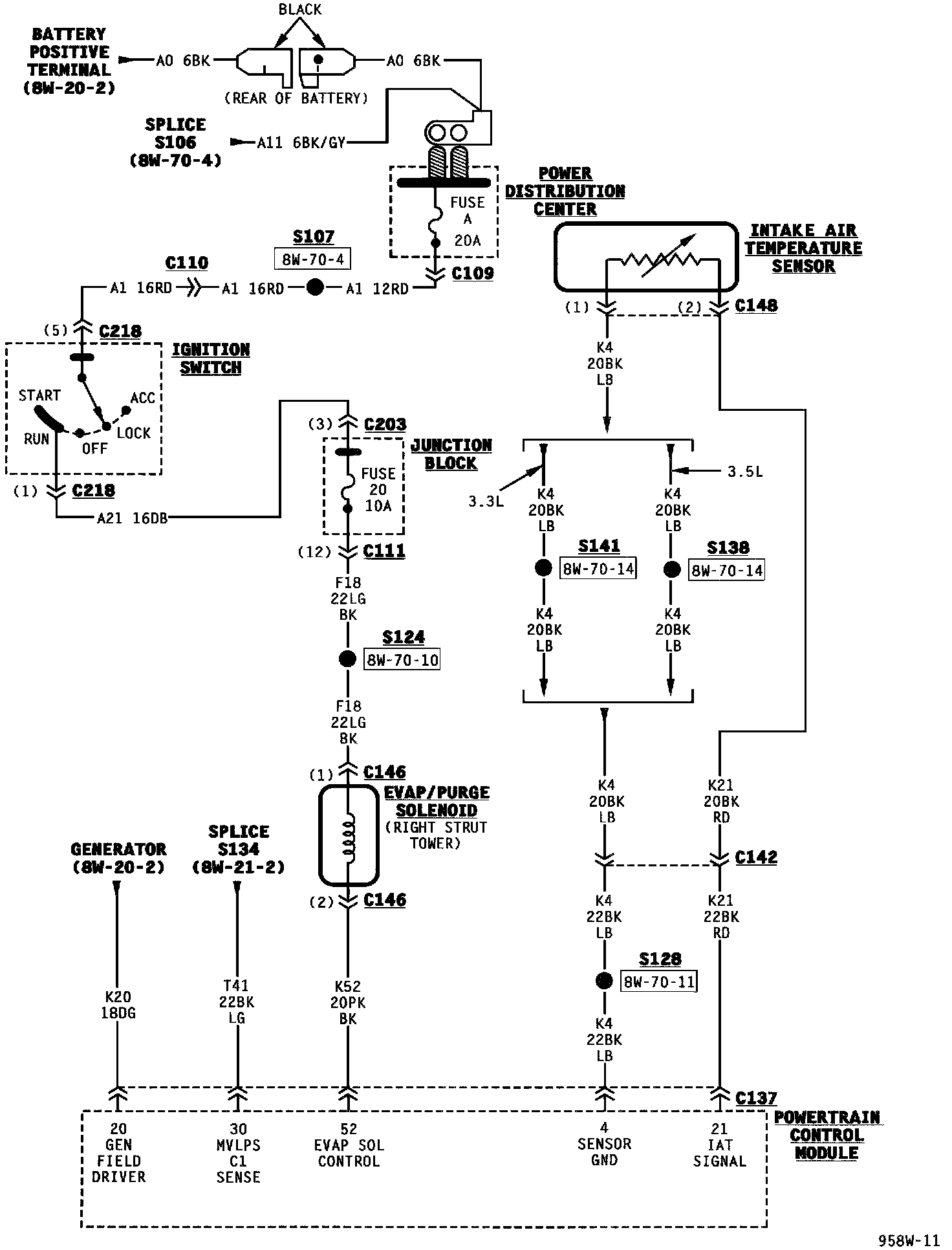

Fuel/Ignition System (Gasoline Engine Only):

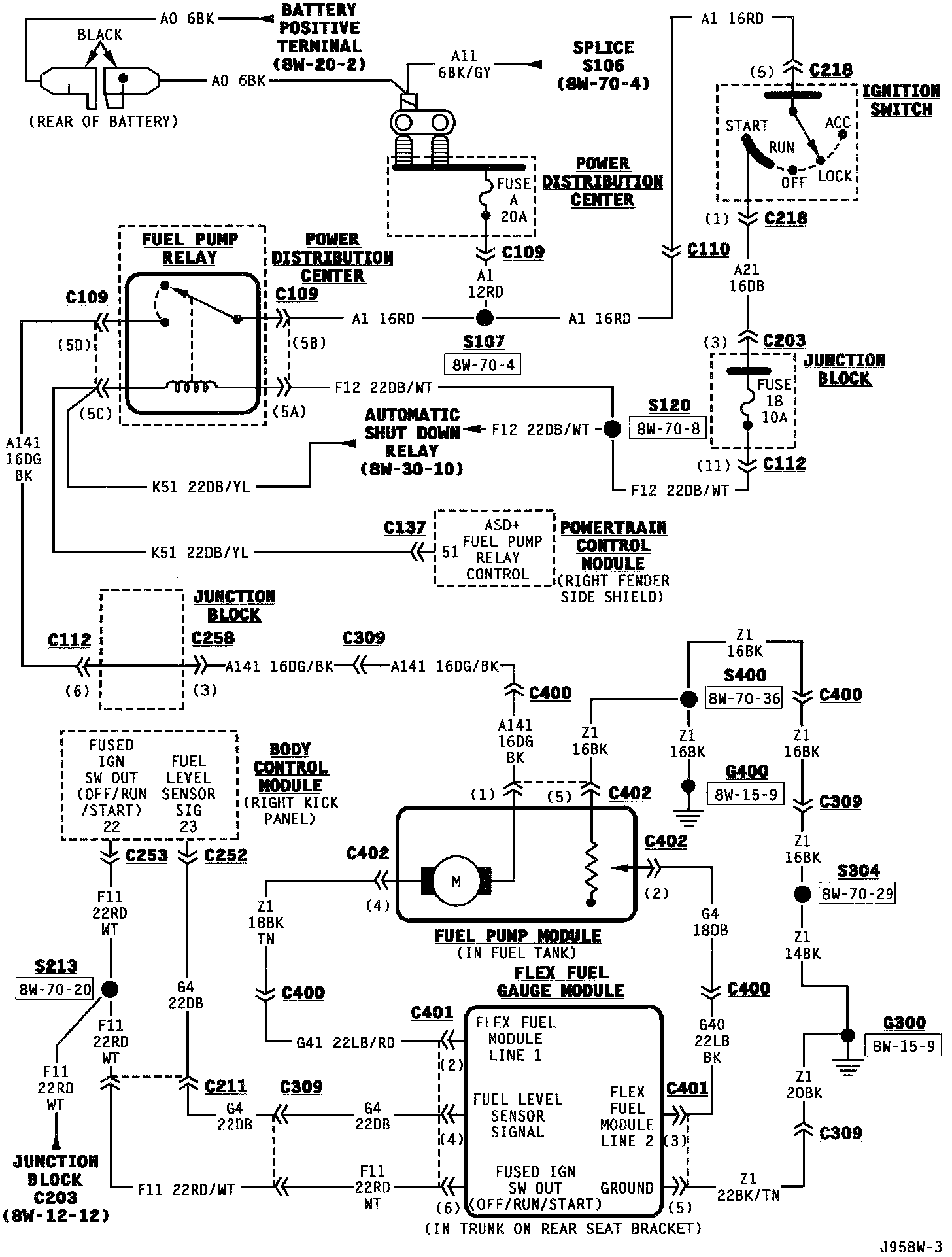

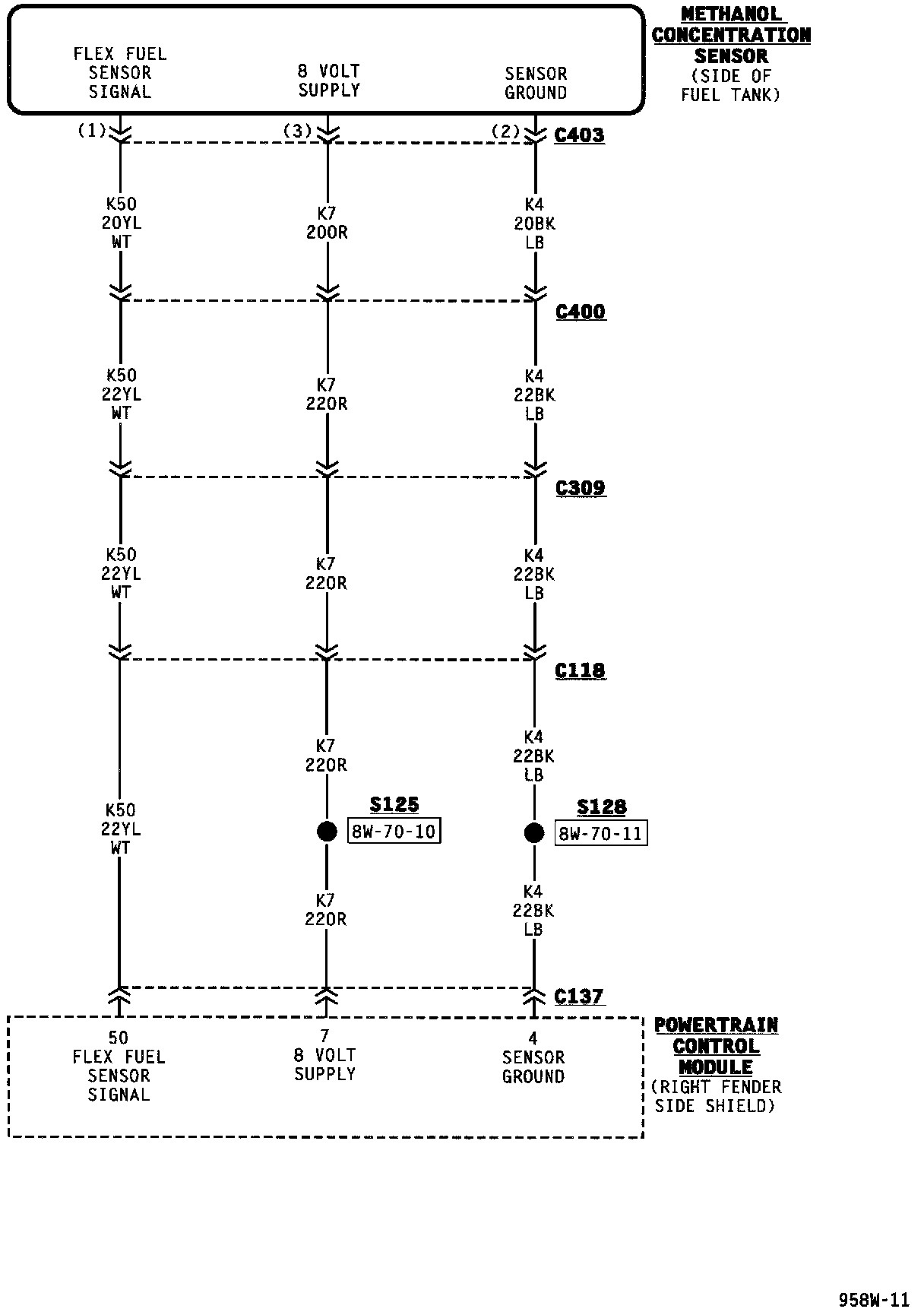

Fuel/Ignition System (With Flex Fuel Only):




Fuel/Ignition System (With Flex Fuel Only):

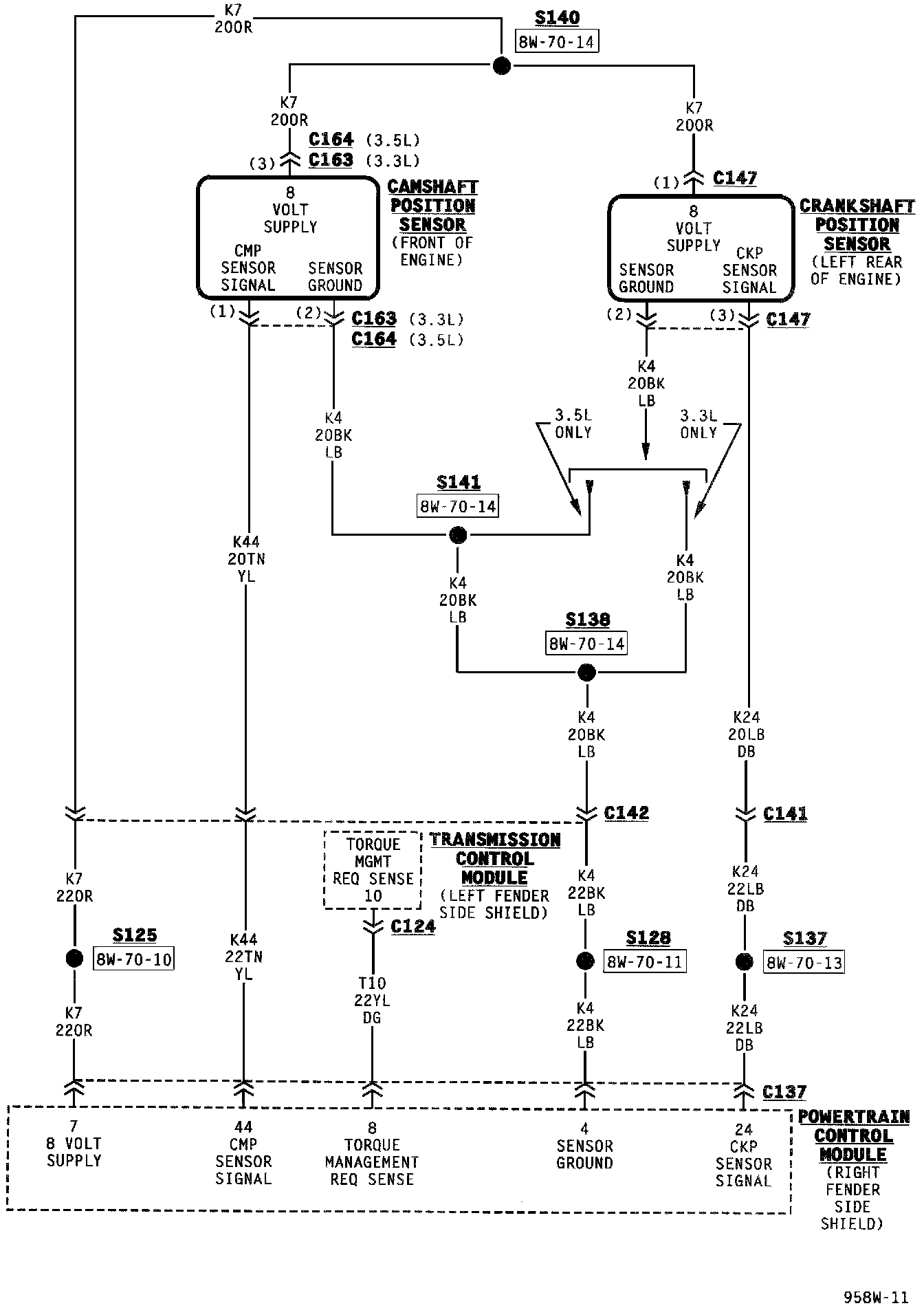

Fuel/Ignition System:




Fuel/Ignition System:




Fuel/Ignition System:




Fuel/Ignition System:




Fuel/Ignition System:




Fuel/Ignition System:




Fuel/Ignition System:







NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
