Turn Signals

Revised by TSB# 08-74-94

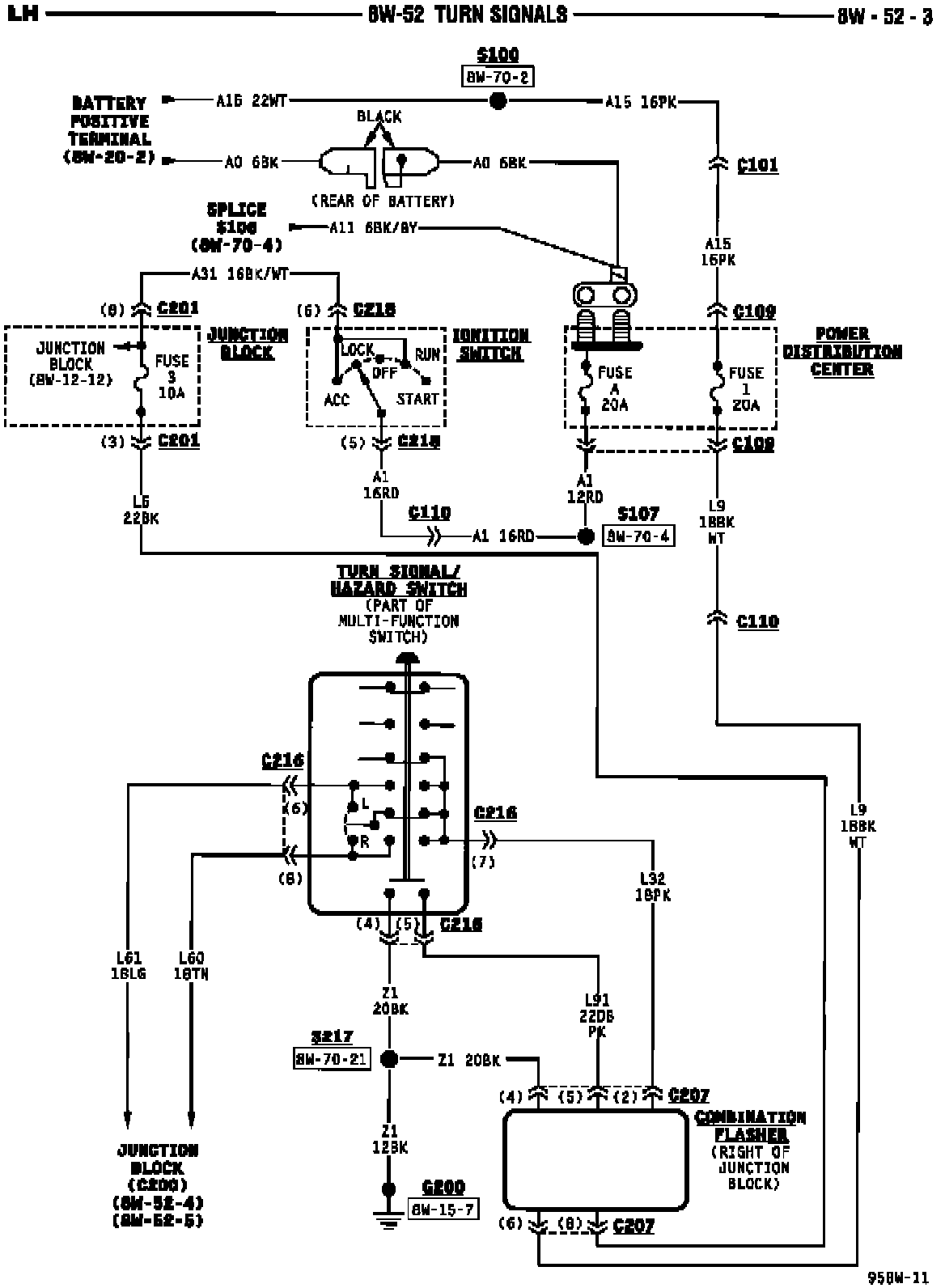

Turn Signals (Part 2 Of 3):

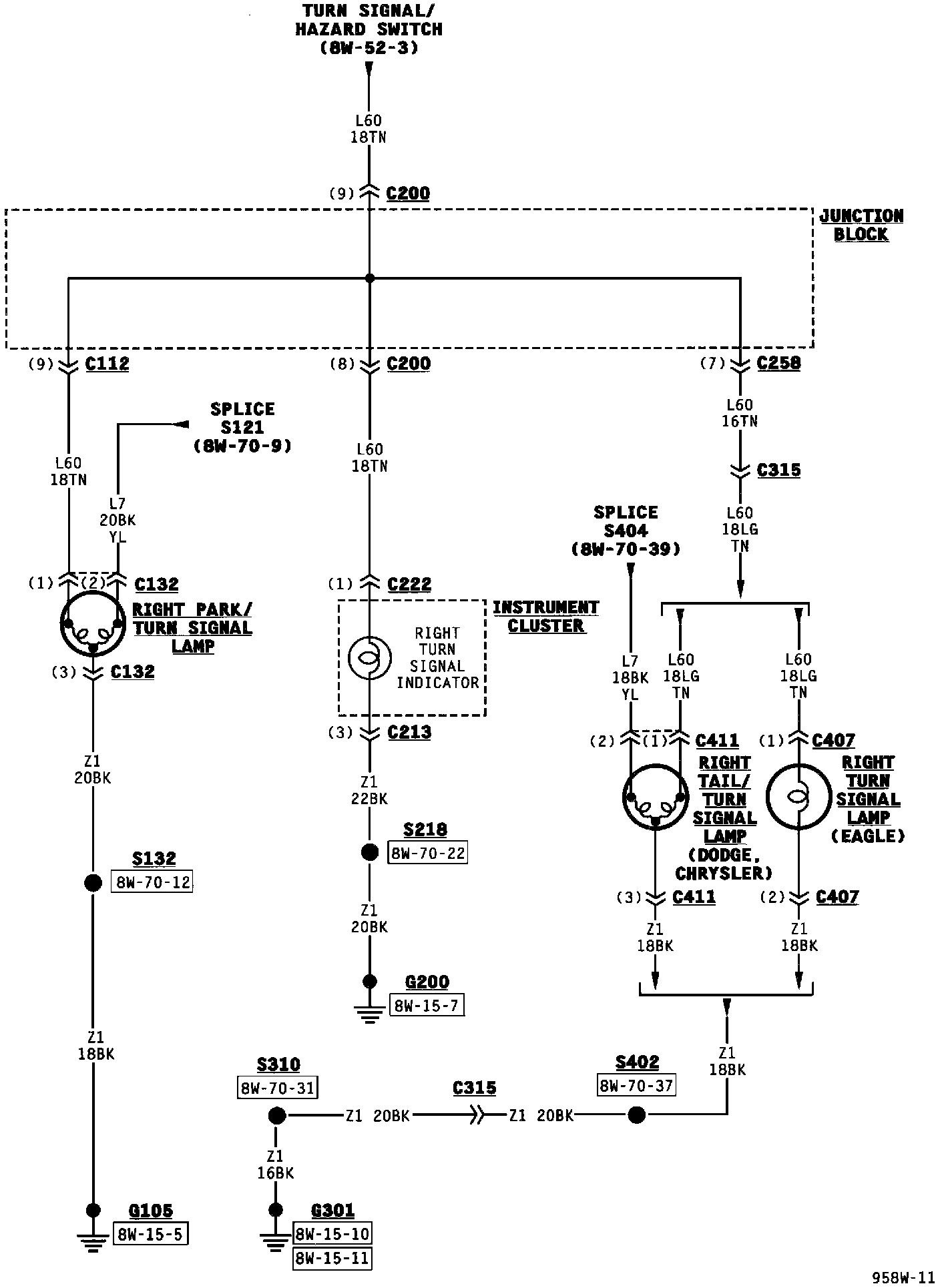

Turn Signals (Part 3 Of 3):

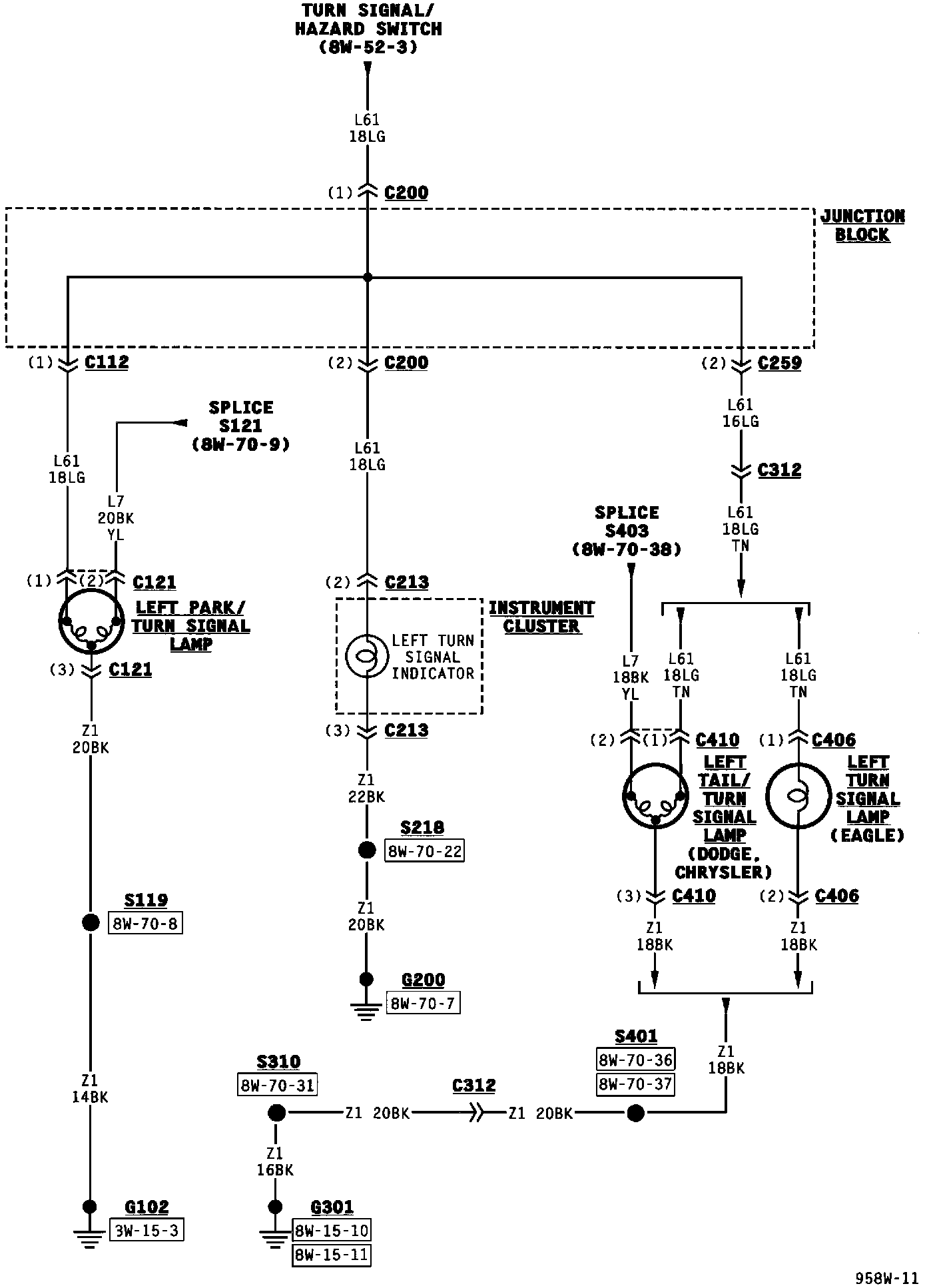

NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
