Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Group Number >> Group 8W-47 Audio System >> Sheet 8W-47-3

Sheet 8W-47-3

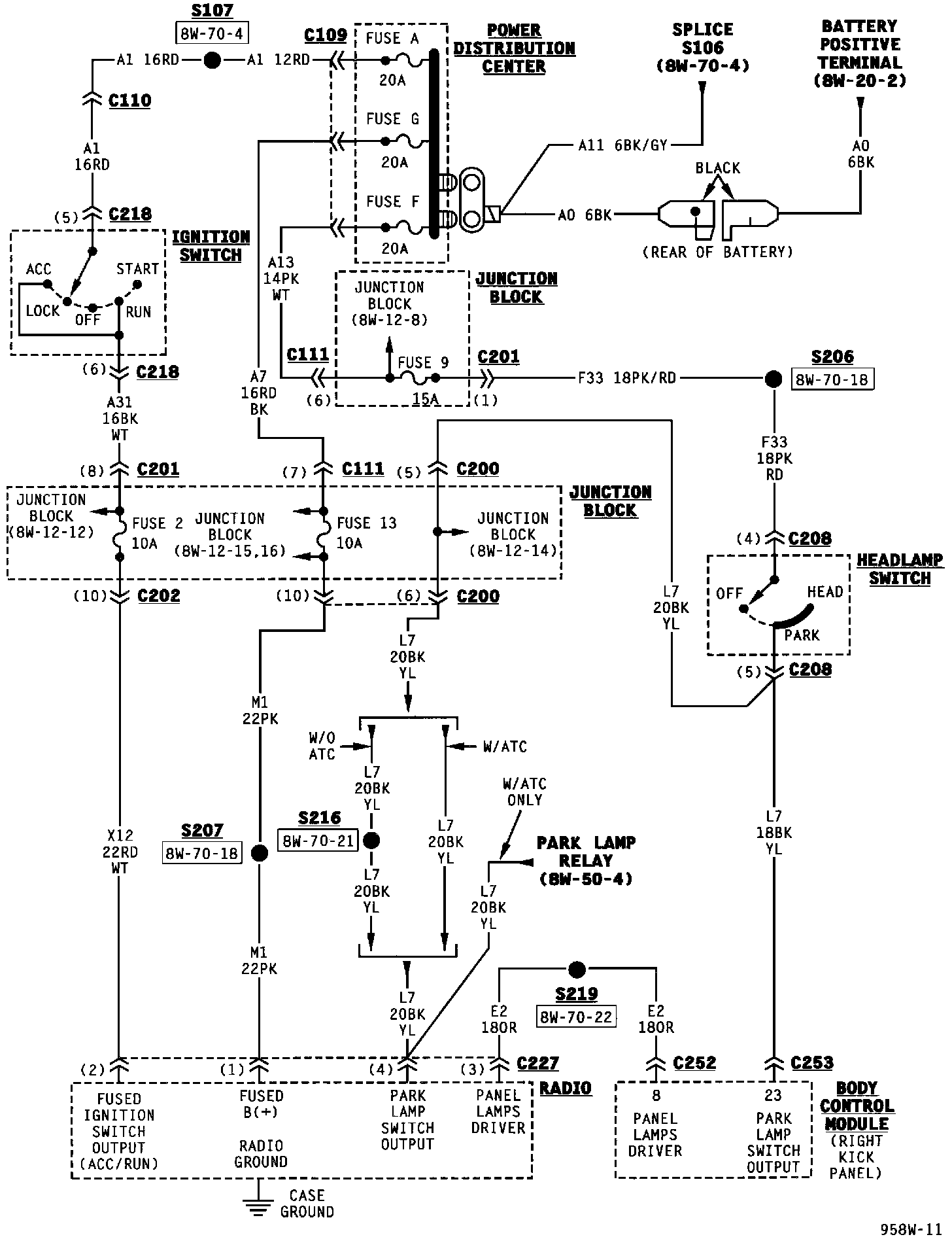

Audio System - Standard Radio (Part 1 Of 2):
