Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Traction Control Switch

Traction Control Switch

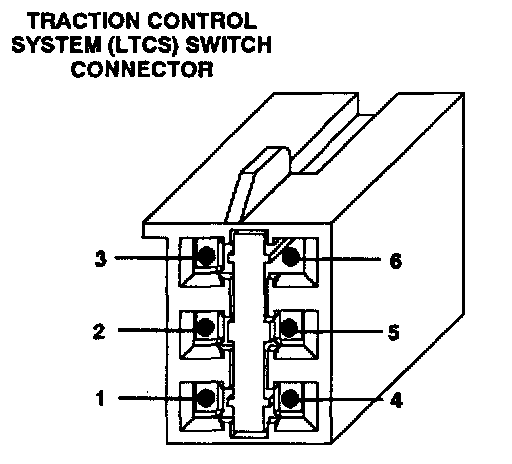

Traction Control Switch Connector:

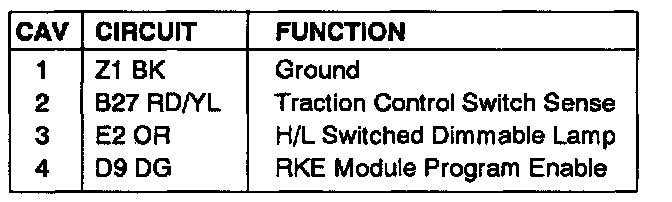

Traction Control Switch Connector Pin Out:
