Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Complete Body and Chassis Connector Views >> Sheet 8W-80-67

Sheet 8W-80-67

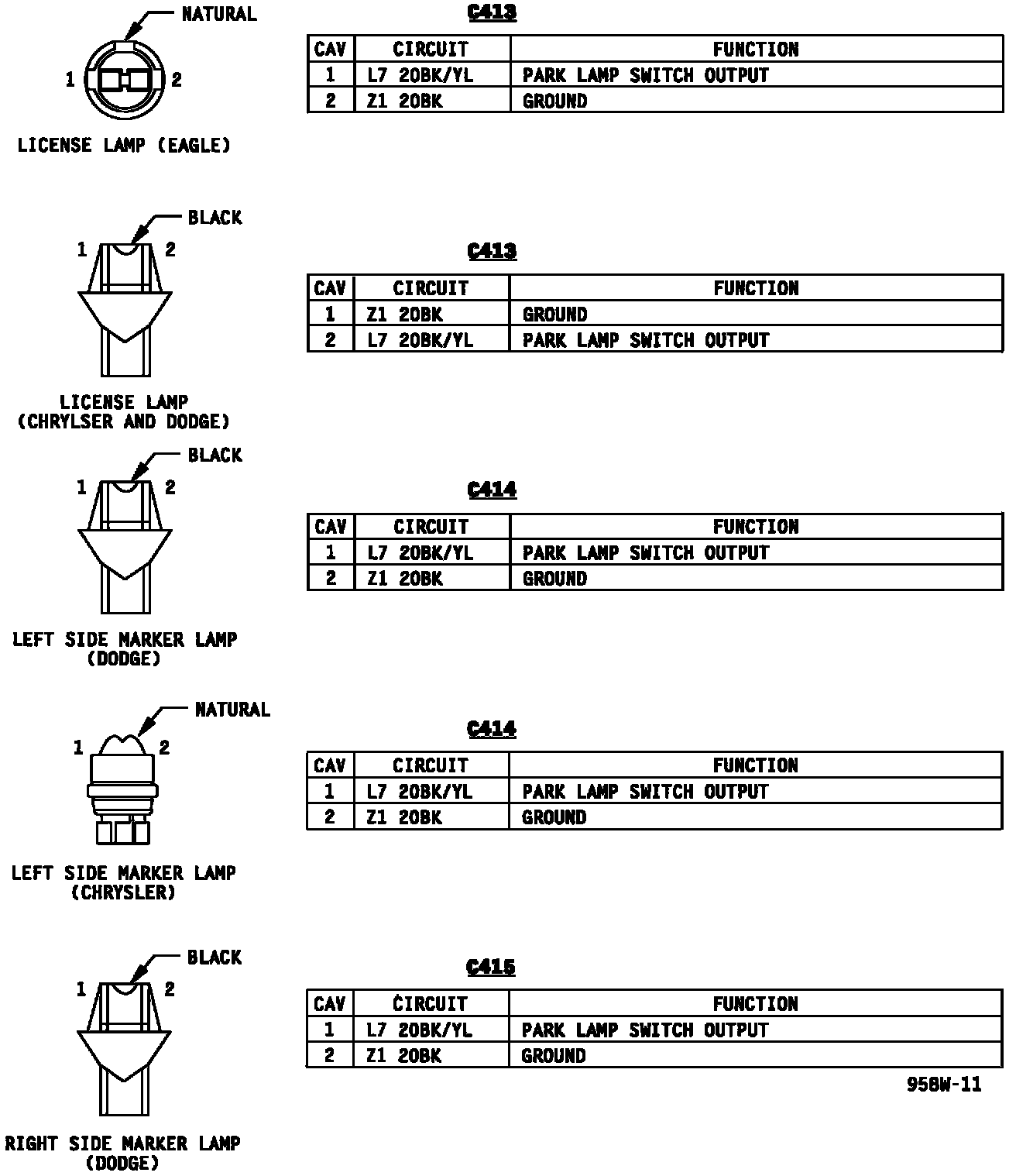

Connector Pin-Outs (Part 65 Of 67):
