Home
>>
Eagle
>>
1995
>>
Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Flow of Diagnosis
Flow of Diagnosis

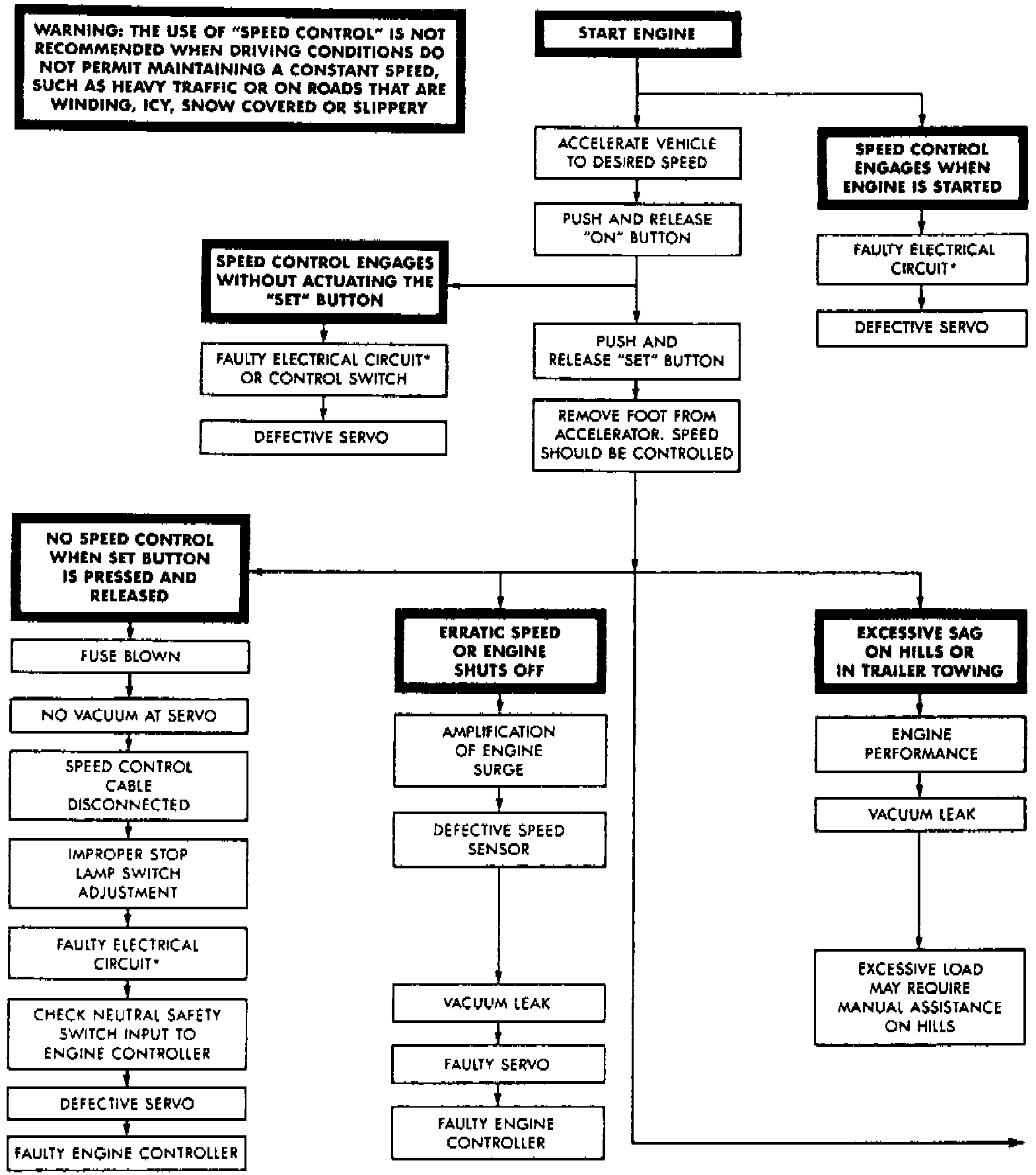

Fig. 1 Speed Control Troubleshooting Chart (Part 1 Of 2):
Fig. 1 Speed Control Troubleshooting Chart (Part 2 Of 2):
