Symptom Related Diagnostic Procedures

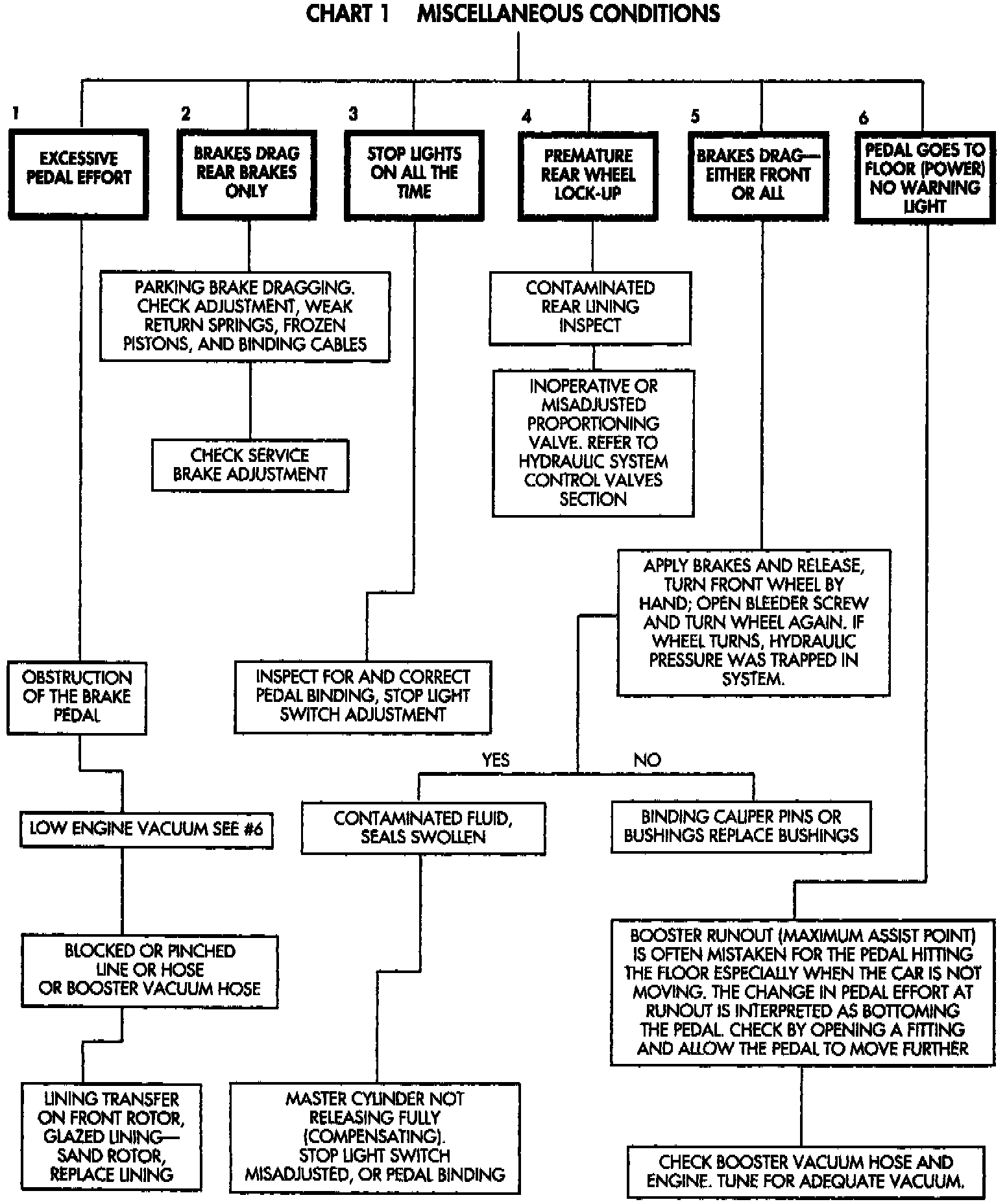

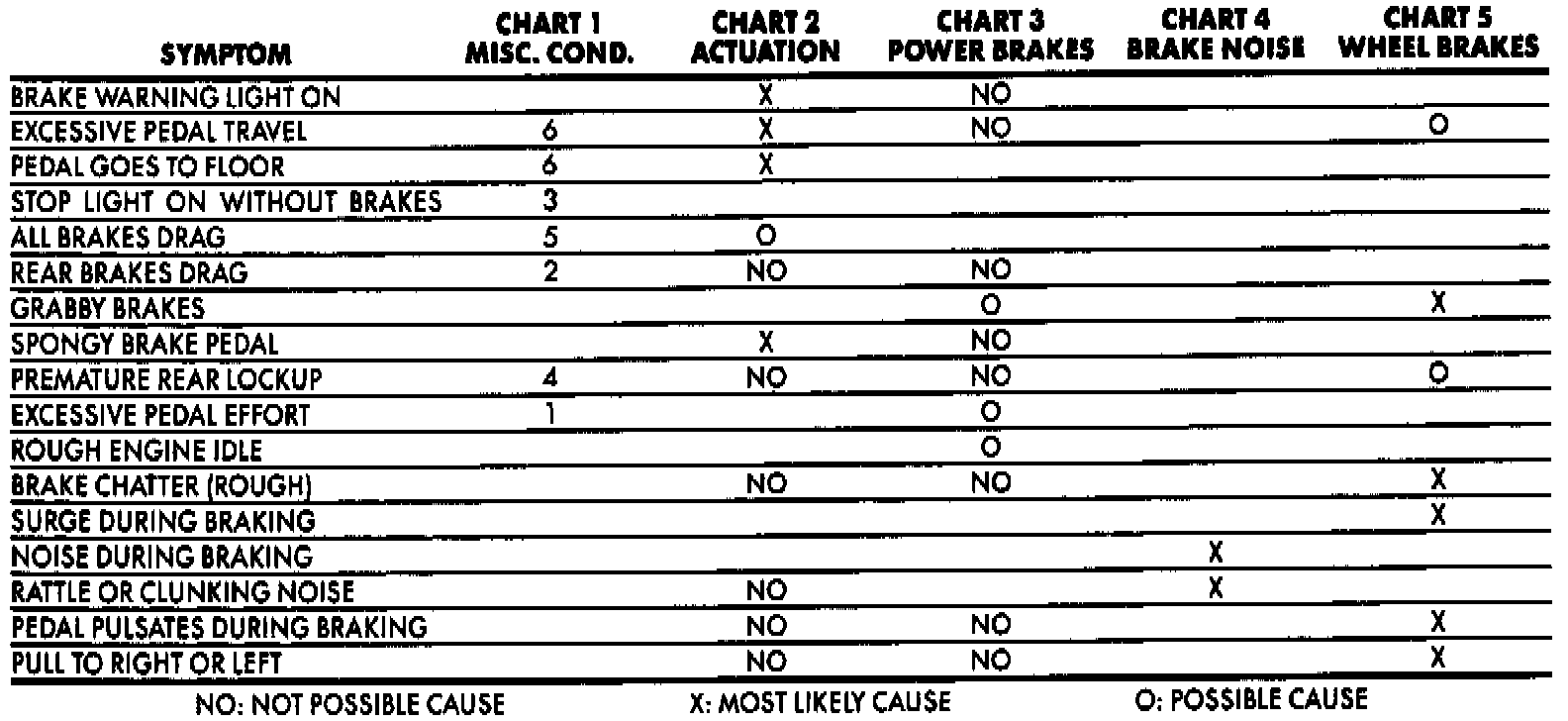

Brake System Troubleshooting (Part 1 Of 6):

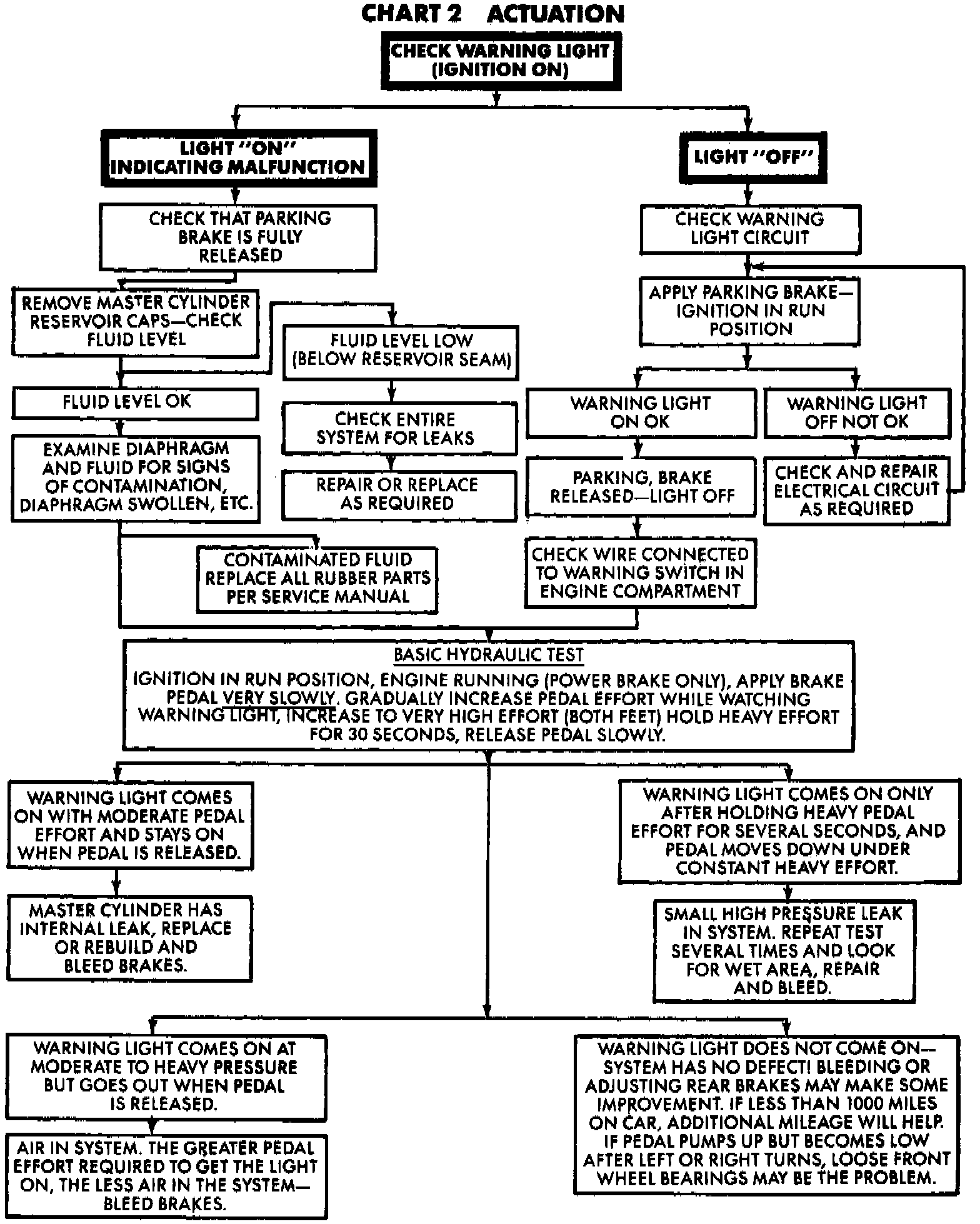

Chart 1 Brake System Troubleshooting (Part 2 Of 6):

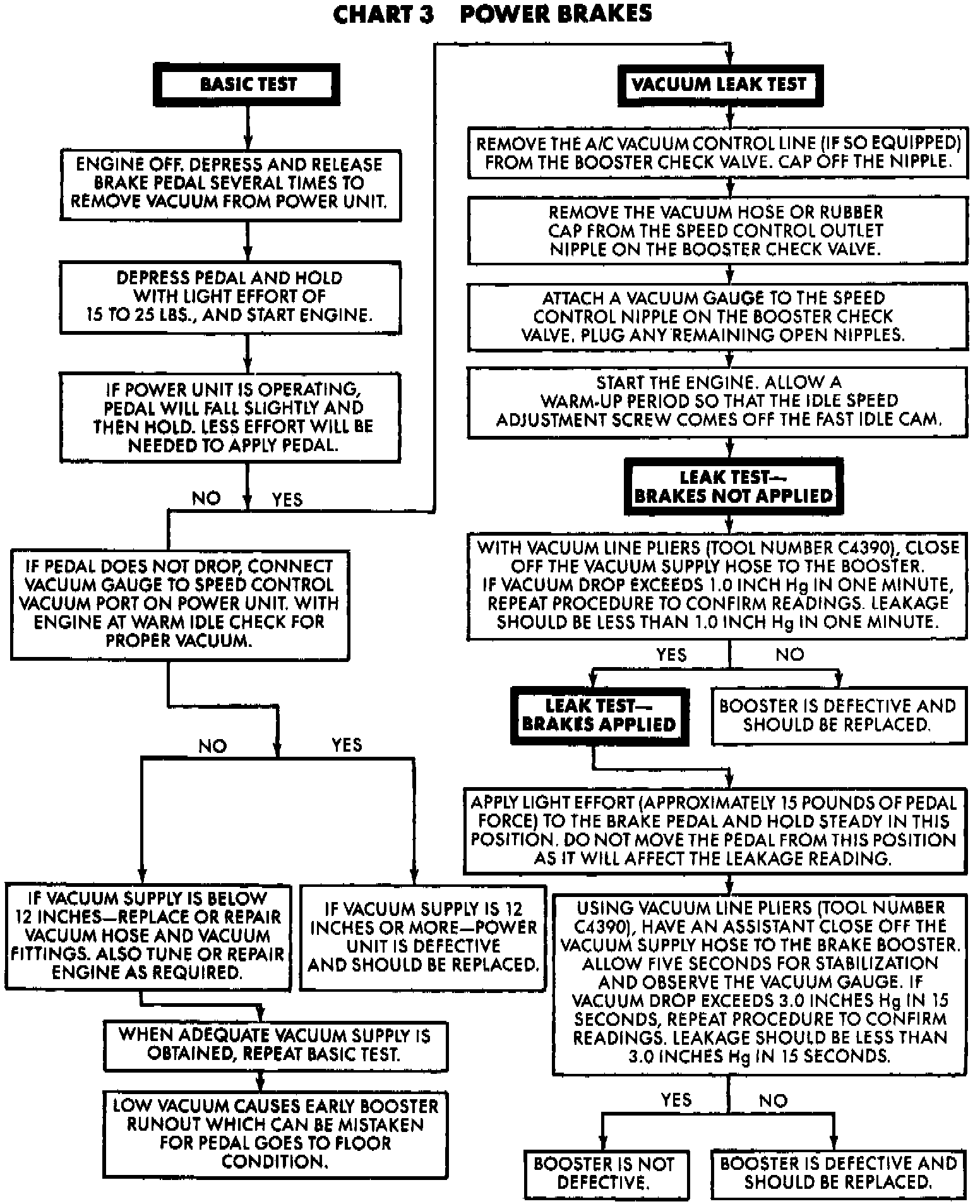

Chart 2 Brake System Troubleshooting (Part 3 Of 6):

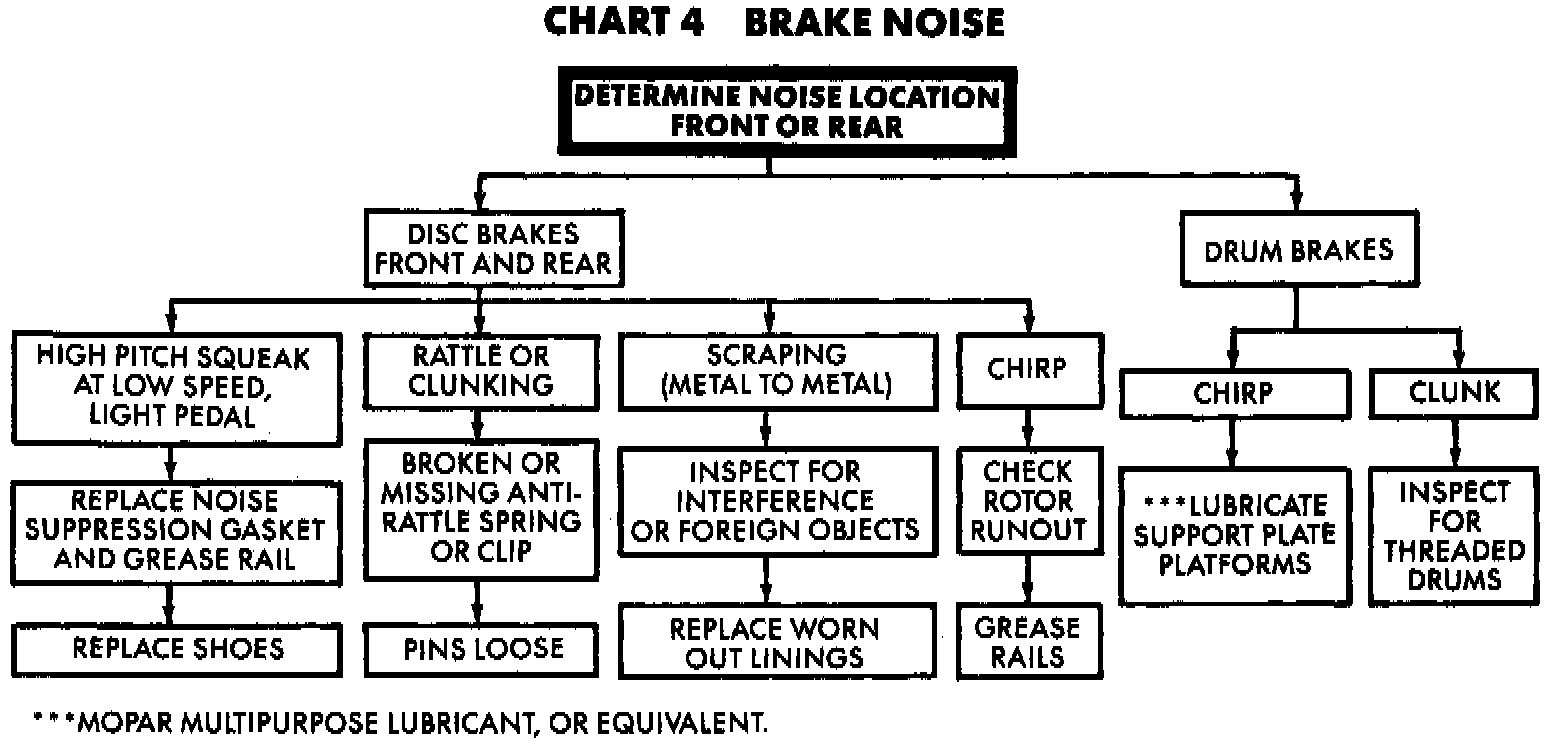

Chart 3 Brake System Troubleshooting (Part 4 Of 6):

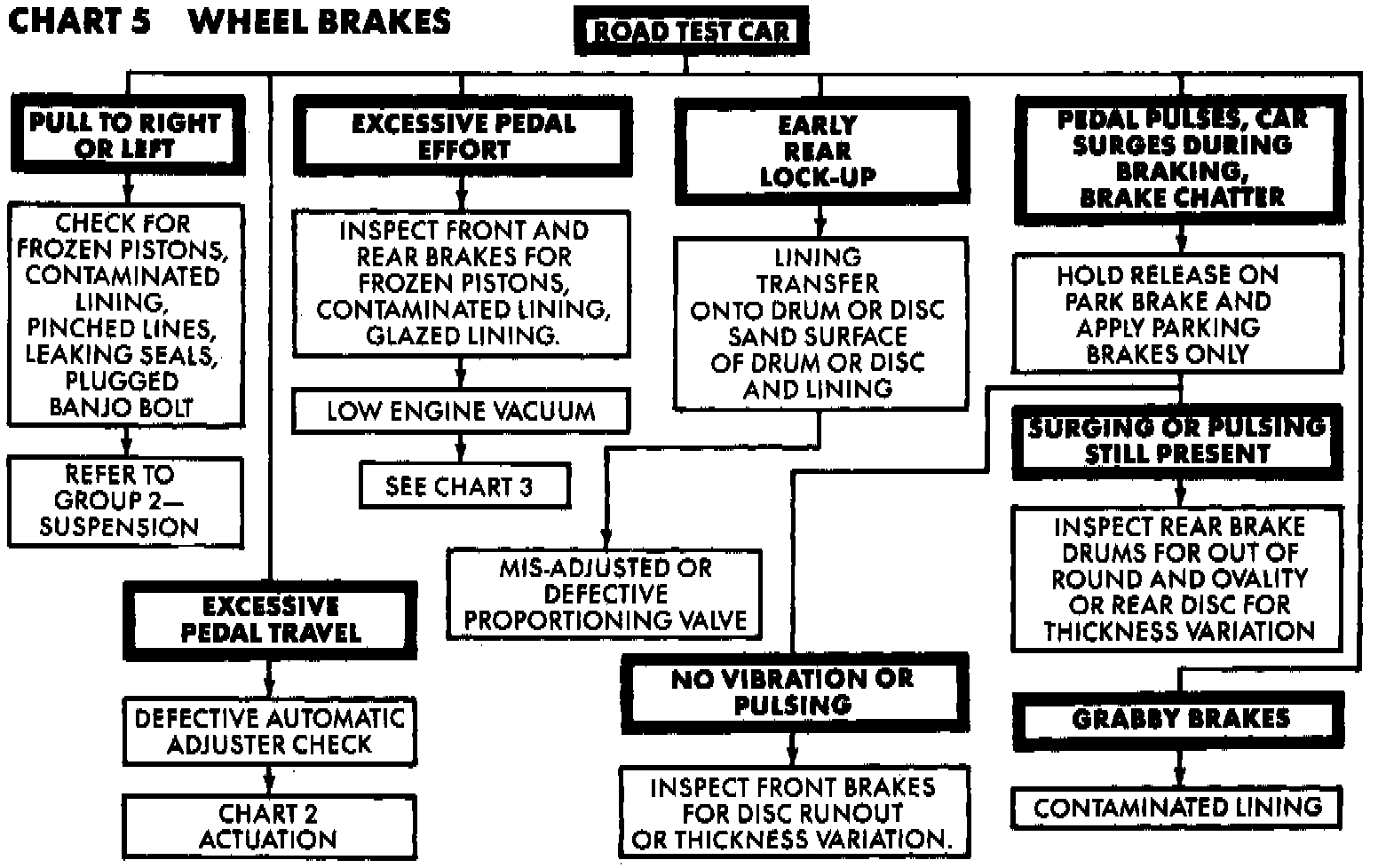

Chart 4 Brake System Troubleshooting (Part 5 Of 6):

Chart 5 Brake System Troubleshooting (Part 6 Of 6):
