Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Locations >> Connector Locations >> Wheel Speed Sensor Connectors >> Rear >> Left

Left

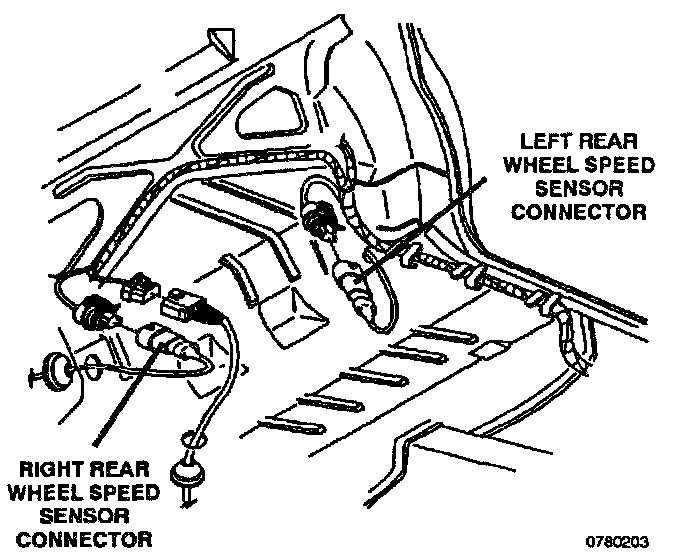

LR WHEEL SPEED SENSOR CONNECTOR:

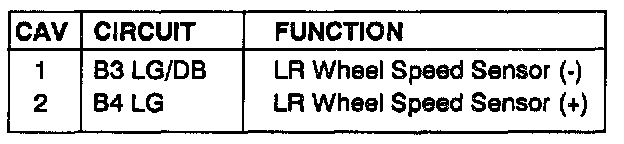

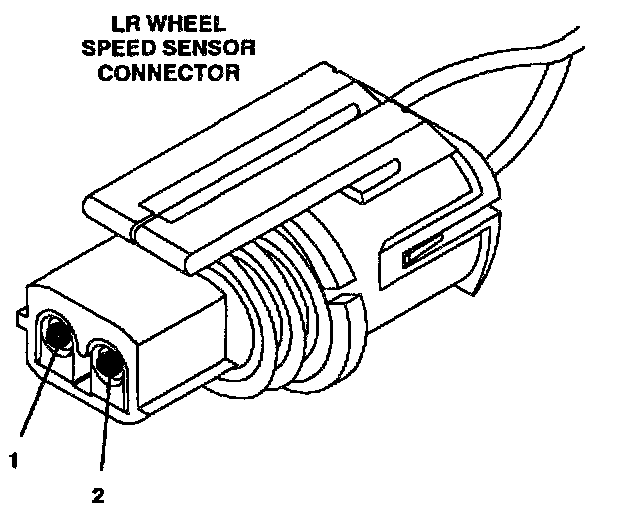

LR WHEEL SPEED SENSOR CONNECTOR Pin Out:
