Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Locations >> Connector Locations >> Wheel Speed Sensor Connectors >> Front >> Right

Right

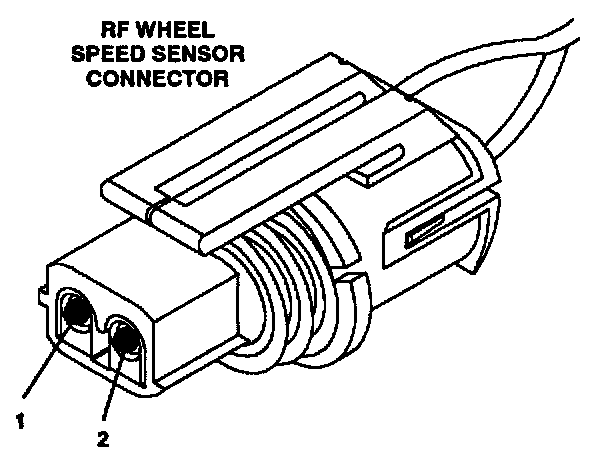

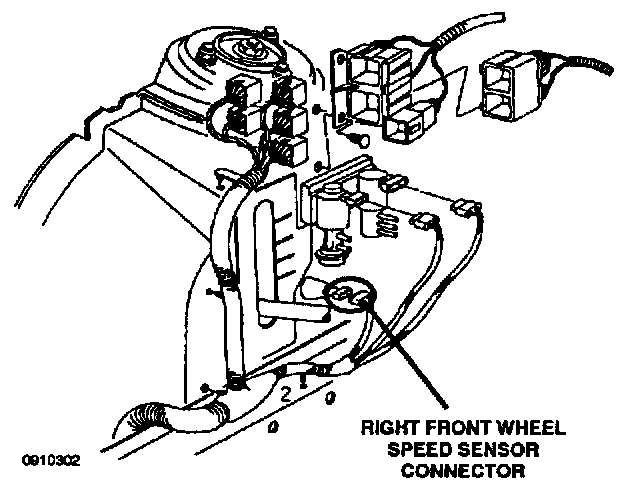

RF Wheel Speed Sensor Connector:

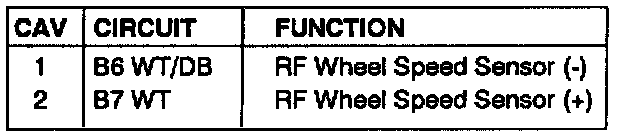

RF Wheel Speed Sensor Connector Pin Out:
