Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Locations >> Connector Locations >> Wheel Speed Sensor Connectors >> Front >> Left

Left

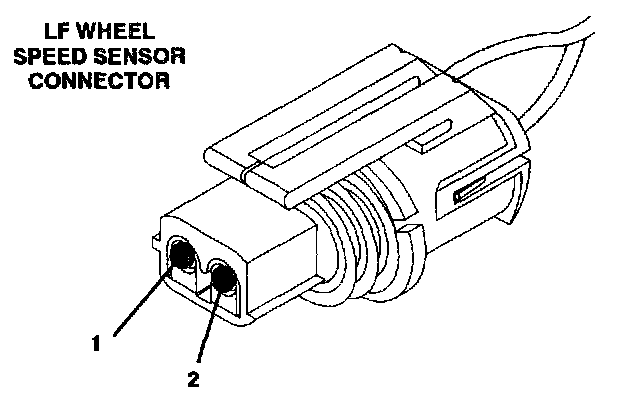

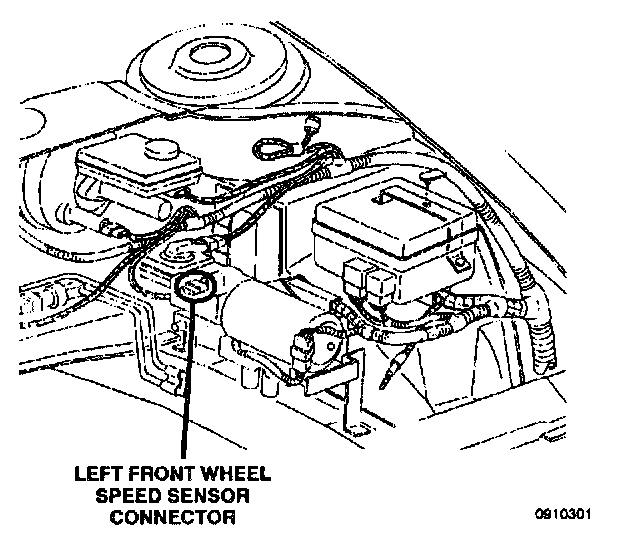

Front Wheel Speed Sensor Connectors:

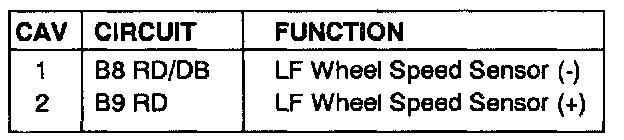

Front Wheel Speed Sensor Connectors Pin out:
