Pump/Motor Relay Connector
Pump/Motor Relay Connector

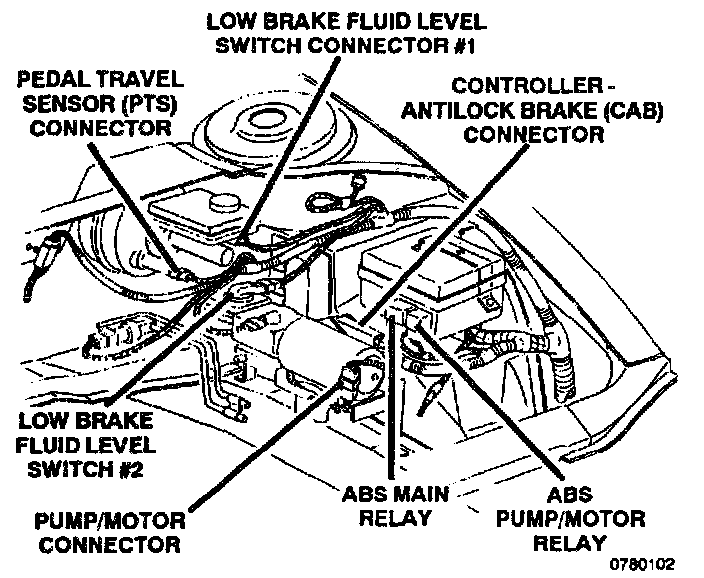

Pump/Motor Relay Connector:

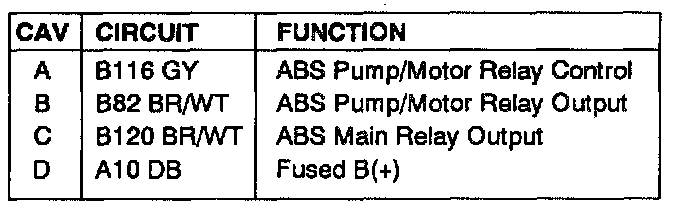

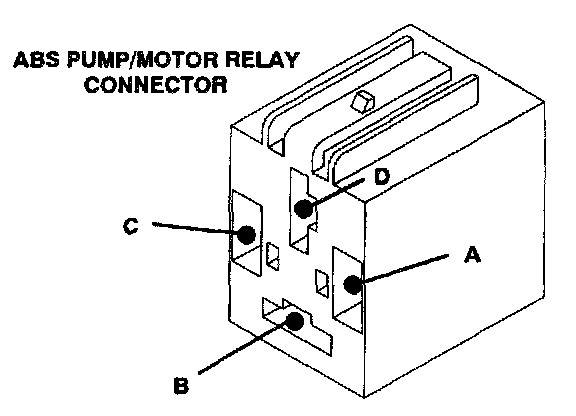

Pump/Motor Relay Connector Pin Out:
