Controller - Antilock Brake (CAB)

Controller Antilock Brake Connector:

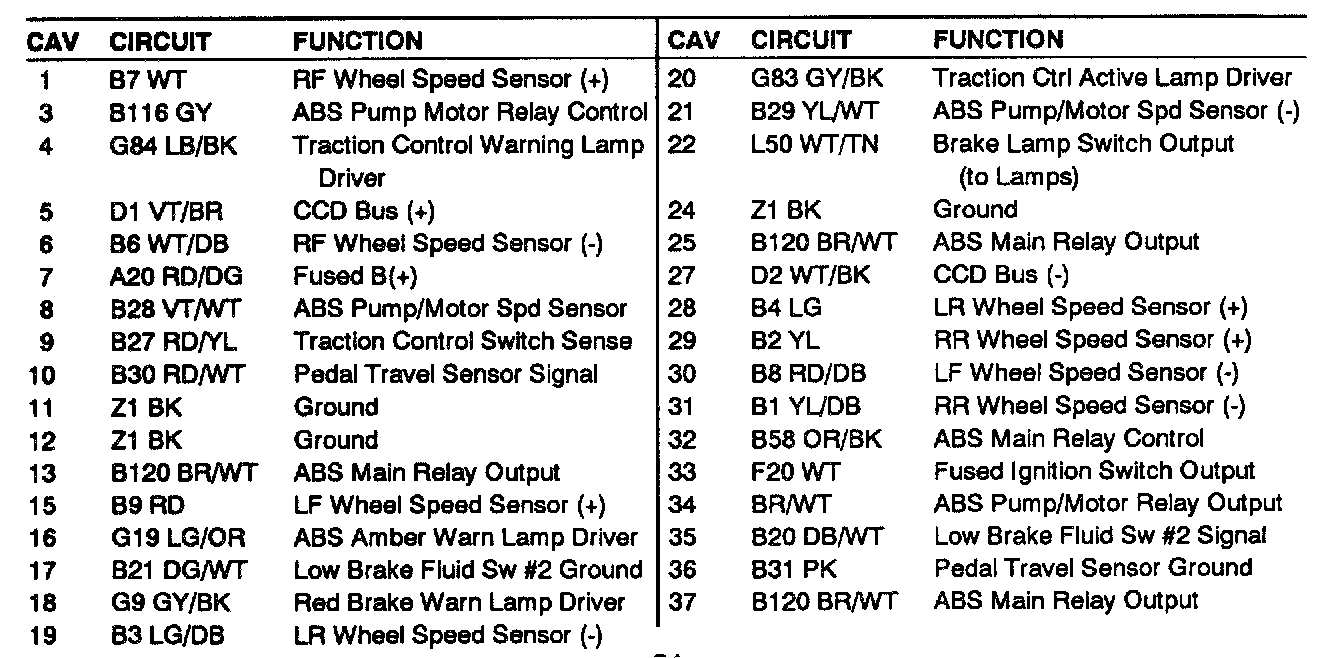

Controller Connector Pin Out:
