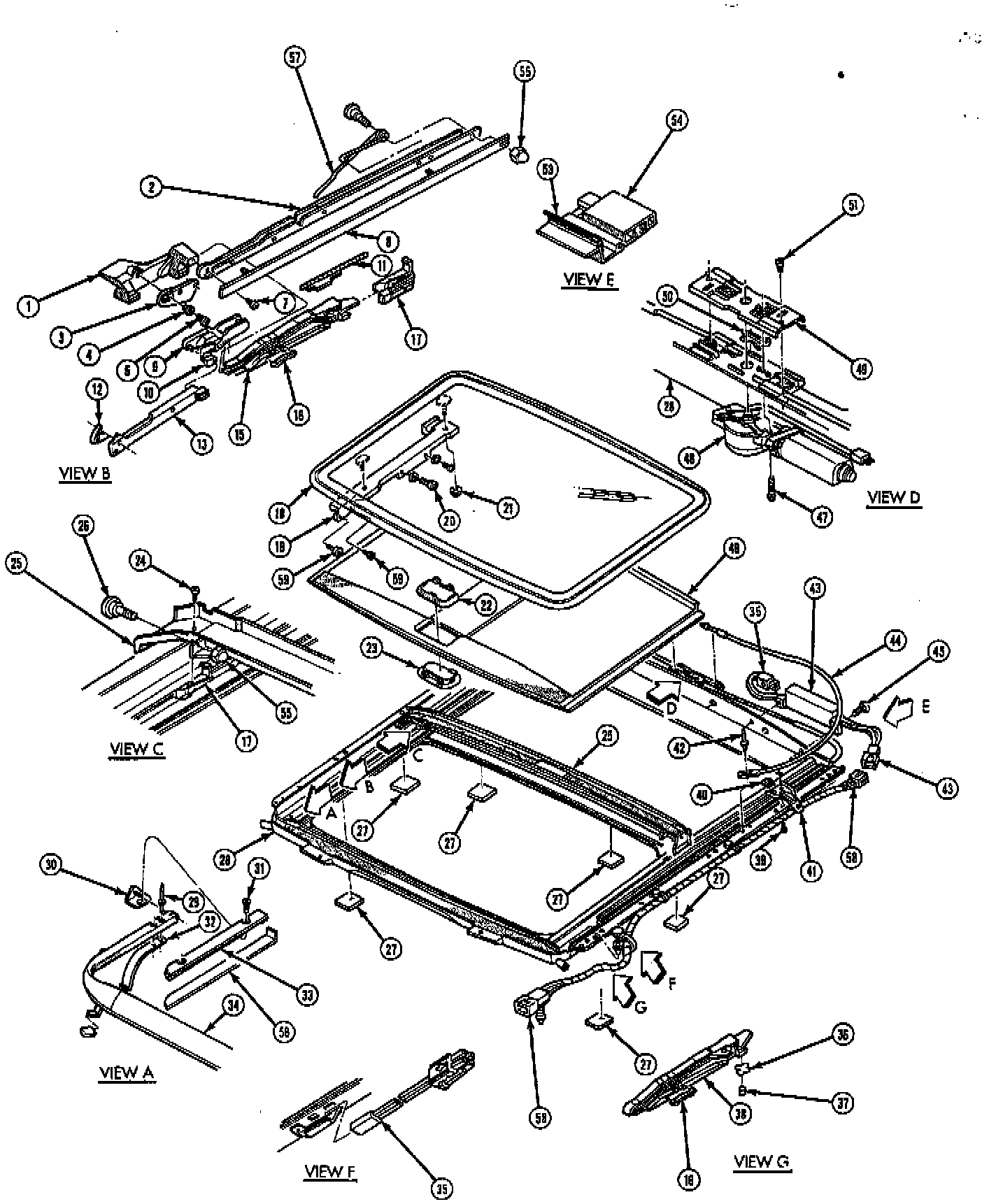

Exploded Views

Sunroof Components:

Sunroof components

1 GUIDE ASM FRONT R/L
2 TROUGH / GUIDE LINK
3 PIVOT - FRONT GUIDE PLATE R/L
4 BUSHING PIVOT
5 SCREW-M5- 0.8 x 12.0 BTN HD
7 SCREW-M3 x 0.5 x 8.0 PAN HD
8 COVER ASM - MECH REVEAL
9 LINK ASM - R/L
10 BUSHING - SLIDE
11 CABLE ASM - MOLDED
12 RETAINER SLIDE R/L
13 SLIDE - GLASS PANEL R/L
15 CAM-SLIDE RH ONLY
16 SPRING - CAM SLIDE
17 SHOE ASM - GUIDE RAIL
18 PANEL ASM - GLASS COMPLETE
19 BRACKET - GUIDE R/L
20 SCREW - M5 x 6.0 BTN HD
21 NUT-M5 - 0.8 HEX FLG
22 BEZEL - SUNSCREEN
23 FINGERWELL - SUNSCREEN
24 SCREW- 8 - 18 x 0.375 HI-LO
25 TROUGH ASM - WATER
26 SHOULDER BOLT
27 RETAINER- DUAL LOCK 1" x 1"
28 HOUSING ASM - COMPLETE
29 RIVET-1/8 x 0.187 CTSK HD
30 BRACKET- HINGE WIND DEFLECTOR
31 SCREW- M4 - 0.7 x 10.0 FLAT HD
32 SPRING - WIND DEFLECTOR
33 PLUG - TRACK ACCESS Rail
34 WIND DEFLECTOR ASSEMBLY
35 SWITCH ASM - SENSOR MAG COMPLETE
36 ADHESIVE - A.P.S. - LH ONLY
37 MAGNET - LOGIC SYSTEM LH ONLY
38 CAM ASM - SLIDE LH ONLY
39 SCREW- M6 x 1.0 x 16 RD WASHER
40 NUT - M6 x 1.00 "U TYPE
41 BRACKET - REAR SUPPORT
42 RIVET- 3/16 x 0.25 0DM
43 CONTROLLER - SUNROOF OPEN/VENT
44 TUBE - RETURN
45 RETAINER
46 SUNSHADE ASSEMBLY
47 SCREW- M5- 0.8 x 44 HEX HD FLG
48 DRIVE ASM - ELECTRIC
49 RETAINER ASM - TUBE
50 GUIDE - CABLE DRIVE
51 SCREW - M4.2 x 9.5
53 SEAL-DUST R/L
54 RESTRICTOR - GLASS PANEL SUNSHADE
55 ACORN NUT
56 TAPE SEAL/PLUG TRACK
57 GLASS PANEL SPRING
58 CONTROLLER HARNESS EXTENSION
59 SCREW- M5 - 0.8 x 12.0 BTN HD
