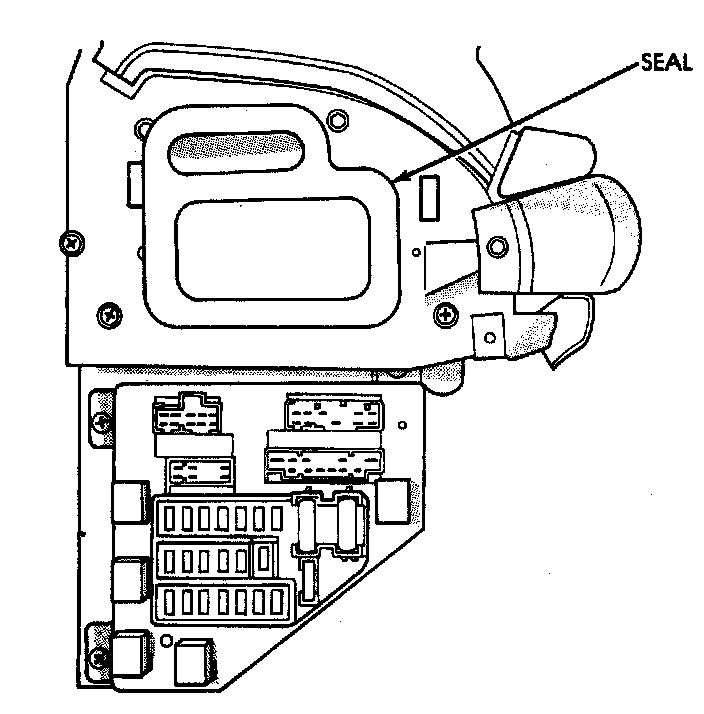

Junction Block Replacement

1. Remove lower instrument panel assembly.






2. Remove six electrical connectors on inboard side and four electrical connectors on outboard side of junction block.

3. Remove three mounting screws and remove junction block.

4. For installation, reverse above procedures.
