144C Trunk Key Cylinder Switch Sense Circuit

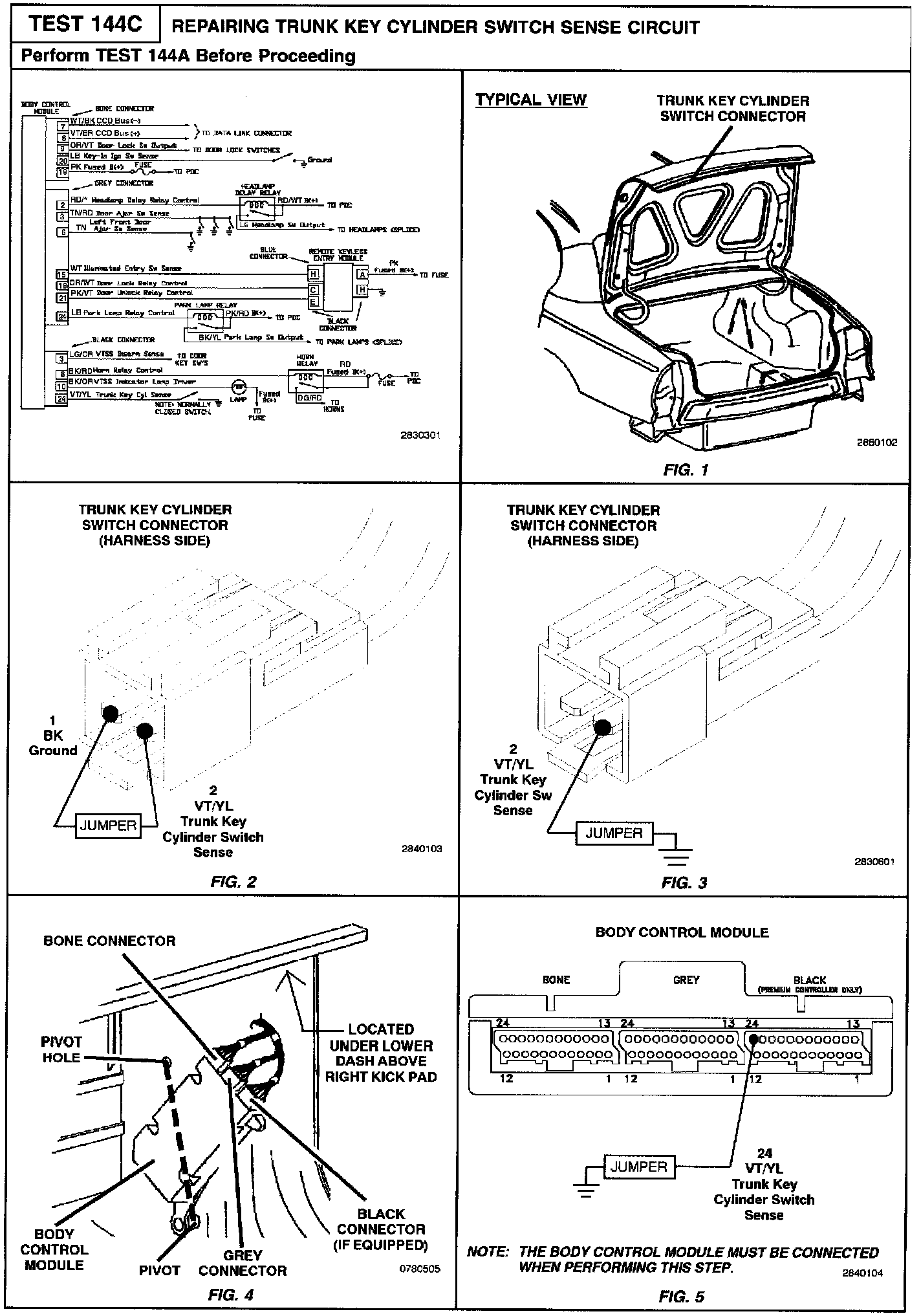

144C Trunk Key Cylinder Switch Sense Circuit
Related Images:

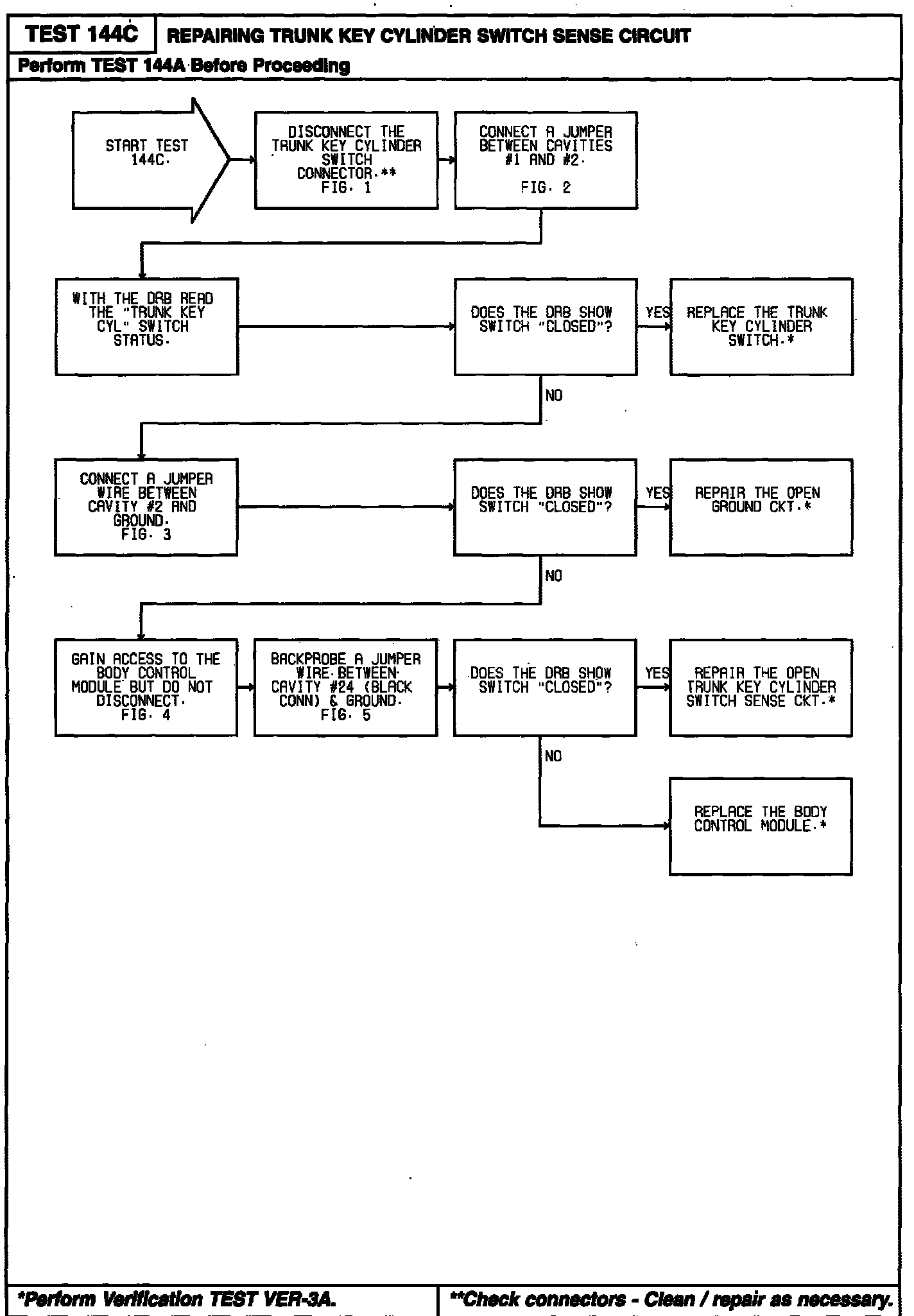

U.�Diagnostic Chart:
