FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Eagle
>>
1995
>>
Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Vehicle Communication Tests
>>
8A Short to 5 Volts Failure
8A Short to 5 Volts Failure
Related Images:

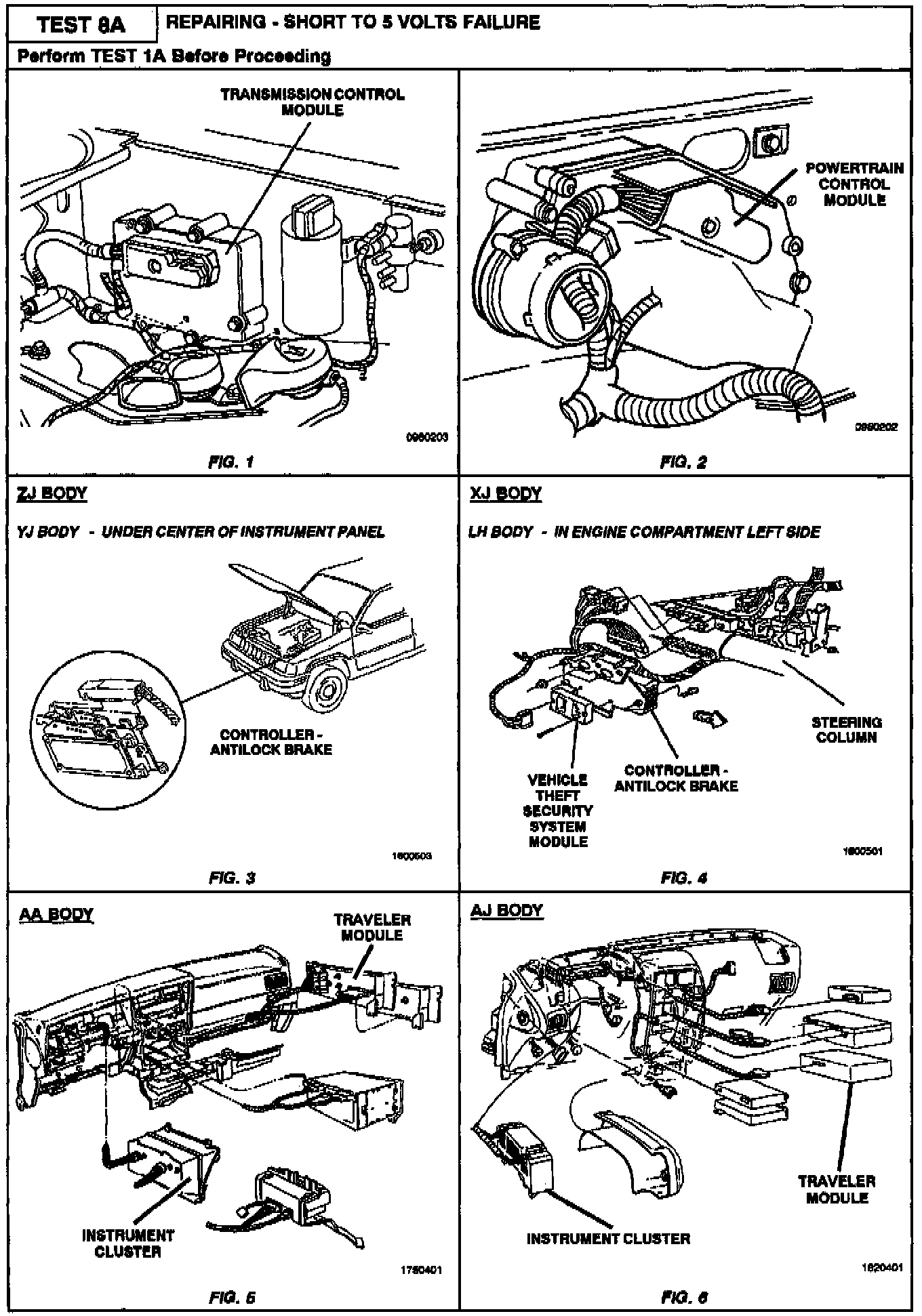

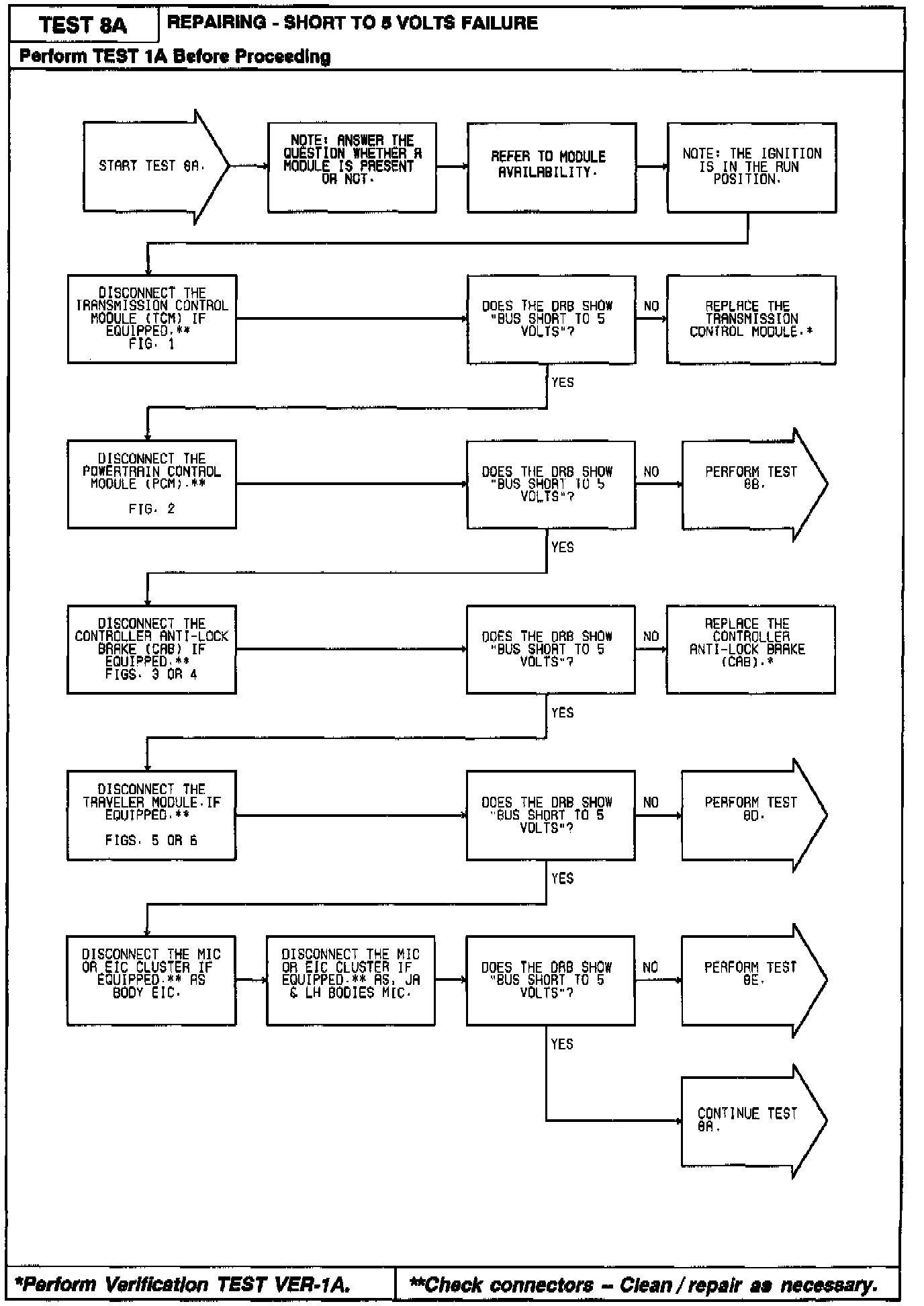

8A Part 1 Of 3:
Related Images:

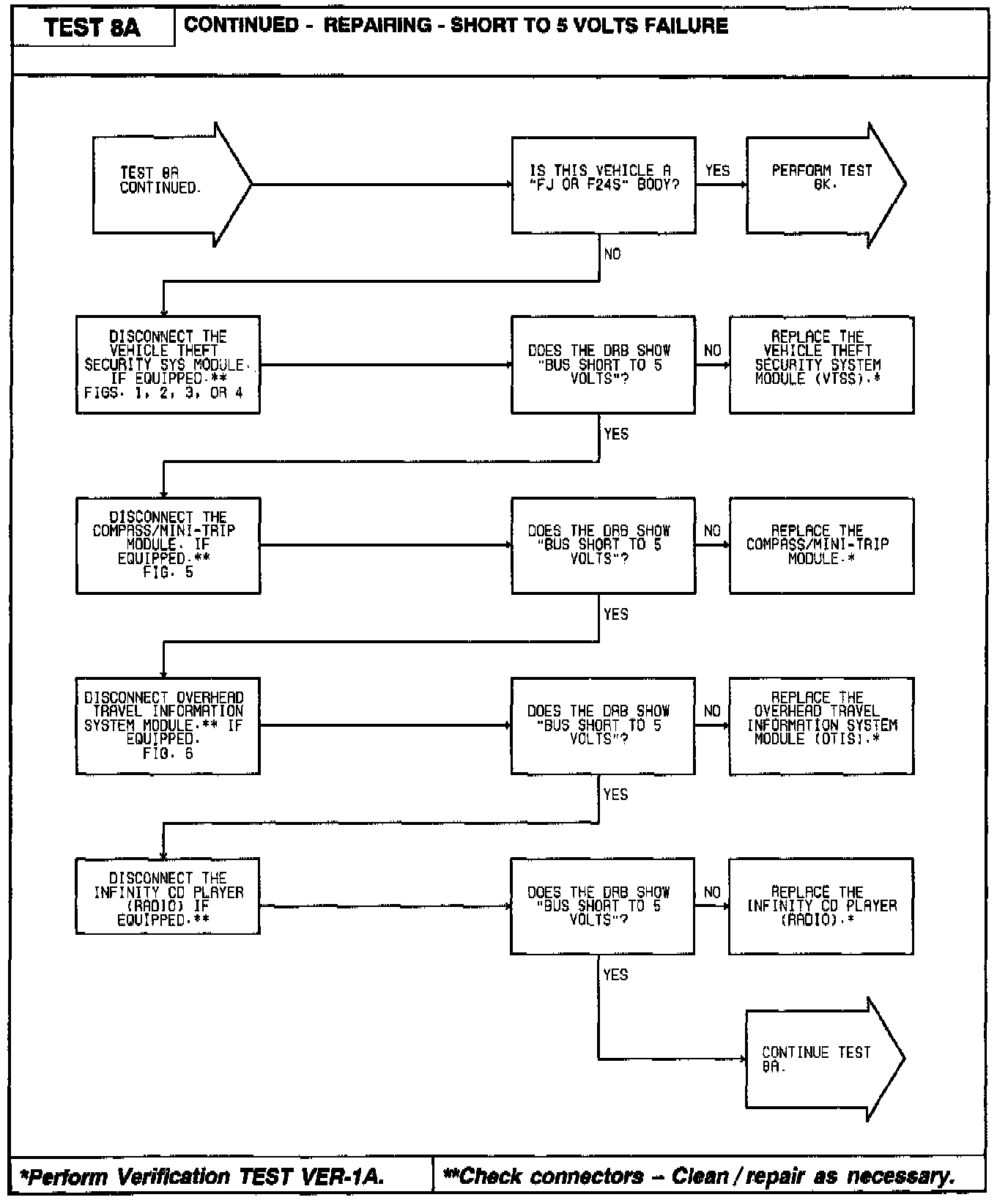

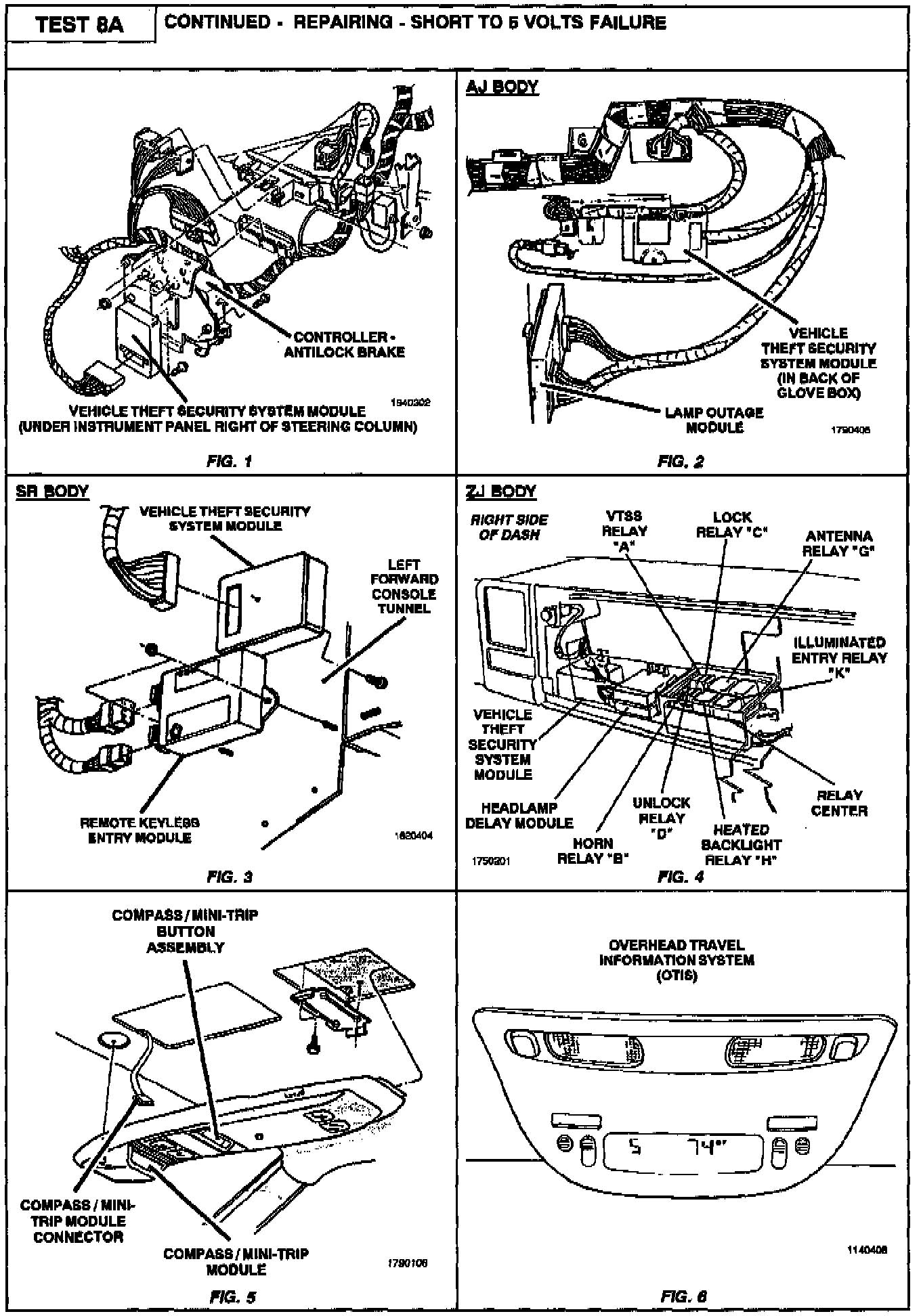

8A Part 2 Of 3:
Related Image:

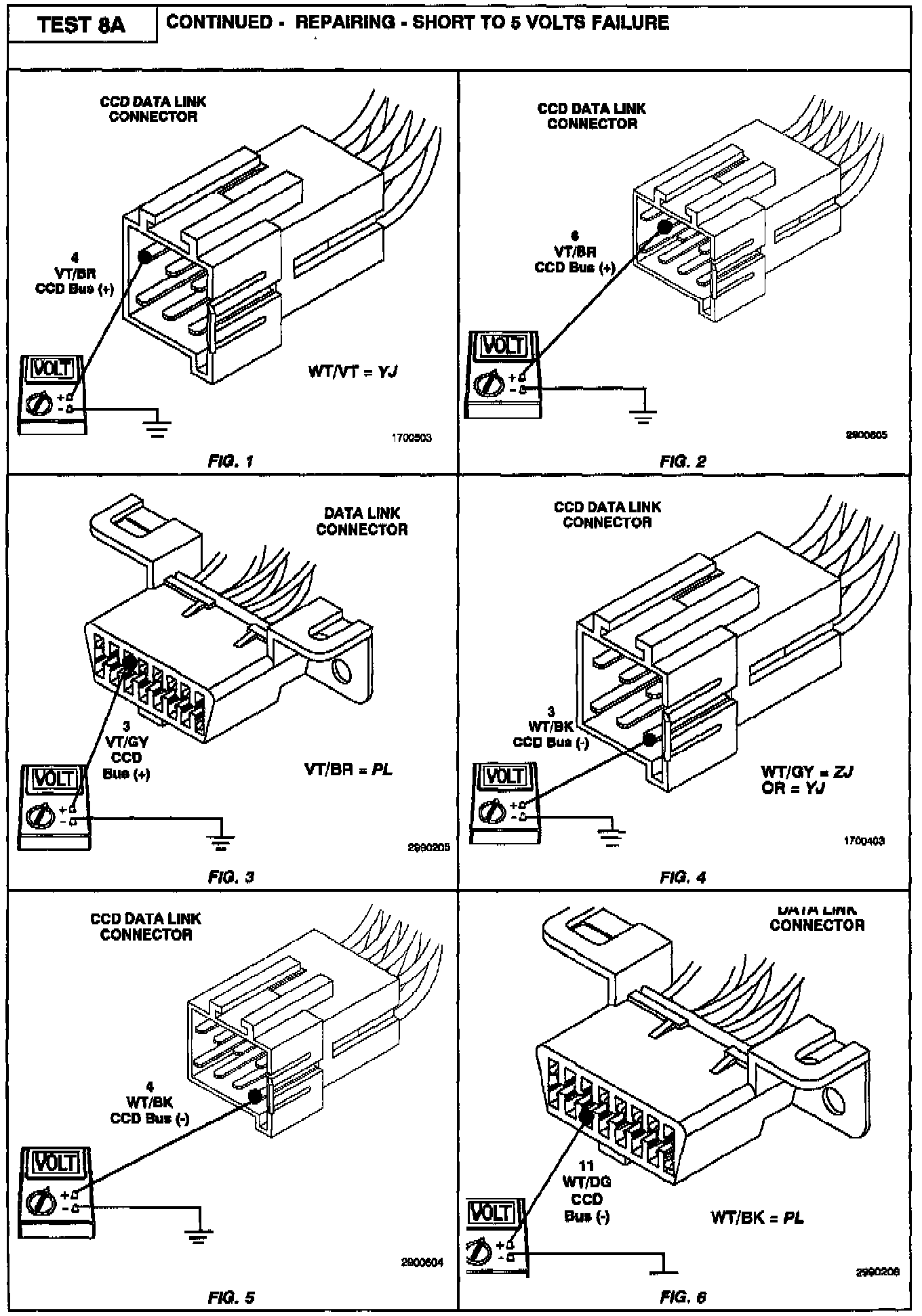

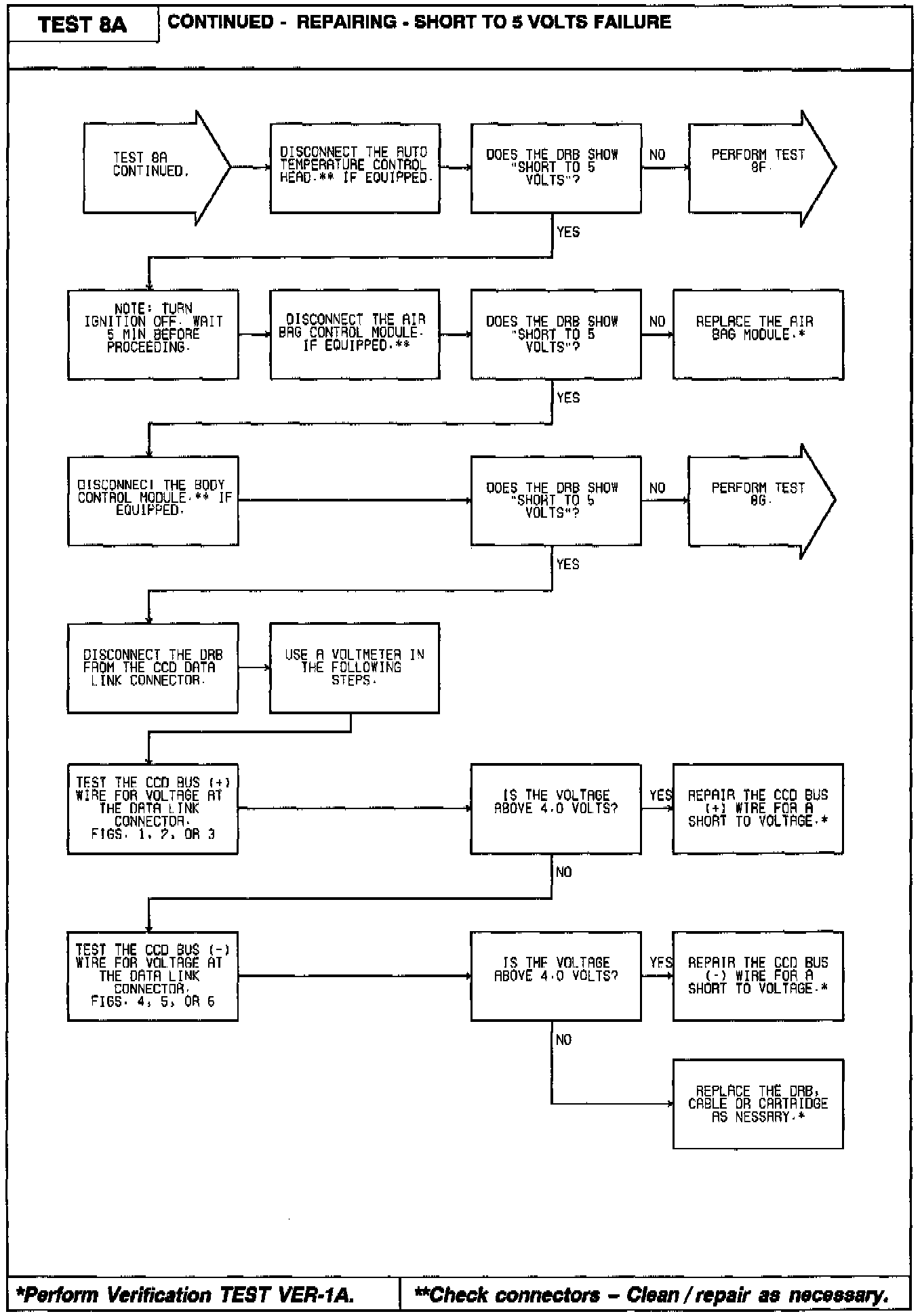

8A Part 3 Of 3:
