7A Short to Battery Failure
7A Short to Battery Failure

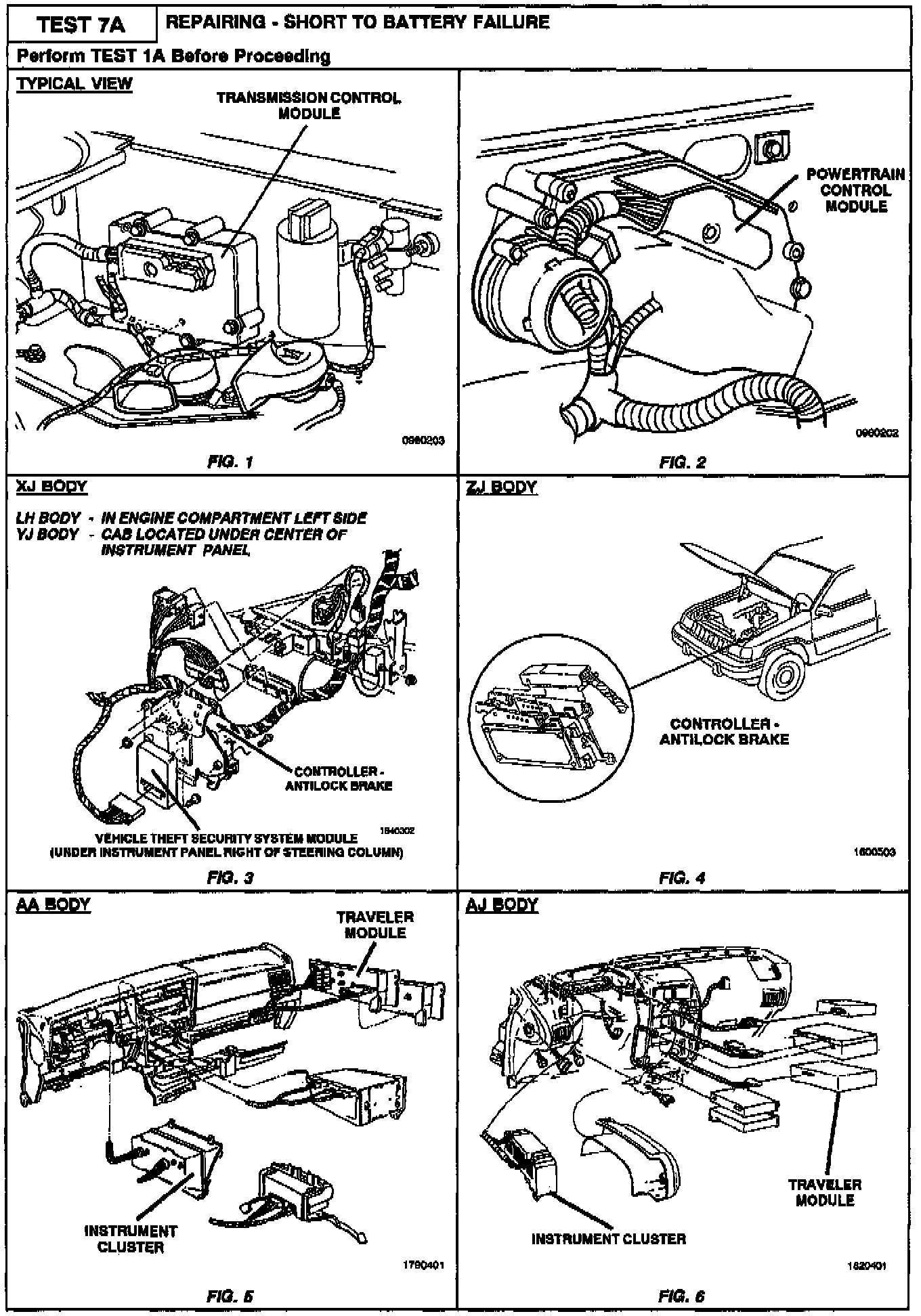

Related Images:

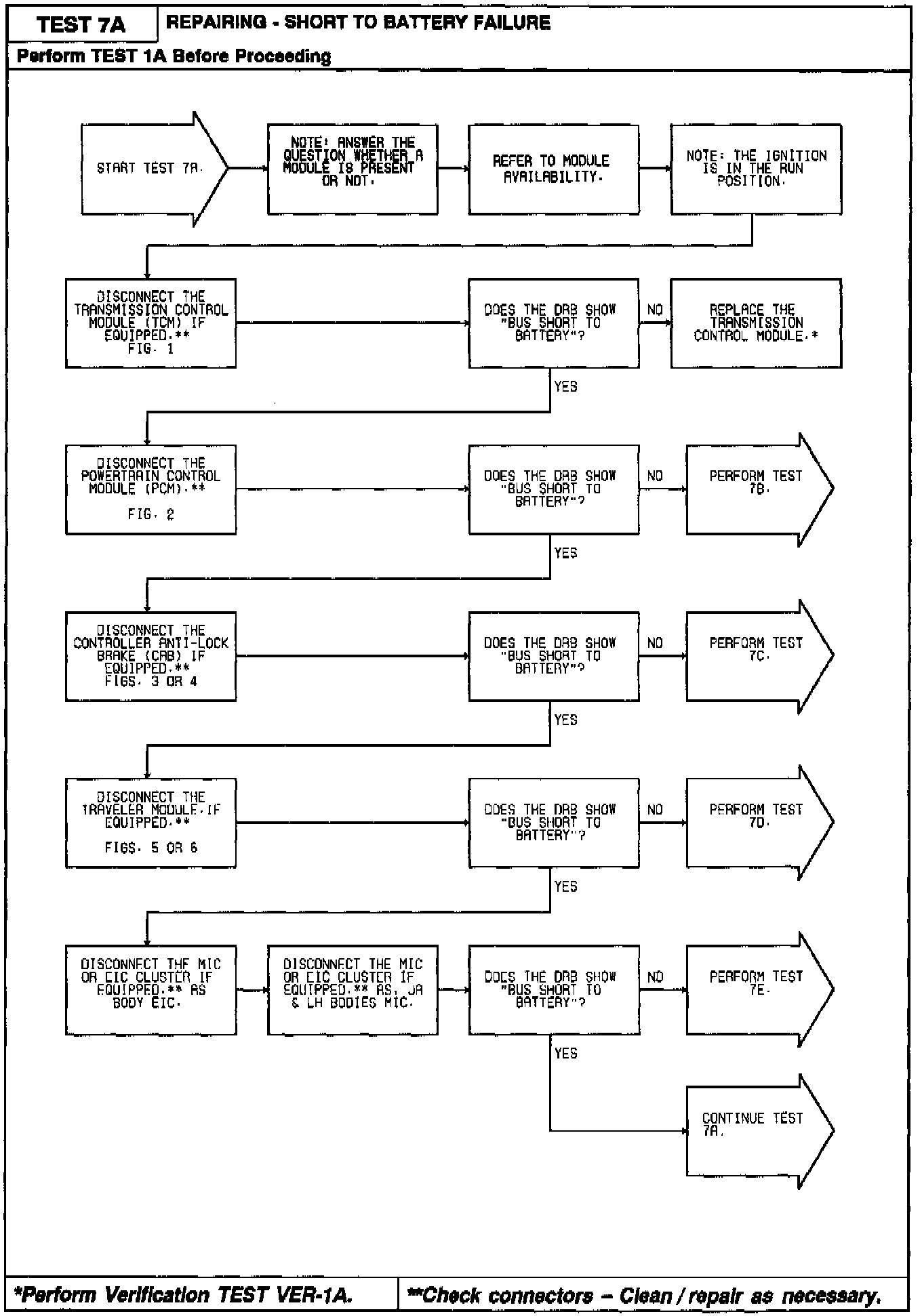

7A Part 1 Of 3:
Related Image:

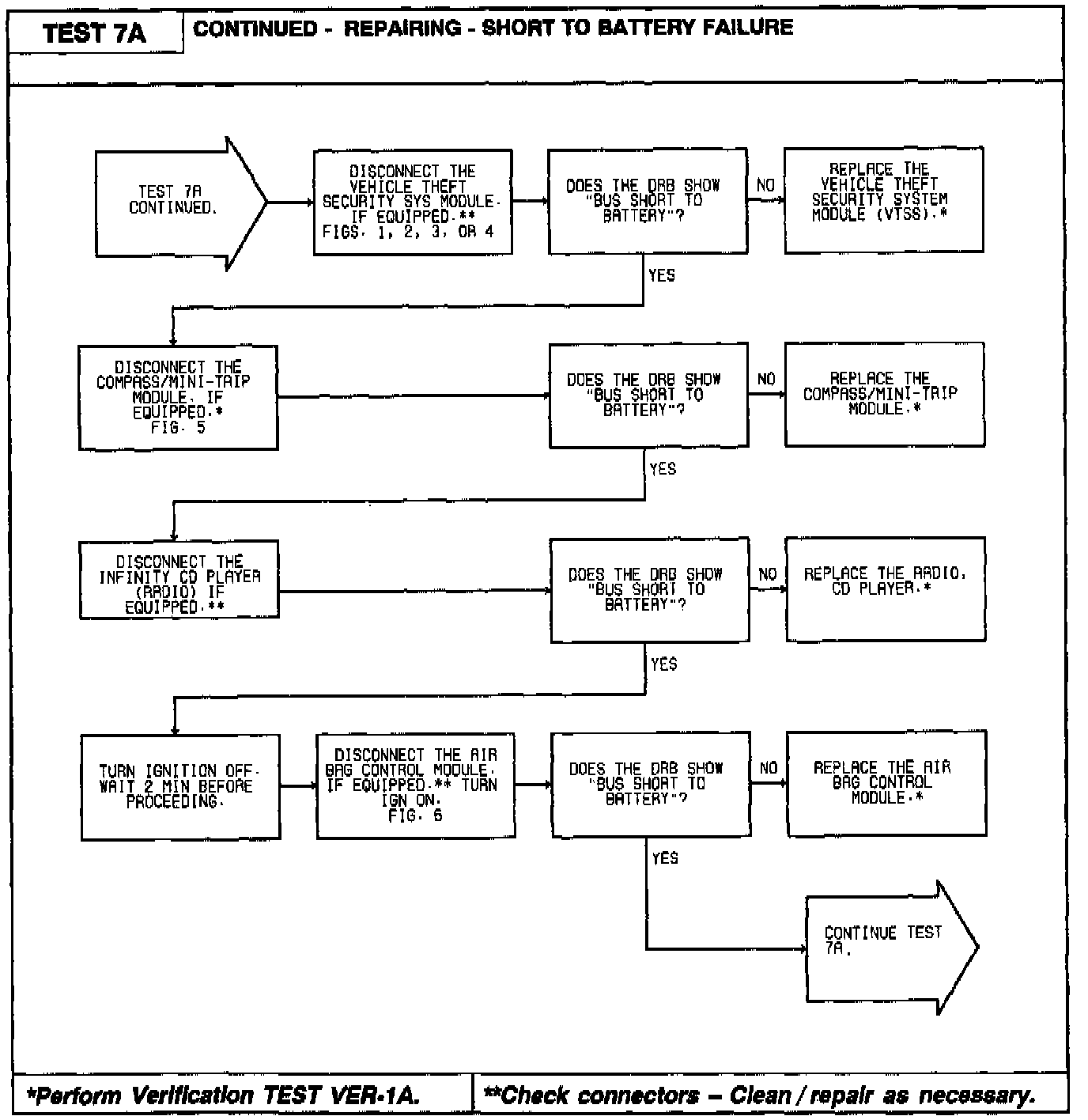

7A Part 2 Of 3:
Diagnostic Chart:

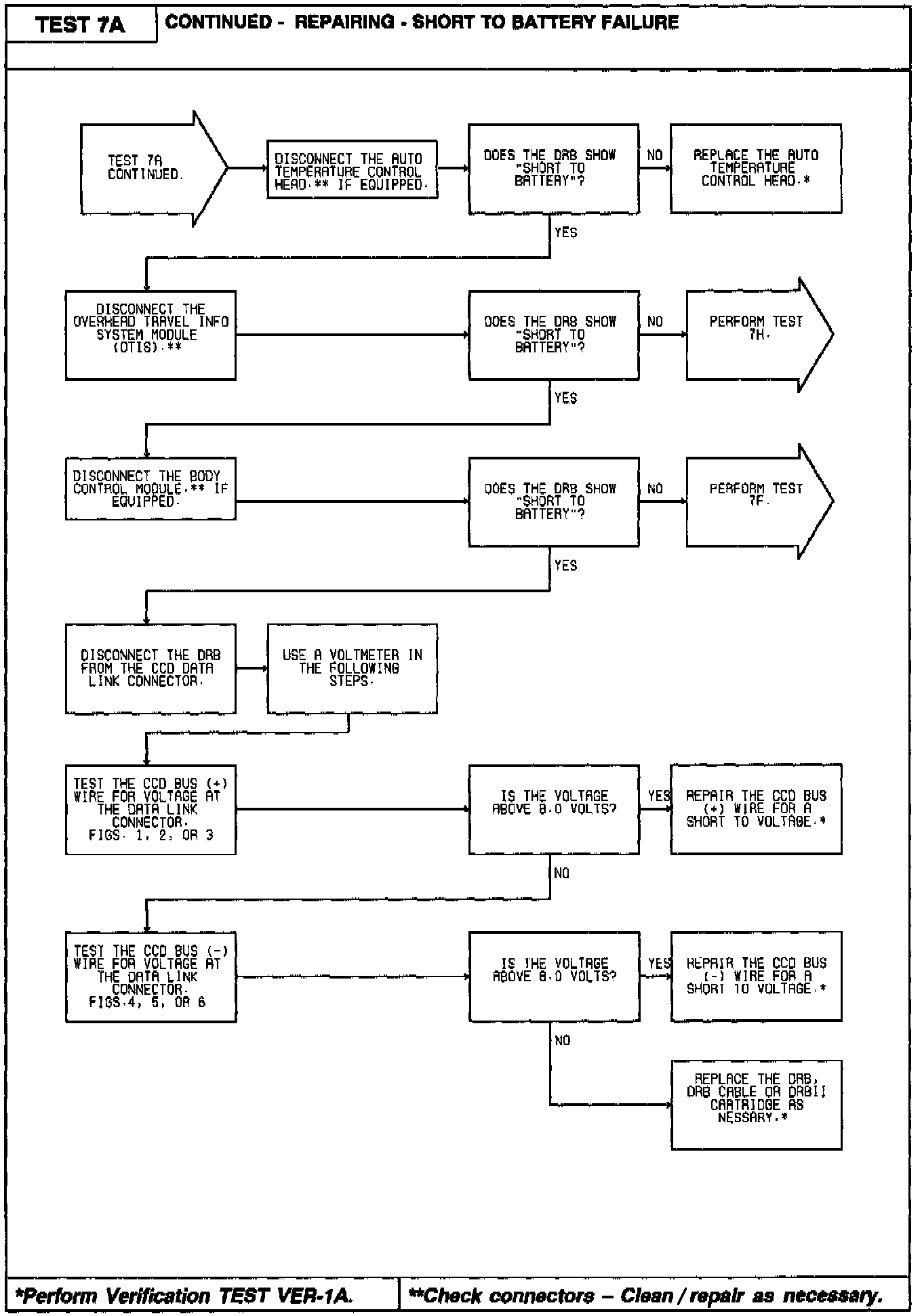

7A Part 3 Of 3:
