Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Vehicle Communication Tests >> 2A Repairing A DRB Blank Screen

2A Repairing A DRB Blank Screen

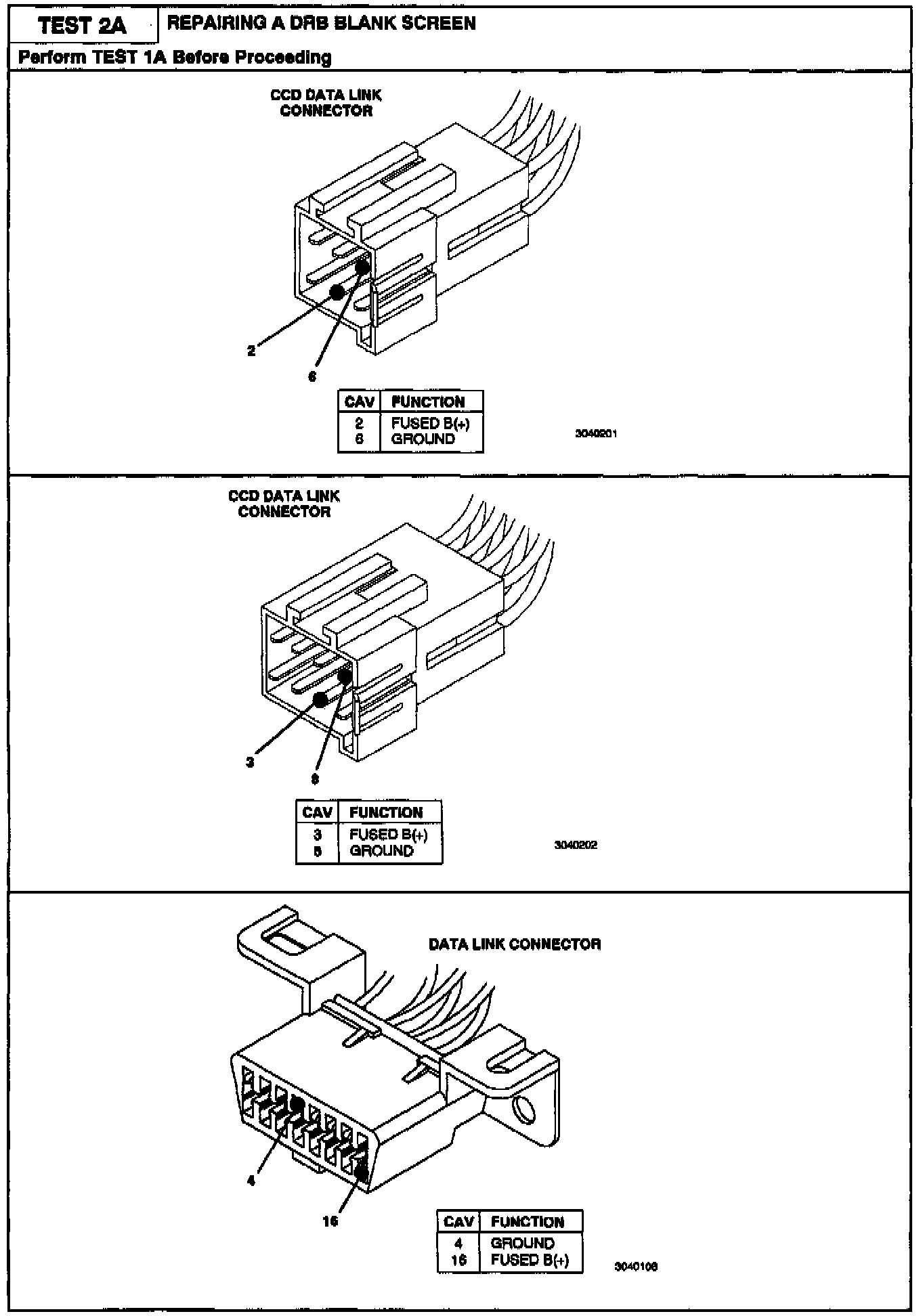

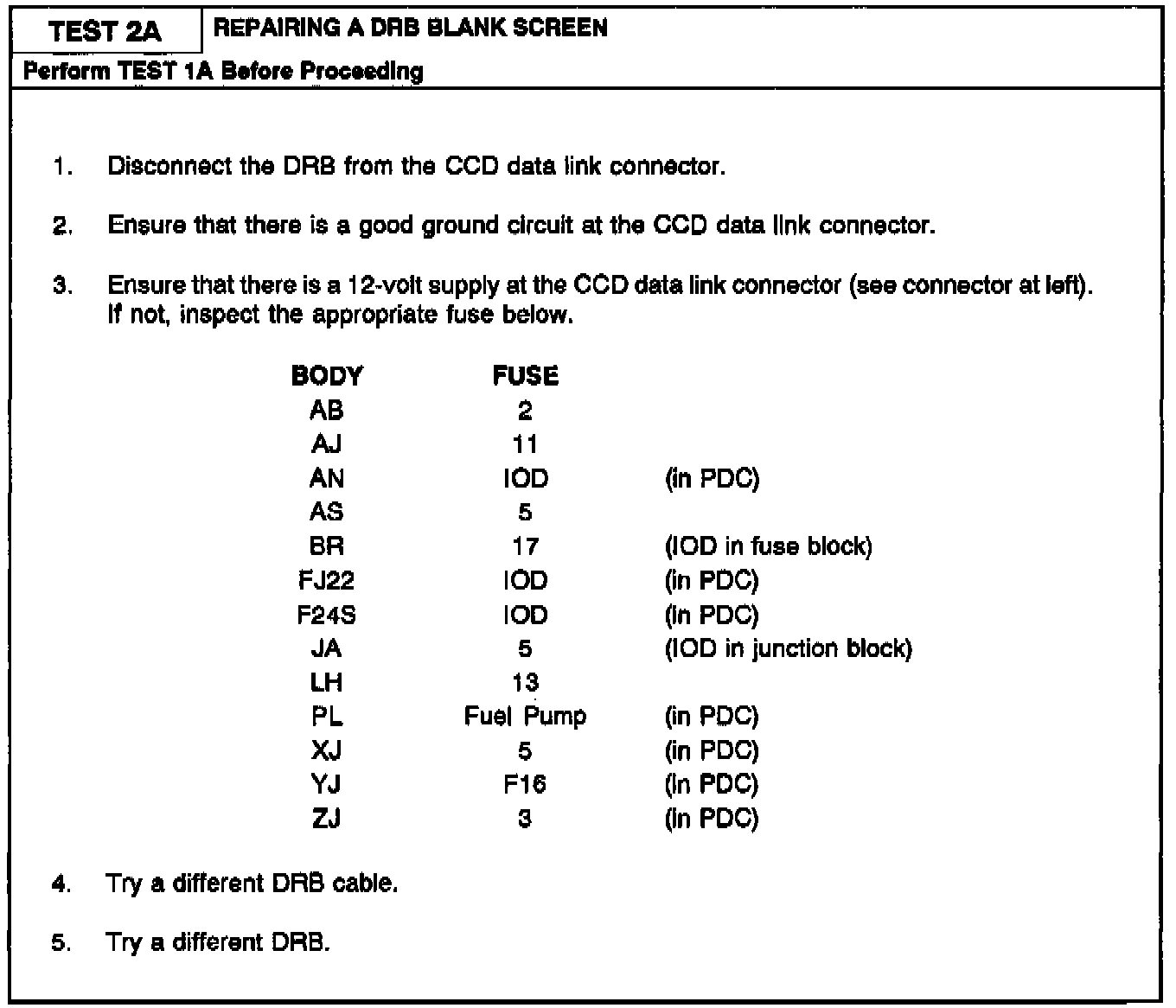

Diagnostic Chart:



Related Images:
