12C Bus Bias Level or Bus (+/-) Open Failure
12C Bus Bias Level or Bus (+/-) Open Failure
Related Images:

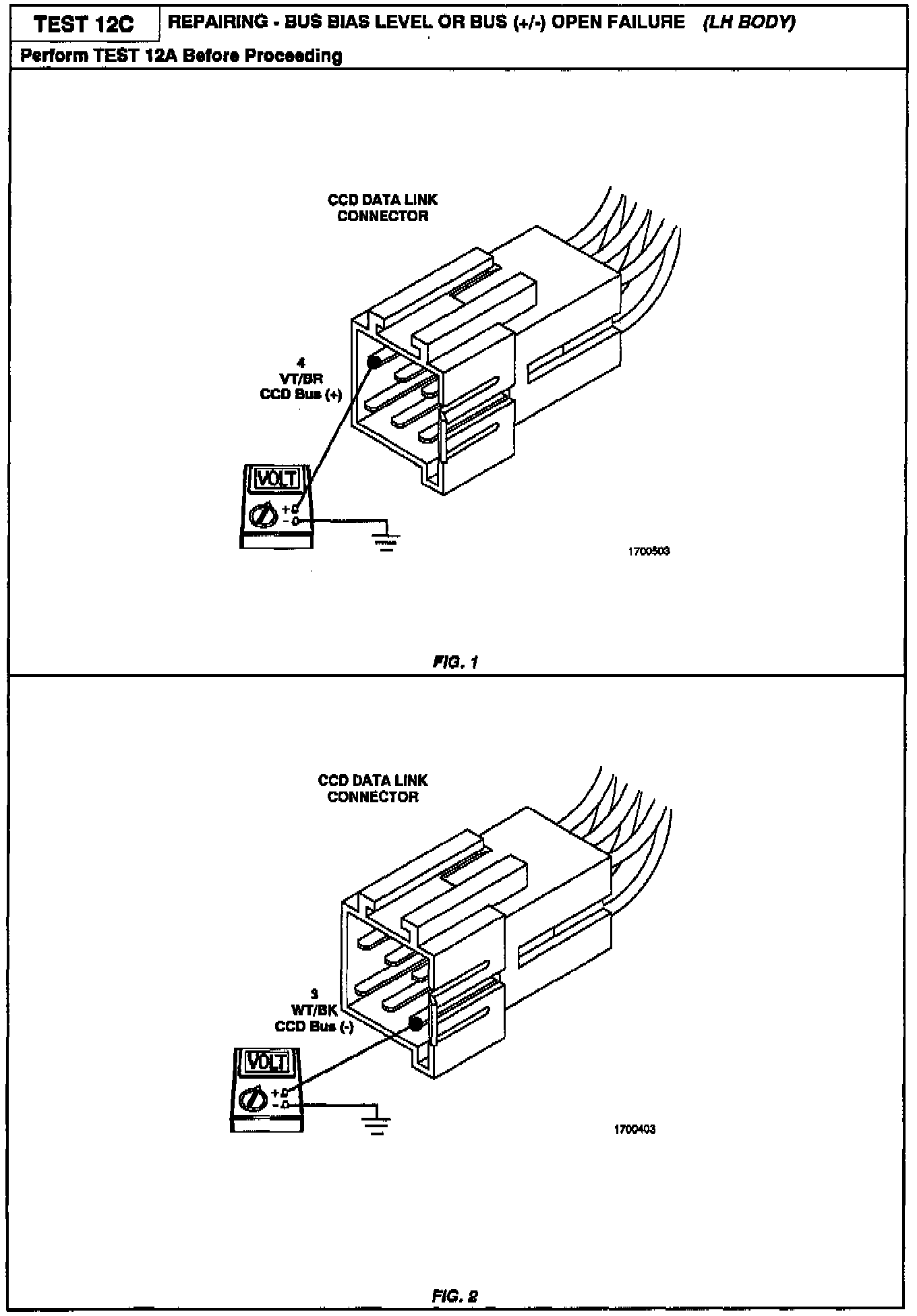

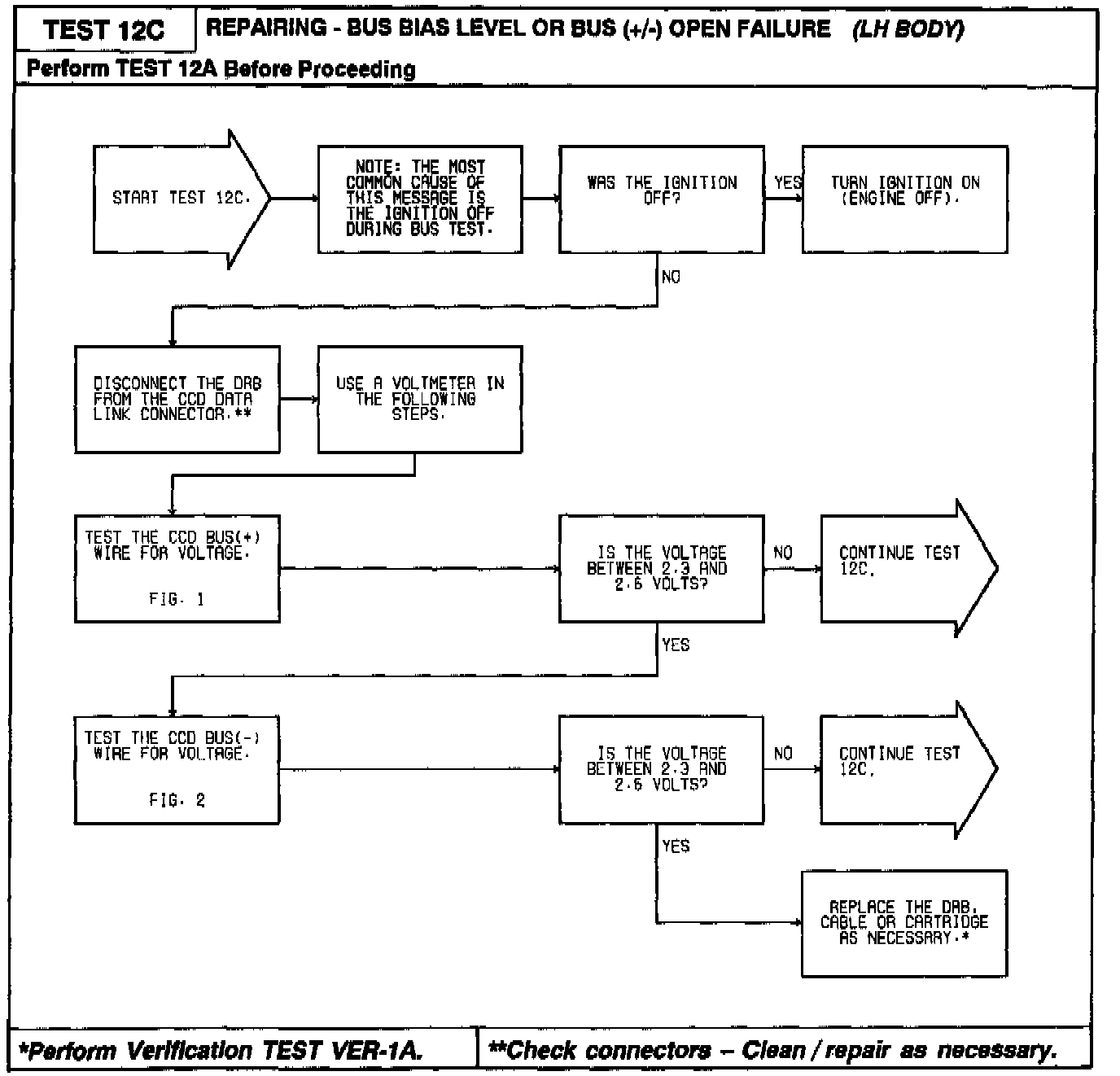

12C Part 1 Of 4:
Related Images:

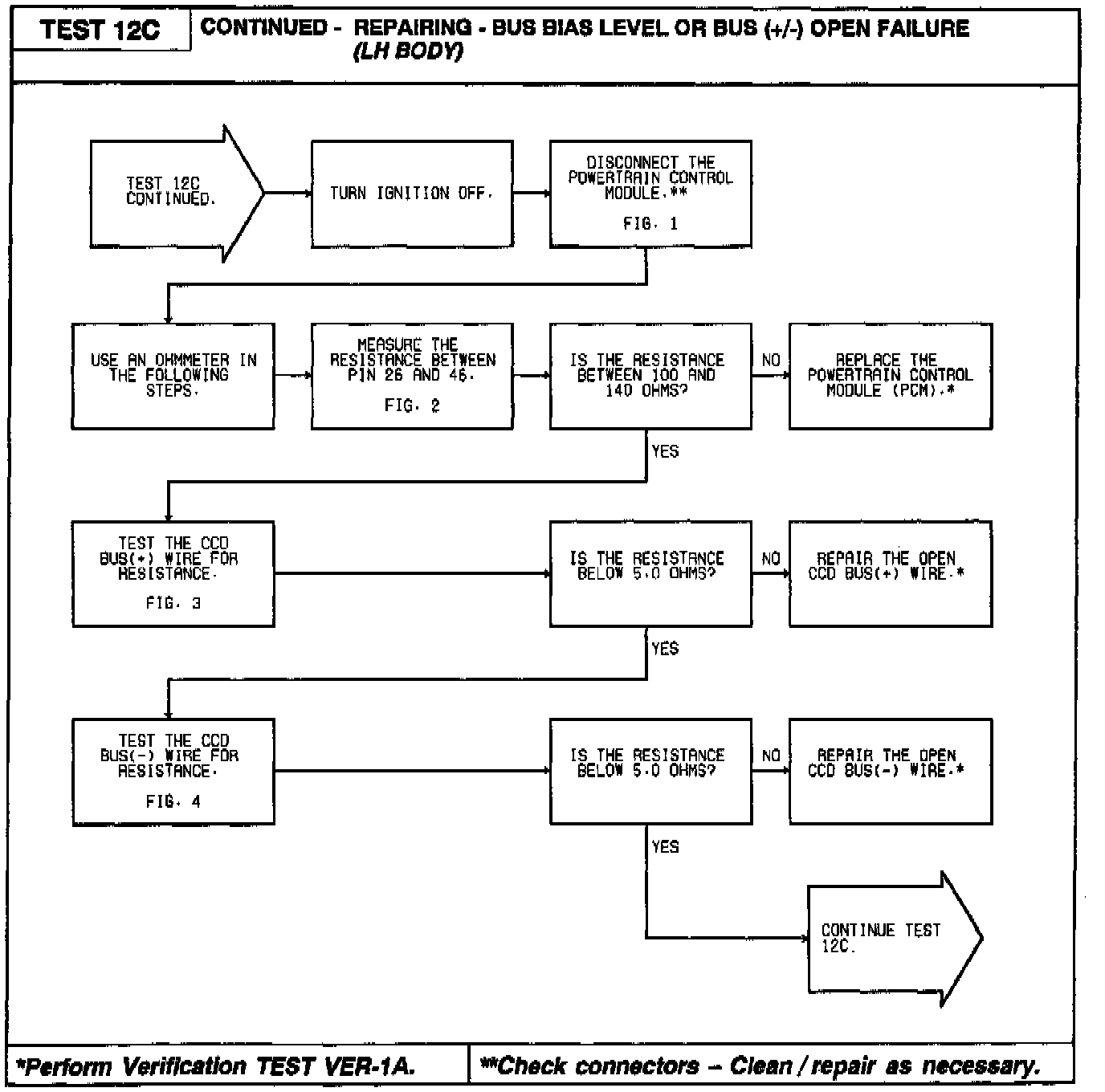

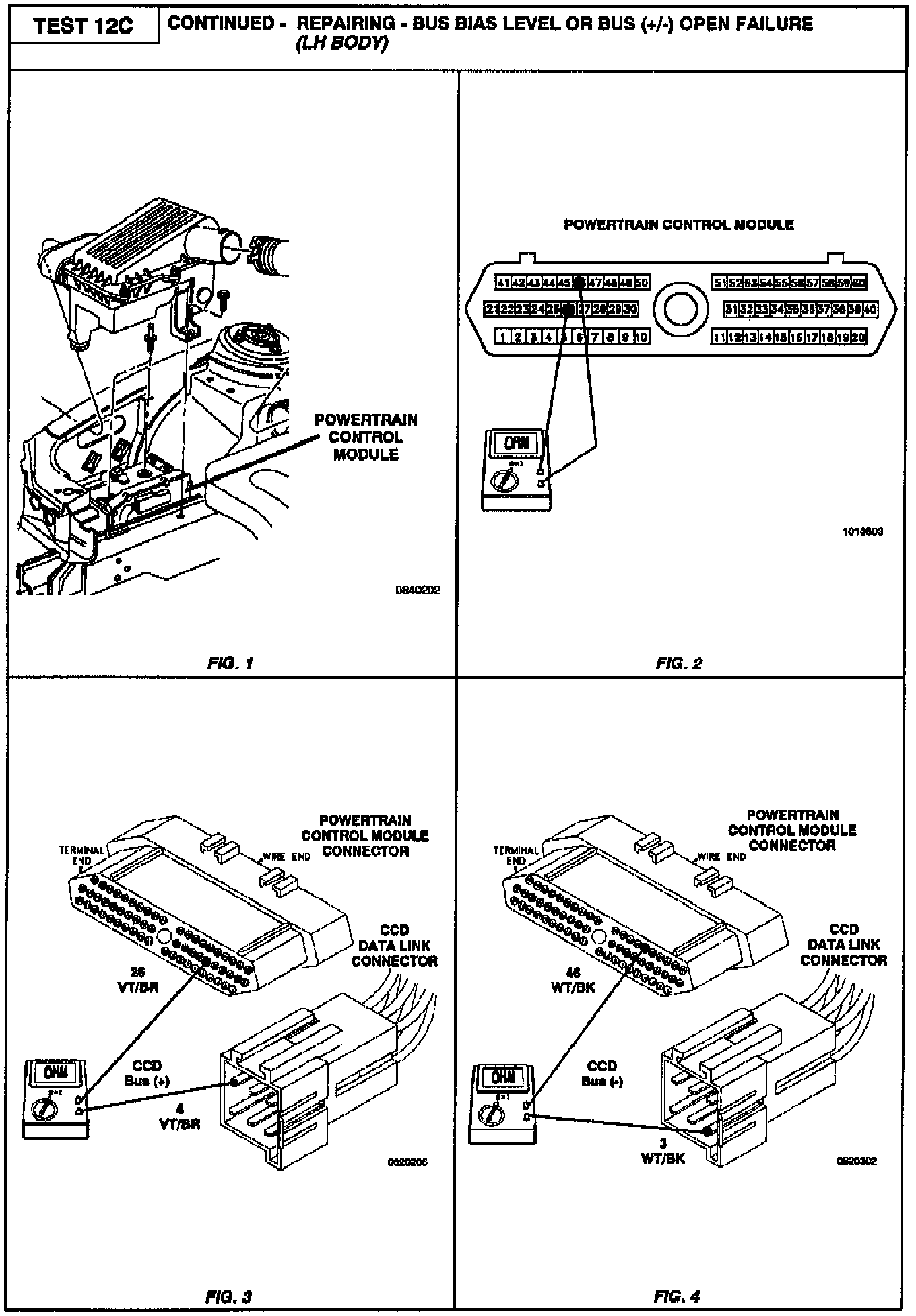

12C Part 2 Of 4:
Related Images:

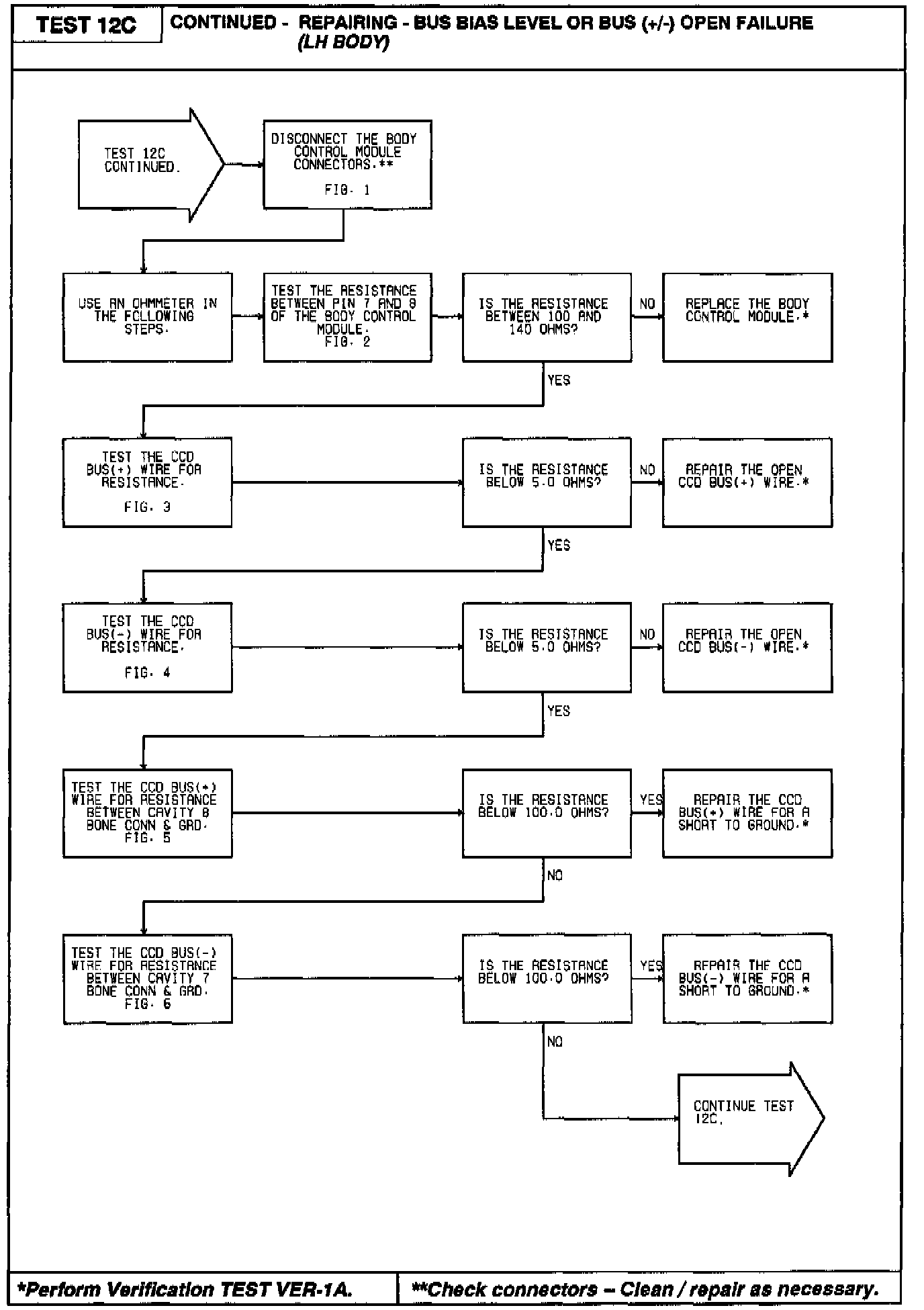

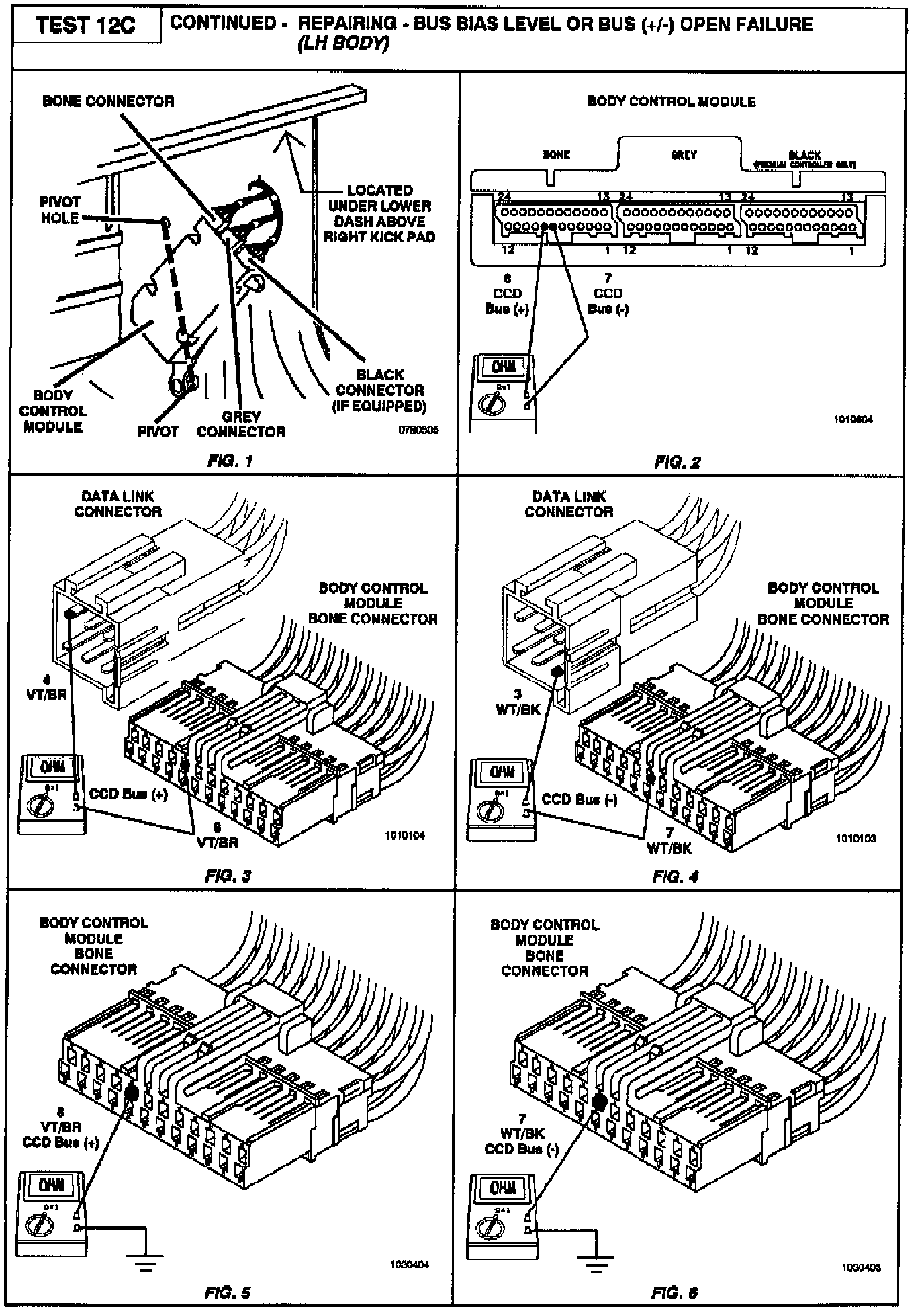

12C Part 3 Of 4:
Related Images:

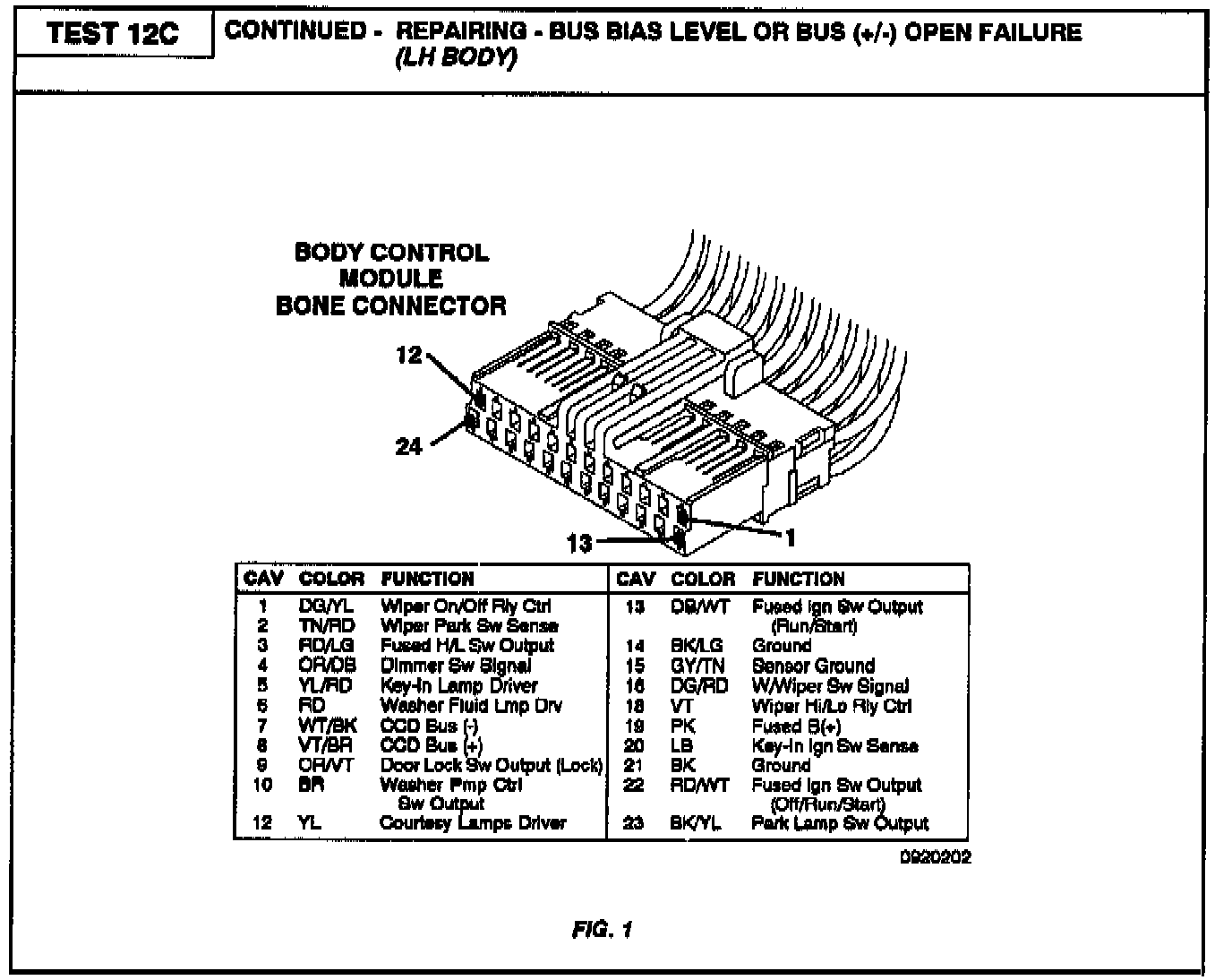

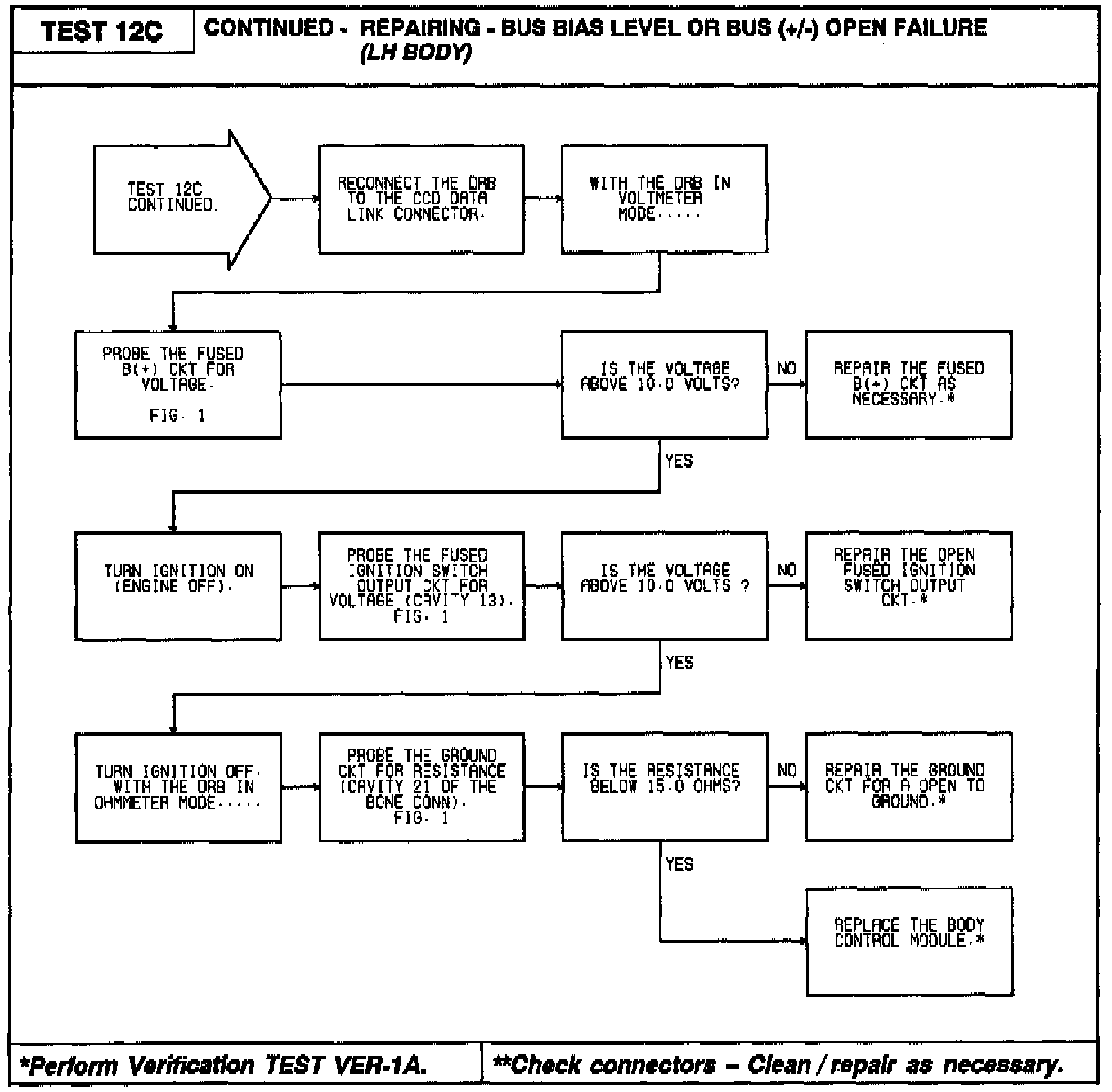

12C Part 4 Of 4:
