Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Trouble Code (TC) Tests >> TC-41A Manifold Tune Valve Solenoid Circuit

TC-41A Manifold Tune Valve Solenoid Circuit

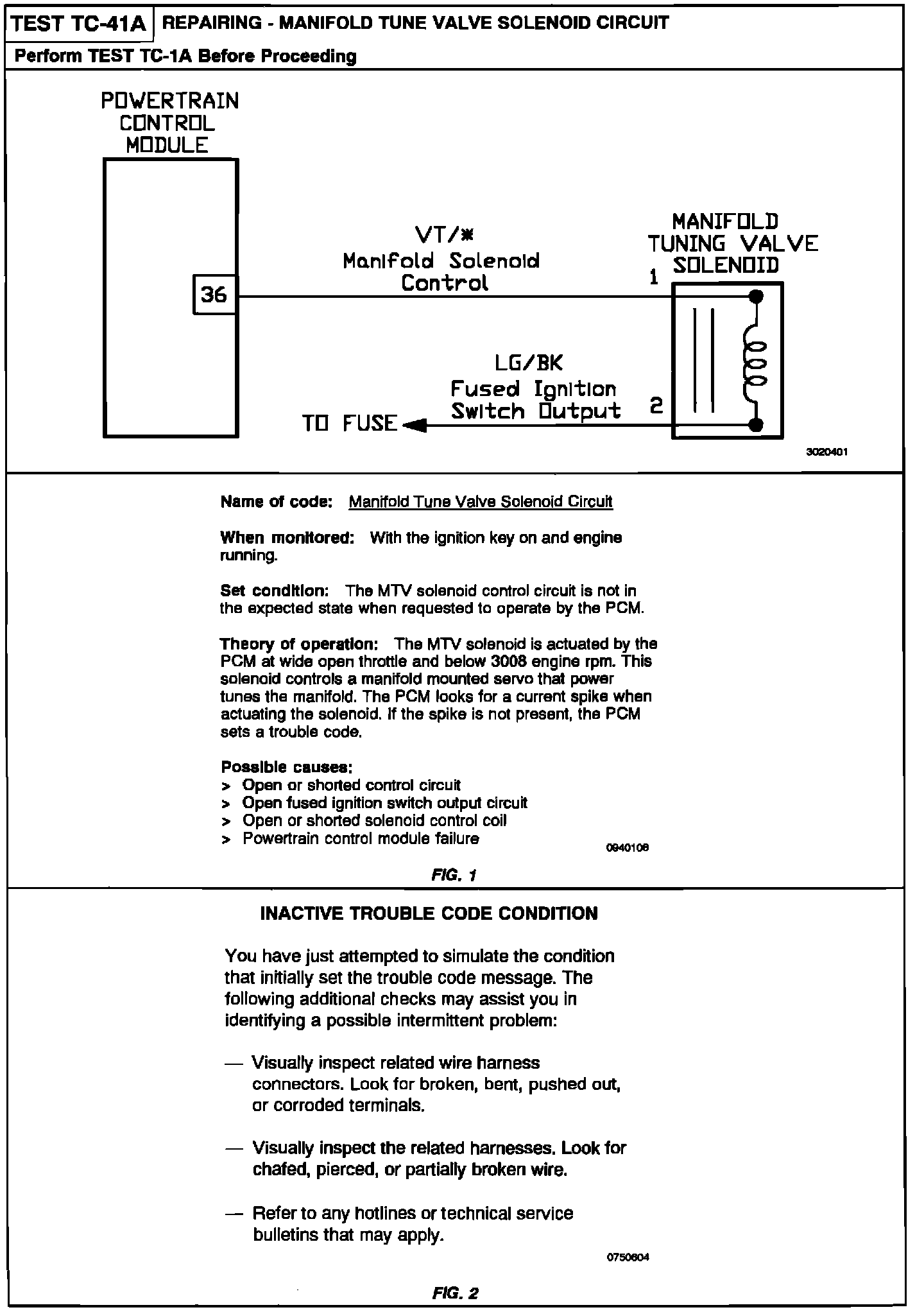

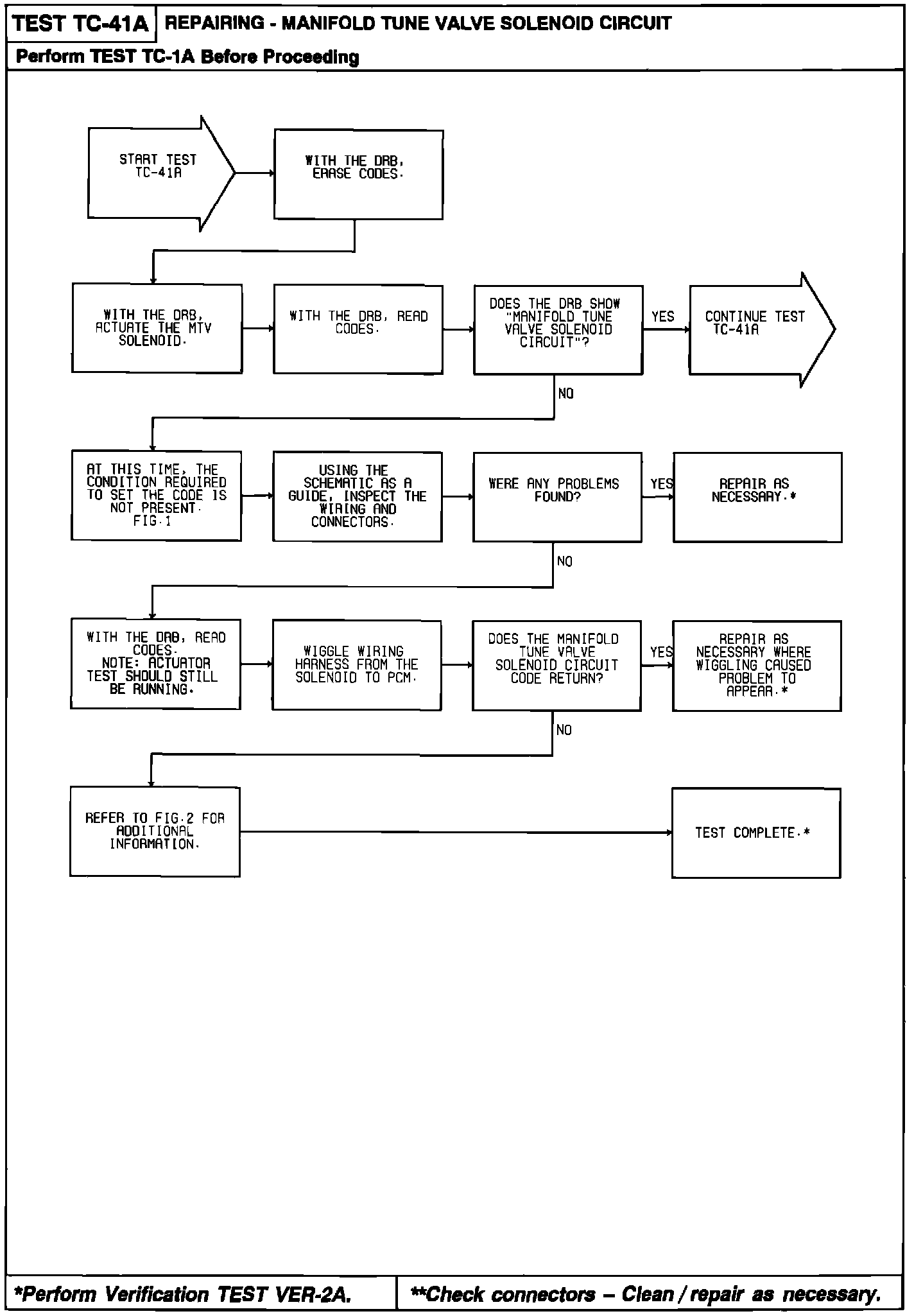

Part 1 Of 3:



Part 1 Of 3:

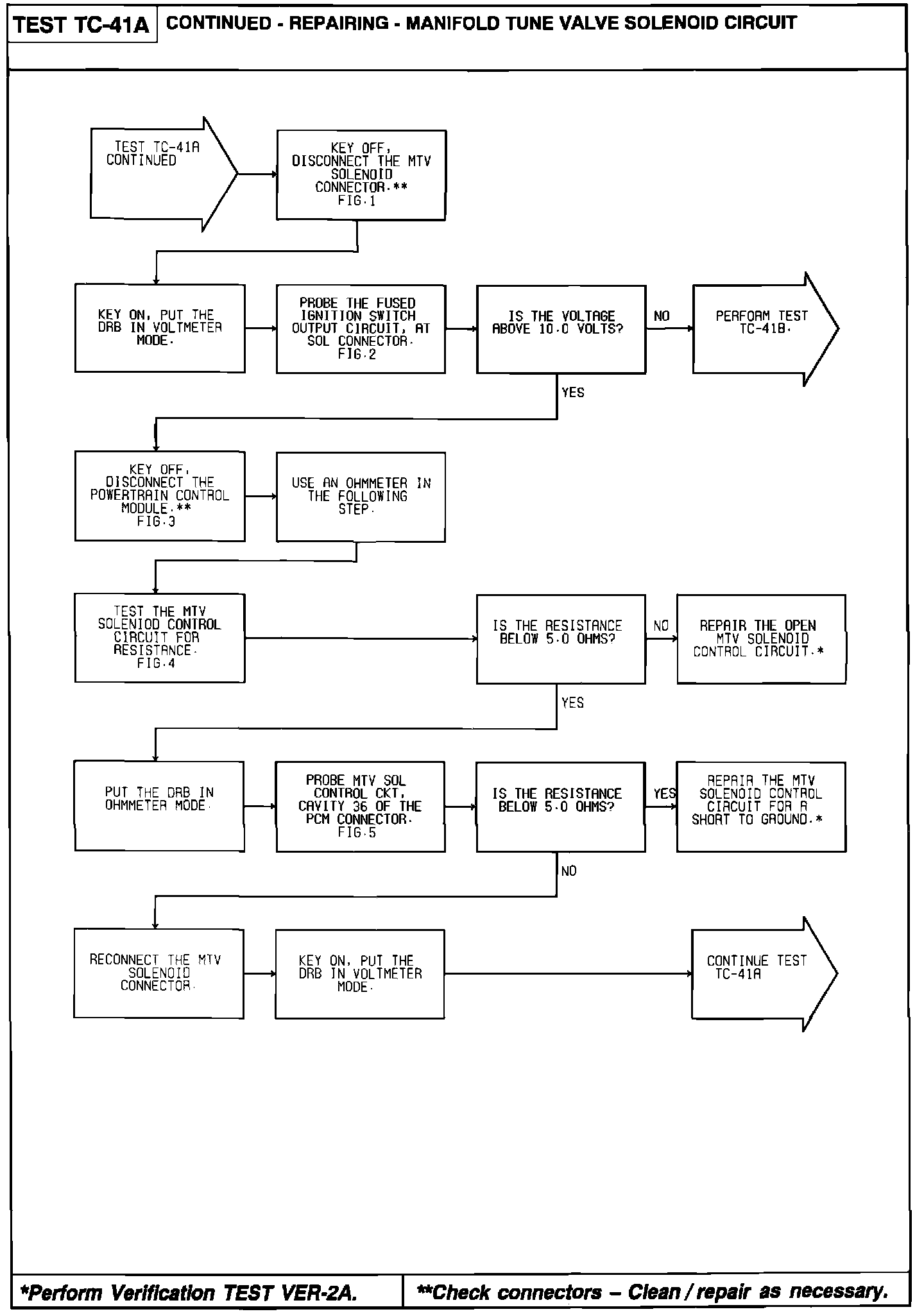

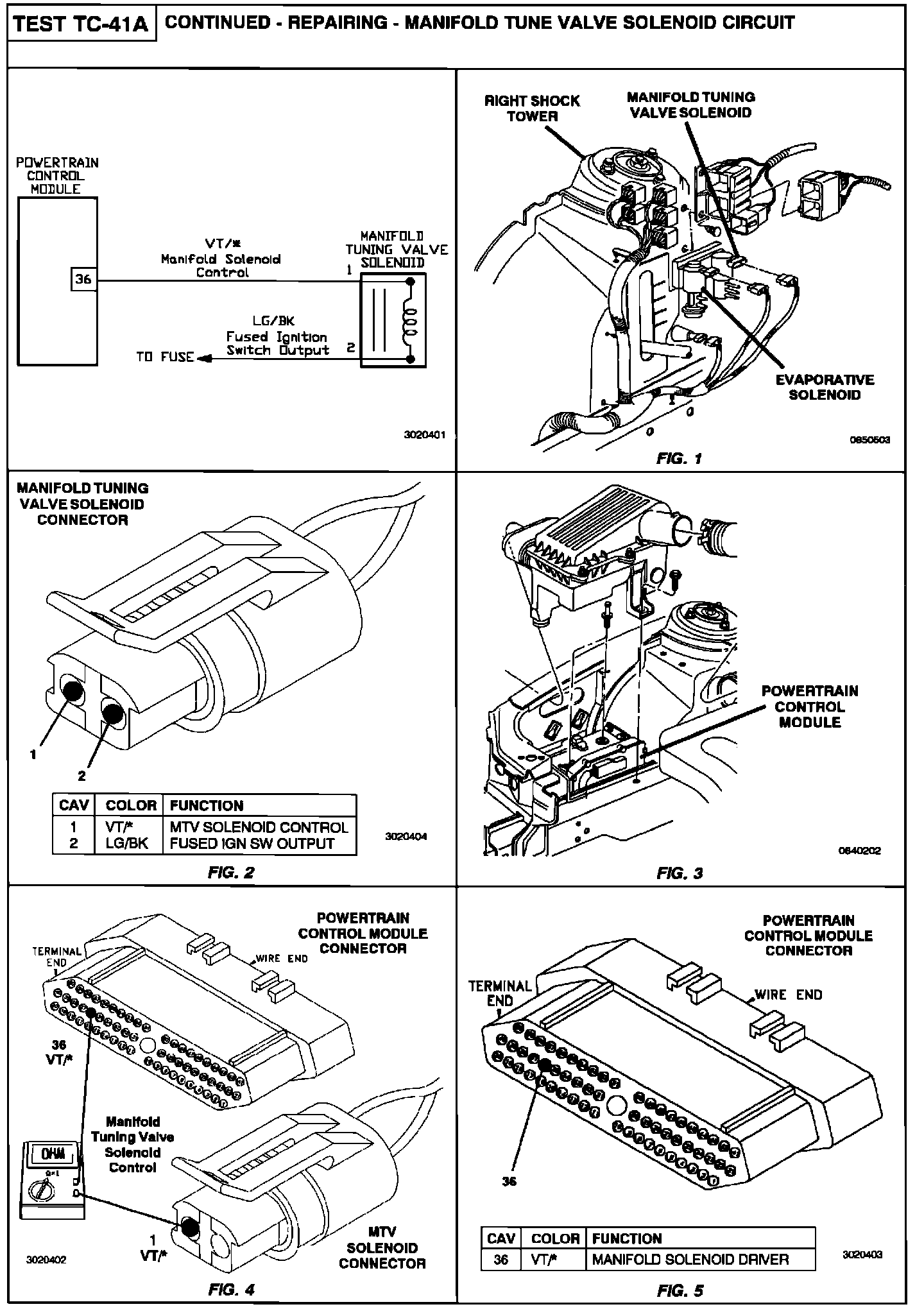

Part 2 Of 3:



Part 2 Of 3:

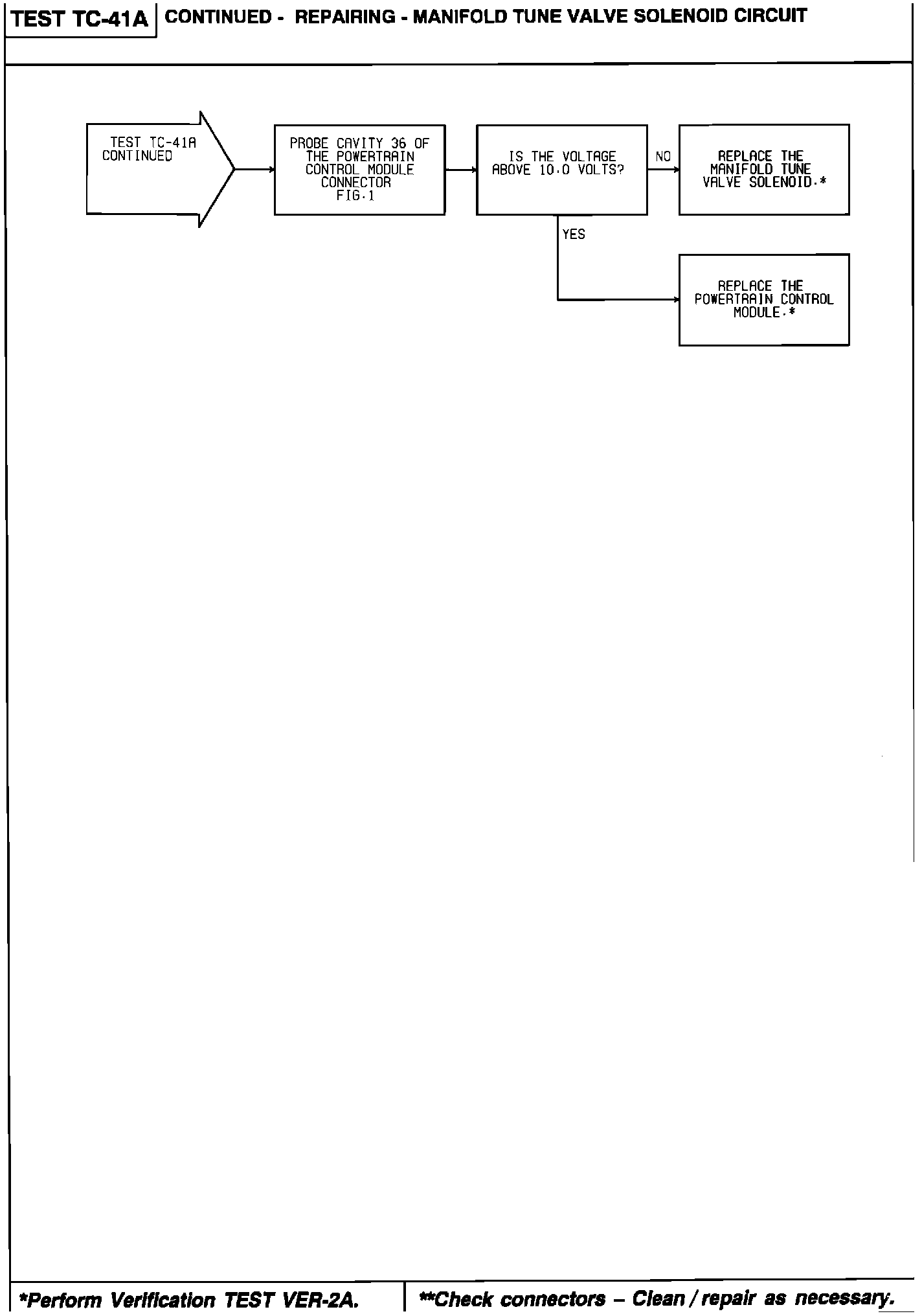

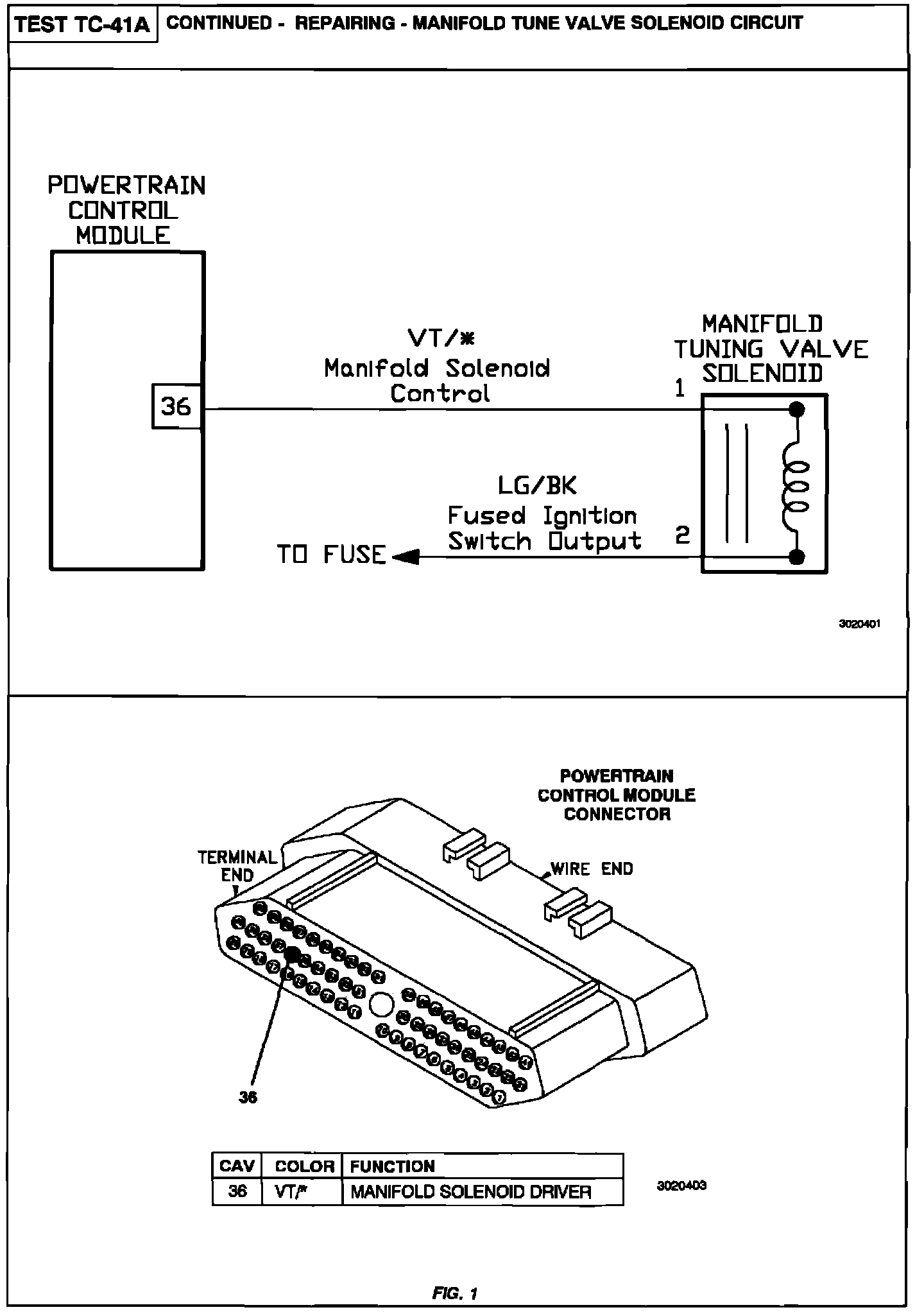

Part 3 Of 3:



Part 3 Of 3:
