TC-2A No Crank Reference Signal at PCM

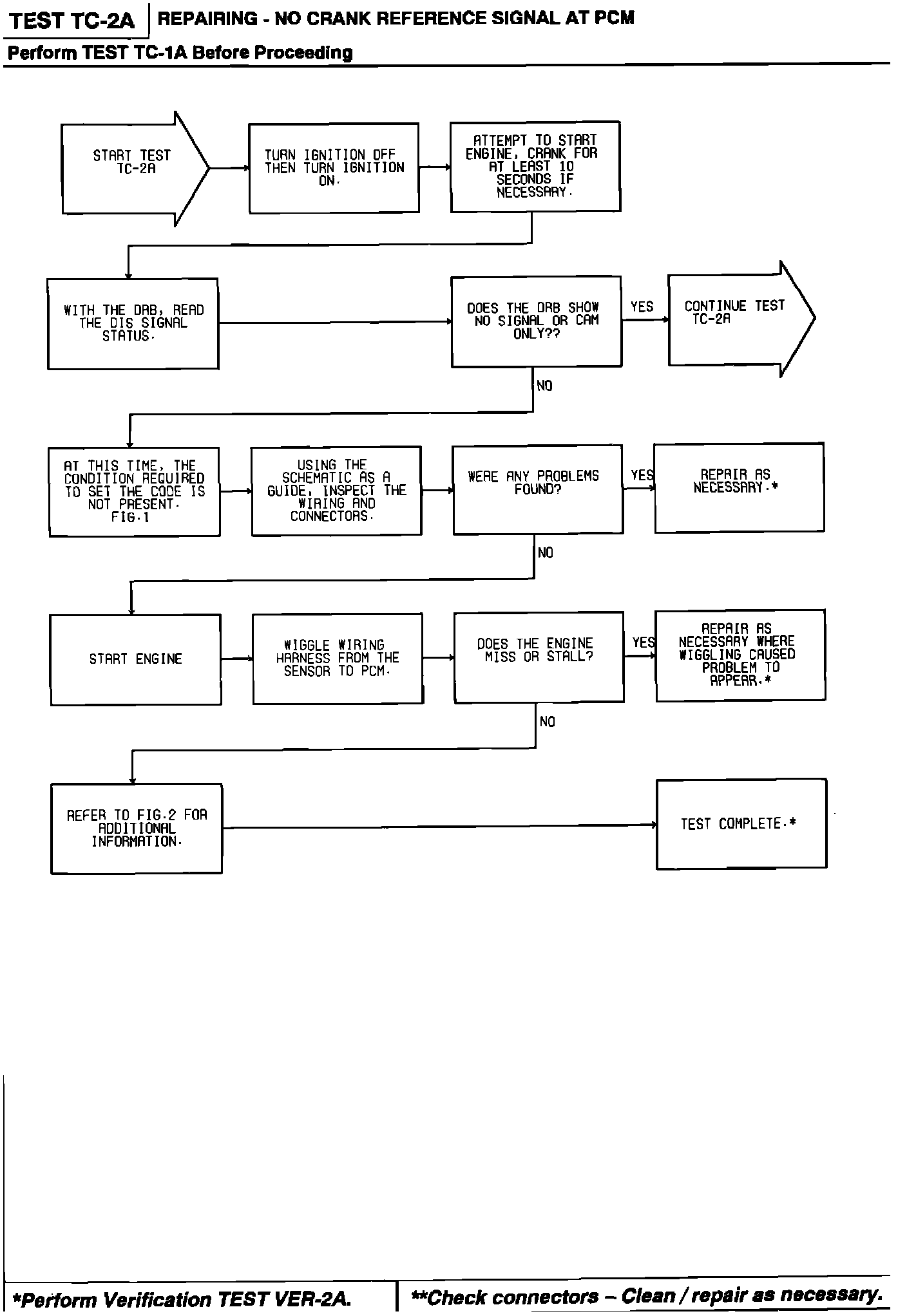

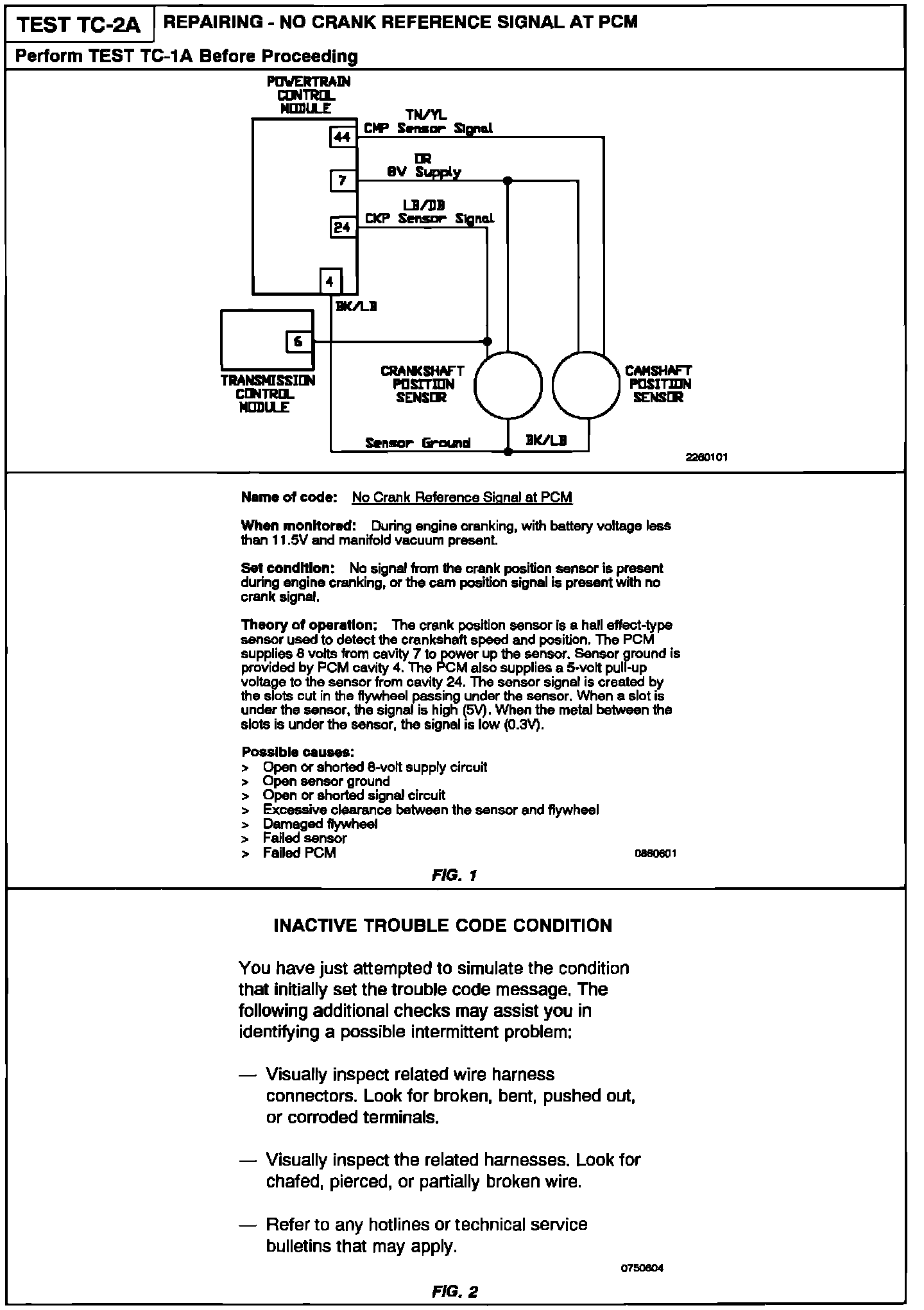

Part 1 Of 3:



Part 1 Of 3:

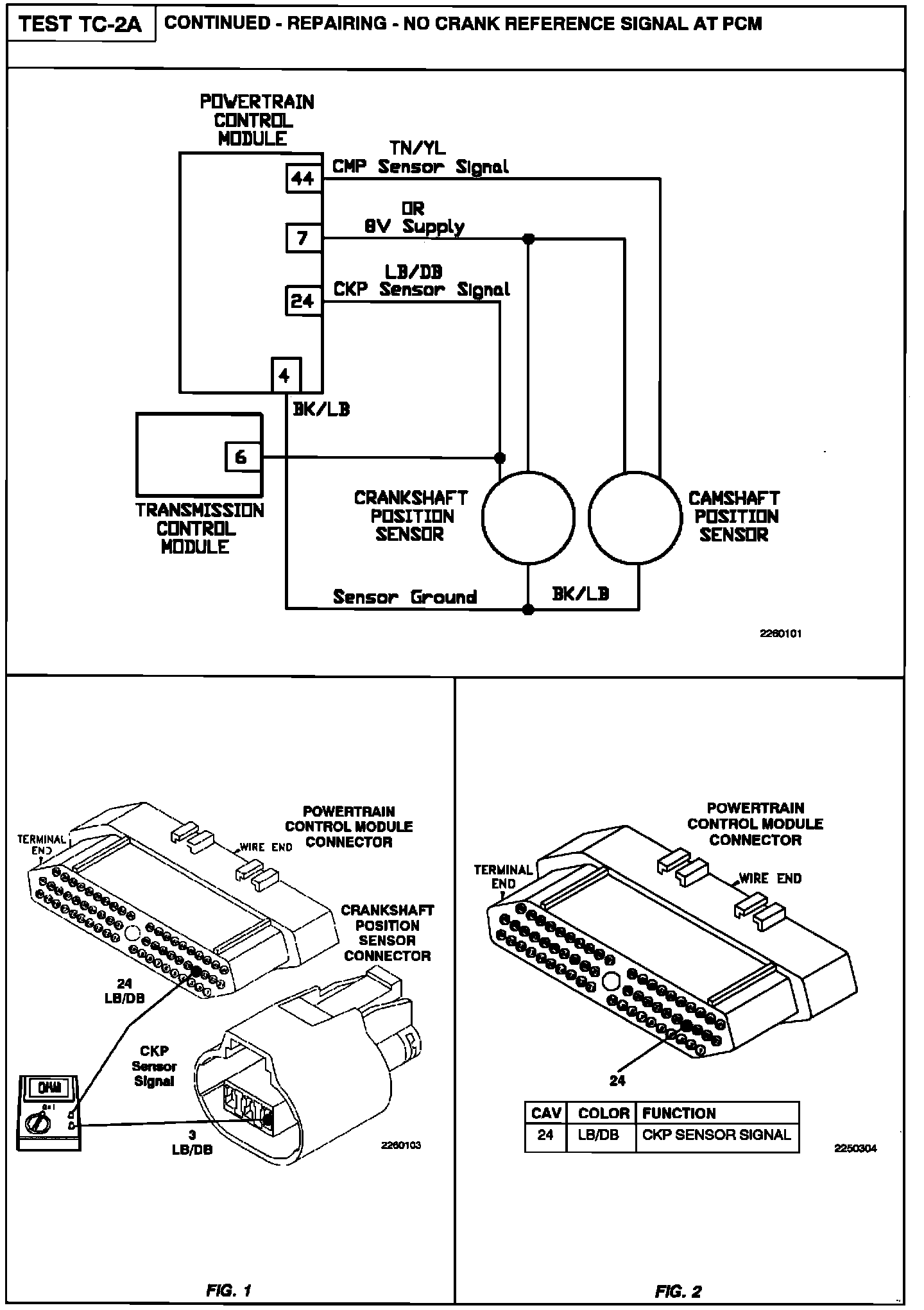

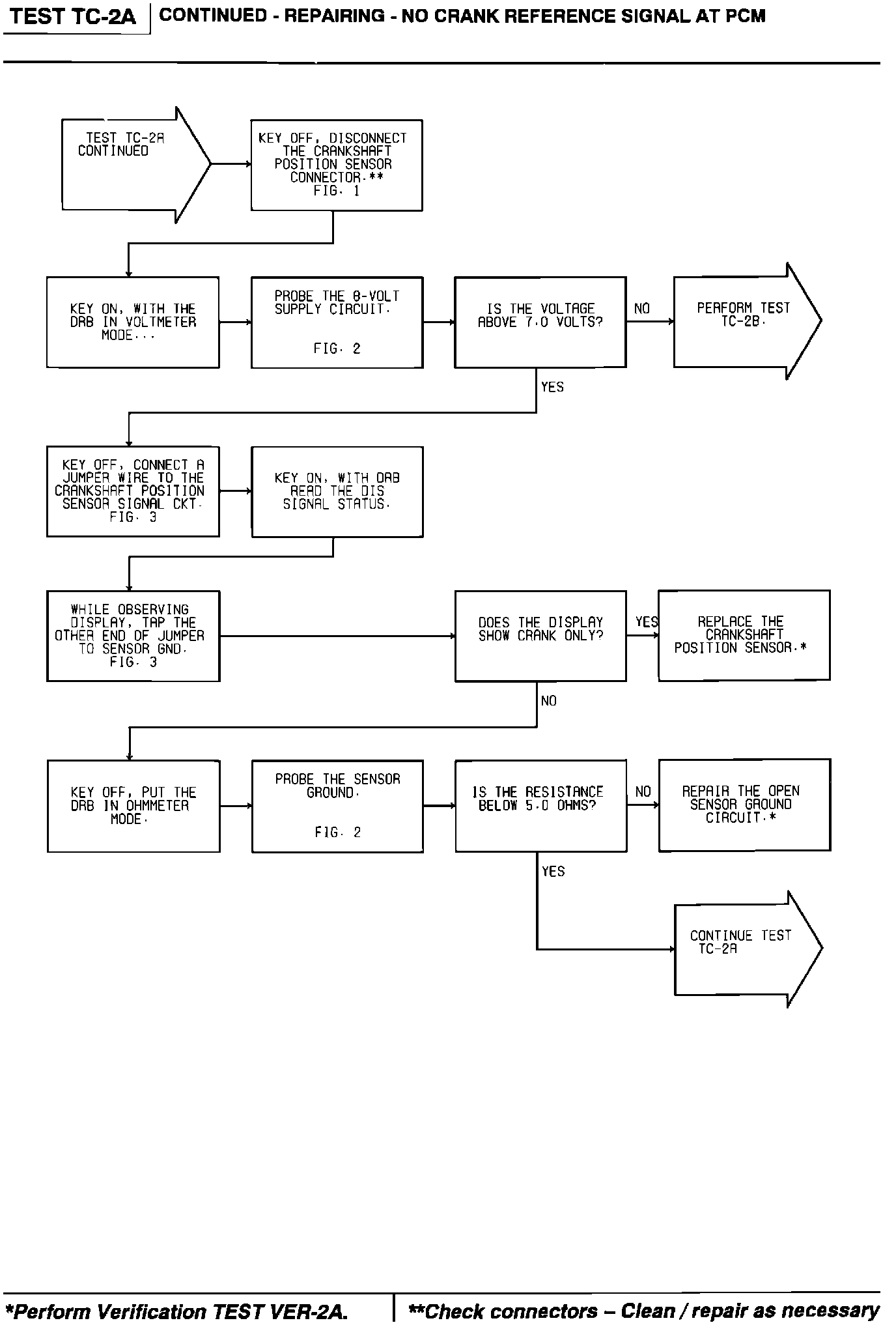

Part 2 Of 3:



Part 2 Of 3:

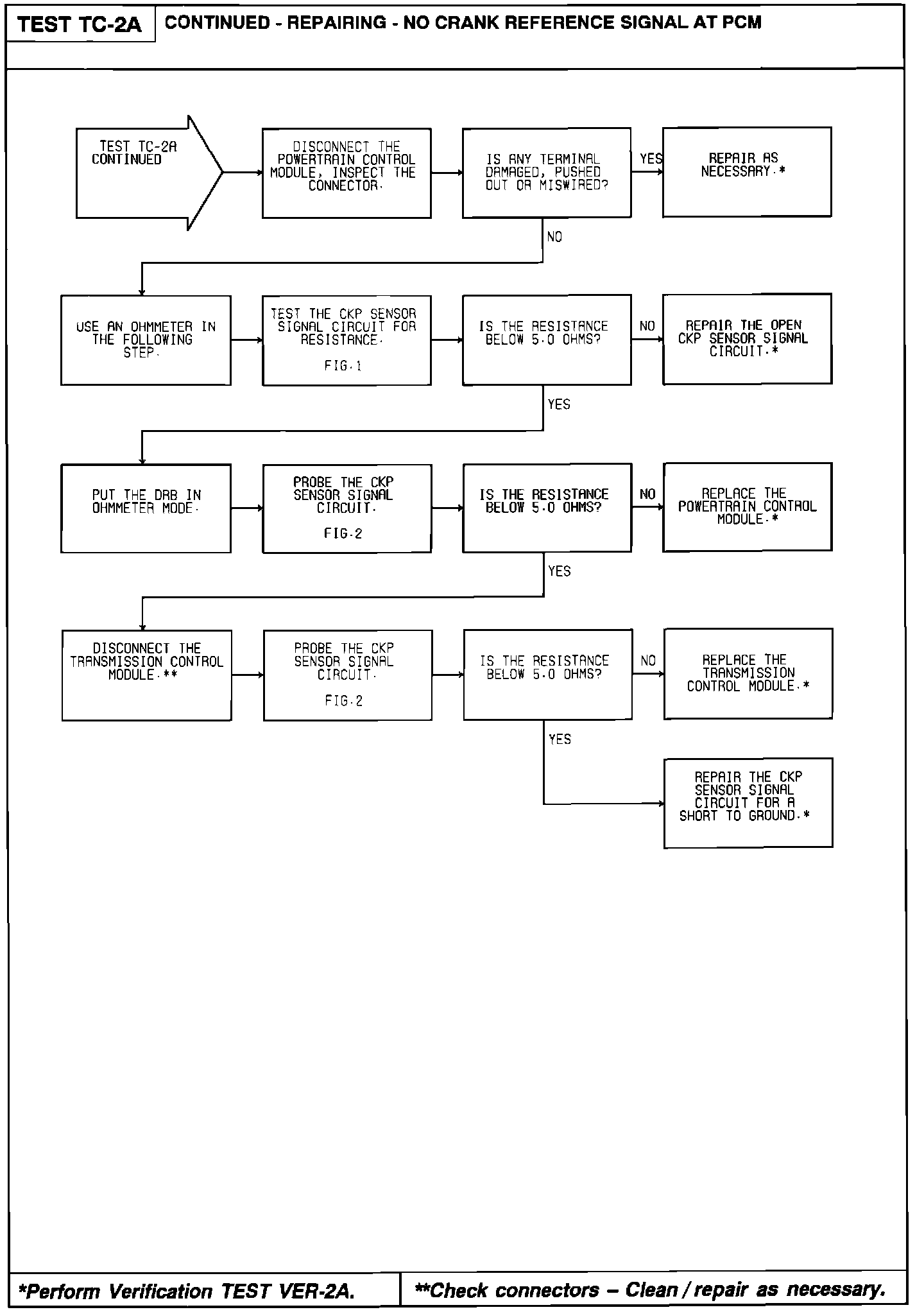

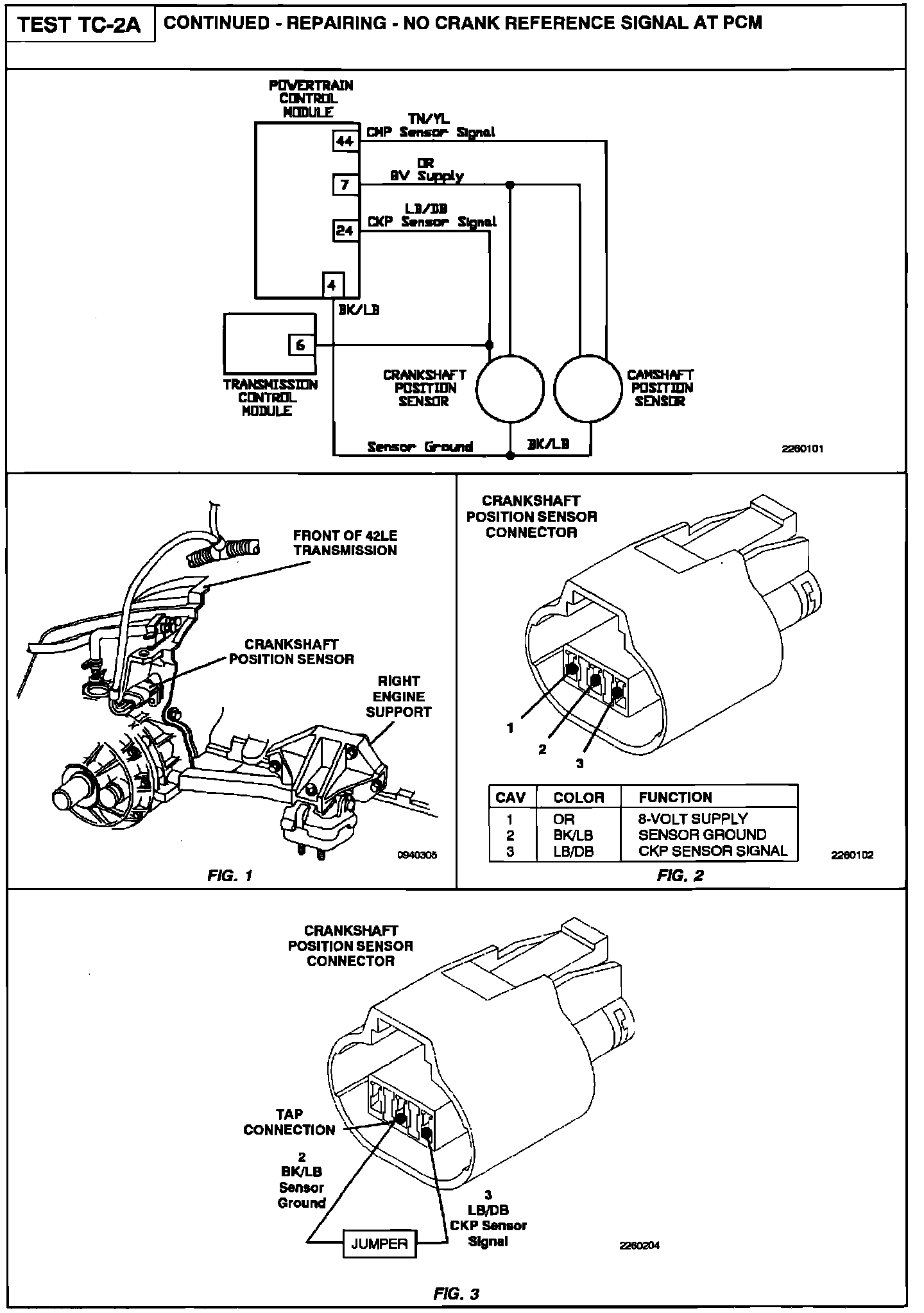

Part 3 Of 3:



Part 3 Of 3:
