Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Trouble Code (TC) Tests >> TC-24A Loss of Flex Fuel Calibration Signal

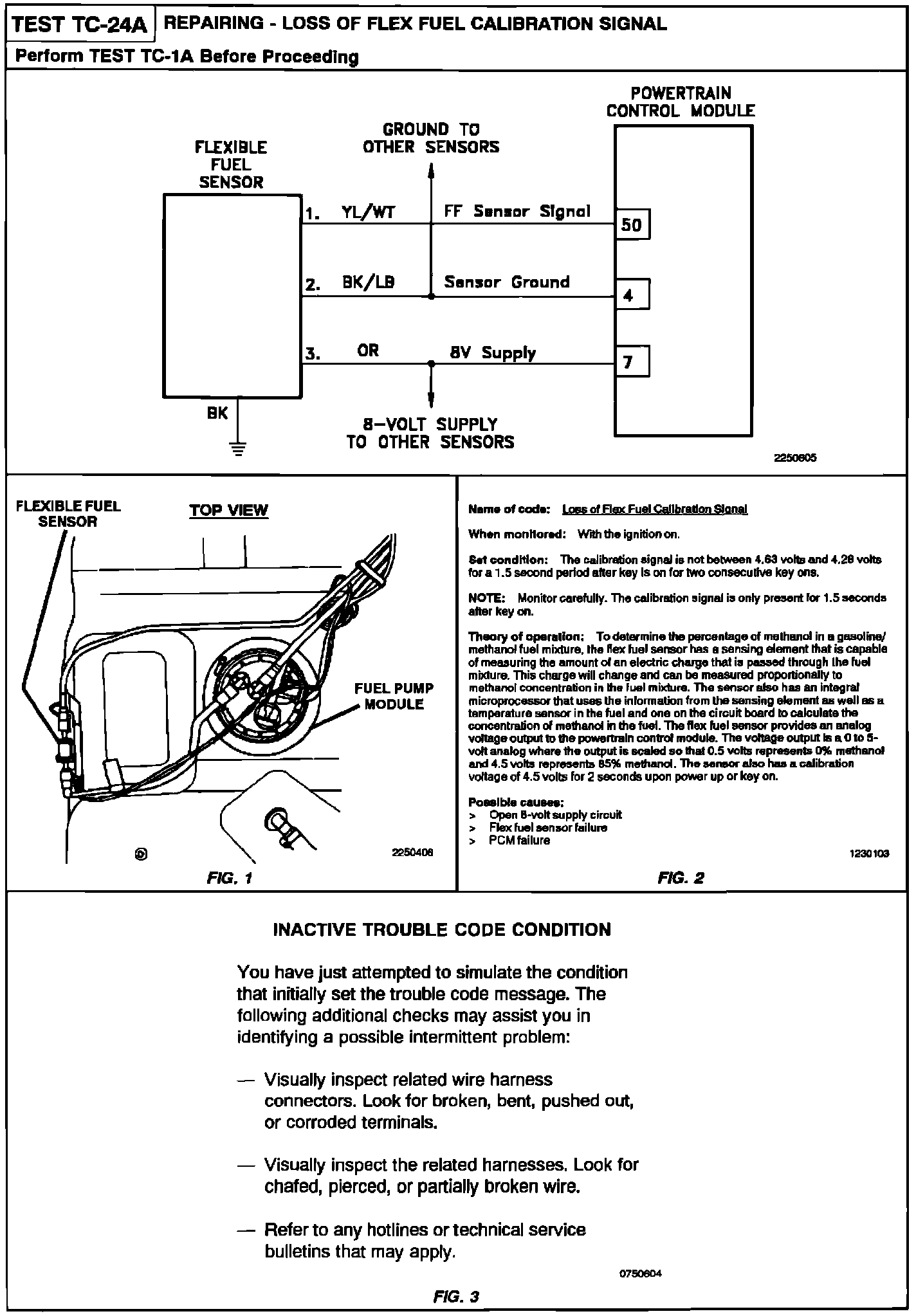

TC-24A Loss of Flex Fuel Calibration Signal

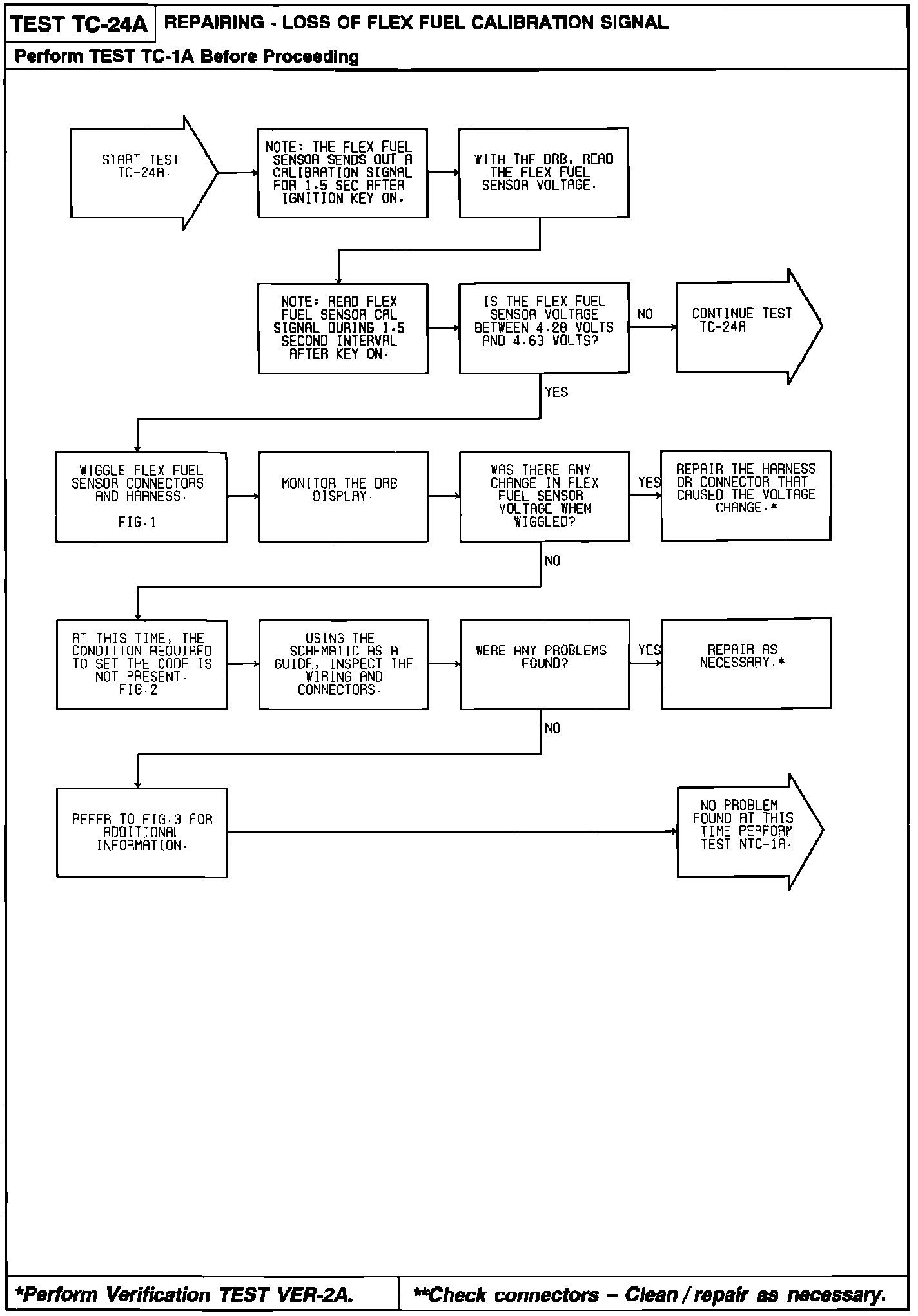

Part 1 Of 2:



Part 1 Of 2:

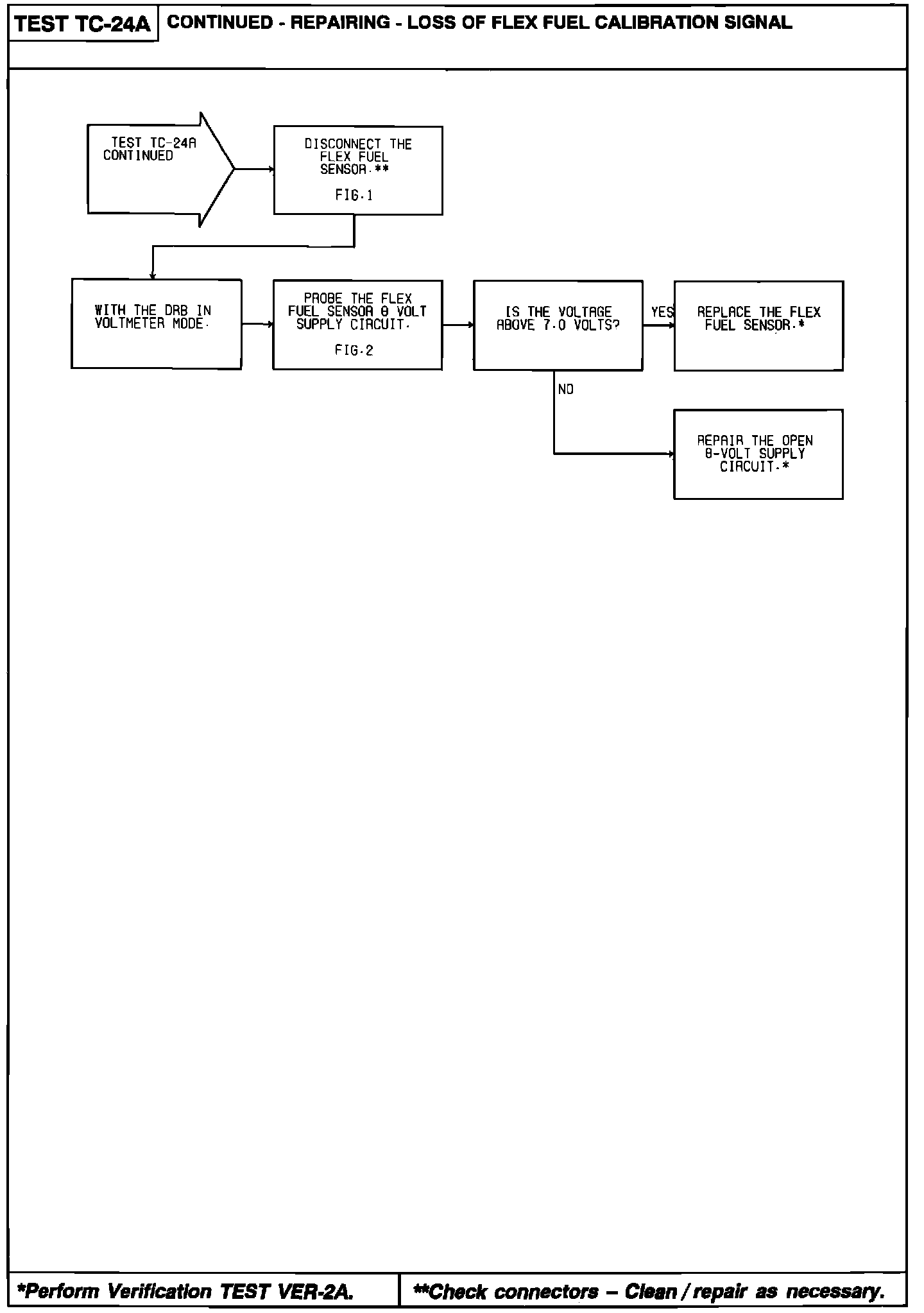

Part 2 Of 2:



Part 2 Of 2:
