SC-55B Repairing Speed Control Power Relay Circuit
SC-55B Repairing Speed Control Power Relay Circuit

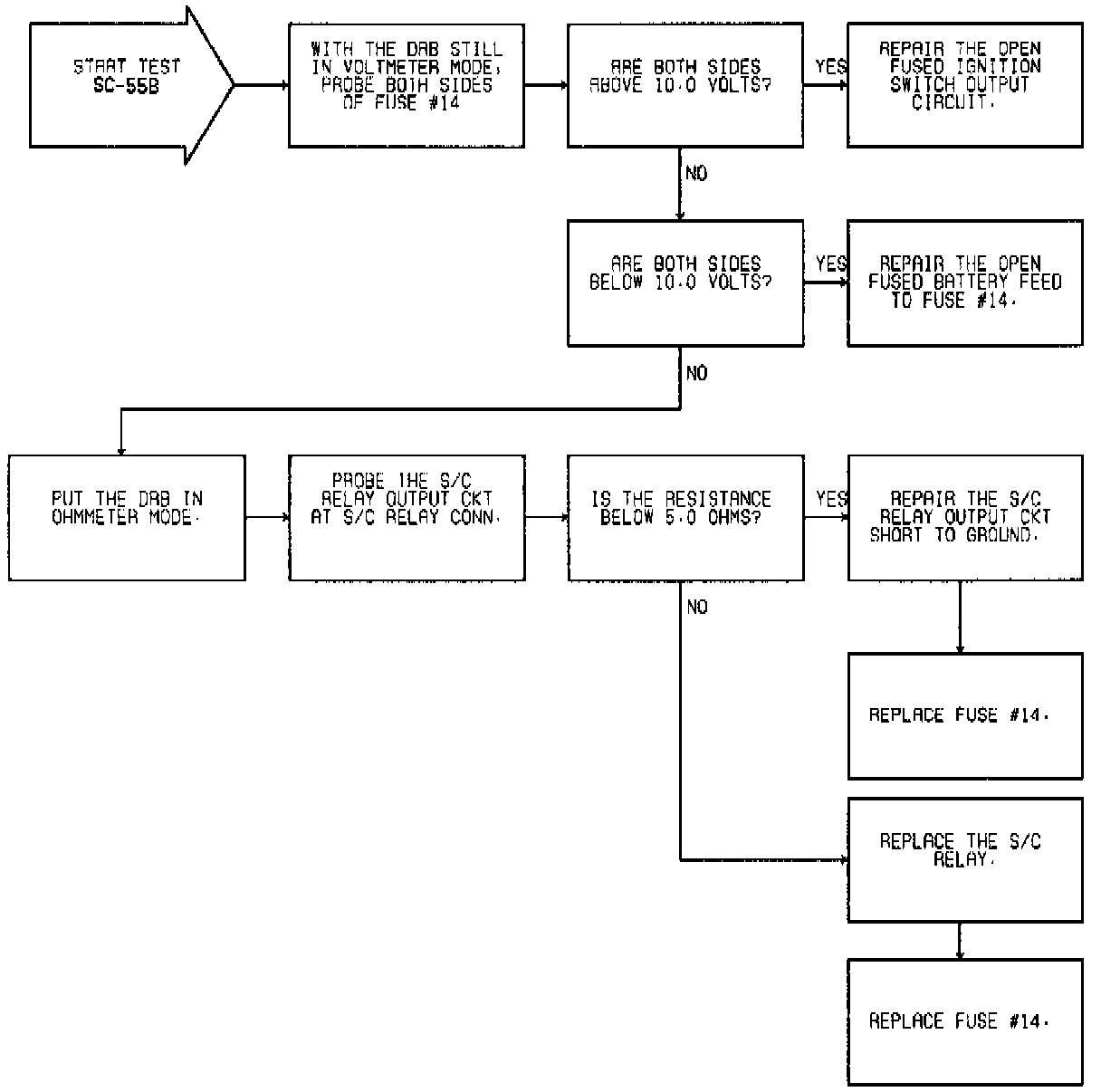

Fig. 11 Code 77 (Test SC-55B): Repairing Speed Control Power Relay Circuit:
