SC-54A Repairing Speed Control Switch Always Low
SC-54A Repairing Speed Control Switch Always Low

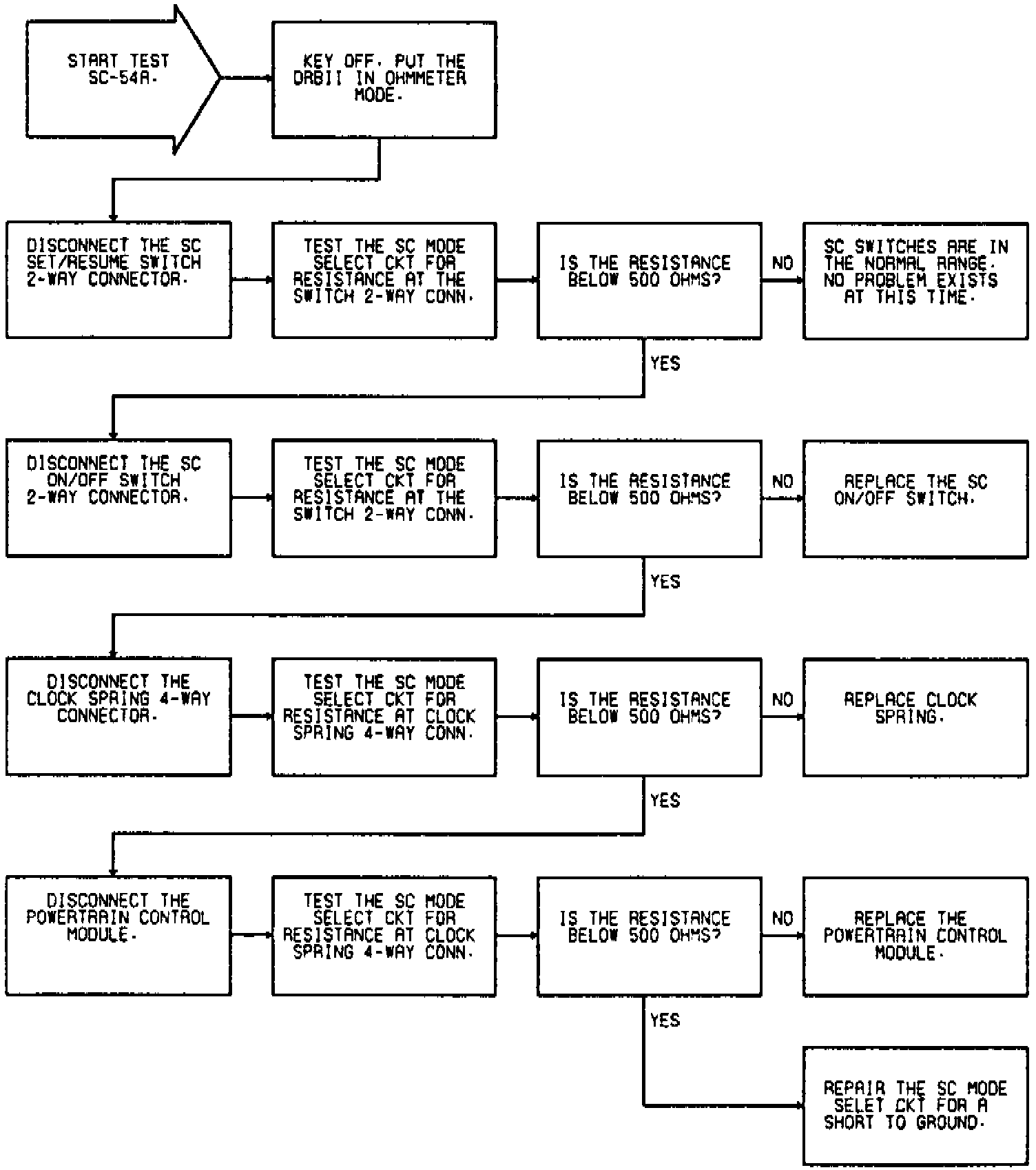

Fig. 9 Code 34 (Test SC-54A): Repairing Speed Control Switch Always Low:
