SC-53B Repairing Speed Control Switch Always High
SC-53B Repairing Speed Control Switch Always High

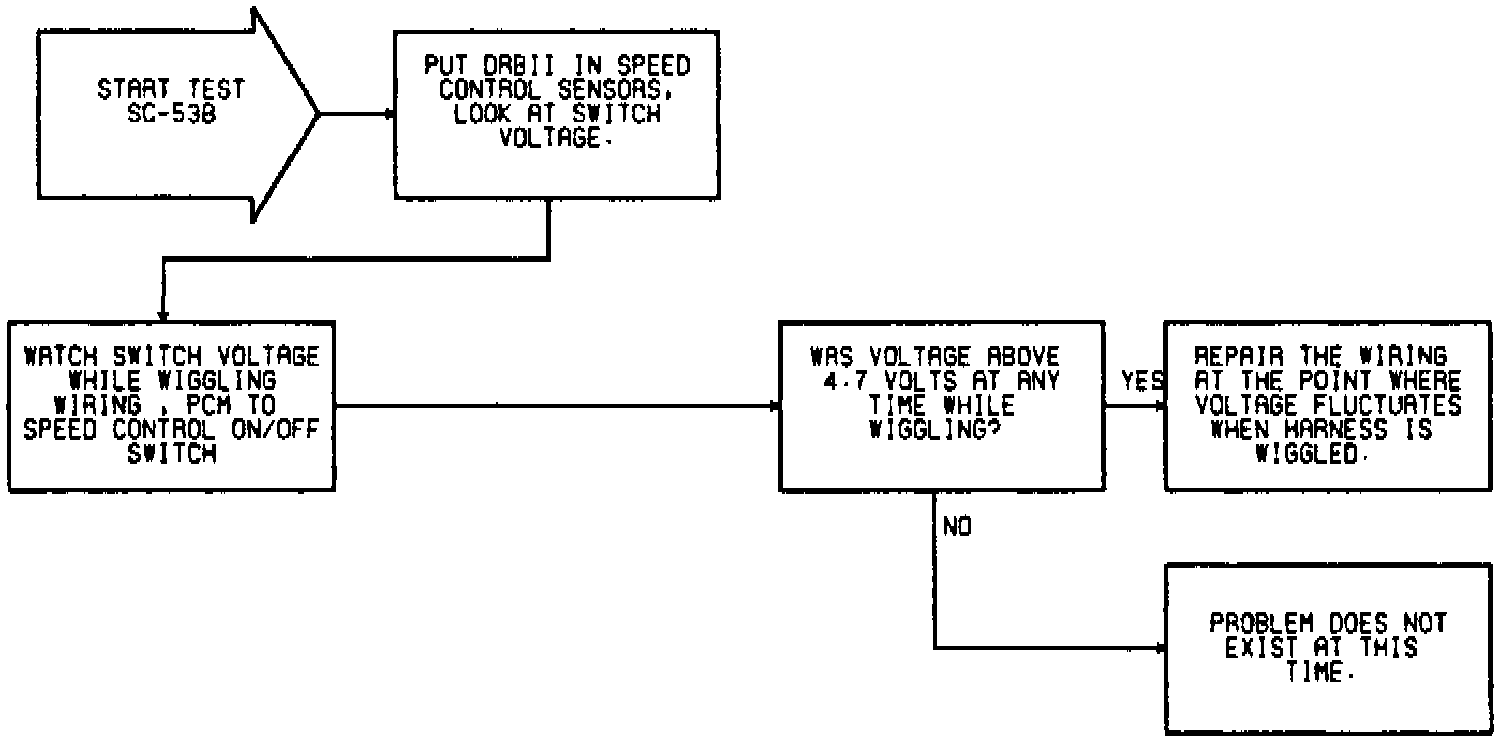

Fig. 8 Code 34 (Test SC-53B): Repairing Speed Control Switch Always High:
