Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Speed Control (SC) Tests >> SC-52C Repairing Speed Control Solenoid Circuits

SC-52C Repairing Speed Control Solenoid Circuits

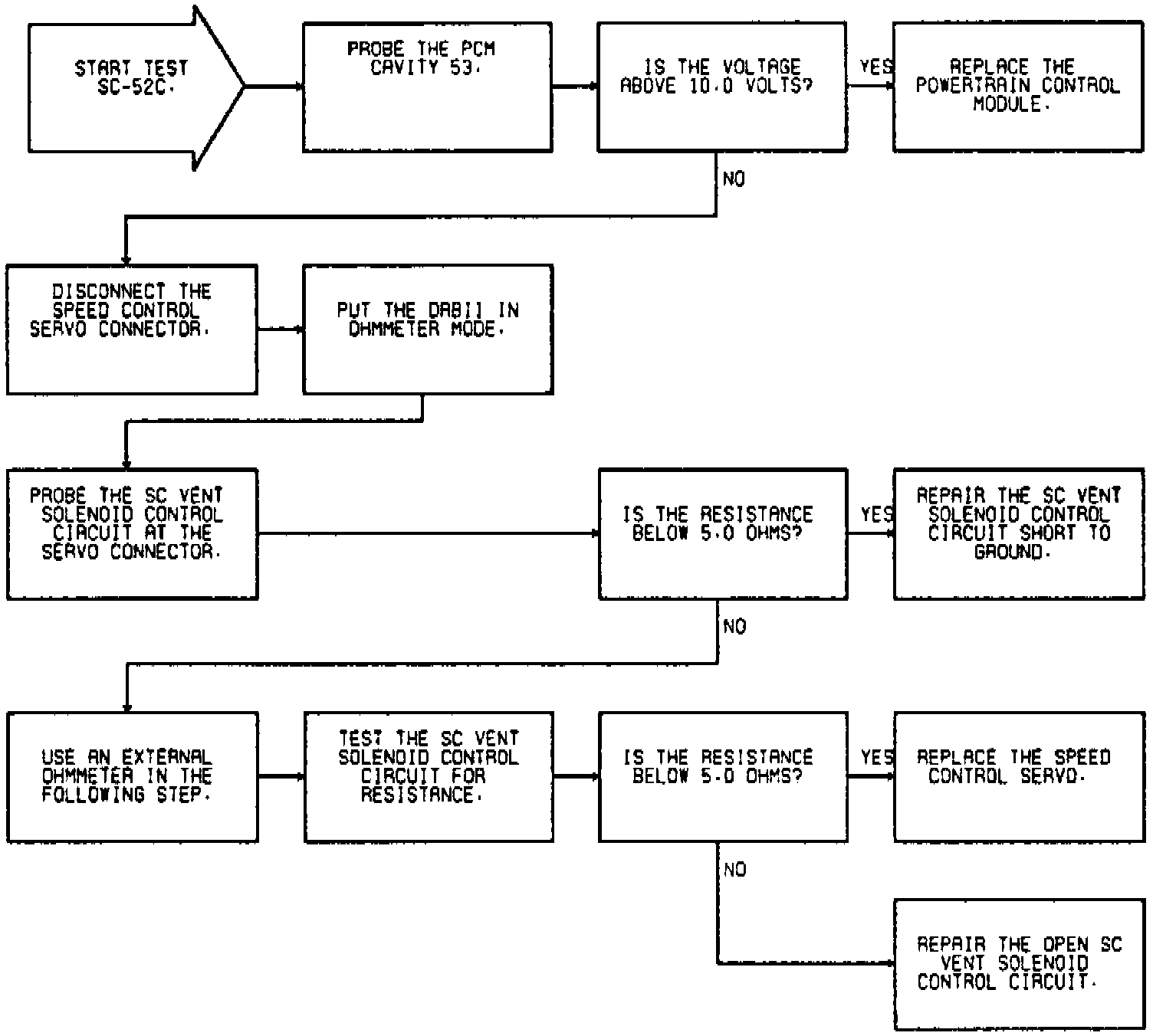

Fig. 6 Code 34 (Test SC-52C): Repairing Speed Contol Solenoid Circuits:
