Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Speed Control (SC) Tests >> SC-1B Speed Control Relay Output Inspection

SC-1B Speed Control Relay Output Inspection

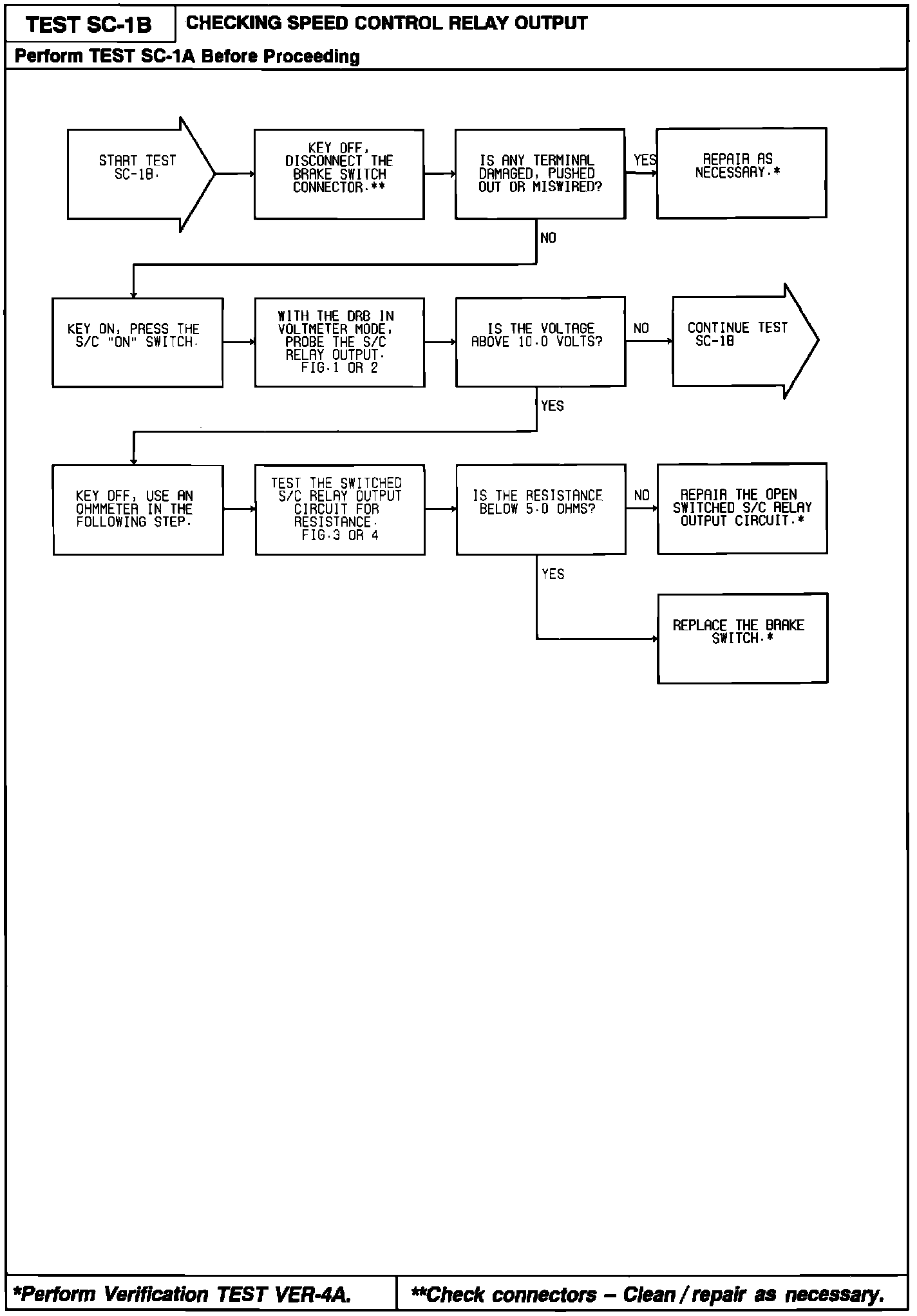

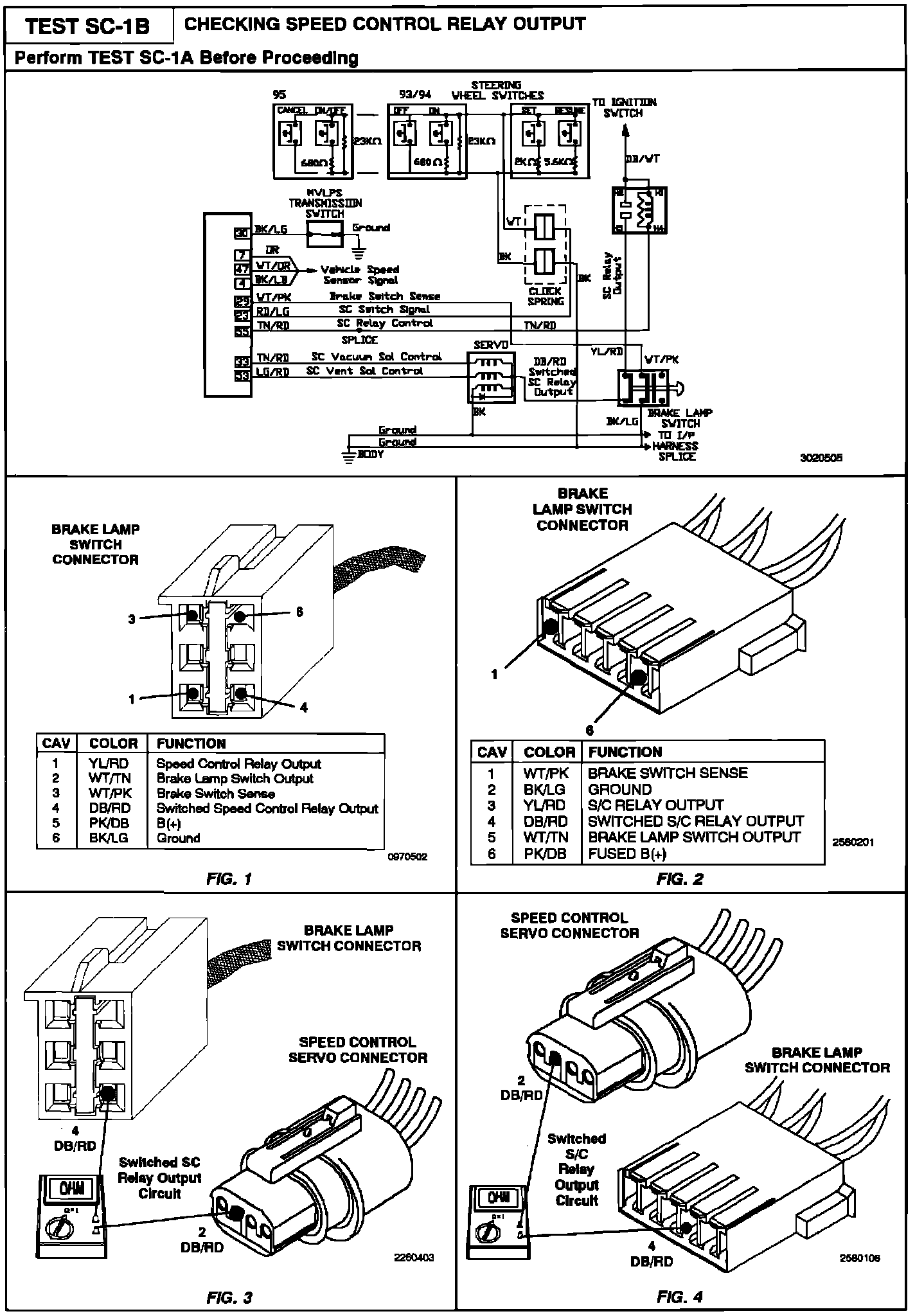

Part 1 Of 2:



Part 1 Of 2:

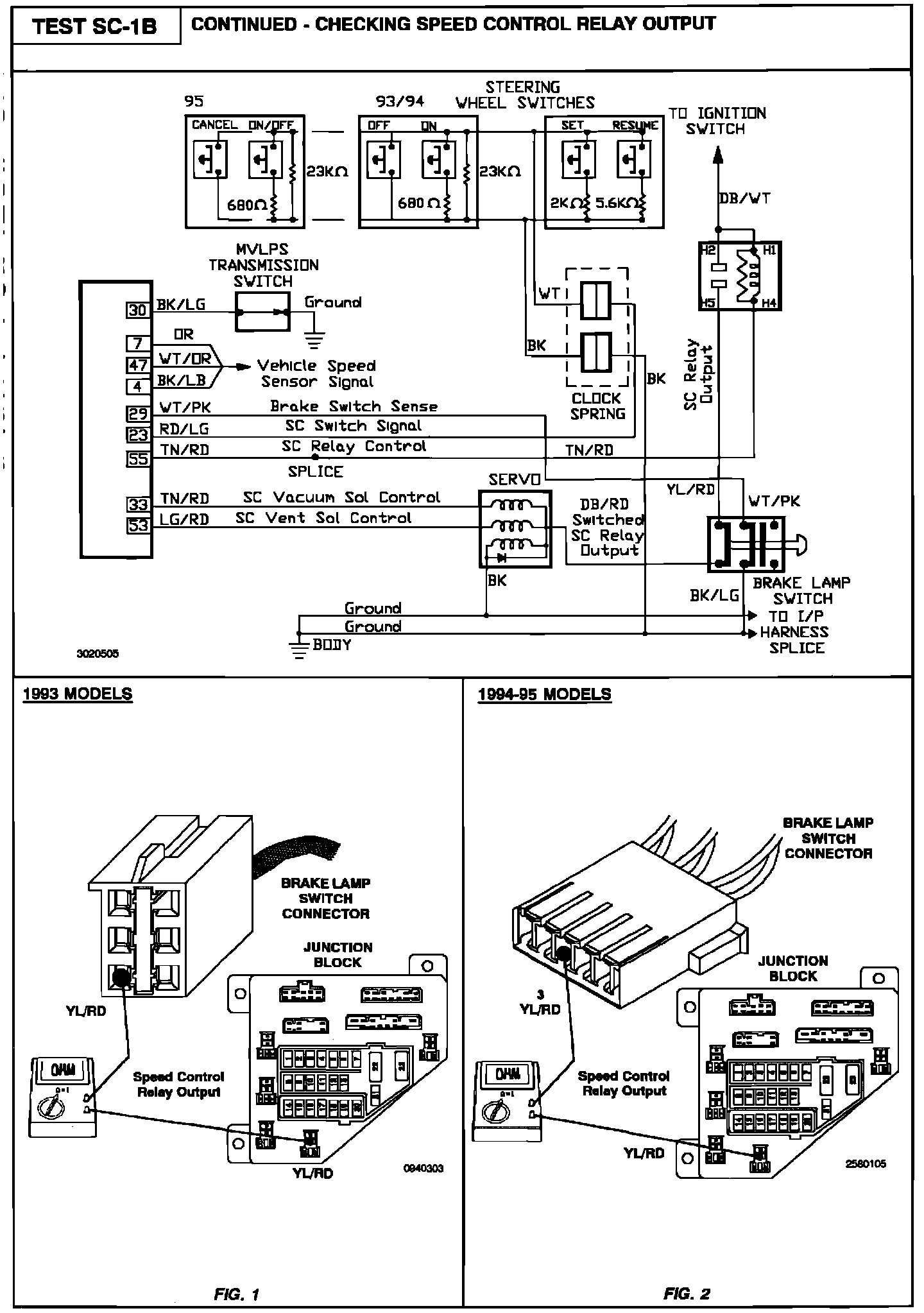

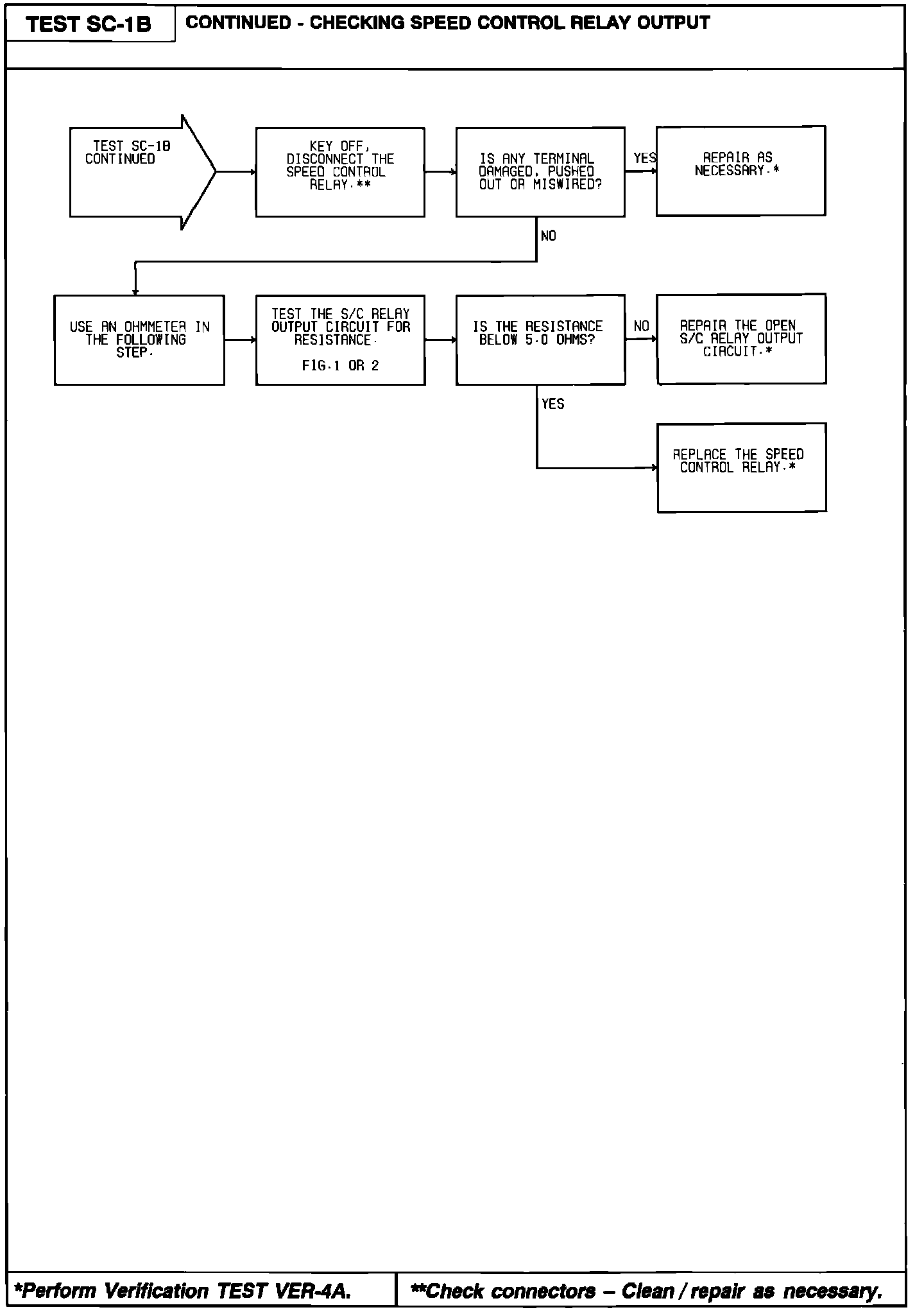

Part 2 Of 2:



Part 2 Of 2:
