Power Door Lock System With Remote Keyless Entry (RKE)
>>
99A All Doors Except Left Front Failing to Lock/Unlock
99A All Doors Except Left Front Failing to Lock/Unlock

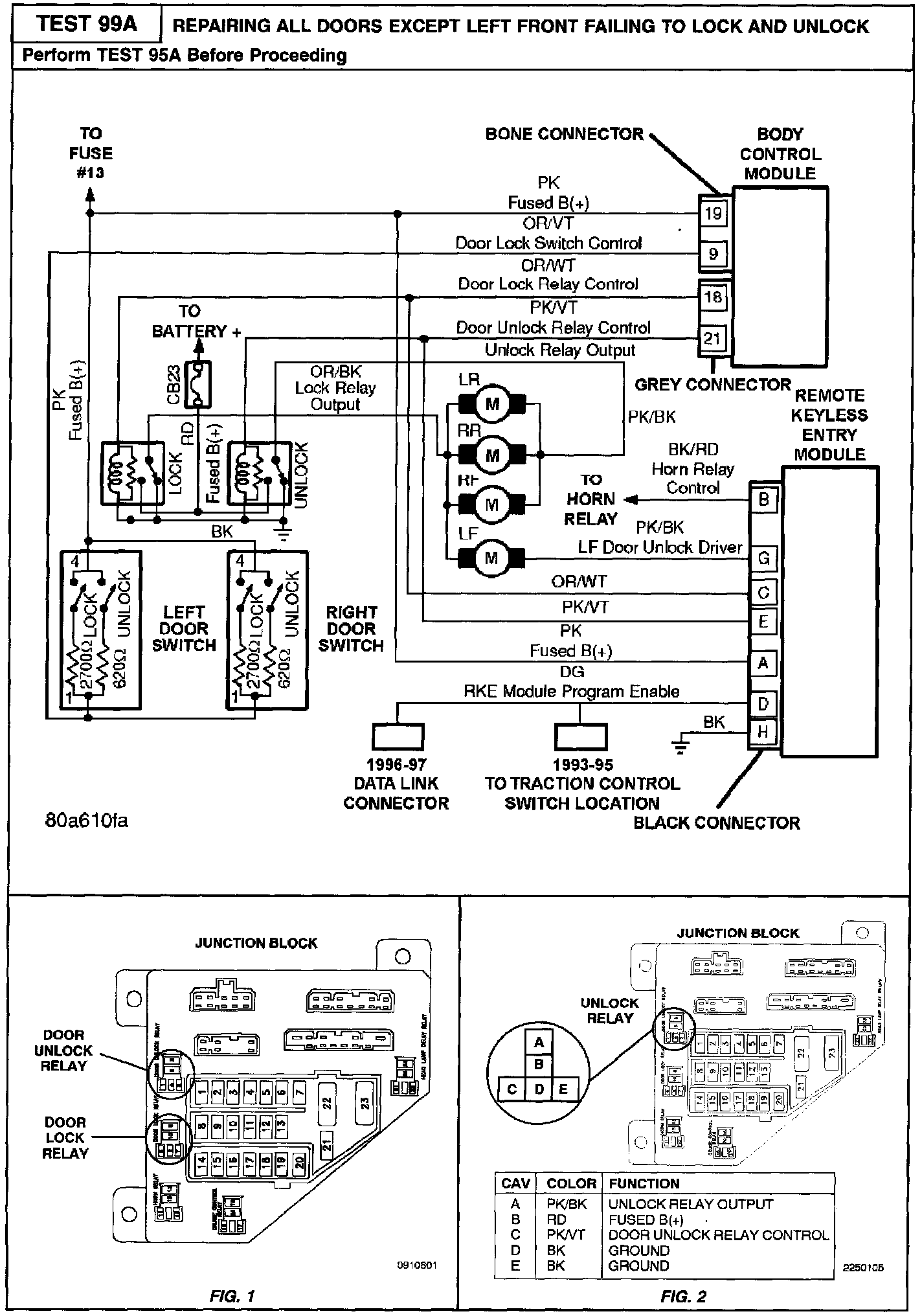

Related Images:

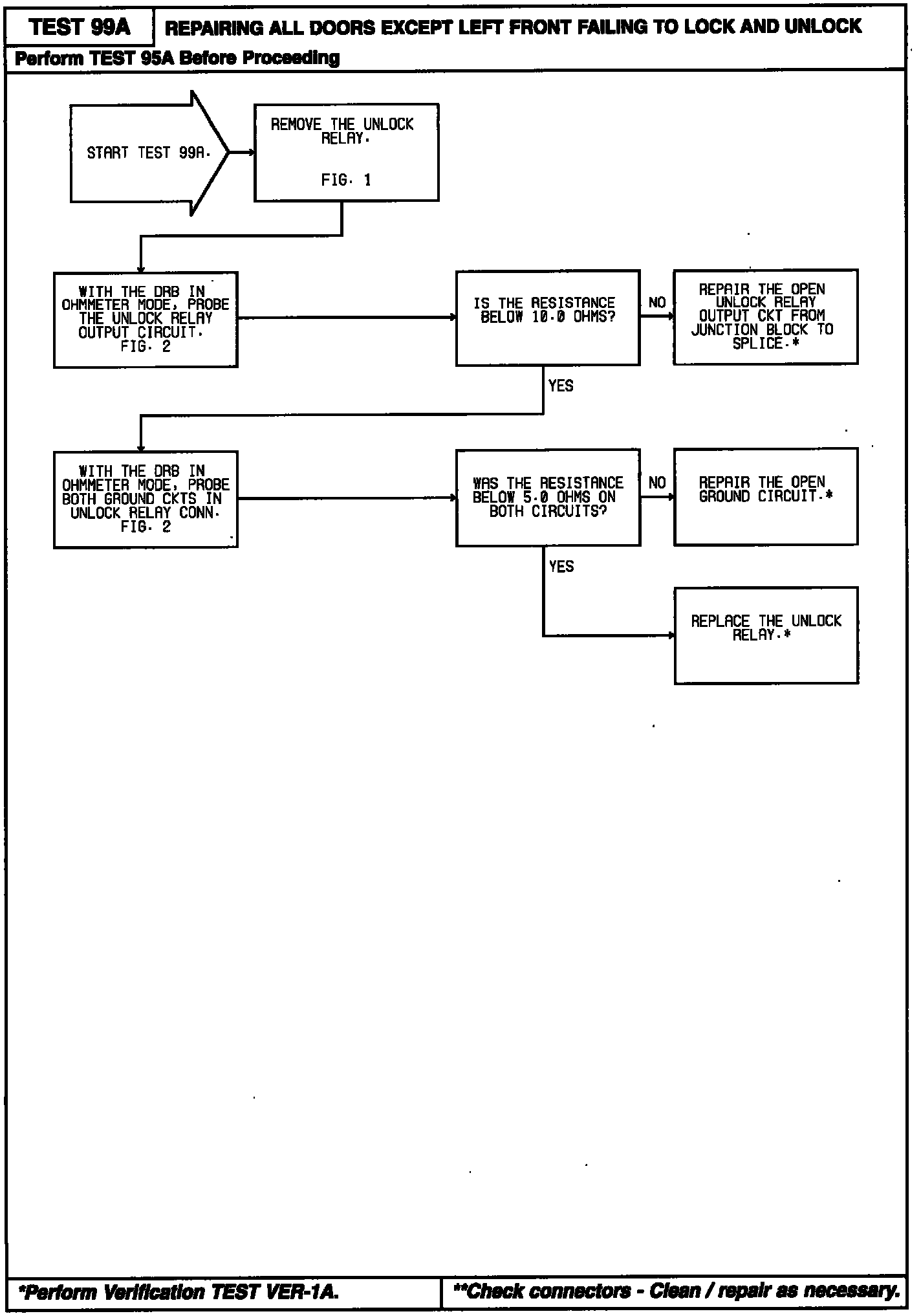

Diagnostic Chart:
