Home
>>
Eagle
>>
1995
>>
Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Power Door Lock System With Remote Keyless Entry (RKE)
>>
98A Left Front Door Failing to Unlock From Any Switch
98A Left Front Door Failing to Unlock From Any Switch

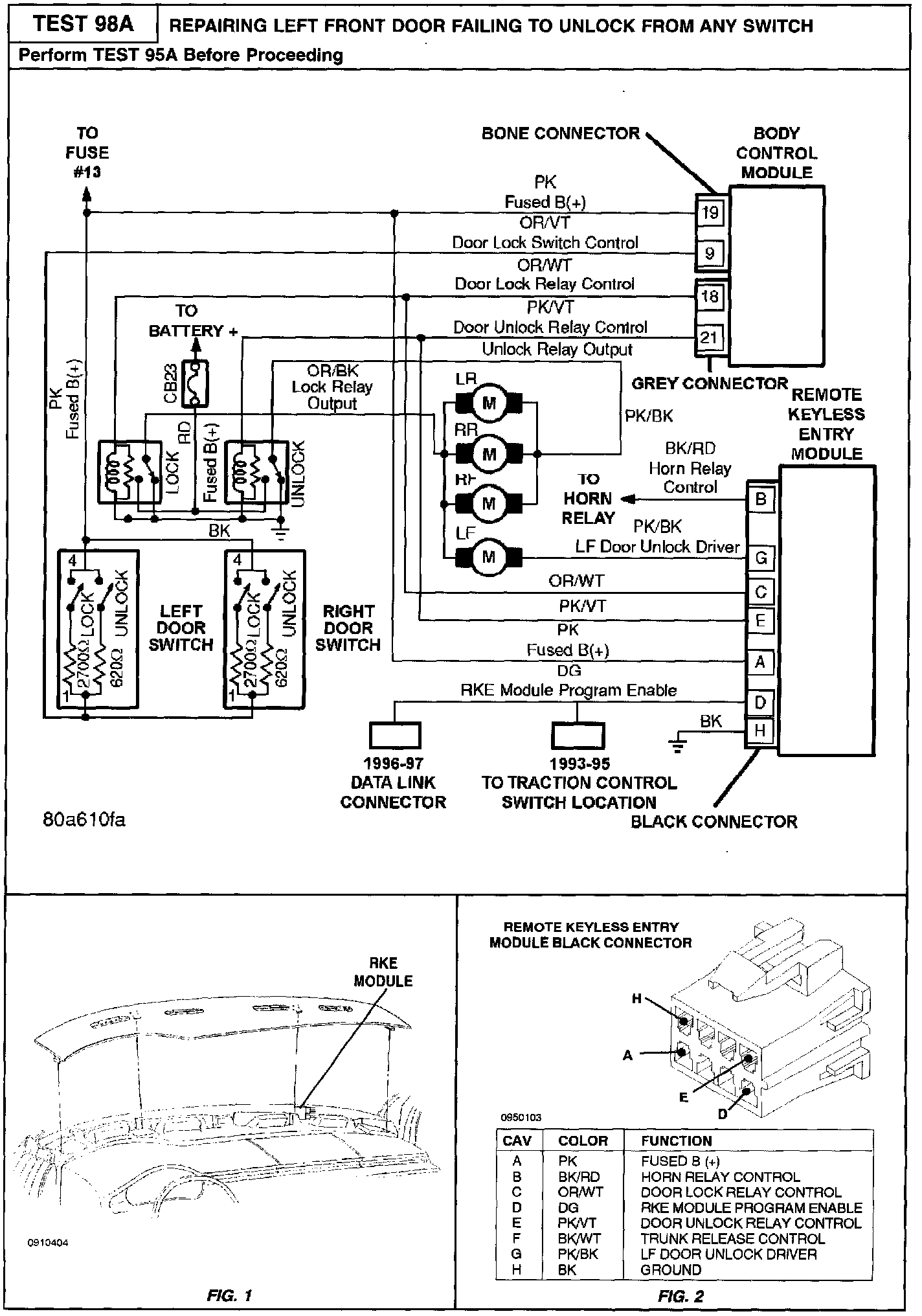

Related Images:
Diagnostic Chart:
