A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Instrument Cluster
>>
72A Seat Belt Switch Circuit Open
72A Seat Belt Switch Circuit Open
Related Images:

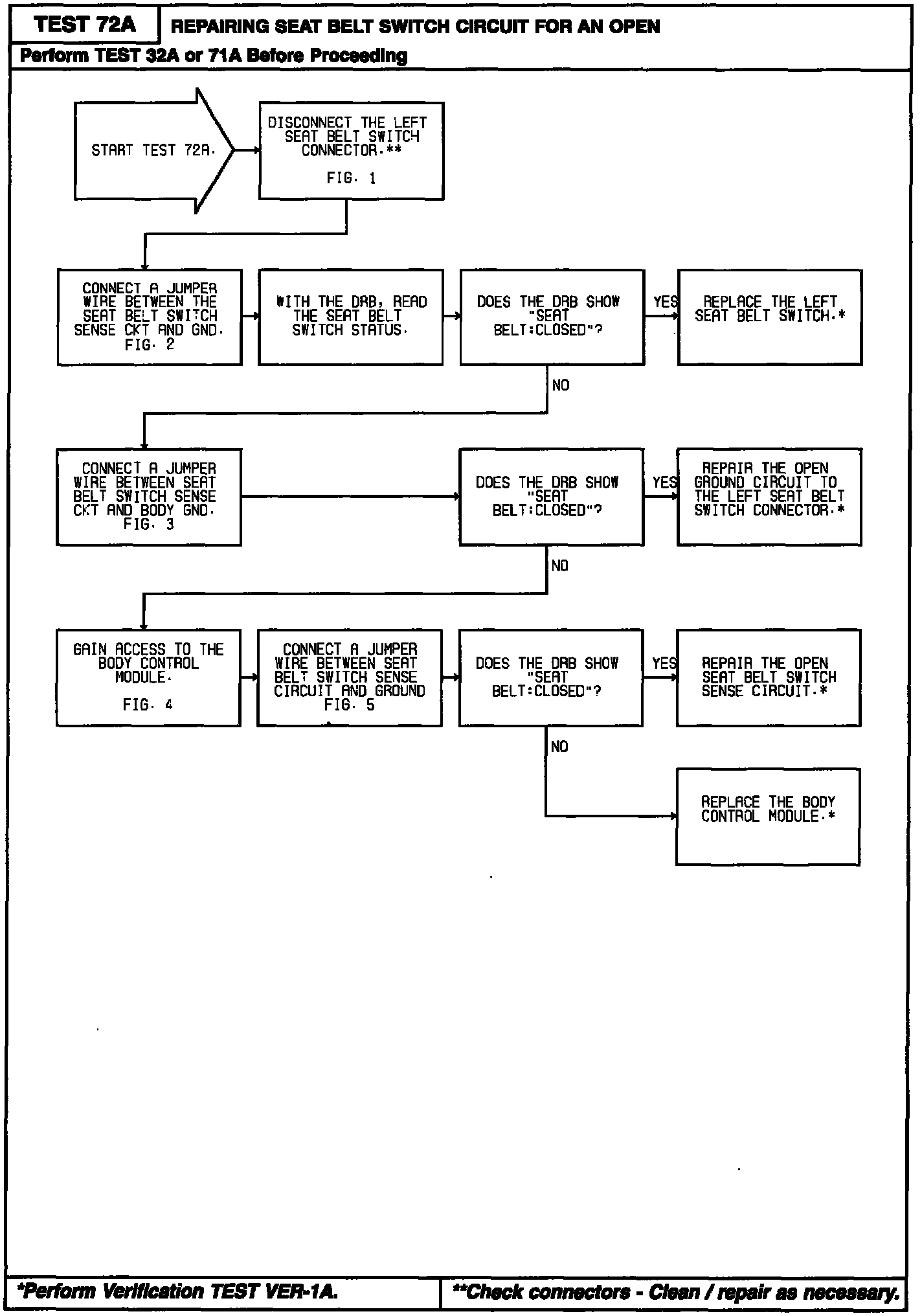

Diagnostic Chart:
