Home
>>
Eagle
>>
1995
>>
Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Instrument Cluster
>>
68B Fuel Gauge/Lamp Operation Empty at All Times
68B Fuel Gauge/Lamp Operation Empty at All Times
Related Images:

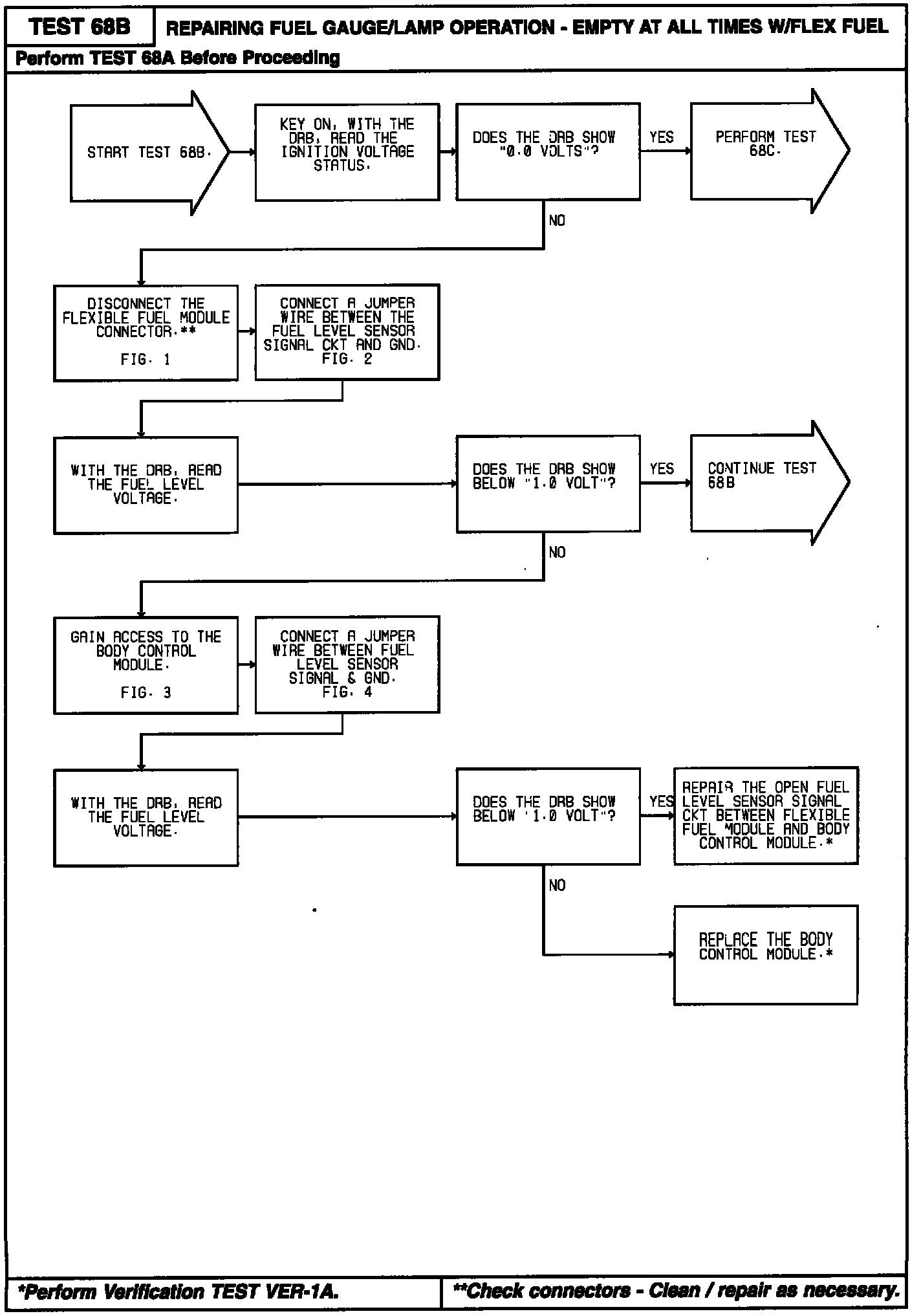

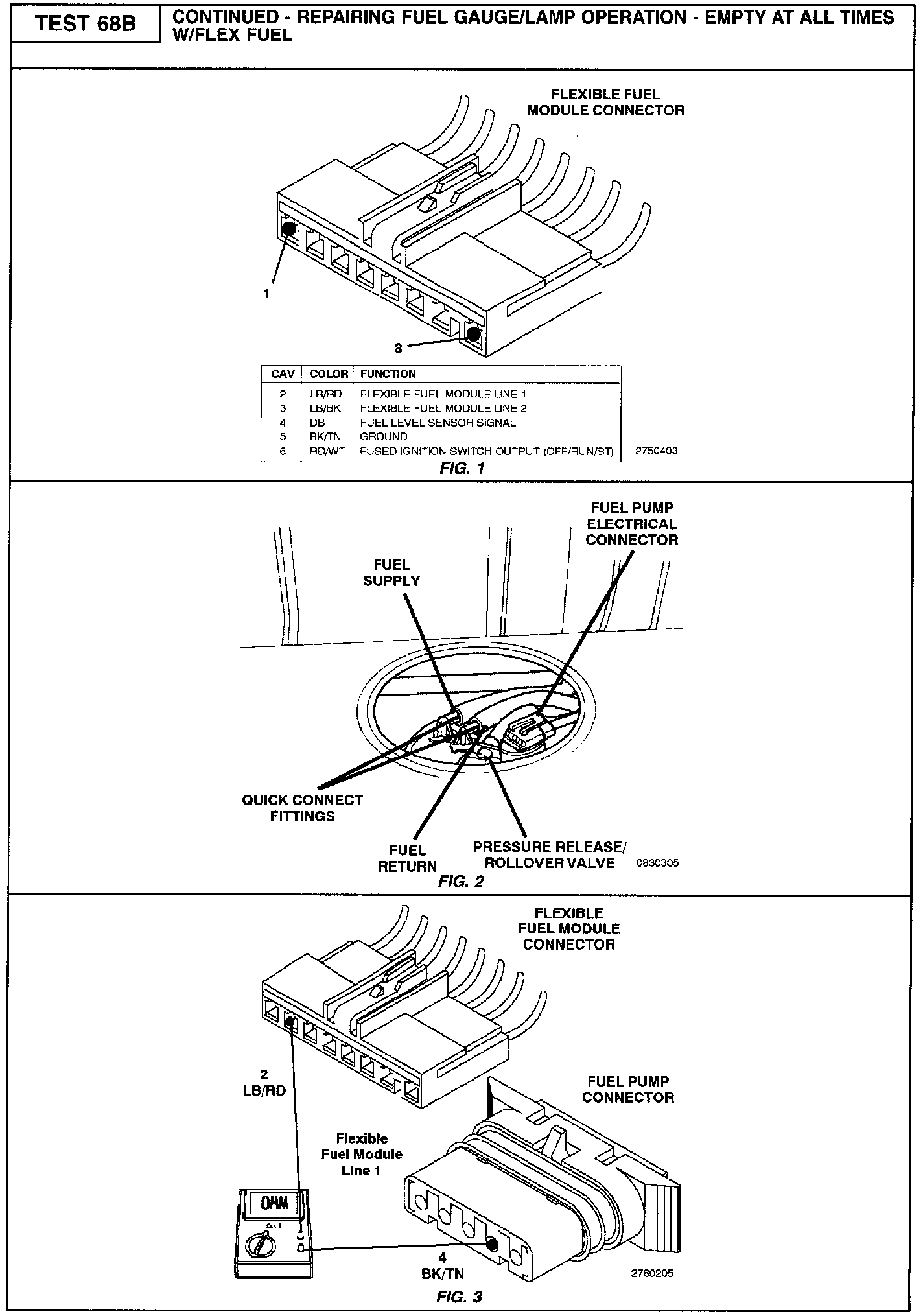

68B Part 1 Of 3:
Related Images:

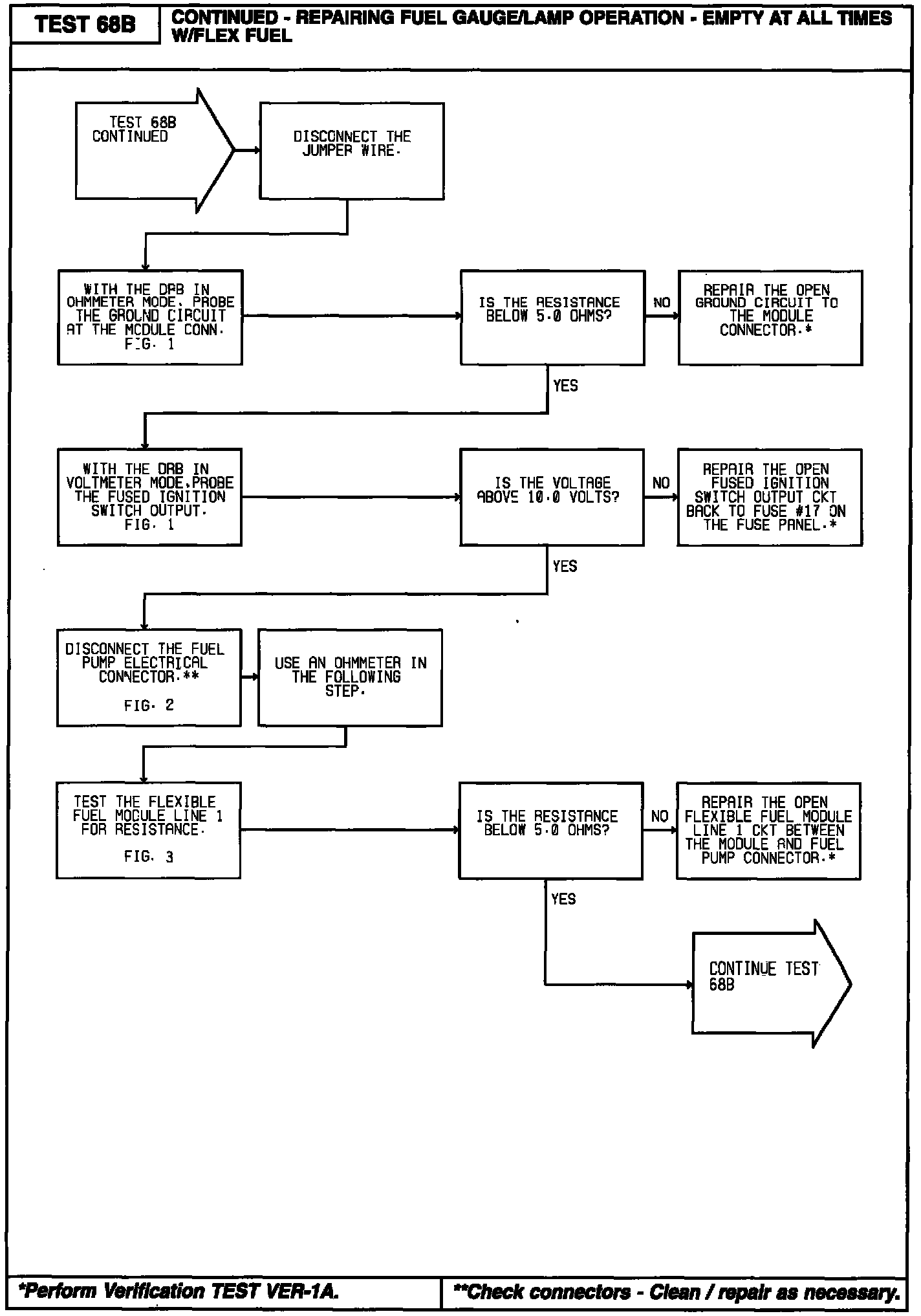

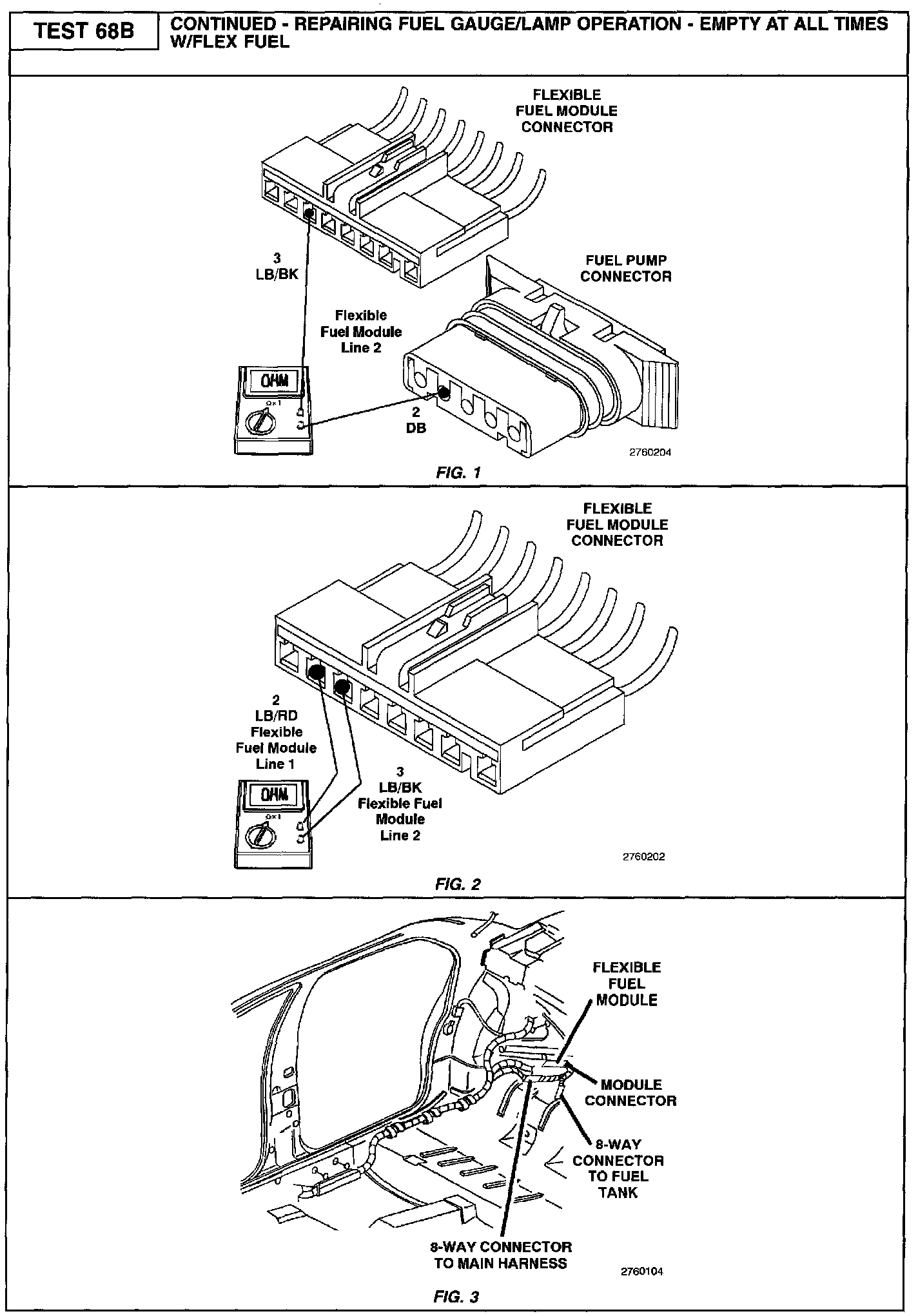

68B Part 2 Of 3:
Related Images:

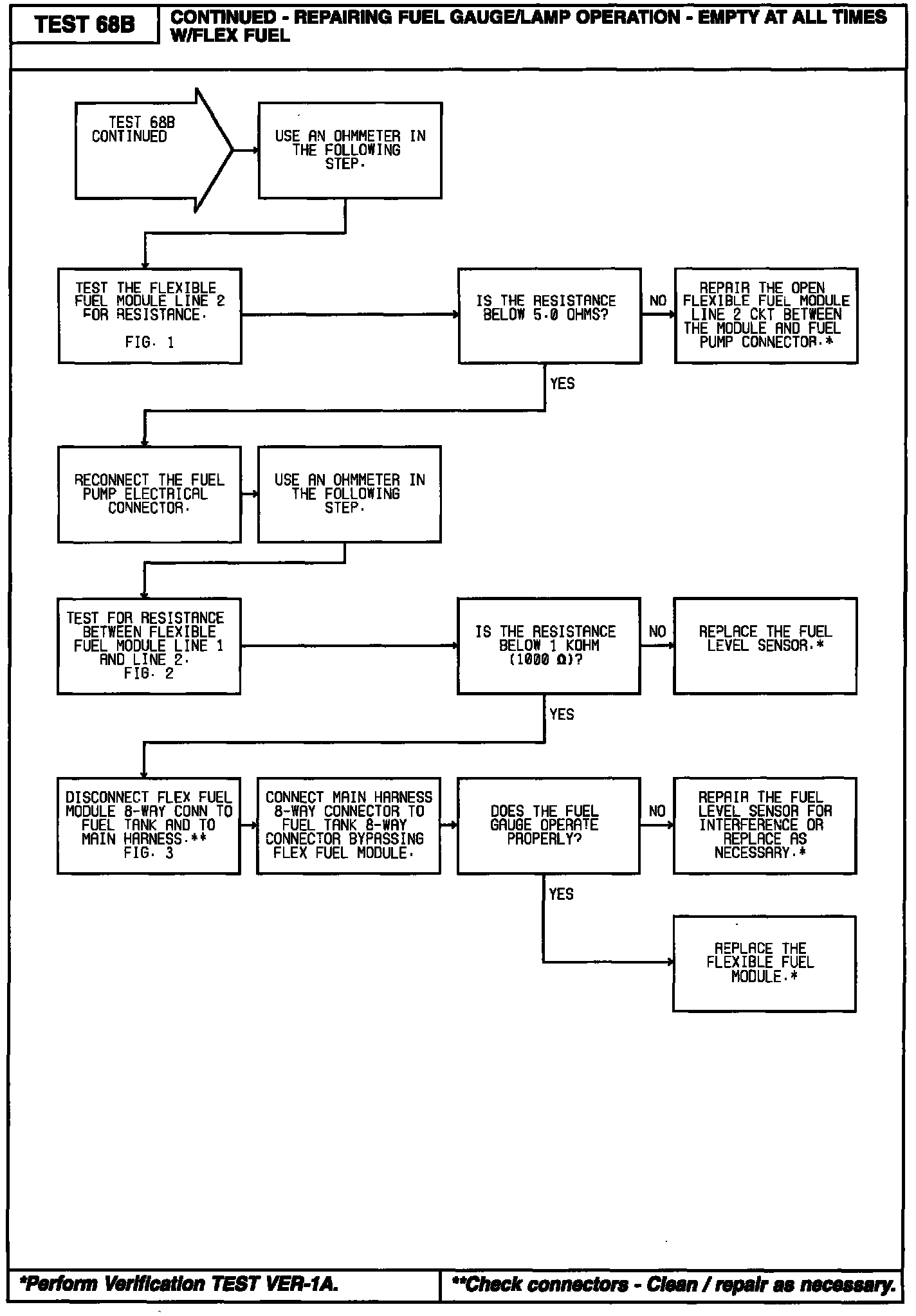

68B Part 3 Of 3:
