Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Instrument Cluster
>>
64A Park Lamp Switch Output Circuit Short to Ground

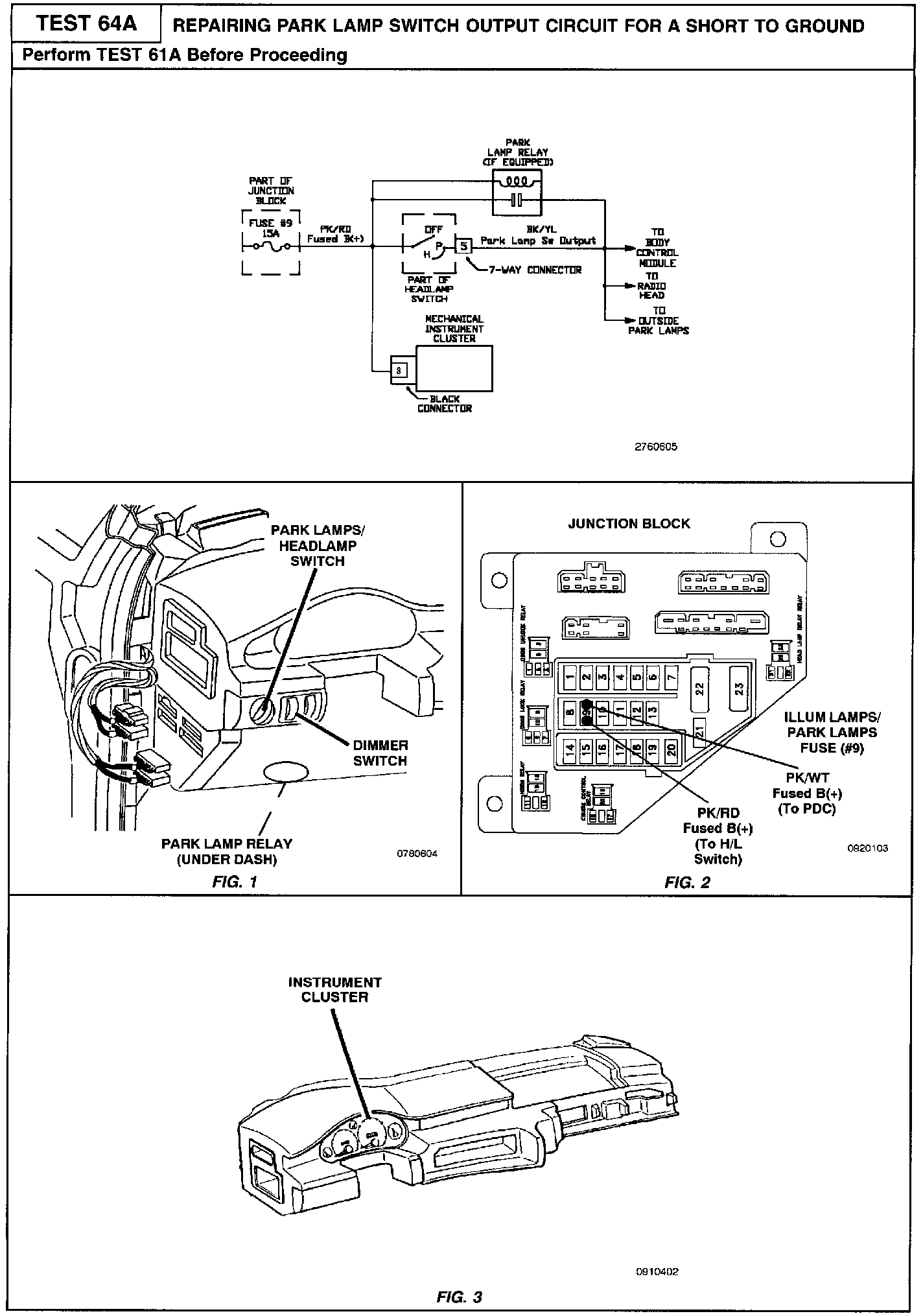

64A Park Lamp Switch Output Circuit Short to Ground
Related Images:

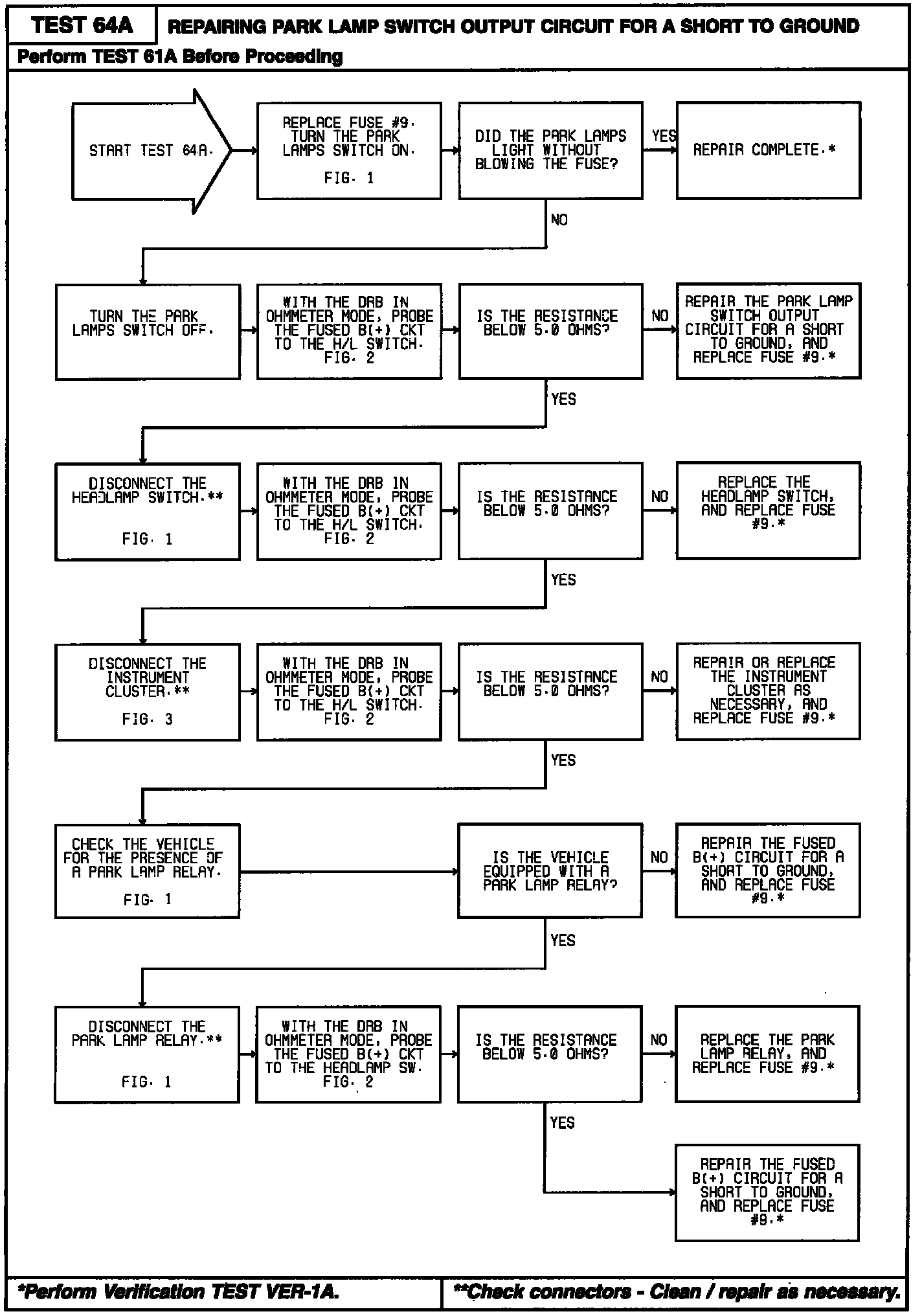

Diagnostic Chart:
