26A Blower Motor Operations
26A Blower Motor Operations
Related Images:

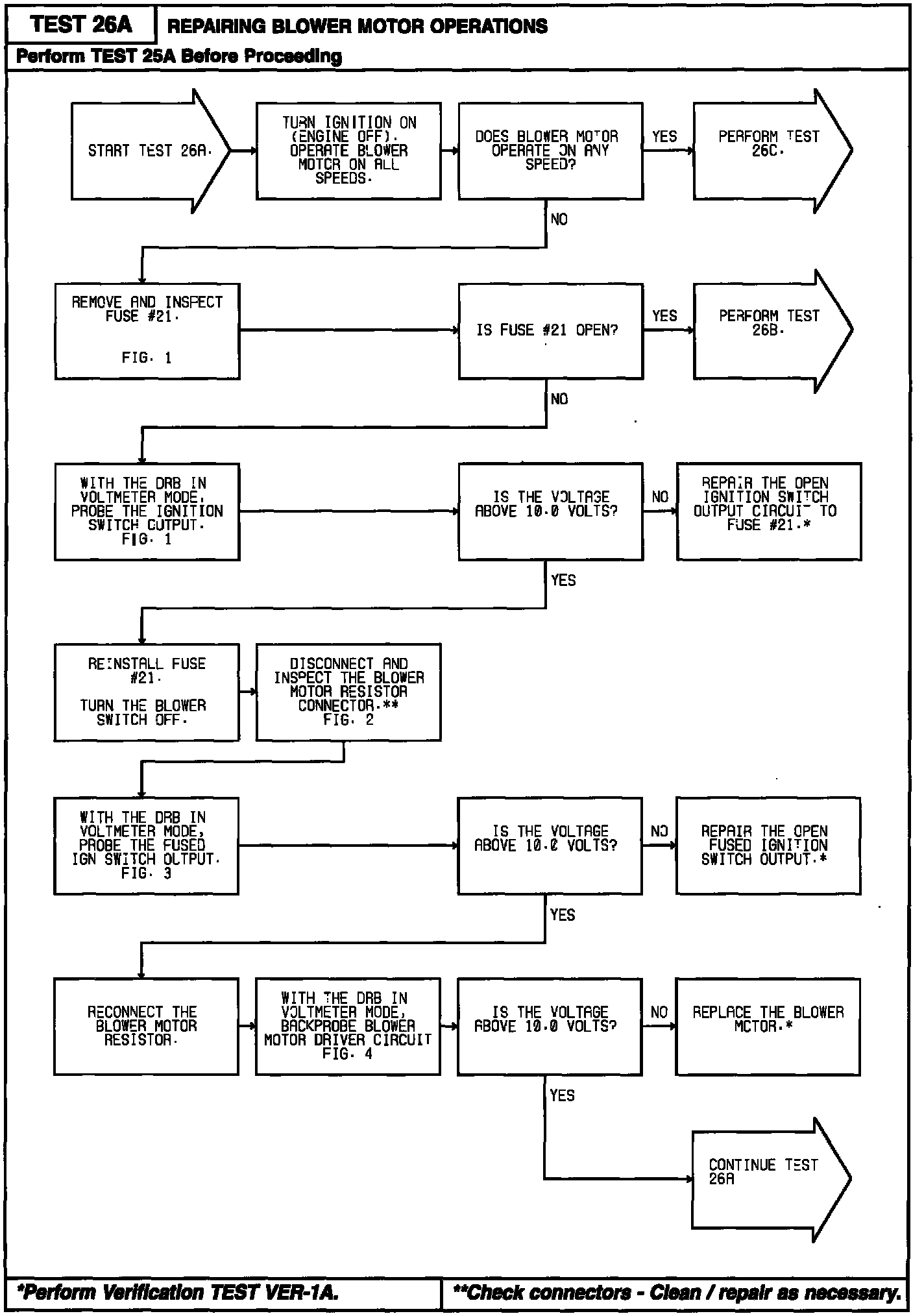

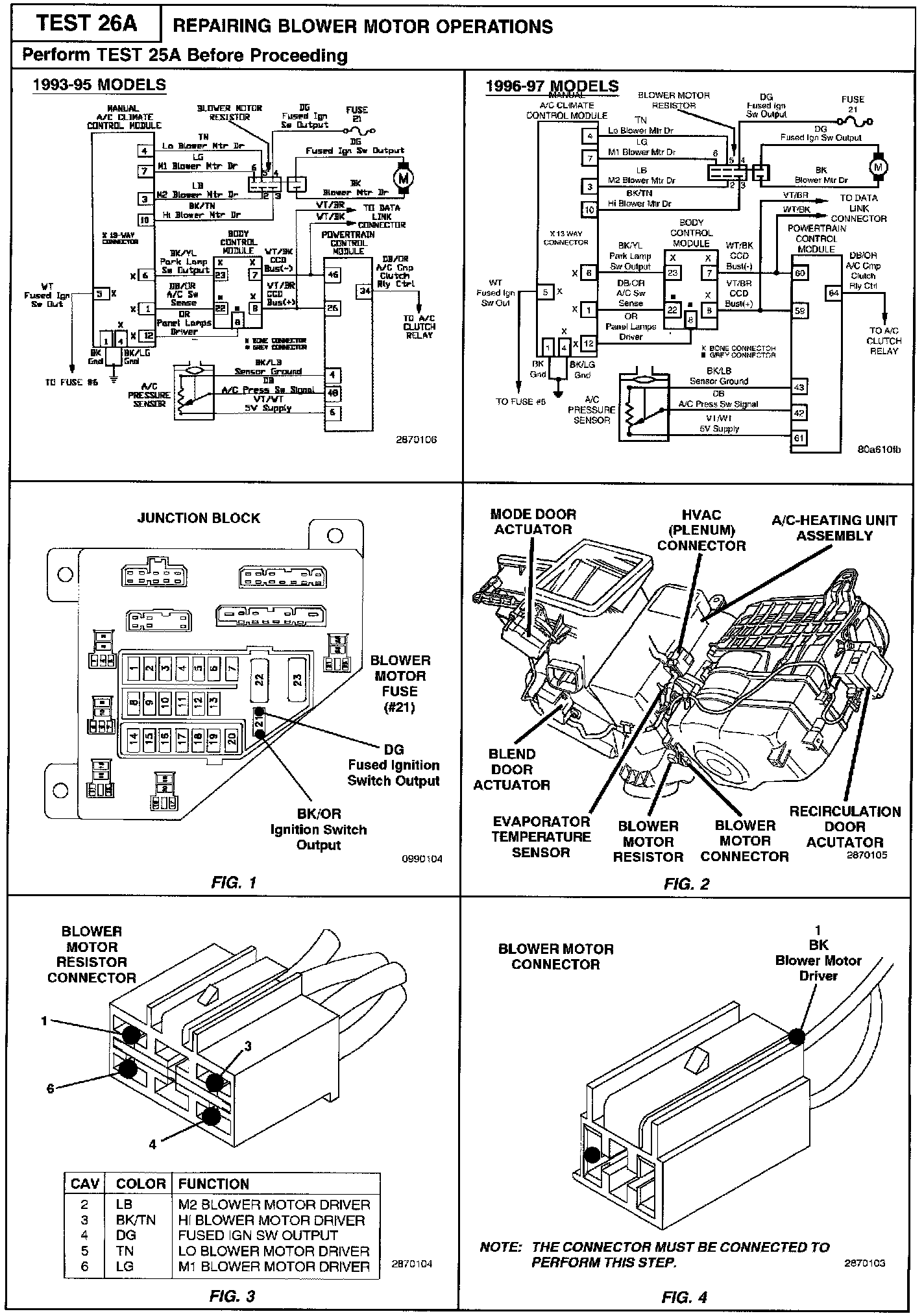

26A Part 1 Of 3:
Related Images:

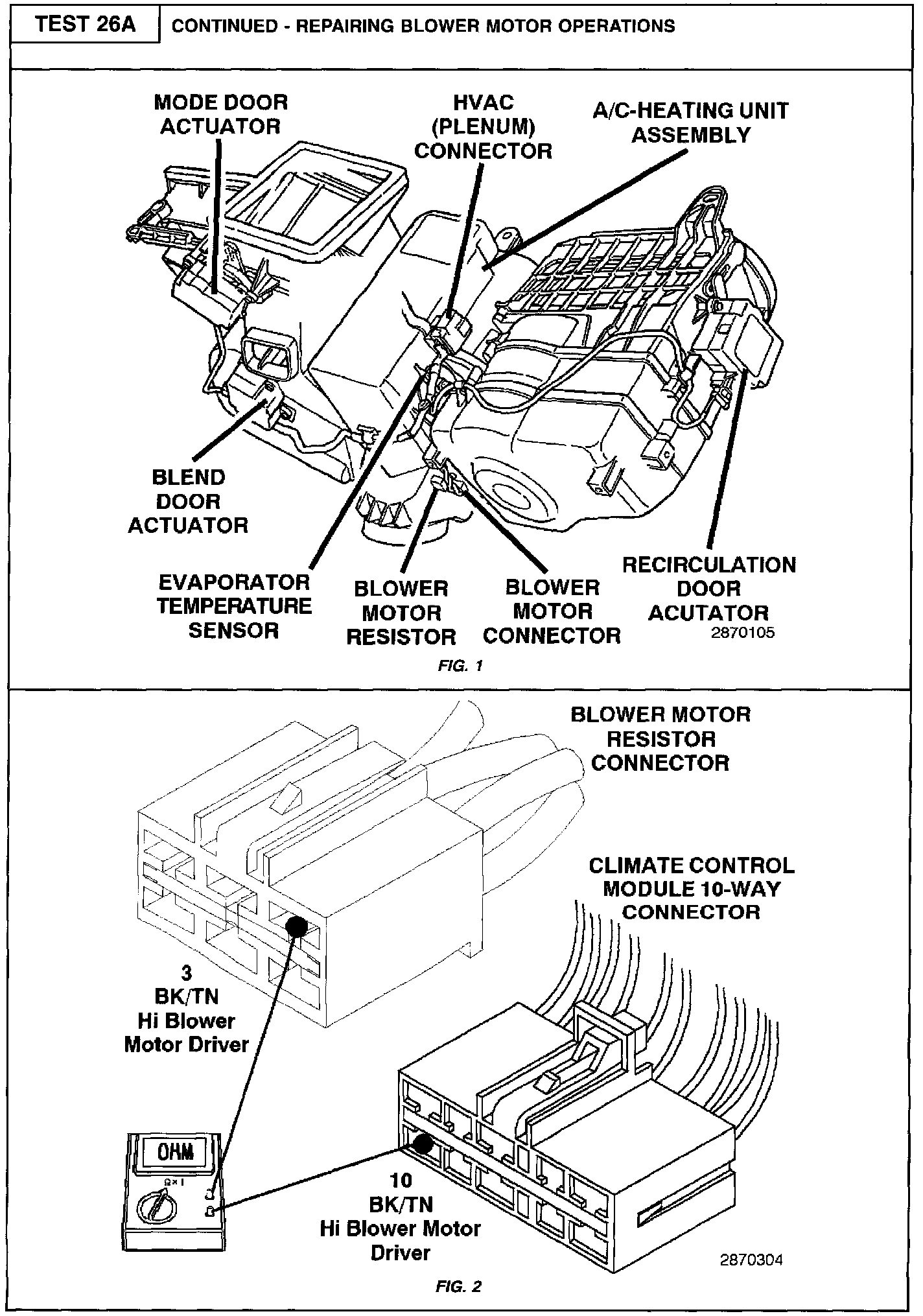

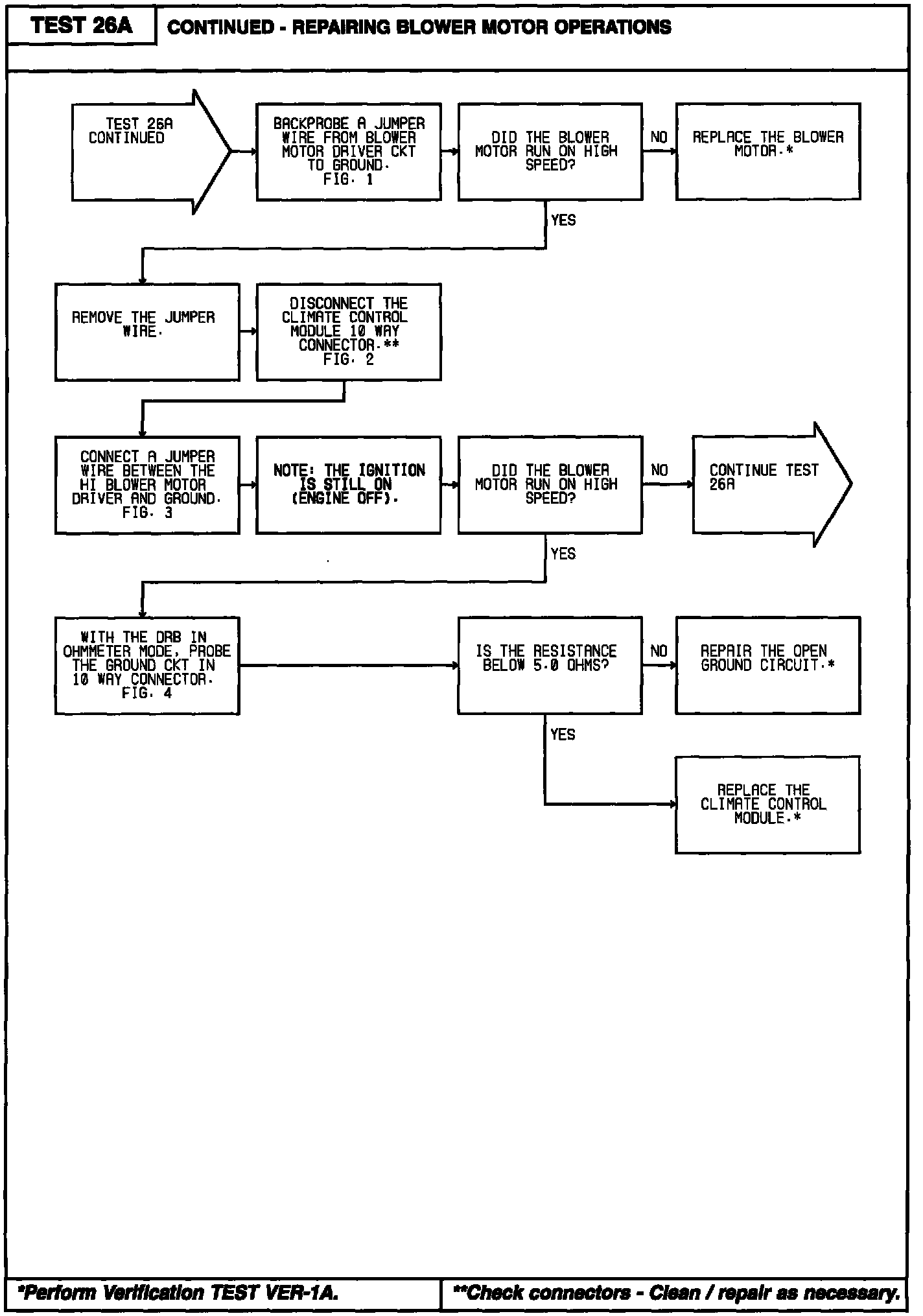

26A Part 2 Of 3:
Related Images:

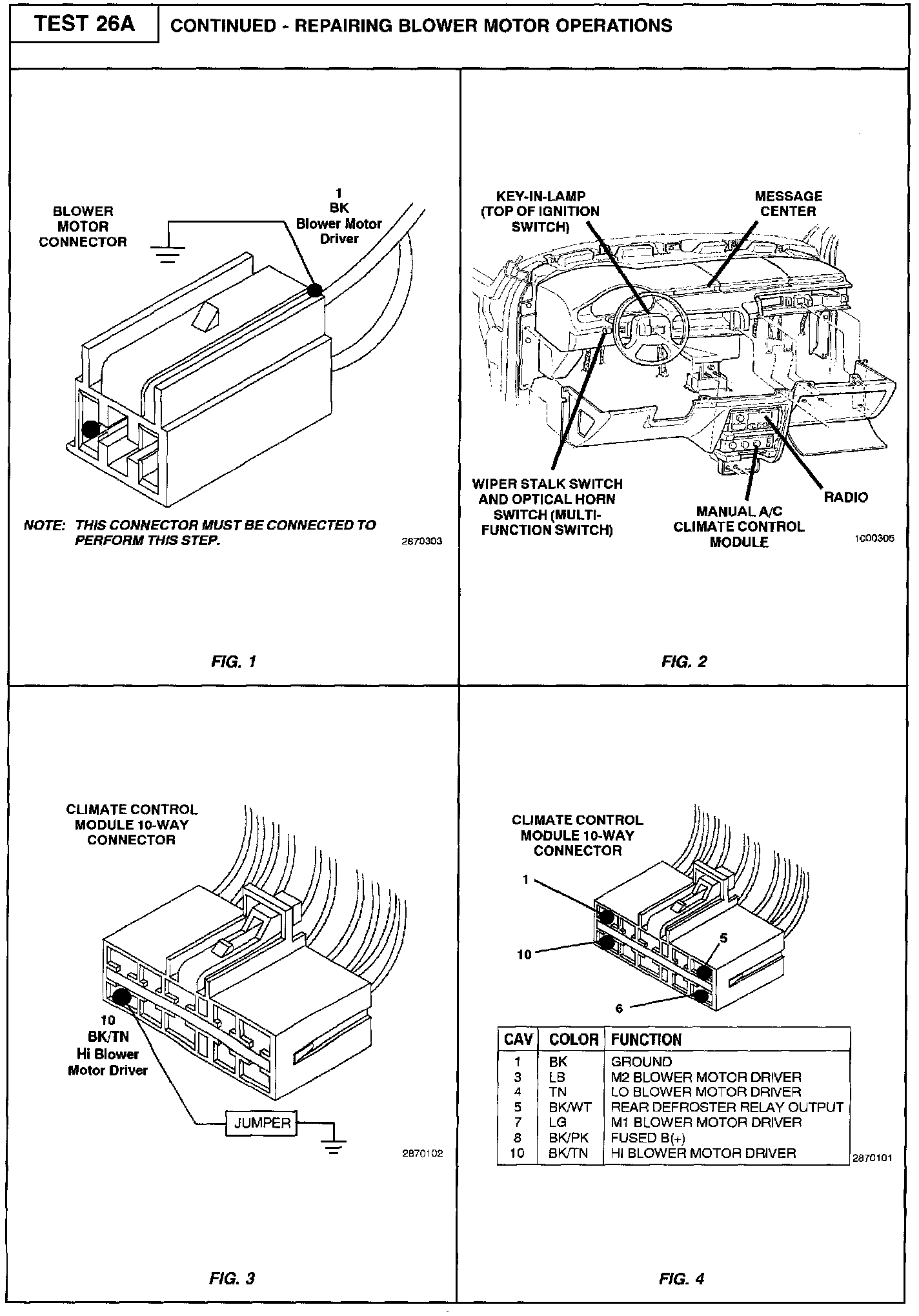

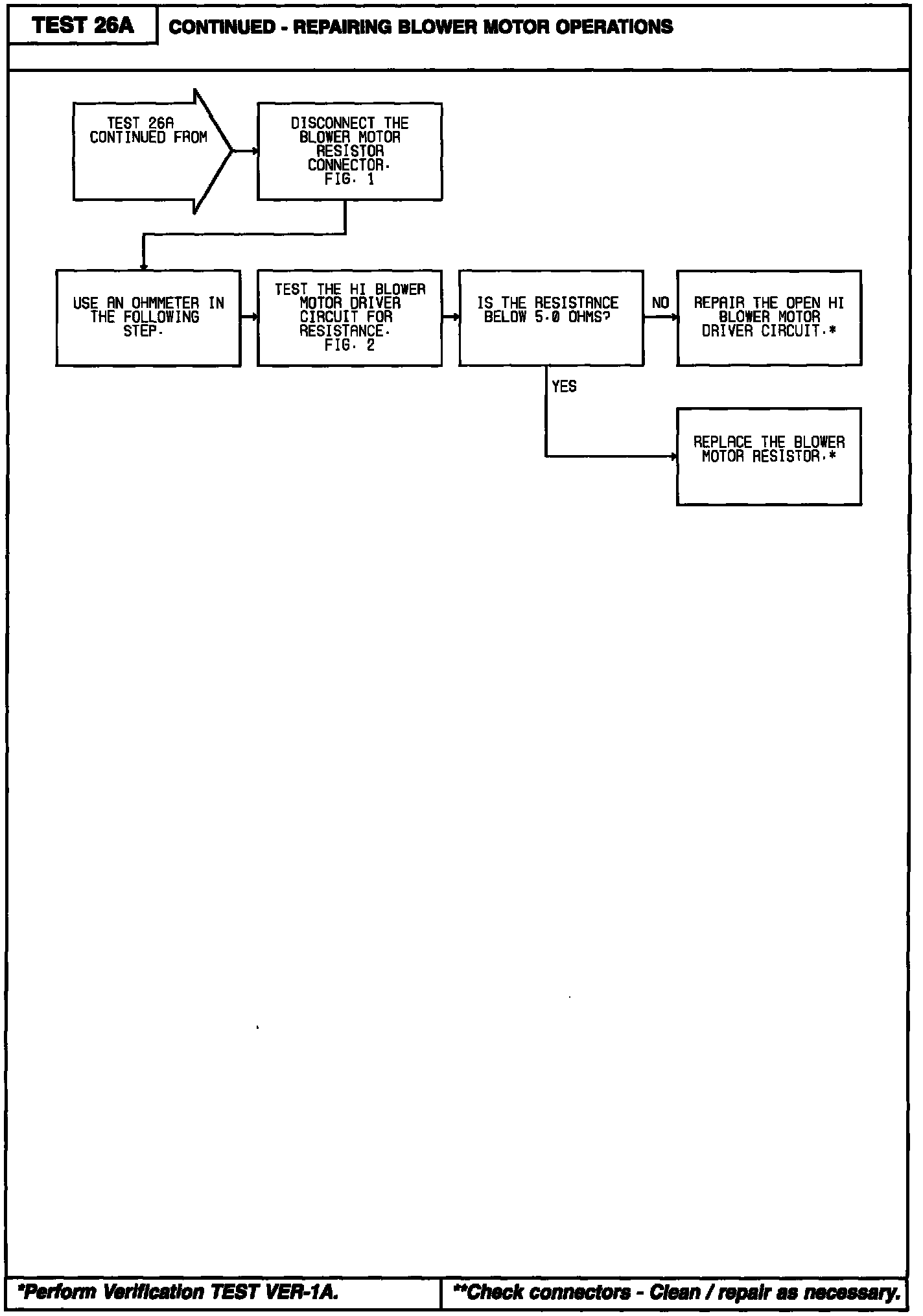

26A Part 3 Of 3:
