Eagle
>>
1995
>>
Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Heating and Air Conditioning
>>
Automatic Temperature Control (ATC) HVAC System
>>
9B ATC In-Car Temperature Sensor
9B ATC In-Car Temperature Sensor
Related Images:

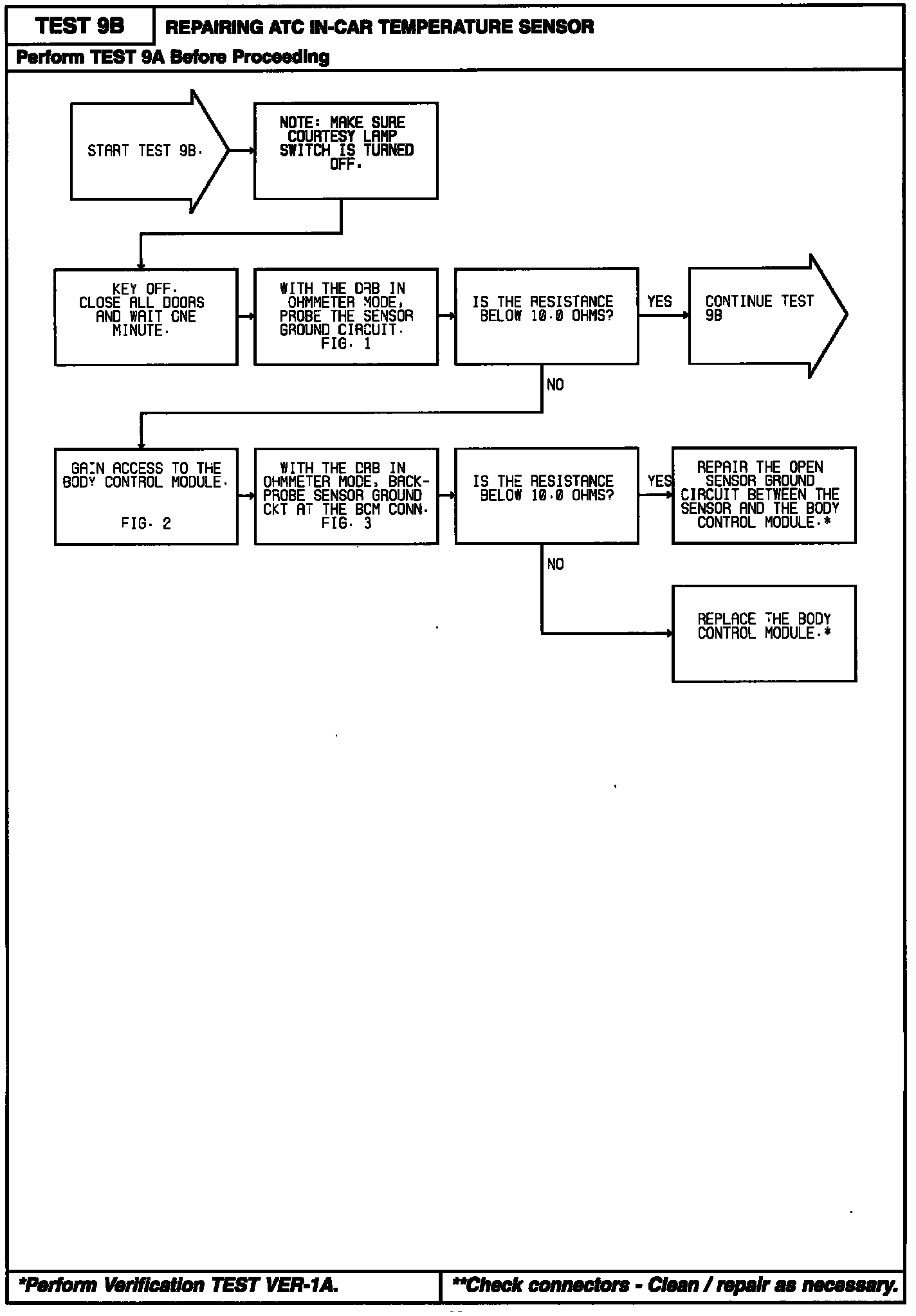

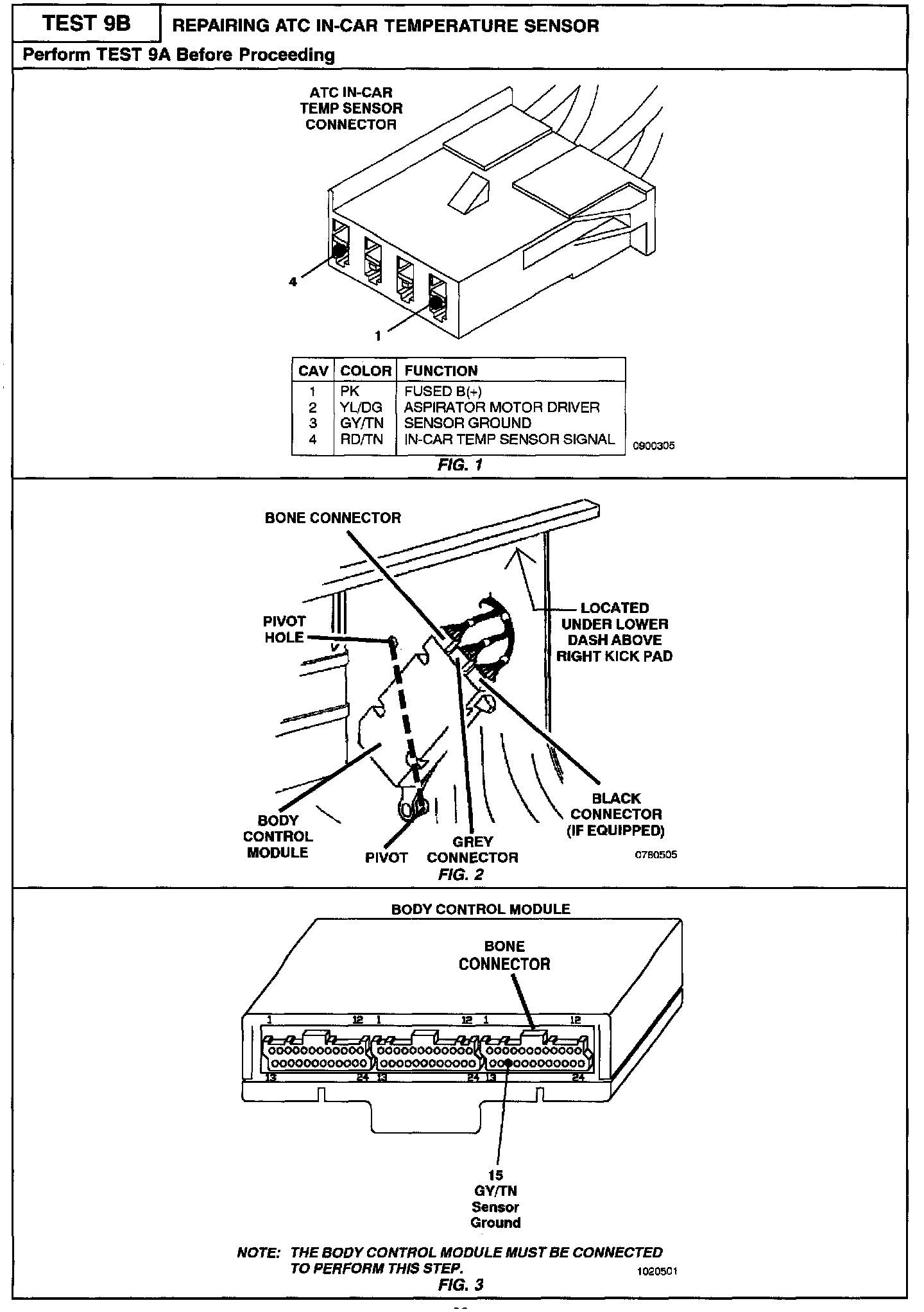

9B Part 1 Of 2:
Related Images:

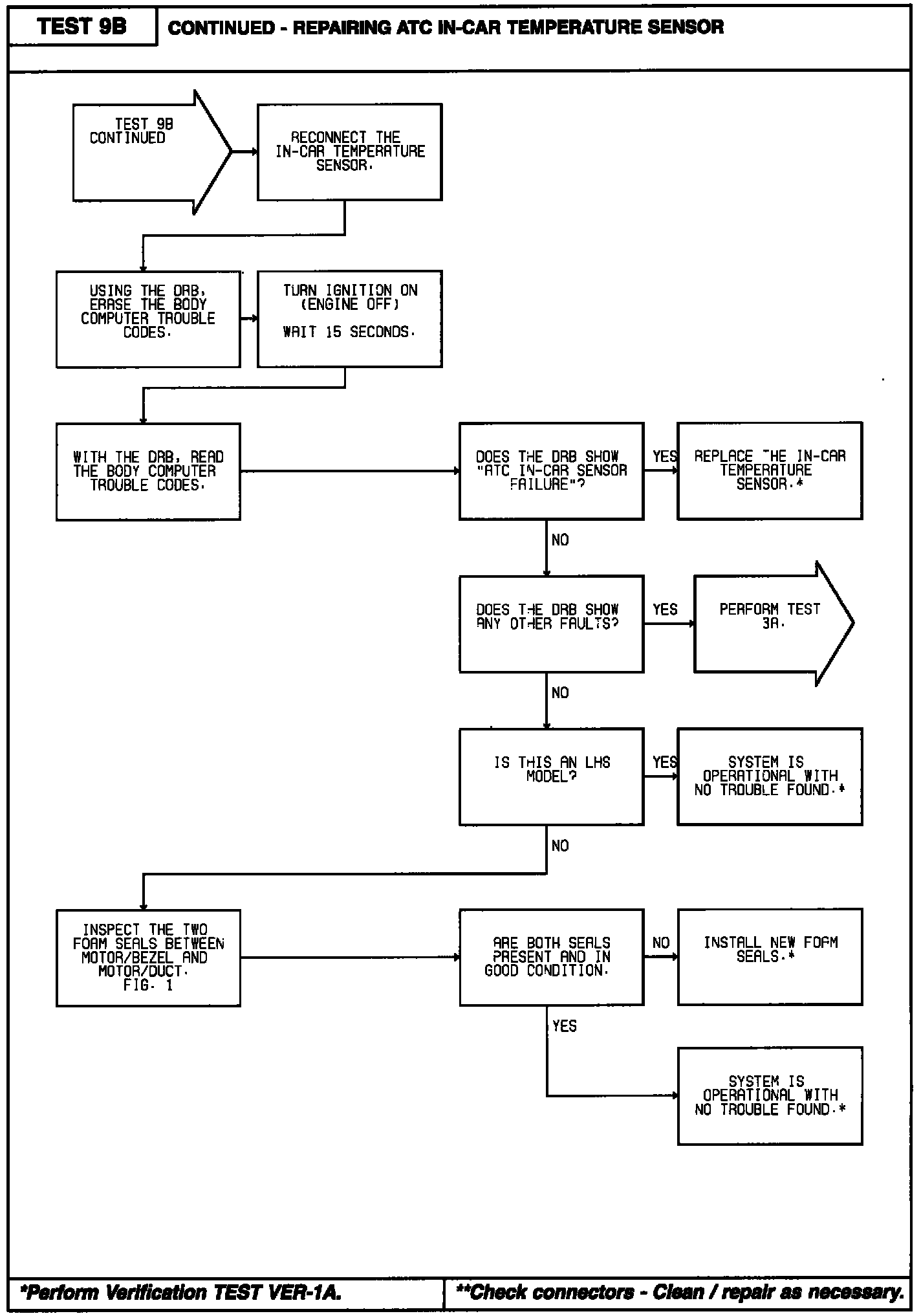

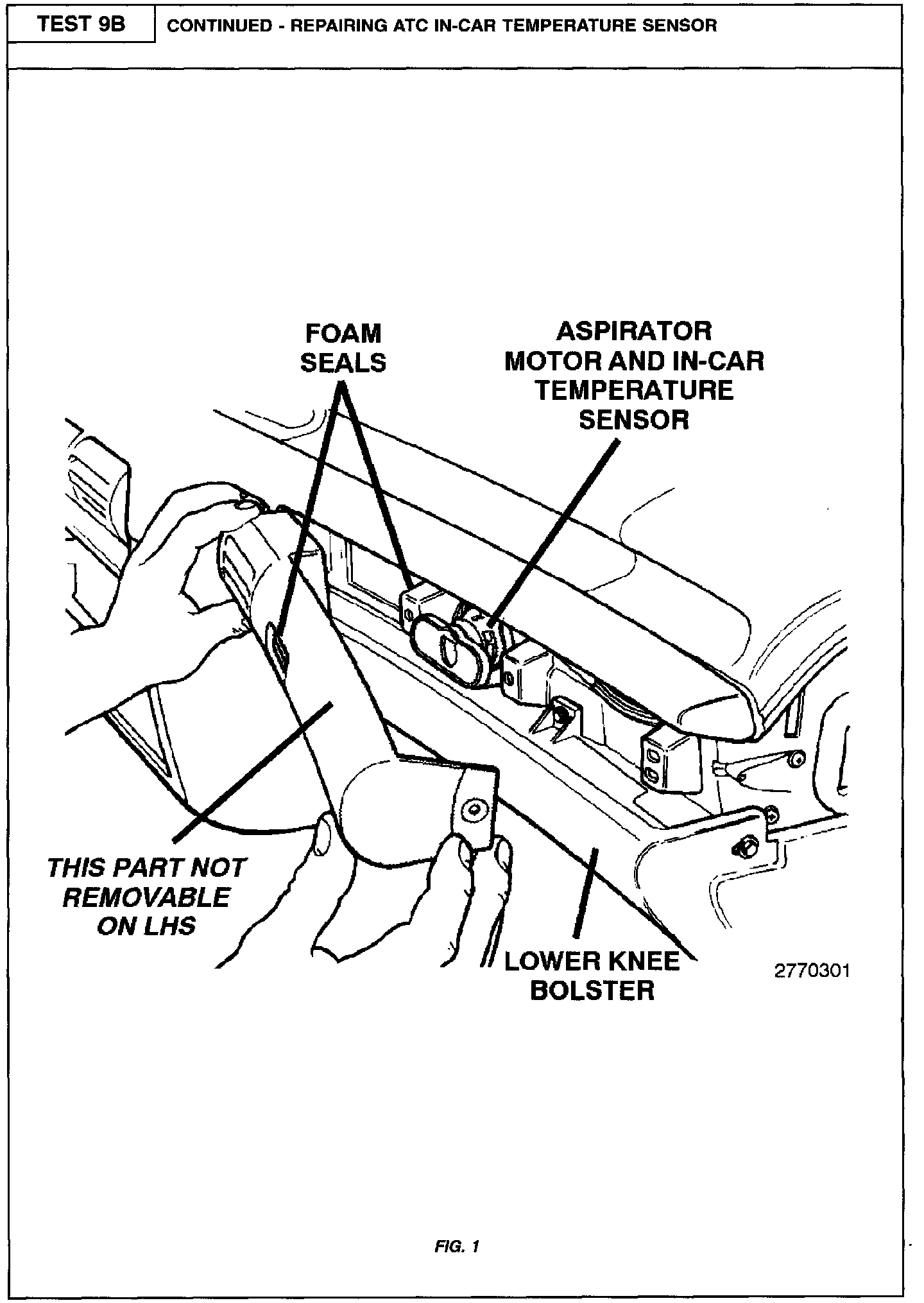

9B Part 2 Of 2:
