Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Heating and Air Conditioning >> Automatic Temperature Control (ATC) HVAC System >> 4A >> Part 1 of 4

Part 1 of 4

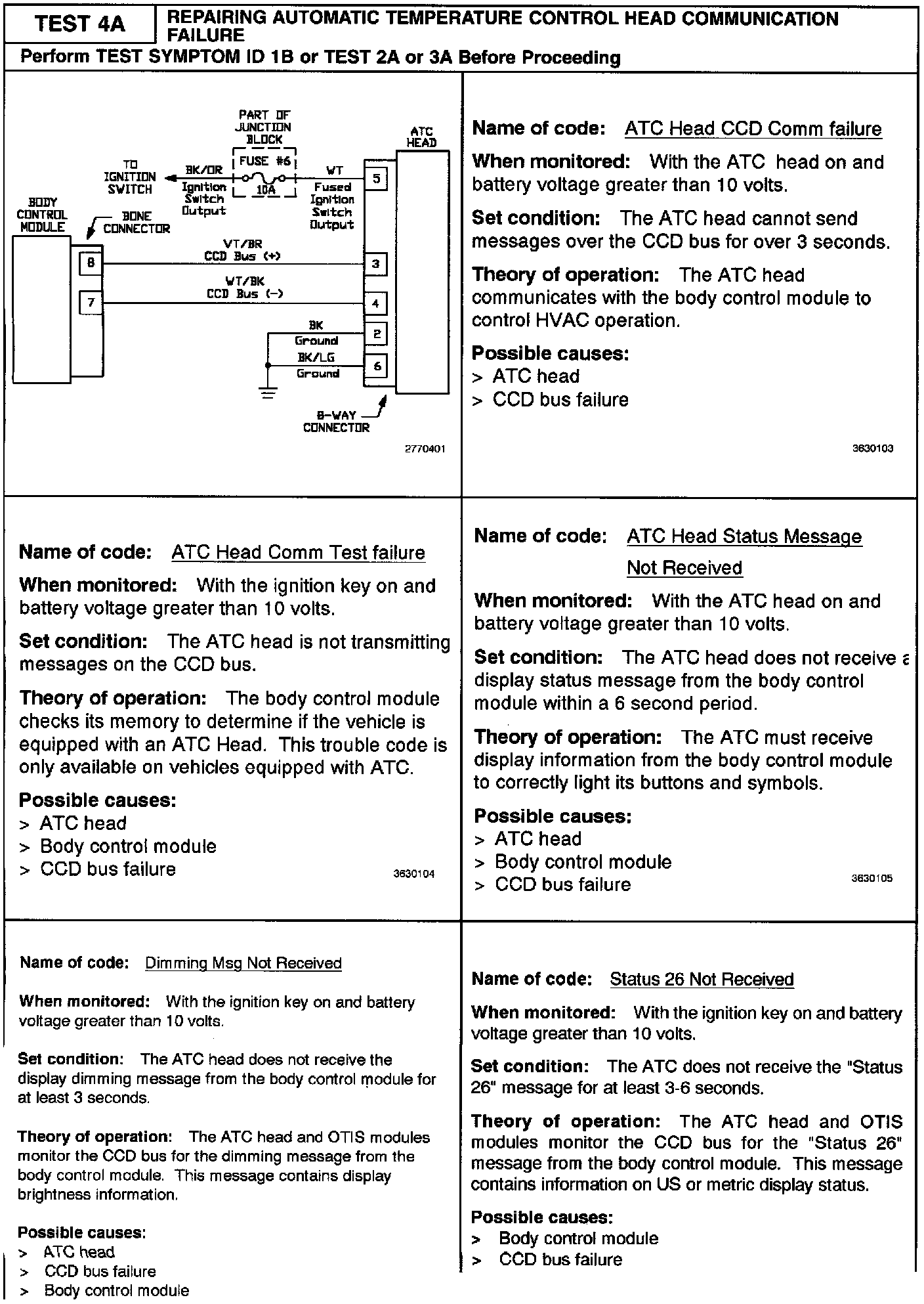

Test 4A:

Test 4A:
