Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Heating and Air Conditioning >> Automatic Temperature Control (ATC) HVAC System >> 23B Inoperative Rear Window Defroster

23B Inoperative Rear Window Defroster

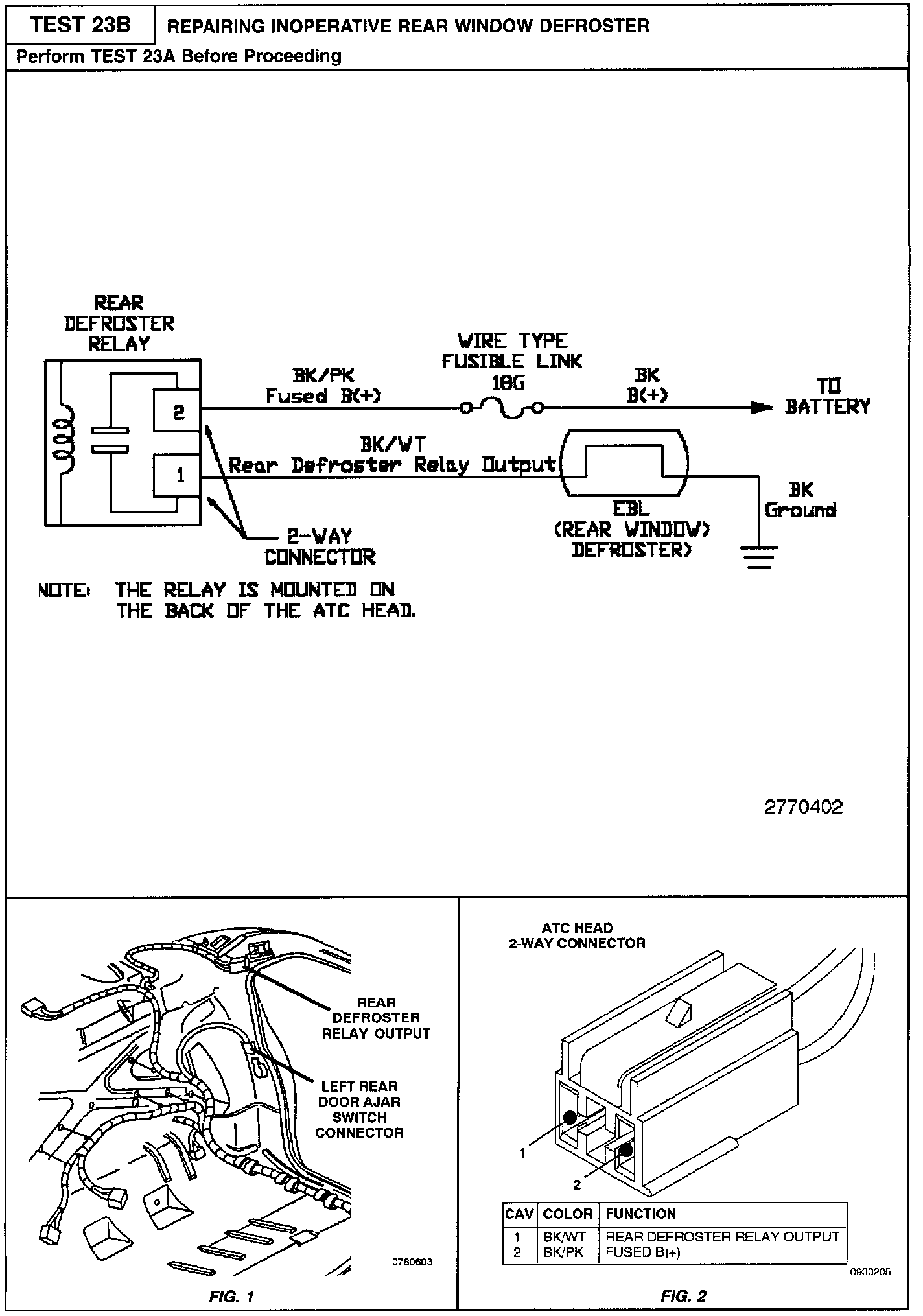

Related Images:

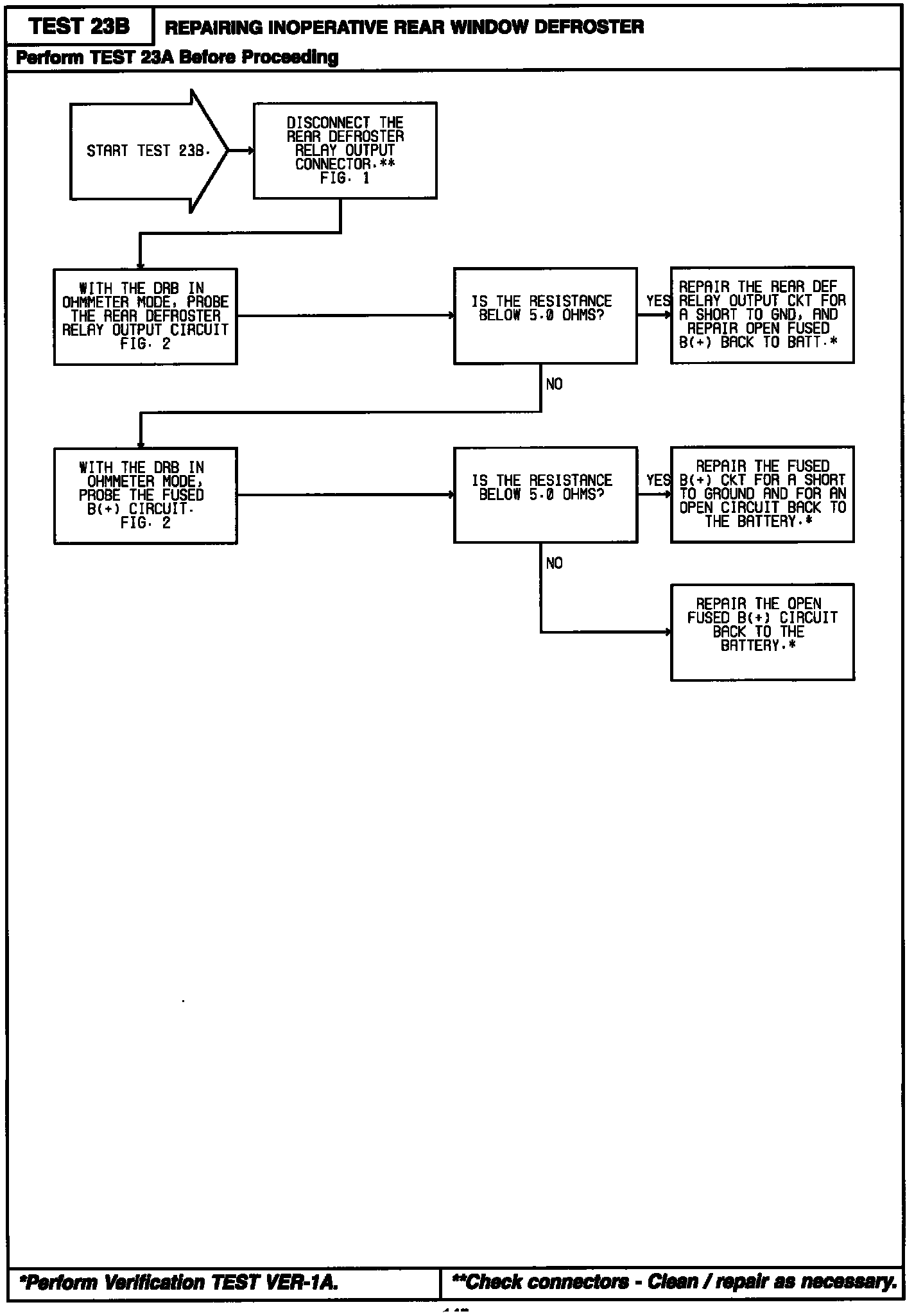

Diagnostic Chart:
