Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Body Control Module >> Power Door Lock Switches >> 93A Inoperative Door Lock Inhibit Circuit

93A Inoperative Door Lock Inhibit Circuit

Related Images:

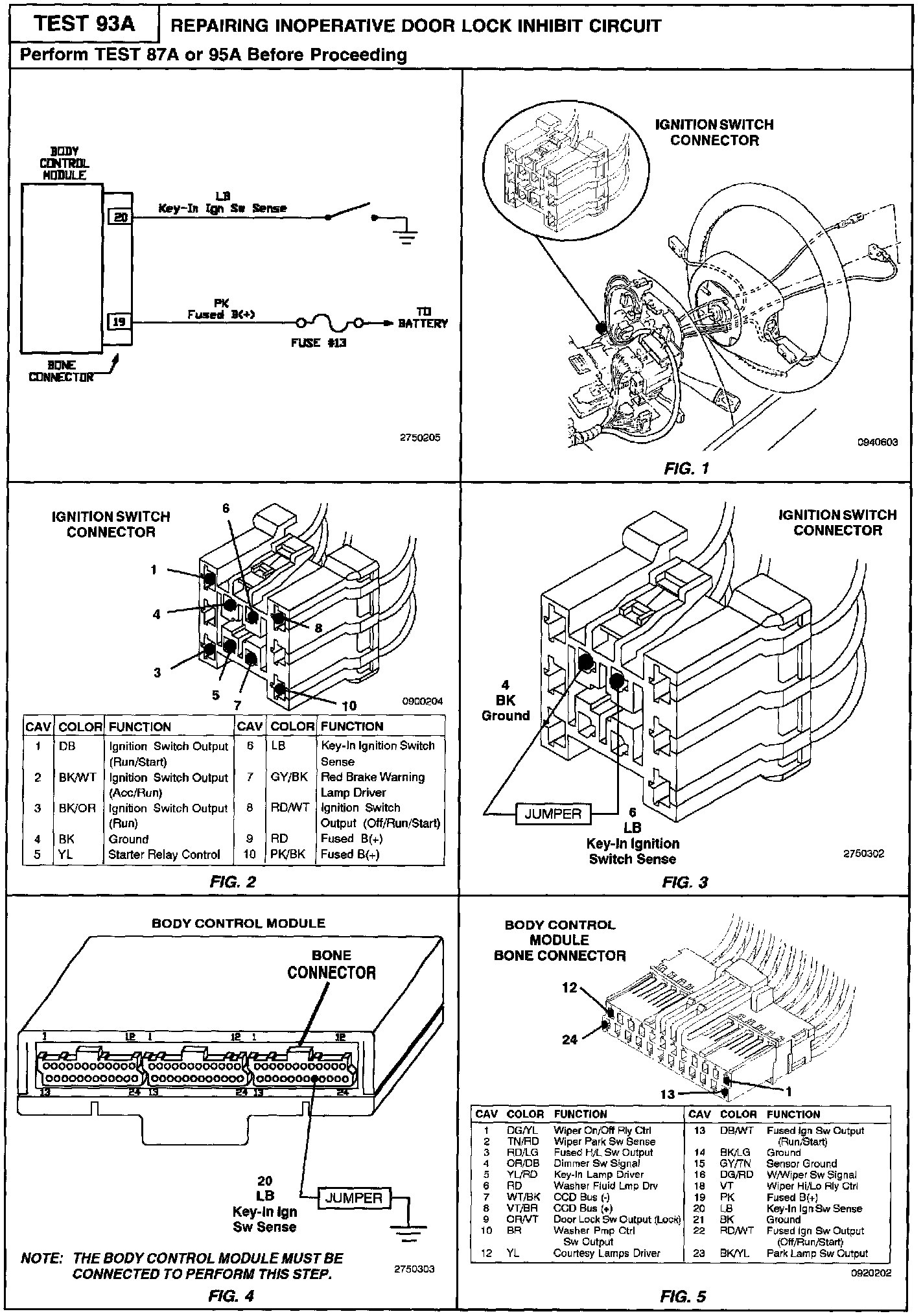

Diagnostic Chart:
